NHW20R-AHEEBQ (2003)
Toyota Prius
Production
Aug 2003
-
Nov 2005
Engine
1NZFXE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0308- )RHD

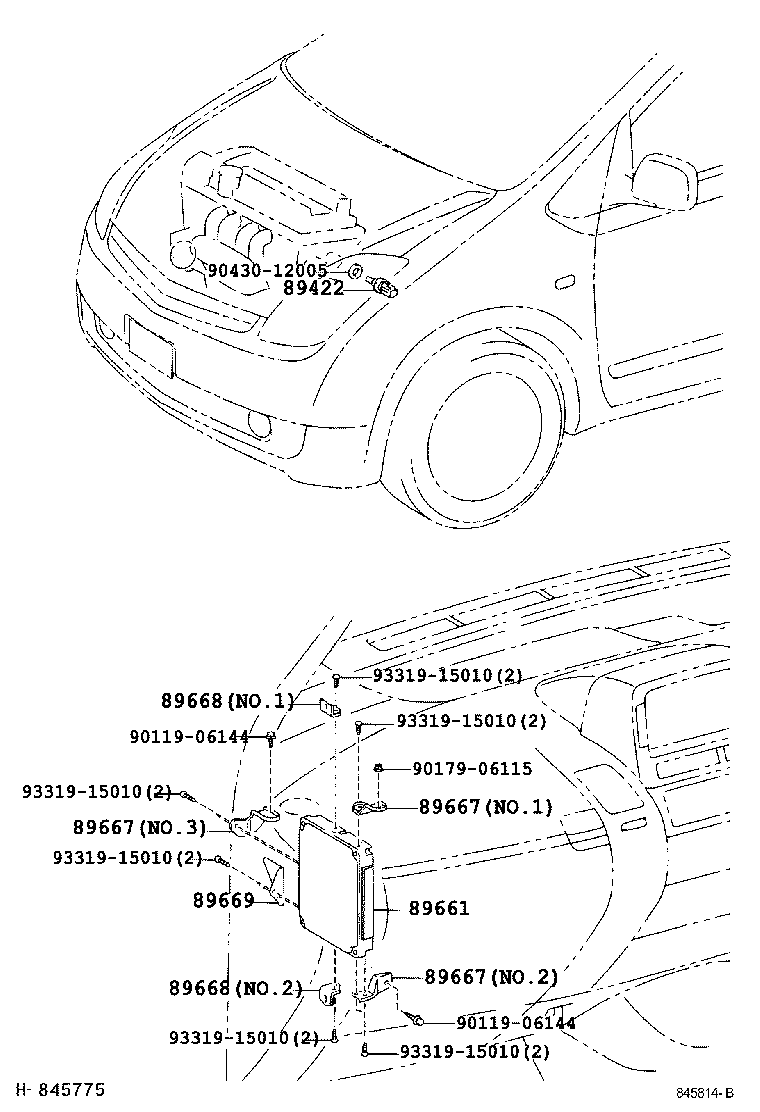

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-33030 |
NHW20 |
1 | ||
| 89661 - COMPUTER, ENGINE CONTROL | ||||
| 89661-47110 |
NHW20..ARL |
1 | ||
| 89661-47060 |
NHW20..ARL |
1 | ||
| 89661-47090 |
NHW20..ARL |
1 | ||
| 89667 - BRACKET, ENGINE CONTROL COMPUTER | ||||
| 89667-47040 |
NHW20..RHD NO.2 |
1 | ||
| 89667-47030 |
NHW20..RHD NO.1 |
1 | ||
| 89667-47030 |
NHW20..RHD NO.1 |
1 | ||
| 89667-47050 |
NHW20..RHD NO.3 |
1 | ||
| 89667-47040 |
NHW20..RHD NO.2 |
1 | ||
| 89667-47050 |
NHW20..RHD NO.3 |
1 | ||
| 89667 - BRACKET, ENGINE CONTROL COMPUTER | ||||
| 89667-47040 |
NHW20..RHD NO.2 |
1 | ||
| 89667-47030 |
NHW20..RHD NO.1 |
1 | ||
| 89667-47030 |
NHW20..RHD NO.1 |
1 | ||
| 89667-47050 |
NHW20..RHD NO.3 |
1 | ||
| 89667-47040 |
NHW20..RHD NO.2 |
1 | ||
| 89667-47050 |
NHW20..RHD NO.3 |
1 | ||
| 89667 - BRACKET, ENGINE CONTROL COMPUTER | ||||
| 89667-47040 |
NHW20..RHD NO.2 |
1 | ||
| 89667-47030 |
NHW20..RHD NO.1 |
1 | ||
| 89667-47030 |
NHW20..RHD NO.1 |
1 | ||
| 89667-47050 |
NHW20..RHD NO.3 |
1 | ||
| 89667-47040 |
NHW20..RHD NO.2 |
1 | ||
| 89667-47050 |
NHW20..RHD NO.3 |
1 | ||
| 89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-47030 |
NHW20 NO.1 |
1 | ||
| 89668-47040 |
NHW20 NO.2 |
1 | ||
| 89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-47030 |
NHW20 NO.1 |
1 | ||
| 89668-47040 |
NHW20 NO.2 |
1 | ||
| 89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3 | ||||
| 89669-47030 |
NHW20..RHD |
1 | ||
| Common parts | ||||
| 90119-06144 | ||||
| 90179-06115 | ||||
| 90430-12005 | ||||
| 93319-15010 | ||||
