NHW20R-AHEEBQ (2003)

Toyota Prius

Production Aug 2003 - Nov 2005
Engine 1NZFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0308-0511)

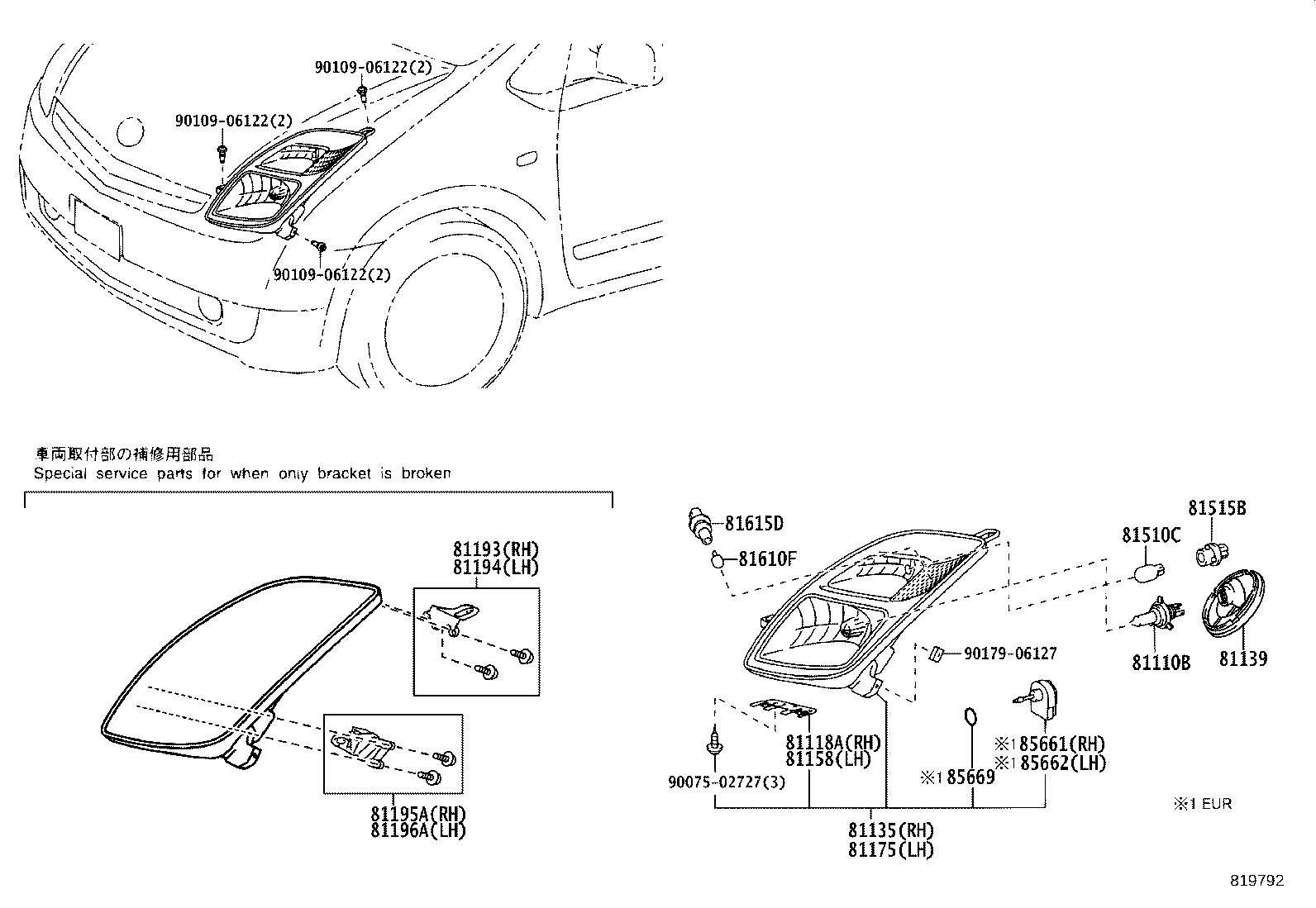

Click highlighted areas on diagram

diagram 81110B 81118A 81135 81139 81158 81175 81193 81194 81195A 81196A 81510C 81515B 81610F 81615D 85661 85662 85669 9007502727 9010906122 9010906122 9010906122 9017906127
Part # Description Qty Price
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13058

NHW20

12V 60/55W,HALOGEN

 2
81118A - BRACKET, HEADLAMP, RH
81118-47060

NHW20

 1
81135 - UNIT ASSY, HEADLAMP, RH
81130-47120

NHW20..ARL

 1
81139 - COVER, HEADLAMP SOCKET
81139-47060

NHW20

 2
81158 - BRACKET, HEADLAMP, LH
81158-47060

NHW20

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-47120

NHW20..ARL

 1
81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193-47020

NHW20

 1
81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194-47020

NHW20

 1
81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH
81195-47020

NHW20

 1
81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH
81196-47020

NHW20

 1
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15011

NHW20

12V 21W,AMBER

 2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-60028

NHW20

 2
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050

NHW20

12V 5W

 2
81615D - SOCKET, CLEARANCE LAMP
90075-60077

NHW20

 2
90075-60046

NHW20

 2
Common parts
90075-02727
90109-06122
90179-06127
