NHW20R-AHEEBQ (2003)
Toyota Prius
Production
Aug 2003
-
Nov 2005
Engine
1NZFXE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

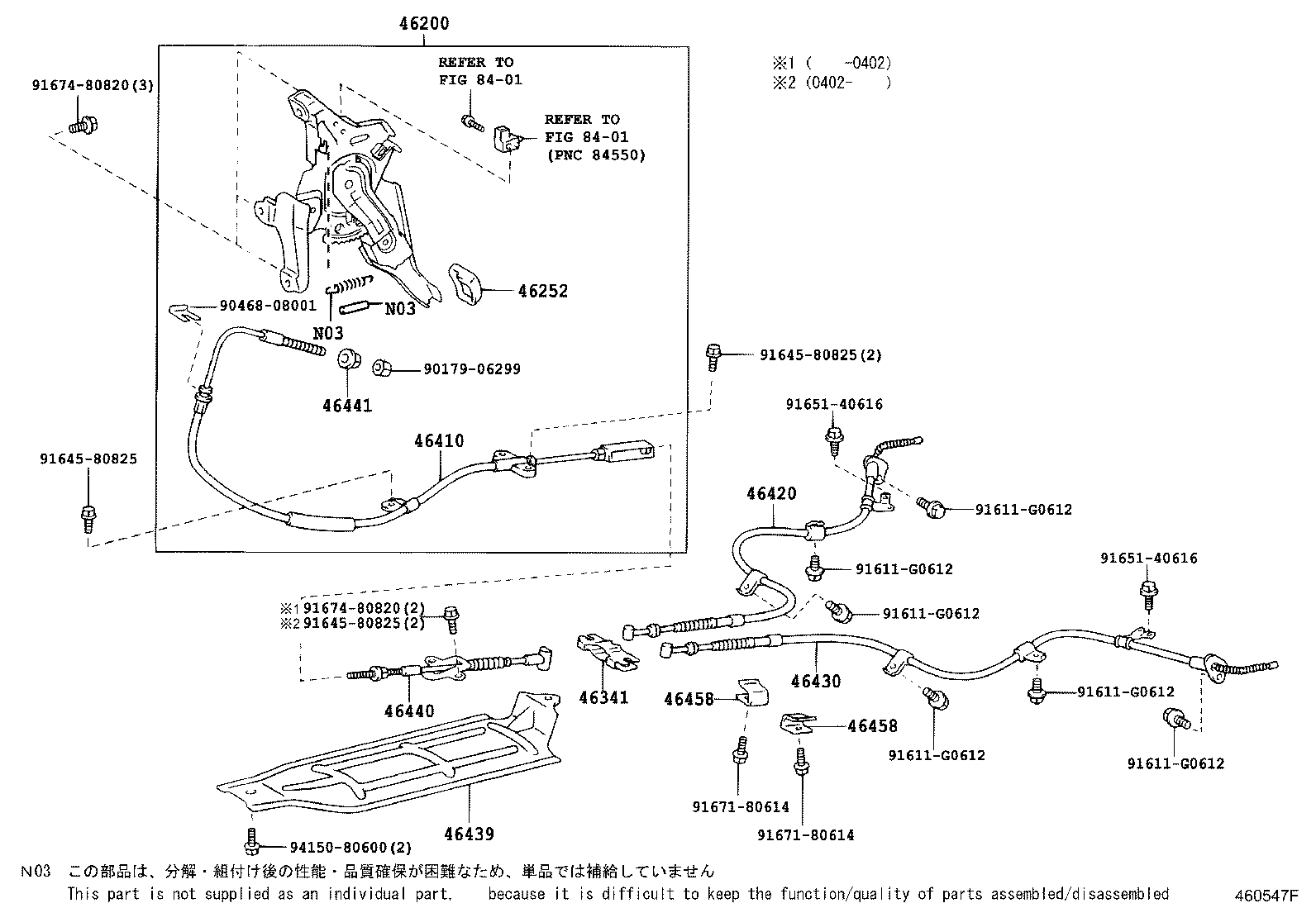

ILLUST NO. 1 OF 2(0308- )RHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46200 - PEDAL ASSY, PARKING BRAKE CONTROL | ||||
| 46200-47040 |
NHW20..RHD |
1 | ||
| 46252 - PAD, PARKING PEDAL | ||||
| 46252-68010 |
NHW20 |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-12020 |
NHW20 |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-47040 |
NHW20..RHD |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-47060 |
NHW20 |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-47060 |
NHW20 |
1 | ||
| 46439 - INSULATOR, PARKING BRAKE CABLE HEAT | ||||
| 46408-63010 |
NHW20 |
1 | ||
| 46440 - CABLE ASSY, PARKING BRAKE, NO.4 | ||||
| 46440-47030 |
NHW20 |
1 | ||
| 46440-47050 |
NHW20 |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-12010 |
NHW20 |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-28010 |
NHW20 |
2 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-28010 |
NHW20 |
2 | ||
| Common parts | ||||
| 90179-06299 | ||||
| 90468-08001 | ||||
| 91611-G0612 | ||||
| 91645-80825 | ||||
| 91651-40616 | ||||
| 91671-80614 | ||||
| 91674-80820 | ||||
| 94150-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||

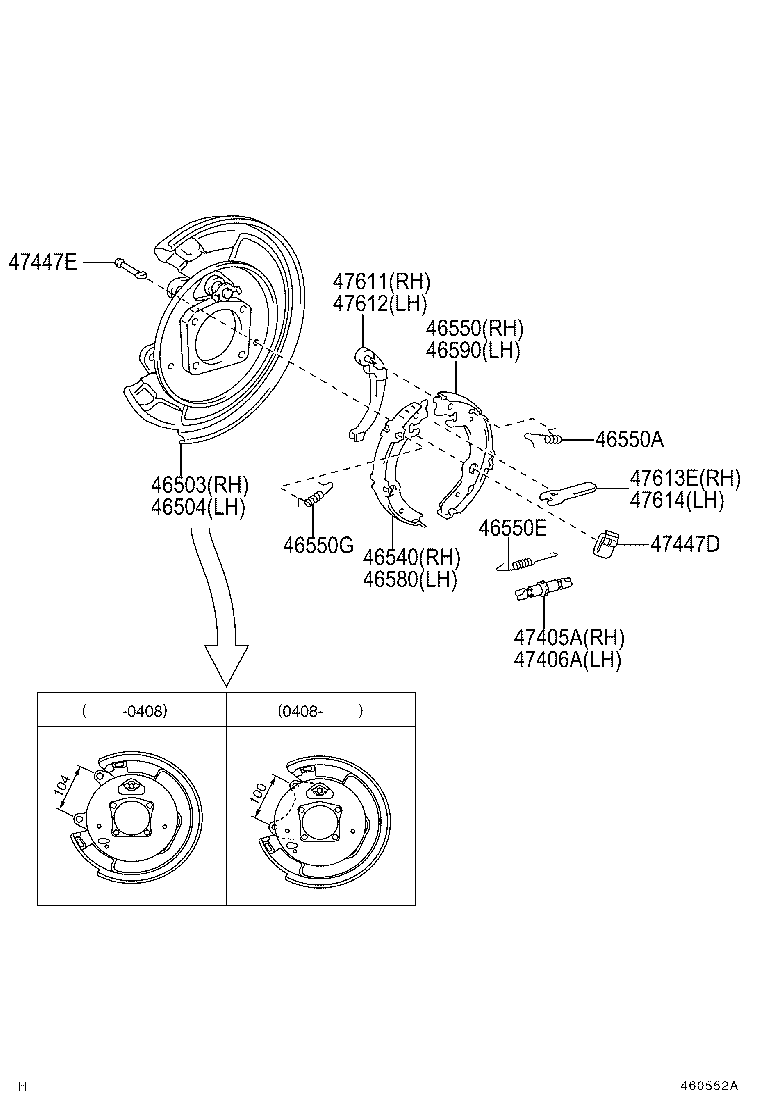

ILLUST NO. 2 OF 2(0308- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46503 - PLATE SUB-ASSY, PARKING BRAKE, RH | ||||
| 46503-20070 |
NHW20 |
1 | ||
| 46503-32020 |
NHW20 |
1 | ||
| 46504 - PLATE SUB-ASSY, PARKING BRAKE, LH | ||||
| 46504-32020 |
NHW20 |
1 | ||
| 46504-20070 |
NHW20 |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46540-20080 |
NHW20 |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46540-20080 |
NHW20 |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90905-06045 |
NHW20 RH |
1 | ||
| 90905-06044 |
NHW20 LH |
1 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90905-06046 |
NHW20 |
2 | ||
| 46550G - SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90905-06043 |
NHW20 |
2 | ||
| 46580 - SHOE ASSY, PARKING BRAKE, LH NO.1 | ||||
| 46540-20080 |
NHW20 |
1 | ||
| 46590 - SHOE ASSY, PARKING BRAKE, LH NO.2 | ||||
| 46540-20080 |
NHW20 |
1 | ||
| 47405A - SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE) | ||||
| 47405-32010 |
NHW20 |
1 | ||
| 47406A - SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE) | ||||
| 47406-32010 |
NHW20 |
1 | ||
| 47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN) | ||||
| 47446-32010 |
NHW20 |
4 | ||
| 47447E - PIN, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47447-11010 |
NHW20 |
4 | ||
| 47611 - LEVER, PARKING BRAKE SHOE, RH | ||||
| 47601-32030 |
NHW20 |
1 | ||
| 47612 - LEVER, PARKING BRAKE SHOE, LH | ||||
| 47602-32030 |
NHW20 |
1 | ||
| 47613E - STRUT, PARKING BRAKE SHOE, RH | ||||
| 47613-32030 |
NHW20 |
1 | ||
| 47614 - STRUT, PARKING BRAKE SHOE, LH | ||||
| 47613-32030 |
NHW20 |
1 | ||
