NHW11R-AEEEBW (2000)

Toyota Prius

Production May 2000 - Aug 2003
Engine 1NZFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0005- )

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121 9009914122
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122

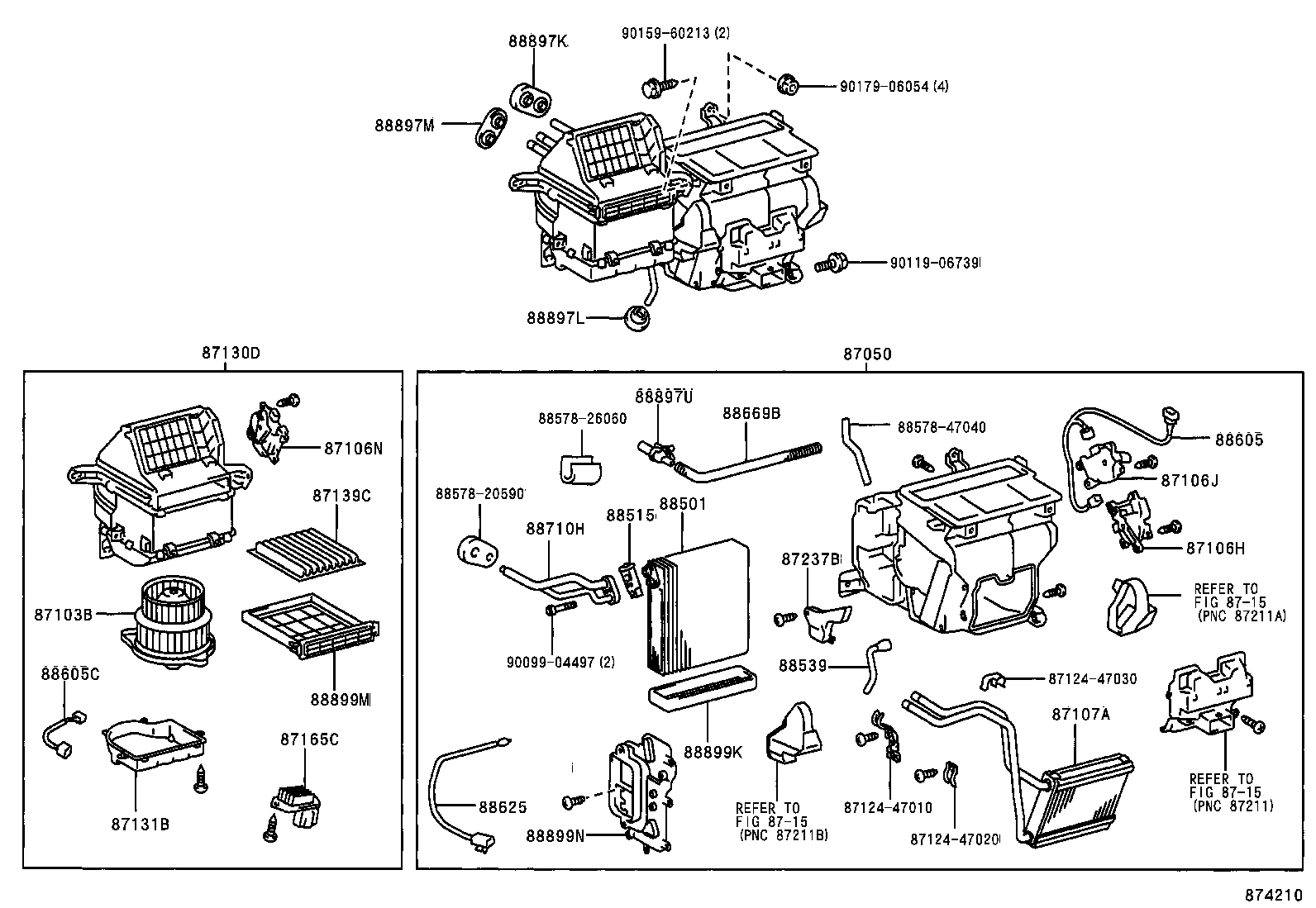

ILLUST NO. 1 OF 2(0005- )RHD

Click highlighted areas on diagram

diagram 87050 87103B 87106H 87106J 87106N 87107A 8712447010 8712447020 8712447030 87130D 87131B 87139C 8715 8715 8715 87165C 87237B 88501 88515 88539 8857820590 8857826060 8857847040 88605 88605C 88625 88669B 88710H 88897K 88897L 88897M 88897U 88899K 88899M 88899N 9009904497 9011906739 9015960213 9017906054
Part # Description Qty Price
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-47030

NHW11..RHD

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-47010

NHW11..RHD

 1
87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106-47050

NHW11..RHD

 1
87106J - SERVO SUB-ASSY, DAMPER(FOR MODE)
87106-20390

NHW11..RHD

 1
87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)
87106-47080

NHW11..RHD

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-47010

NHW11..RHD

 1
87130D - BLOWER ASSY
87130-47040

NHW11..RHD

 1
87131B - CASE, HEATER BLOWER
87131-47010

NHW11..RHD

 1
87139C - FILTER, CLEAN AIR
87139-47010

NHW11

 1
87165C - CONTROL, BLOWER MOTOR
87165-47010

NHW11

 1
87237B - COVER, HEATER PIPING
87237-20010

NHW11..RHD

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-47010

NHW11..RHD

 1
88515 - VALVE, COOLER EXPANSION
88515-47020

NHW11

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-47010

NHW11..RHD

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-47030

NHW11

 1
88605C - HARNESS SUB-ASSY, COOLER WIRING, NO.2
88605-47040

NHW11

 1
88625 - THERMISTOR, COOLER, NO.1
88625-20510

NHW11

 1
88669B - HOSE, COOLER AIR
88669-20160

NHW11

 1
88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-47010

NHW11..RHD

 1
88897K - GROMMET, (FOR COOLER PIPE)
88897-12240

NHW11

 1
88897L - GROMMET (FOR DRAIN HOSE)
90099-32129

NHW11

 1
88897M - GROMMET (FOR HEATER PIPE)
90480-01405

NHW11

 1
88897U - PIPE, ASPIRATOR
88897-32090

NHW11

 1
88899K - PLATE, COVER
88899-47030

NHW11

 1
88899M - PLATE, COVER(FOR AIR FILTER)
88899-47010

NHW11

 1
88899N - PLATE, COVER
88899-47020

NHW11..RHD

 1
Common parts
87124-47010
87124-47020
87124-47030
88578-20590
88578-26060
88578-47040
90099-04497
90119-06739
90159-60213
90179-06054
