NHW11R-AEEEBW (2000)

Toyota Prius

Production May 2000 - Aug 2003
Engine 1NZFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0005- )

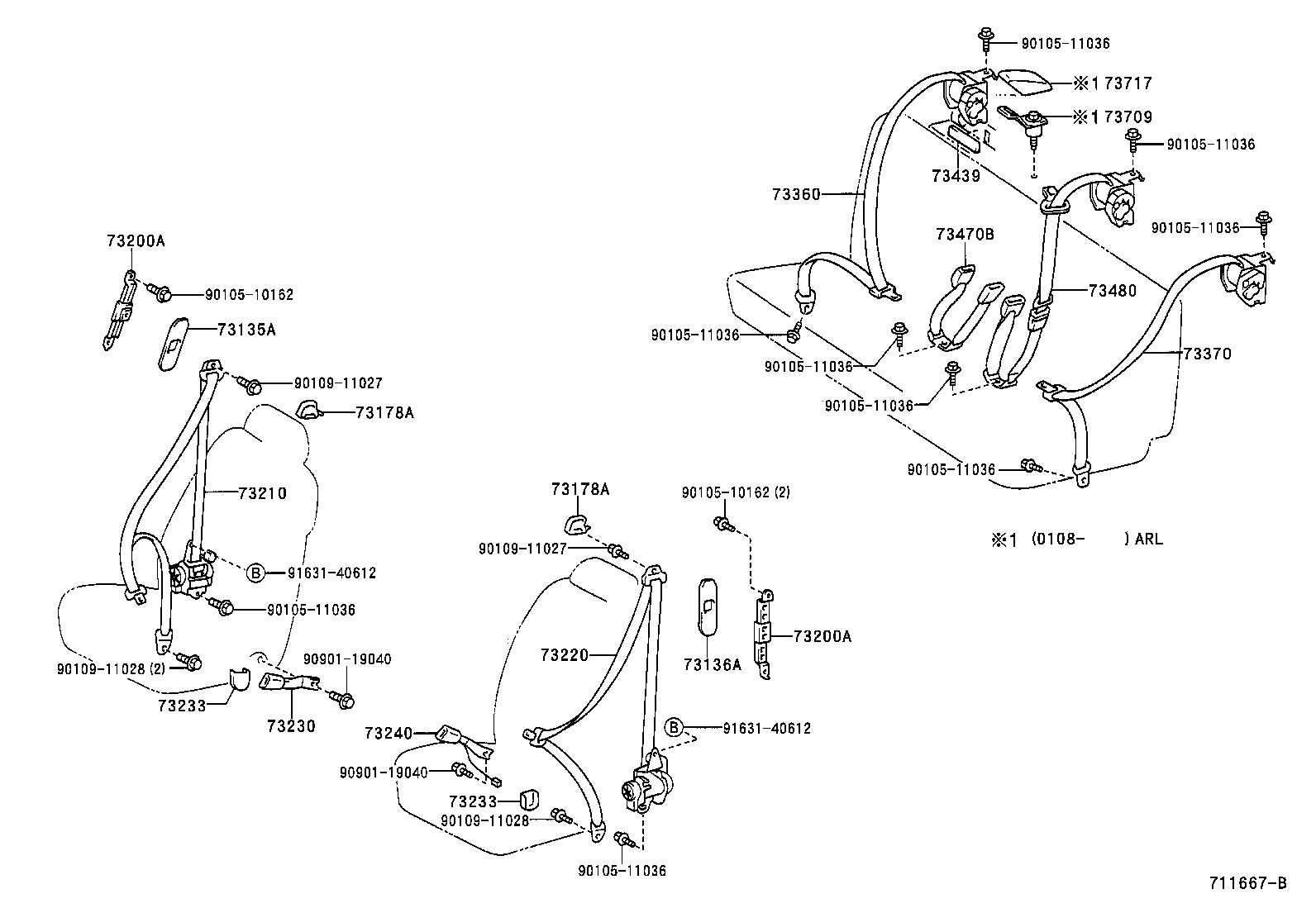

Click highlighted areas on diagram

diagram 73135A 73136A 73178A 73178A 73200A 73200A 73210 73220 73230 73233 73233 73240 73360 73370 73439 73470B 73480 73709 73717 9010510162 9010510162 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 9010911027 9010911027 9010911028 9010911028 9090119040 9090119040 9163140612 9163140612
Part # Description Qty Price
73135A - COVER, SHOULDER BELT ANCHOR, RH
73135-12030B6

NHW11

LT.AMETHYST,TRIM9#

 1
73136A - COVER, SHOULDER BELT ANCHOR, LH
73135-12030B6

NHW11

LT.AMETHYST,TRIM9#

 1
73178A - CAP, SEAT BELT ANCHOR COVER
73178-33020B7

NHW11

LT.AMETHYST,TRIM9#

 2
73178A - CAP, SEAT BELT ANCHOR COVER
73178-33020B7

NHW11

LT.AMETHYST,TRIM9#

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-12050B5

NHW11

LT.AMETHYST,TRIM9#

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-12050B5

NHW11

LT.AMETHYST,TRIM9#

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-47021B0

NHW11

SHADOW GRAY,TRIM9#

 1
73210-47020B0

NHW11

SHADOW GRAY,TRIM9#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-47030B0

NHW11

SHADOW GRAY,TRIM9#

 1
73220-47031B0

NHW11

SHADOW GRAY,TRIM9#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-47020B0

NHW11..EUR

AMETHYST,TRIM9#

 1
73230-47060B0

NHW11..RHD..EUR

HONG KONG OR SINGAPORE SPEC,AMETHYST,TRIM9#

 1
73233 - COVER, LAP BELT OUTER ANCHOR
73233-33010C0

NHW11

BLACK,TRIM9#

 2
73233 - COVER, LAP BELT OUTER ANCHOR
73233-33010C0

NHW11

BLACK,TRIM9#

 2
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-47020B0

NHW11

AMETHYST,TRIM9#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-47031B0

NHW11

SHADOW GRAY,TRIM9#

 1
73360-47030B0

NHW11

SHADOW GRAY,TRIM9#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73360-47031B0

NHW11

SHADOW GRAY,TRIM9#

 1
73360-47030B0

NHW11

SHADOW GRAY,TRIM9#

 1
73439 - CUSHION, REAR SEAT BELT RETRACTOR
73439-12040

NHW11

 3
73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH
73470-47030B0

NHW11

SHADOW GRAY,TRIM9#

 1
73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH
73480-47031B0

NHW11..EUR

SHADOW GRAY,TRIM9#

 1
73480-47030B0

NHW11

SHADOW GRAY,TRIM9#

 1
Common parts
90105-10162
90105-11036
90109-11027
90109-11028
90901-19040
91631-40612
