NHW11L-AEEEBW (2000)

Toyota Prius

Production May 2000 - Aug 2003
Engine 1NZFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0005- )

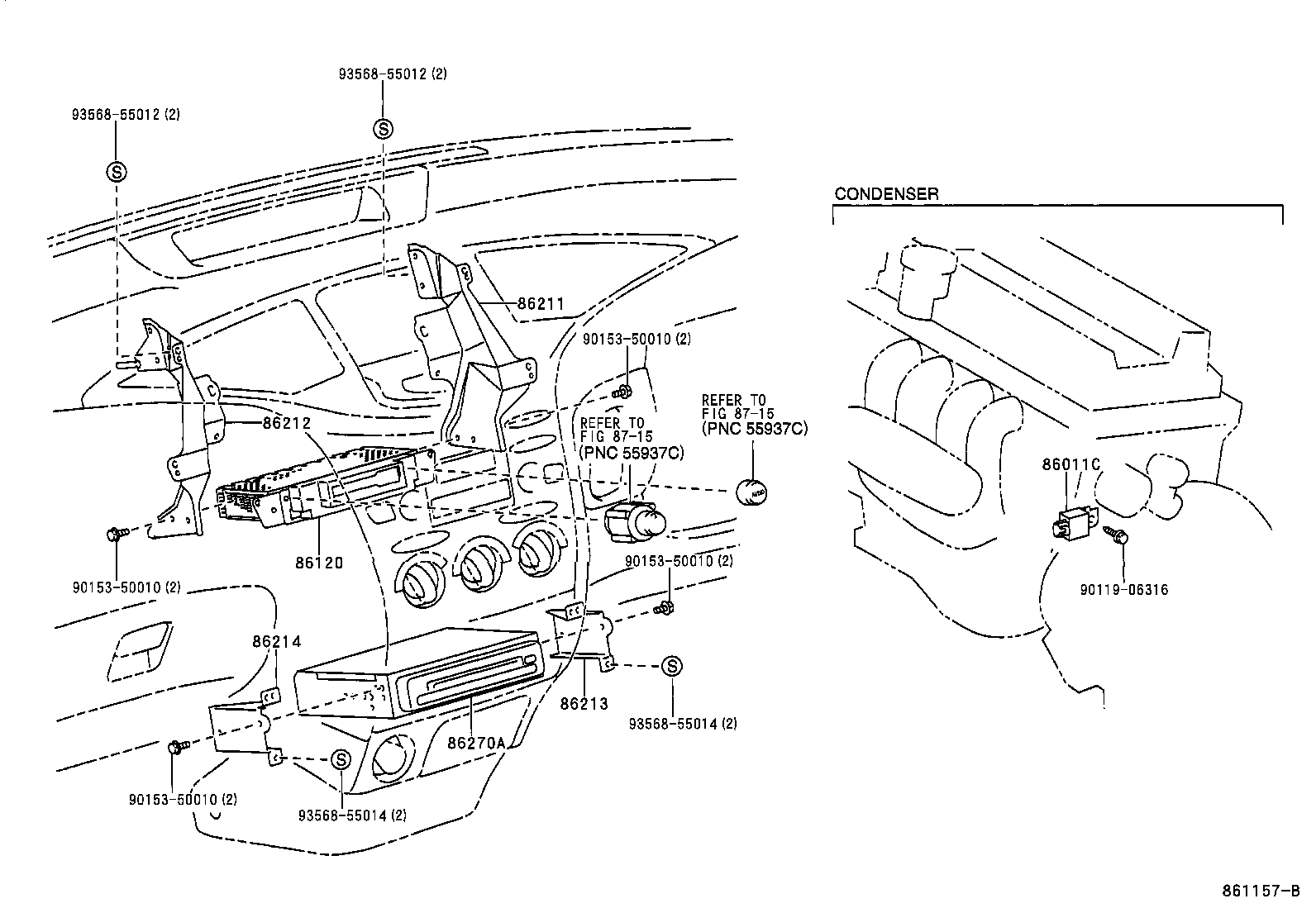

Click highlighted areas on diagram

diagram 86011C 86120 86211 86212 86213 86214 86270A 8715 8715 9011906316 9015350010 9015350010 9015350010 9015350010 9356855012 9356855012 9356855014 9356855014
Part # Description Qty Price
86011C - FILTER, NOISE
90980-04077

NHW11

 1
86120 - RECEIVER ASSY, RADIO
86120-47040

NHW11

FUJITSU TEN

 1
86211 - BRACKET, RADIO, NO.1
86211-47030

NHW11

 1
86212 - BRACKET, RADIO, NO.2
86212-47030

NHW11

 1
Common parts
90119-06316
90153-50010
93568-55012
93568-55014
Linked diagrams
8715
