Toyota Prius(plug-in hbd) ZVW35 NAVIGATION & FRONT MONITOR DISPLAY

Part #	Description	Period	Qty
86140A - RECEIVER ASSY, RADIO & DISPLAY
86140-47100	ZVW35 PANASONIC,ID=57038	01/2012 - 10/2013	1
86271 - DISC, DISC PLAYER
86807-06010	ZVW35	10/2013 - 09/2014	1
86807-30120	ZVW35 AUDIO-AVN *BT USB JBL 8SPEAKER	09/2012 - 08/2013	1
86807-06010	ZVW35 AUDIO-AVN *BT USB JBL 8SPEAKER	09/2013 - 10/2013	1
86807-06011	ZVW35	10/2014 - 06/2015	1
86271L - HARD DISC
86271-33160	ZVW35 PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SEAT COVER MATERIAL-NATURAL LEATHER	01/2012 - 04/2012	1
86271-33162	ZVW35	10/2013 - 08/2014	1
86271-33163	ZVW35	09/2014 - 06/2015	1
86271-33162	ZVW35 AUDIO-AVN *BT USB JBL 8SPEAKER	09/2013 - 10/2013	1
86271-33160	ZVW35 AUDIO-AVN *BT USB JBL 8SPEAKER	04/2012 - 08/2012	1
86271-33161	ZVW35 AUDIO-AVN *BT USB JBL 8SPEAKER	09/2012 - 08/2013	1
86730A - MICROPHONE ASSY, TELEPHONE
86730-28040	ZVW35	01/2012 - 06/2015	1
86804A - SUB-ASSY, NAVIGATION COMPUTER
86804-47150	ZVW35 AUDIO-AVN *BT USB JBL 8SPEAKER	04/2012 - 10/2013	1
86804-47150	ZVW35 PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SEAT COVER MATERIAL-NATURAL LEATHER	01/2012 - 04/2012	1
86804-47150	ZVW35	10/2013 - 06/2015	1
86860 - ANTENNA ASSY, NAVIGATION
86860-47070	ZVW35	10/2013 - 06/2015	1
86860-47070	ZVW35 AUDIO-AVN *BT USB JBL 8SPEAKER	05/2012 - 10/2013	1
86860-47070	ZVW35 PRE-COLLISION SYSTEM-WITH(WITH/PB & OFF SWITCH)&SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-AVN BT USB JBL 8SPEAKER	01/2012 - 05/2012	1
Common parts
90153-50010
93568-55014

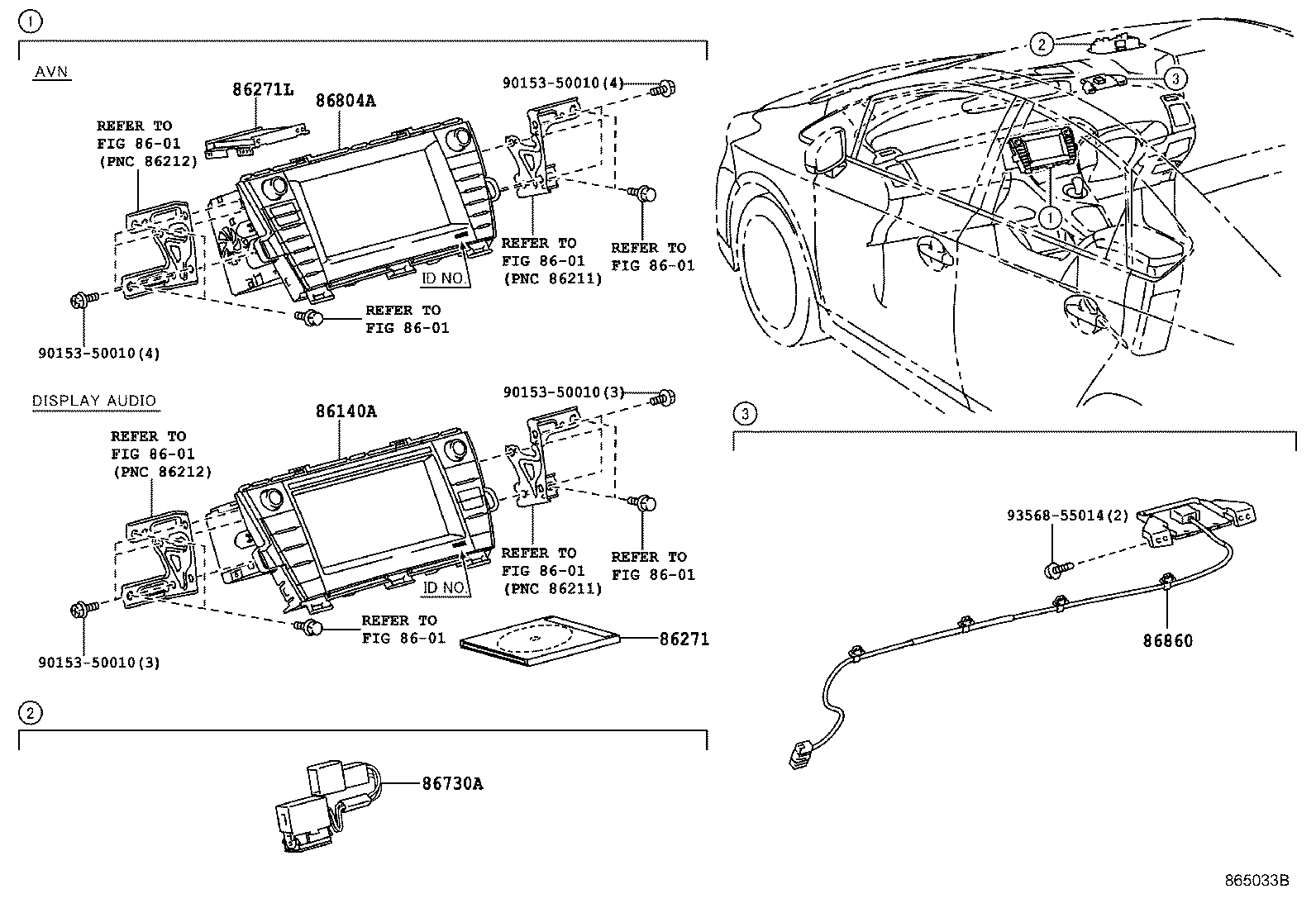

Linked diagrams
8601

ZVW35R-BHXEBQ (2012)
