TCR21R-RFMGKQ (1990)
Toyota Previa
Production
May 1990
-
Aug 1991
Engine
2TZFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

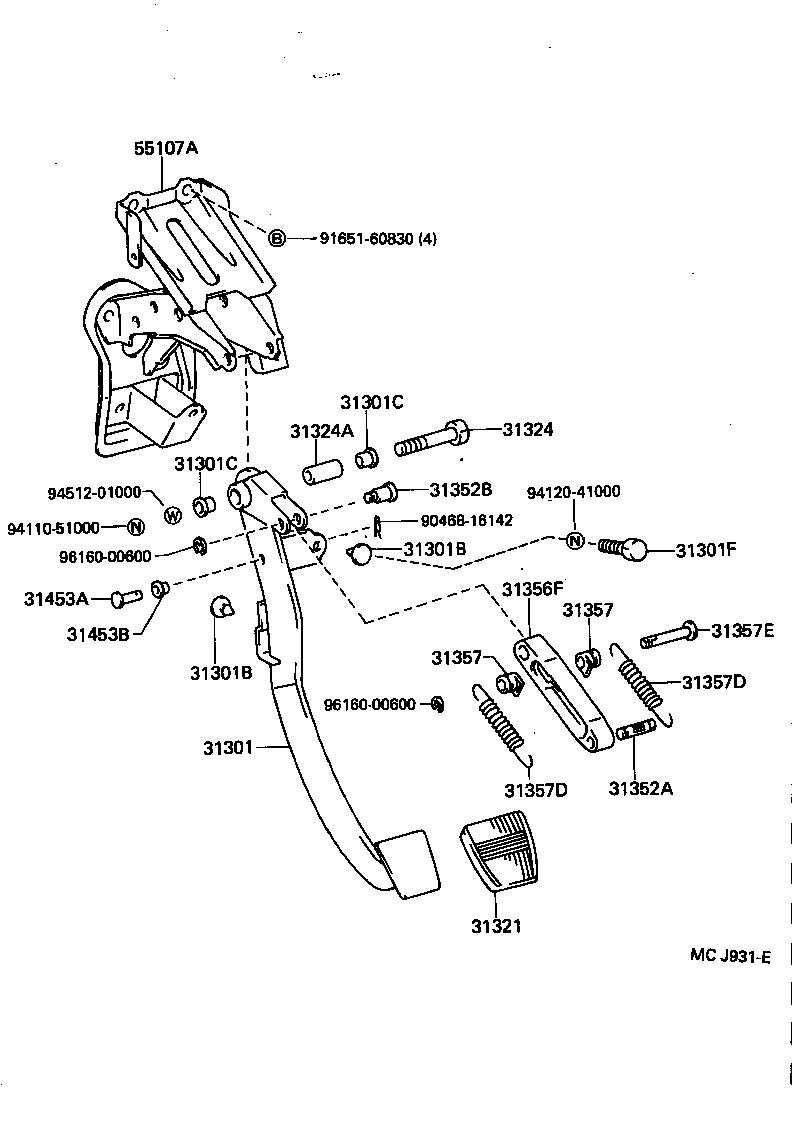

ILLUST NO. 1 OF 3(9005- )MTM
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-28110 |
TCR1#,2#..RHD..MTM |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06032 |
TCR1#,2#..MTM |
2 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06032 |
TCR1#,2#..MTM |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
TCR1#,2#..MTM |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
TCR1#,2#..MTM |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-10369 |
TCR1#,2#..MTM |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-14020 |
TCR1#,2#..MTM |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 90101-10039 |
TCR1#,2#..MTM |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10003 |
TCR1#,2#..MTM |
1 | ||
| 31352A - PIN, CLUTCH PEDAL OVER CENTER PLATE, NO.1 | ||||
| 31352-17010 |
TCR1#,2#..MTM |
1 | ||
| 31352B - PIN, CLUTCH PEDAL OVER CENTER PLATE, NO.2 | ||||
| 31352-20020 |
TCR1#,2#..MTM |
1 | ||
| 31356F - PLATE, CLUTCH PEDAL OVER CENTER, NO.1 | ||||
| 31356-17010 |
TCR1#,2#..MTM |
1 | ||
| 31357 - PLATE, CLUTCH PEDAL OVER CENTER, NO.2 | ||||
| 31357-20020 |
TCR1#,2#..MTM |
2 | ||
| 31357 - PLATE, CLUTCH PEDAL OVER CENTER, NO.2 | ||||
| 31357-20020 |
TCR1#,2#..MTM |
2 | ||
| 31357D - SPRING, COMPRESSION(FOR OVER CENTER ADJUSTING ROD) | ||||
| 90507-26007 |
TCR1#,2#..MTM |
2 | ||
| 31357D - SPRING, COMPRESSION(FOR OVER CENTER ADJUSTING ROD) | ||||
| 90507-26007 |
TCR1#,2#..MTM |
2 | ||
| 31357E - PIN, CLUTCH PEDAL OVER CENTER PLATE, NO.3 | ||||
| 90249-08214 |
TCR1#,2#..MTM |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-08006 |
TCR1#,2#..MTM |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08033 |
TCR1#,2#..MTM |
1 | ||
| 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-95D00 |
TCR1#,2#..MTM |
1 | ||
| Common parts | ||||
| 90468-16142 | ||||
| 91651-60830 | ||||
| 94110-51000 | ||||
| 94120-41000 | ||||
| 94512-01000 | ||||
| 96160-00600 | ||||

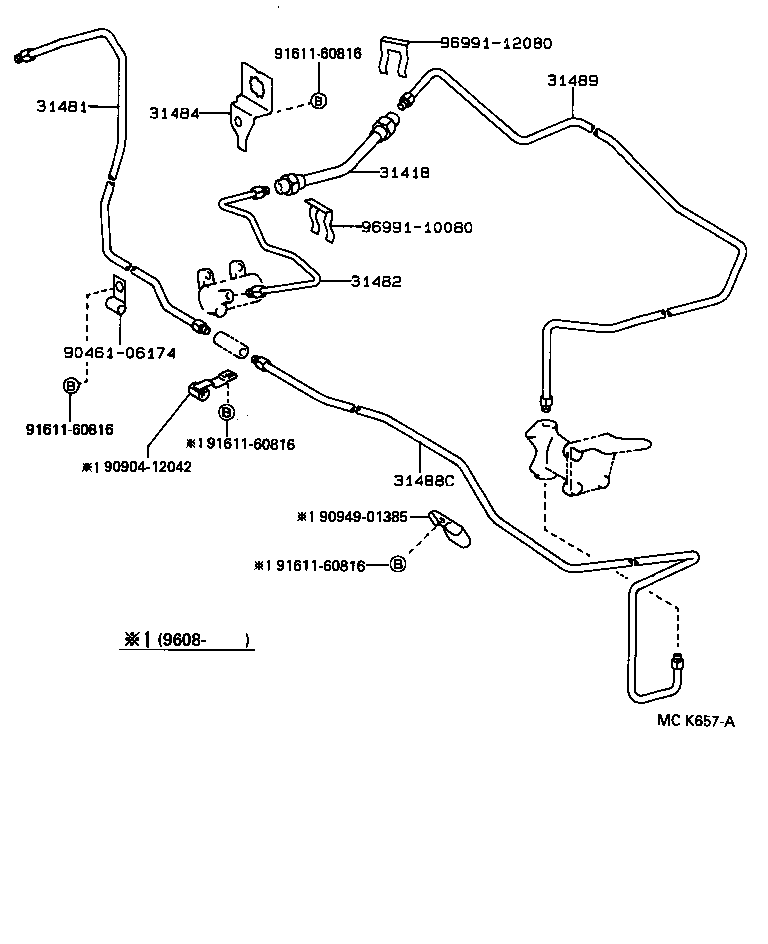

ILLUST NO. 2 OF 3(9005- )RHD..MTM
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31418 - HOSE, CLUTCH | ||||
| 90931-01021 |
TCR1#,2#..MTM |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-28140 |
TCR1#,2#..RHD..MTM |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-28080 |
TCR1#,2#..MTM |
1 | ||
| 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) | ||||
| 31484-28060 |
TCR1#,2#..MTM |
1 | ||
| 31488C - TUBE, FLEXIBLE HOSE TO FLEXIBLE HOSE | ||||
| 31488-28020 |
TCR1#,2#..RHD..MTM |
1 | ||
| 31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE | ||||
| 31489-28150 |
TCR1#,2#..MTM |
1 | ||
| Common parts | ||||
| 90461-06174 | ||||
| 90904-12042 | ||||
| 90949-01385 | ||||
| 91611-60816 | ||||
| 96991-10080 | ||||
| 96991-12080 | ||||

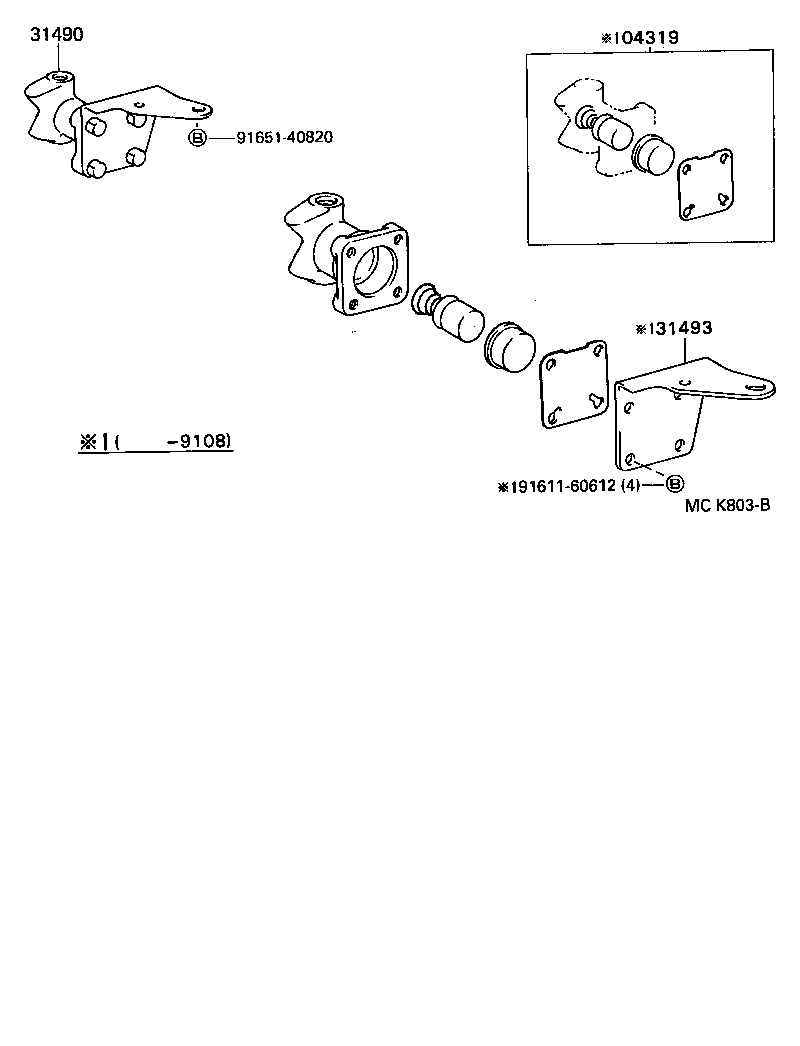

ILLUST NO. 3 OF 3(9005- )MTM
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04319 - CUP KIT, CLUTCH ACCUMULATOR | ||||
| 04319-28030 |
TCR1#,2#..MTM |
1 | ||
| 31490 - ACCUMULATOR ASSY, CLUTCH | ||||
| 31490-28050 |
TCR1#,2#..MTM |
1 | ||
| 31490-28051 |
TCR1#,2#..MTM |
1 | ||
| 31493 - BRACKET, CLUTCH ACCUMULATOR | ||||
| 31493-28050 |
TCR1#,2#..MTM |
1 | ||
| Common parts | ||||
| 91611-60612 | ||||
| 91651-40820 | ||||
