TCR20R-RFSDKQ (1990)
Toyota Previa
Production
May 1990
-
Aug 1991
Engine
2TZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9005- )

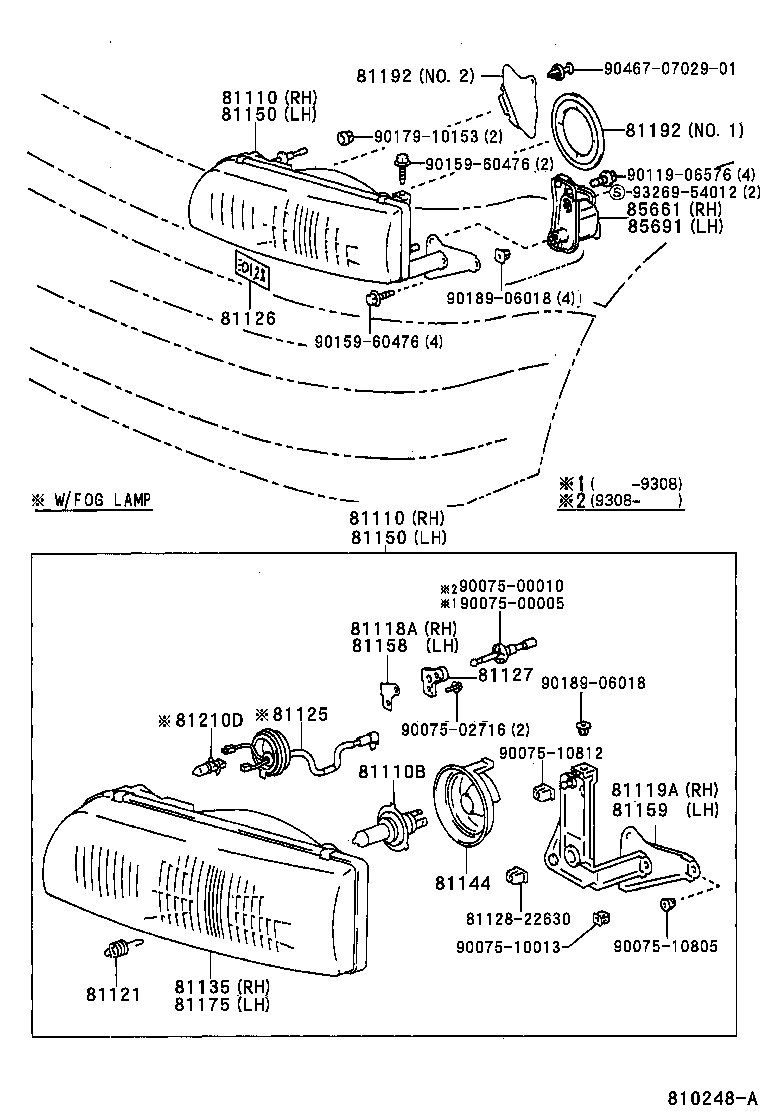

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-95D07 |
TCR1#,2#..ARL |
1 | ||
| 81110-95D09 |
TCR1#,2#..ARL W(FR FOG LAMP) |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-95D07 |
TCR1#,2#..ARL |
1 | ||
| 81110-95D09 |
TCR1#,2#..ARL W(FR FOG LAMP) |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13015 |
TCR1#,2# 12V 60/55W,*HAL *WH |
2 | ||
| 81118A - BRACKET, HEADLAMP, RH | ||||
| 81118-95D01 |
TCR1#,2# |
1 | ||
| 81119A - BRACKET ASSY, HEAD LAMP, RH | ||||
| 81119-95D01 |
TCR10,2#;TCR11..ARL;TCR11..LHD |
1 | ||
| 81121 - SPRING, HEADLAMP TENSION | ||||
| 90075-25505 |
TCR1#,2# |
2 | ||
| 81125 - CORD, HEADLAMP | ||||
| 81125-95D01 |
TCR1#,2#..ARL |
1 | ||
| 81127 - BEARING, HEADLAMP, NO.1 | ||||
| 81169-95D01 |
TCR1#,2# LH |
1 | ||
| 81129-95D01 |
TCR1#,2# RH |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-95D07 |
TCR1#,2#..RHD |
1 | ||
| 81130-95D09 |
TCR1#,2#..ARL W(FR FOG LAMP) |
1 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 81139-10450 |
TCR1#,2# |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-95D07 |
TCR1#,2#..ARL |
1 | ||
| 81150-95D09 |
TCR1#,2#..ARL W(FR FOG LAMP) |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-95D07 |
TCR1#,2#..ARL |
1 | ||
| 81150-95D09 |
TCR1#,2#..ARL W(FR FOG LAMP) |
1 | ||
| 81158 - BRACKET, HEADLAMP, LH | ||||
| 81118-95D01 |
TCR1#,2# |
1 | ||
| 81159 - BRACKET ASSY, HEAD LAMP, LH | ||||
| 81159-95D01 |
TCR10,2#;TCR11..ARL;TCR11..LHD |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-95D09 |
TCR1#,2#..ARL W(FR FOG LAMP) |
1 | ||
| 81170-95D07 |
TCR1#,2#..RHD |
1 | ||
| 81192 - SEAL, HEADLAMP | ||||
| 81192-28020 |
TCR1#,2# NO.2 |
1 | ||
| 81192-28010 |
TCR1#,2# NO.1 |
2 | ||
| 81192 - SEAL, HEADLAMP | ||||
| 81192-28020 |
TCR1#,2# NO.2 |
1 | ||
| 81192-28010 |
TCR1#,2# NO.1 |
2 | ||
| 81210D - BULB, FOG LAMP | ||||
| 90981-13017 |
TCR1#,2#..ARL 12V 55W,*HAL *WH |
2 | ||
| Common parts | ||||
| 81128-22630 | ||||
| 90075-00005 | ||||
| 90075-00010 | ||||
| 90075-02716 | ||||
| 90075-10013 | ||||
| 90075-10805 | ||||
| 90075-10812 | ||||
| 90119-06576 | ||||
| 90159-60476 | ||||
| 90179-10153 | ||||
| 90189-06018 | ||||
| 90467-0702901 | ||||
| 93269-54012 | ||||
