TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

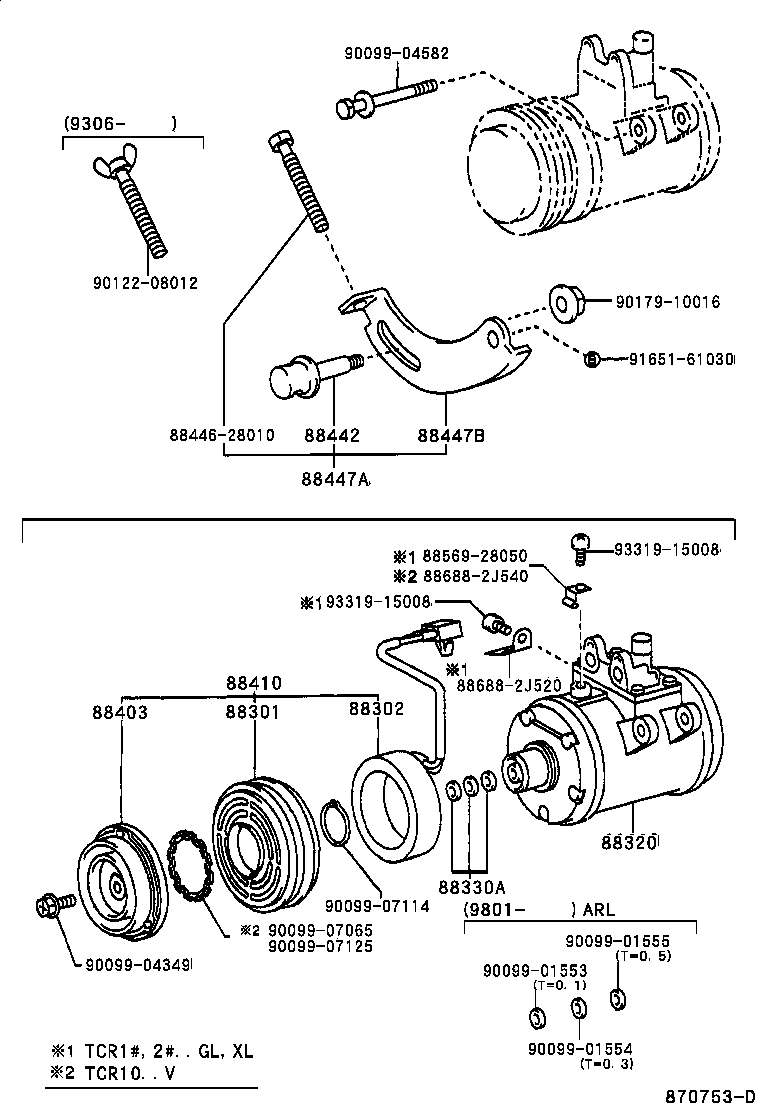

ILLUST NO. 1 OF 2(9005- )

Click highlighted areas on diagram

diagram 88301 88302 88320 88330A 88403 88410 88442 8844628010 88447A 88447B 8856928050 886882J520 886882J540 9009901553 9009901554 9009901555 9009904349 9009904582 9009907065 9009907114 9009907125 9012208012 9017910016 9165161030 9331915008 9331915008
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-14130

TCR1#,2#

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-95D01

TCR1#,2#

 1
88320 - COMPRESSOR ASSY, COOLER
88320-95D00

TCR1#,2#

SINGLE TYPE---MAKER OPT

 1
88320-28160

TCR1#,2#

SINGLE TYPE---DEALER OPT

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020

TCR1#,2#

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-16011

TCR1#,2#

 1
88410 - CLUTCH ASSY, MAGNET
88410-95D00

TCR1#,2#

 1
88447B - PLATE, VELT ADJUST
88447-28010

TCR1#,2#..ARL,W

 1
Common parts
88446-28010
88569-28050
88688-2J520
88688-2J540
90099-01553
90099-01554
90099-01555
90099-04349
90099-04582
90099-07065
90099-07114
90099-07125
90122-08012
90179-10016
91651-61030
93319-15008

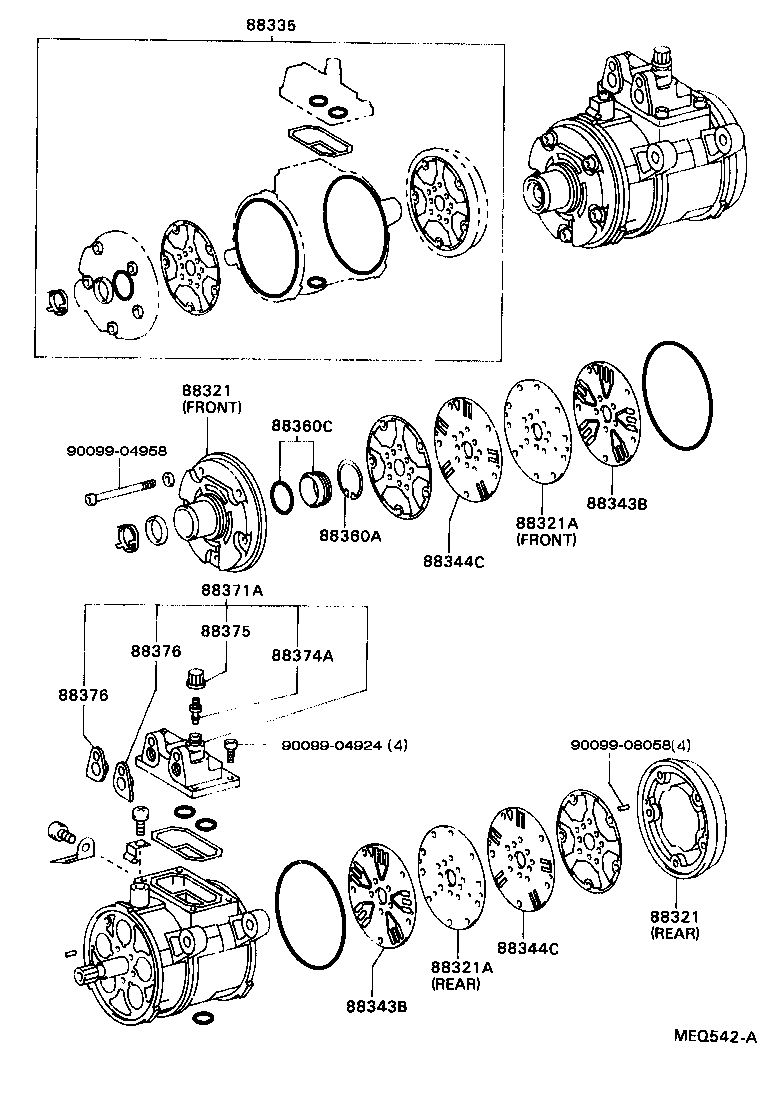

ILLUST NO. 2 OF 2(9005- )

Click highlighted areas on diagram

diagram 88321 88321 88321A 88321A 88335 88343B 88343B 88344C 88344C 88360A 88360C 88371A 88374A 88375 88376 88376 9009904924 9009904958 9009908058
Part # Description Qty Price
88321 - HEAD, COOLER COMPRESSOR CYLINDER
88321-14021

TCR11,2#..ARL

FRONT

 1
88322-28010

TCR11,2#..ARL

REAR

 1
88321 - HEAD, COOLER COMPRESSOR CYLINDER
88321-14021

TCR11,2#..ARL

FRONT

 1
88322-28010

TCR11,2#..ARL

REAR

 1
88321A - PLATE SUB-ASSY, VALVE
88341-14030

TCR1#,2#..ARL

MAKER OPT,FRONT

 1
88341-14030

TCR1#,2#..ARL

FRONT

 2
88342-14030

TCR2#;TCR1#..W

SINGLE TYPE---MAKER OPT,FRONT

 1
88341-14040

TCR11,2#..ARL

REAR

 1
88321A - PLATE SUB-ASSY, VALVE
88341-14030

TCR1#,2#..ARL

MAKER OPT,FRONT

 1
88341-14030

TCR1#,2#..ARL

FRONT

 2
88342-14030

TCR2#;TCR1#..W

SINGLE TYPE---MAKER OPT,FRONT

 1
88341-14040

TCR11,2#..ARL

REAR

 1
88335 - GASKET KIT, OVERHAUL
88335-14010

TCR1#,2#

 1
88343B - REED, SUCTION VALVE
88343-14020

TCR1#,2#

 2
88343B - REED, SUCTION VALVE
88343-14020

TCR1#,2#

 2
88344C - REED, DISCHARGE VALVE
88344-14022

TCR20;TCR1#,21..GL,XL

 2
88344C - REED, DISCHARGE VALVE
88344-14022

TCR20;TCR1#,21..GL,XL

 2
88360A - RING, COMPRESSOR SEAL PLATE SNAP
90096-90022

TCR1#,2#

 1
88360C - SEAL ASSY, SHAFT
88360-14030

TCR1#,2#

 1
88371A - VALVE, SUCTION
88371-95D00

TCR1#,2#

 1
88374A - VALVE, SERVICE
88374-12020

TCR1#,2#

 1
88375 - CAP, COOLER COMPRESSOR SERVICE VALVE
88375-30270

TCR1#,2#

 1
88376 - CAP, BLIND
88376-28040

TCR1#,2#

DISCHARGE

 1
88376-28030

TCR1#,2#

SUCTION

 1
88376 - CAP, BLIND
88376-28040

TCR1#,2#

DISCHARGE

 1
88376-28030

TCR1#,2#

SUCTION

 1
Common parts
90099-04924
90099-04958
90099-08058
