TCR20R-RFSDKQ (1990)
Toyota Previa

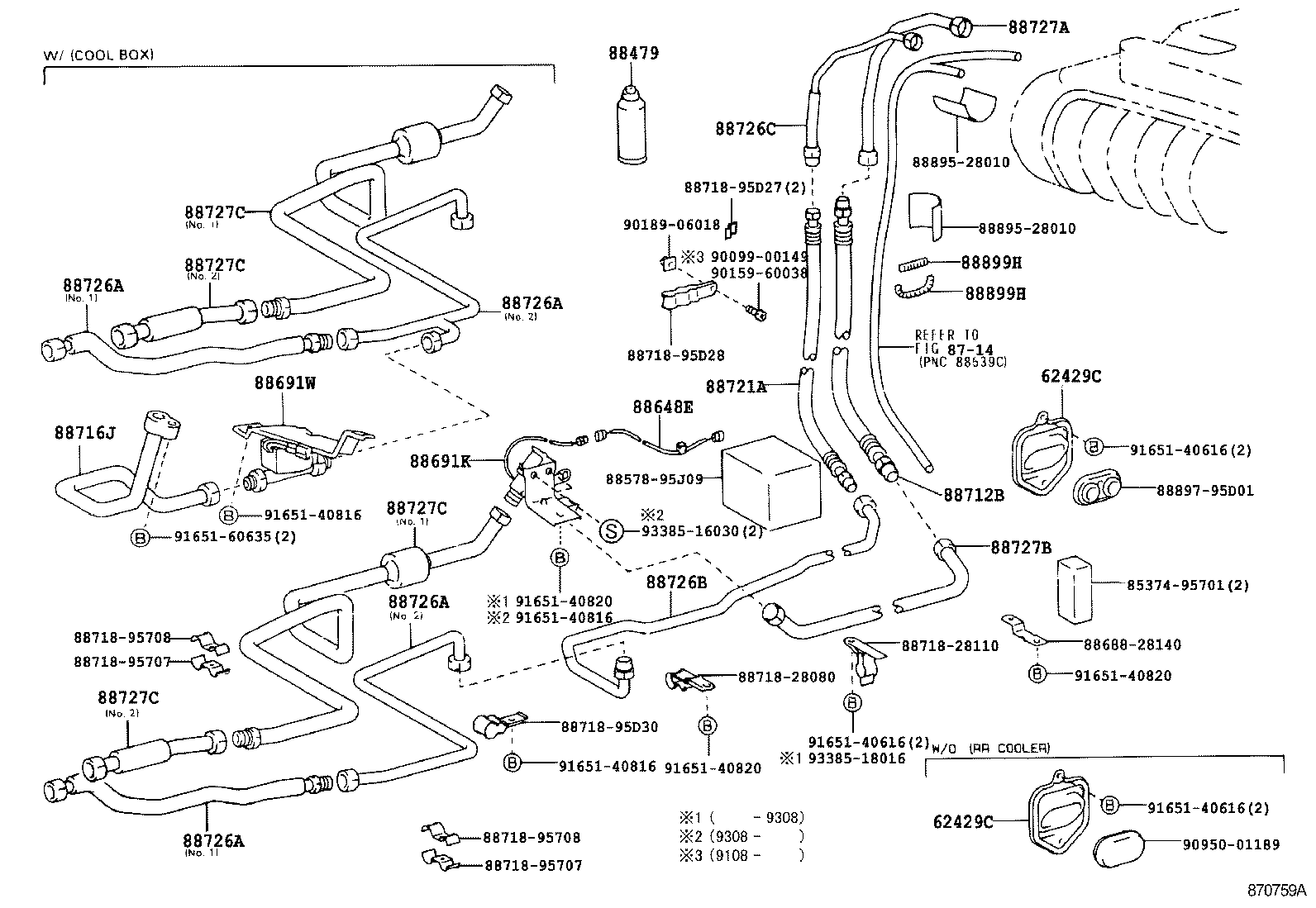

ILLUST NO. 2 OF 3(9005-9410)RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62429C - COVER, CENTER PILLAR SERVICE HOLE | ||||
| 62429-95D00 |
TCR1#,2#..ARL |
1 | ||
| 62429C - COVER, CENTER PILLAR SERVICE HOLE | ||||
| 62429-95D00 |
TCR1#,2#..ARL |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02004 |
TCR1#,2#..ARL 250G |
3 | ||
| 88648E - WIRING, COOLER | ||||
| 88648-28080 |
TCR1#,2#..ARL |
1 | ||
| 88712B - HOSE, COOLER REFRIGERANT SUCTION | ||||
| 88712-95D05 |
TCR1#,2#..ARL |
1 | ||
| 88721A - HOSE, LIQUID, A | ||||
| 88721-95D09 |
TCR1#,2#..ARL |
1 | ||
| 88726A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-28300 |
TCR1#,2#..ARL NO.2 |
1 | ||
| 88716-28310 |
TCR1#,2#..ARL NO.1 |
1 | ||
| 88726A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-28300 |
TCR1#,2#..ARL NO.2 |
1 | ||
| 88716-28310 |
TCR1#,2#..ARL NO.1 |
1 | ||
| 88726A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-28300 |
TCR1#,2#..ARL NO.2 |
1 | ||
| 88716-28310 |
TCR1#,2#..ARL NO.1 |
1 | ||
| 88726A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-28300 |
TCR1#,2#..ARL NO.2 |
1 | ||
| 88716-28310 |
TCR1#,2#..ARL NO.1 |
1 | ||
| 88726B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-28290 |
TCR1#,2#..ARL |
1 | ||
| 88726C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-95D33 |
TCR1#,2#..ARL |
1 | ||
| 88727A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88715-95D13 |
TCR1#,2#..ARL |
1 | ||
| 88727B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-95D18 |
TCR1#,2#..ARL |
1 | ||
| 88727C - PIPE, COOLER REFRIGERANT SUCTION, C | ||||
| 88717-28220 |
TCR1#,2#..ARL NO.1 |
1 | ||
| 88717-28230 |
TCR1#,2#..ARL NO.2 |
1 | ||
| 88727C - PIPE, COOLER REFRIGERANT SUCTION, C | ||||
| 88717-28220 |
TCR1#,2#..ARL NO.1 |
1 | ||
| 88717-28230 |
TCR1#,2#..ARL NO.2 |
1 | ||
| 88727C - PIPE, COOLER REFRIGERANT SUCTION, C | ||||
| 88717-28220 |
TCR1#,2#..ARL NO.1 |
1 | ||
| 88717-28230 |
TCR1#,2#..ARL NO.2 |
1 | ||
| 88727C - PIPE, COOLER REFRIGERANT SUCTION, C | ||||
| 88717-28220 |
TCR1#,2#..ARL NO.1 |
1 | ||
| 88717-28230 |
TCR1#,2#..ARL NO.2 |
1 | ||
| 88899H - MOULDING, PROTECTOR | ||||
| 88899-28120 |
TCR1#,2#..ARL |
2 | ||
| 88899H - MOULDING, PROTECTOR | ||||
| 88899-28120 |
TCR1#,2#..ARL |
2 | ||
| Common parts | ||||
| 85374-95701 | ||||
| 88578-95J09 | ||||
| 88688-28140 | ||||
| 88718-28080 | ||||
| 88718-28110 | ||||
| 88718-95707 | ||||
| 88718-95708 | ||||
| 88718-95D27 | ||||
| 88718-95D28 | ||||
| 88718-95D30 | ||||
| 88895-28010 | ||||
| 88897-95D01 | ||||
| 90099-00149 | ||||
| 90159-60038 | ||||
| 90189-06018 | ||||
| 90950-01189 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 91651-40820 | ||||
| 91651-60635 | ||||
| 93385-16030 | ||||
| 93385-18016 | ||||
| Linked diagrams | ||||
| 8714 | ||||

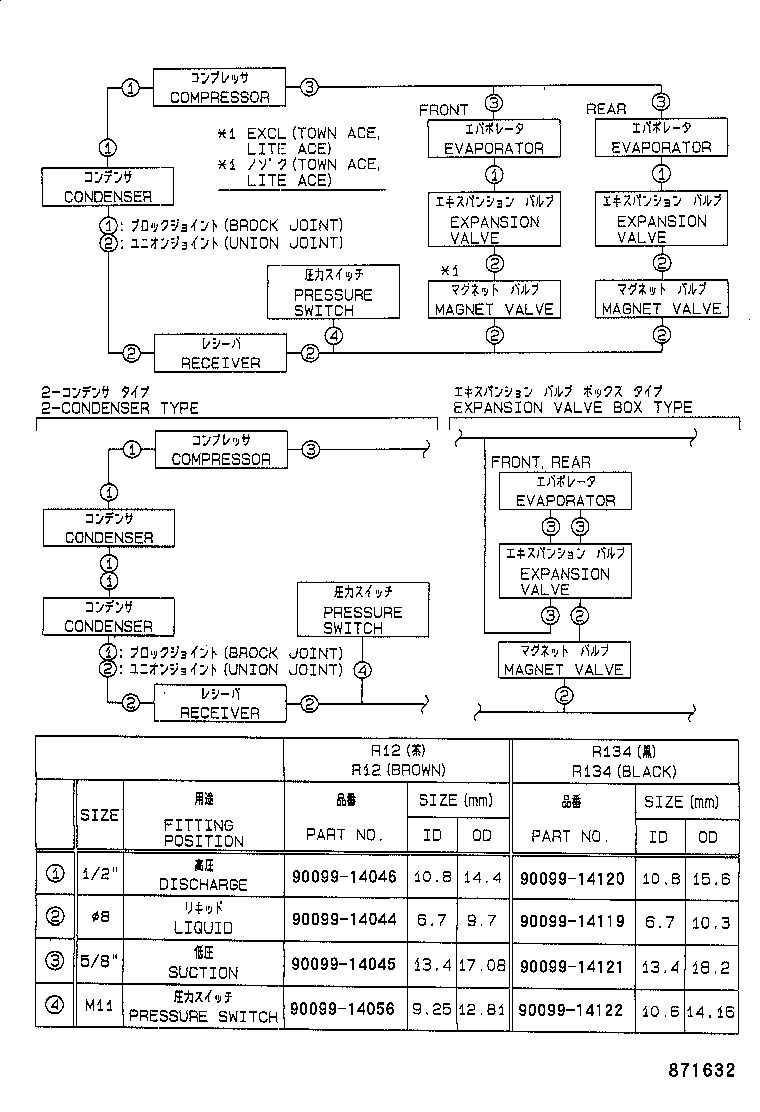

ILLUST NO. 3 OF 3(9005- )
W/O(COOL BOX)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14044 | ||||
| 90099-14045 | ||||
| 90099-14046 | ||||
| 90099-14056 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||

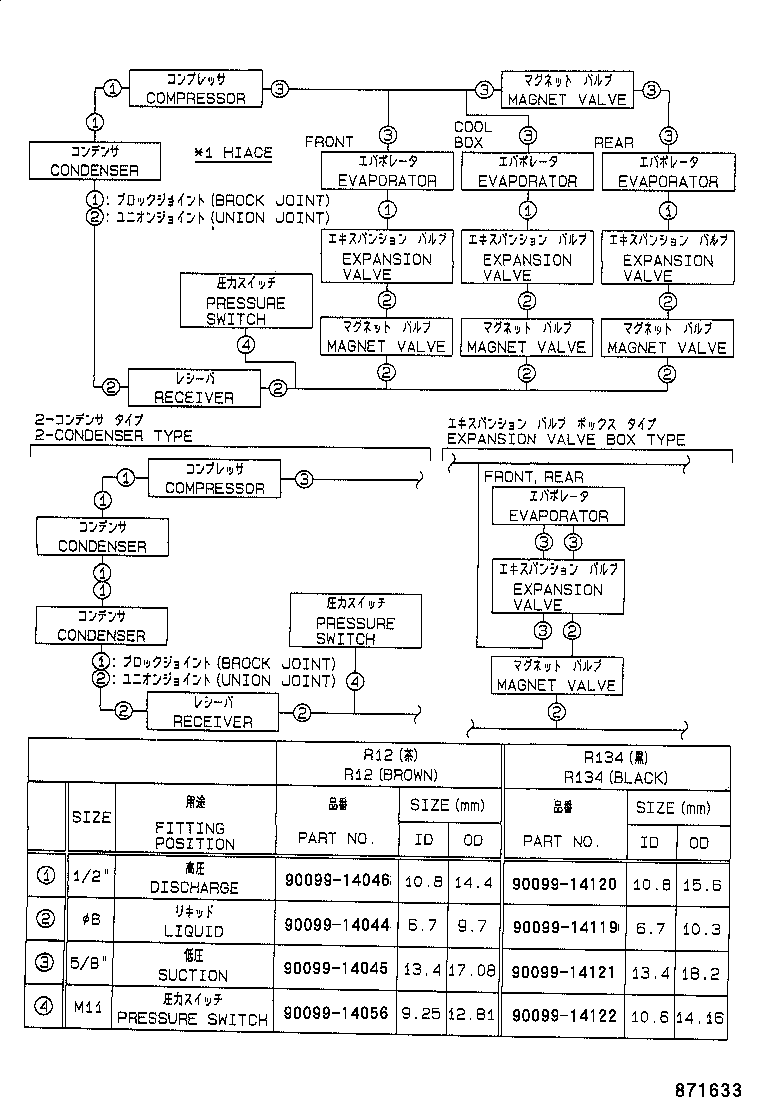

ILLUST NO. 3 OF 3(9005- )
W(COOL BOX)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14044 | ||||
| 90099-14045 | ||||
| 90099-14046 | ||||
| 90099-14056 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||

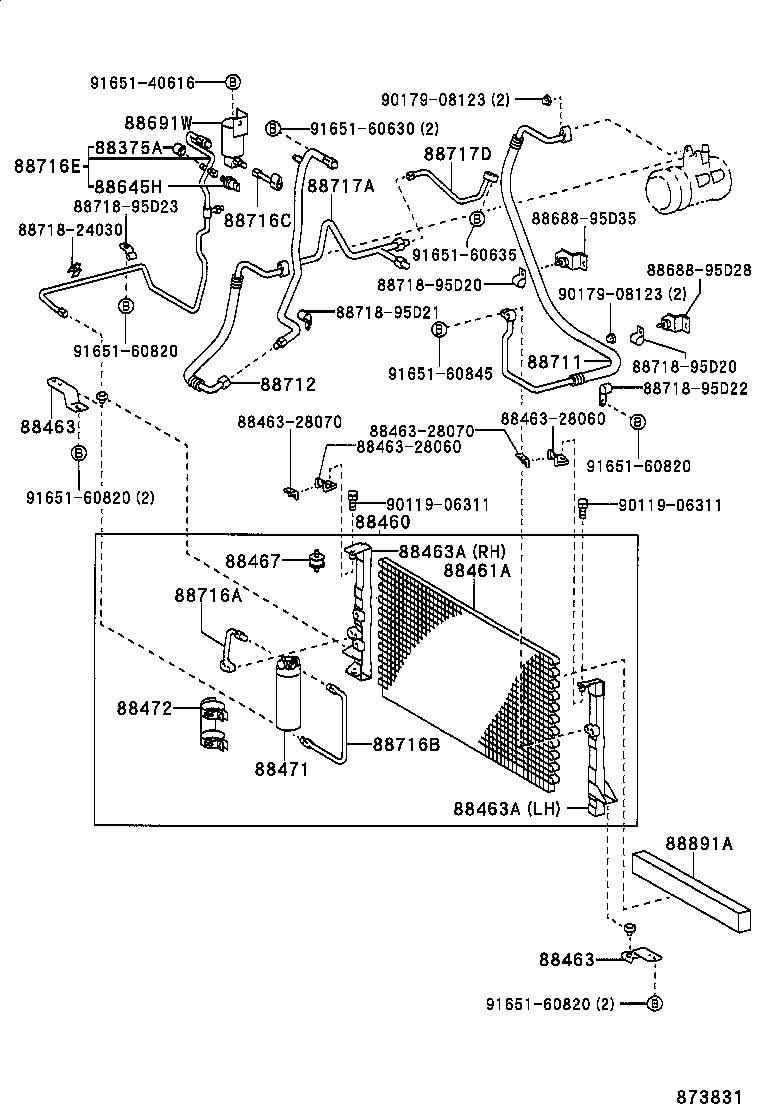

ILLUST NO. 1 OF 3(9005-9308)RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-28030 |
TCR1#,2#..ARL |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-95D04 |
TCR1#,2# |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-28030 |
TCR1#,2# |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-95D03 |
TCR1#,2# |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-95D13 |
TCR1#,2# |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-95D04 |
TCR1#,2# |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-95D25 |
TCR1#,2# |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95D26 |
TCR1#,2# |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-28230 |
TCR11,2#..ARL SINGLE TYPE---MAKER OPT |
1 | ||
| 88716-28320 |
TCR10,2#..ARL;TCR11..MTM..ARL DUAL TYPE---MAKER OPT |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-28170 |
TCR11,2#..ARL SINGLE TYPE---MAKER OPT |
1 | ||
| 88717-28190 |
TCR10,2#..ARL;TCR11..MTM..ARL DUAL |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 88899-95407 |
TCR1#,2#..ARL |
4 | ||
| Common parts | ||||
| 88463-28060 | ||||
| 88463-28070 | ||||
| 88688-95D28 | ||||
| 88688-95D35 | ||||
| 88718-24030 | ||||
| 88718-95D20 | ||||
| 88718-95D21 | ||||
| 88718-95D22 | ||||
| 88718-95D23 | ||||
| 88897-28020 | ||||
| 90119-06311 | ||||
| 90179-08123 | ||||
| 91651-60630 | ||||
| 91651-60820 | ||||
| 91651-60845 | ||||

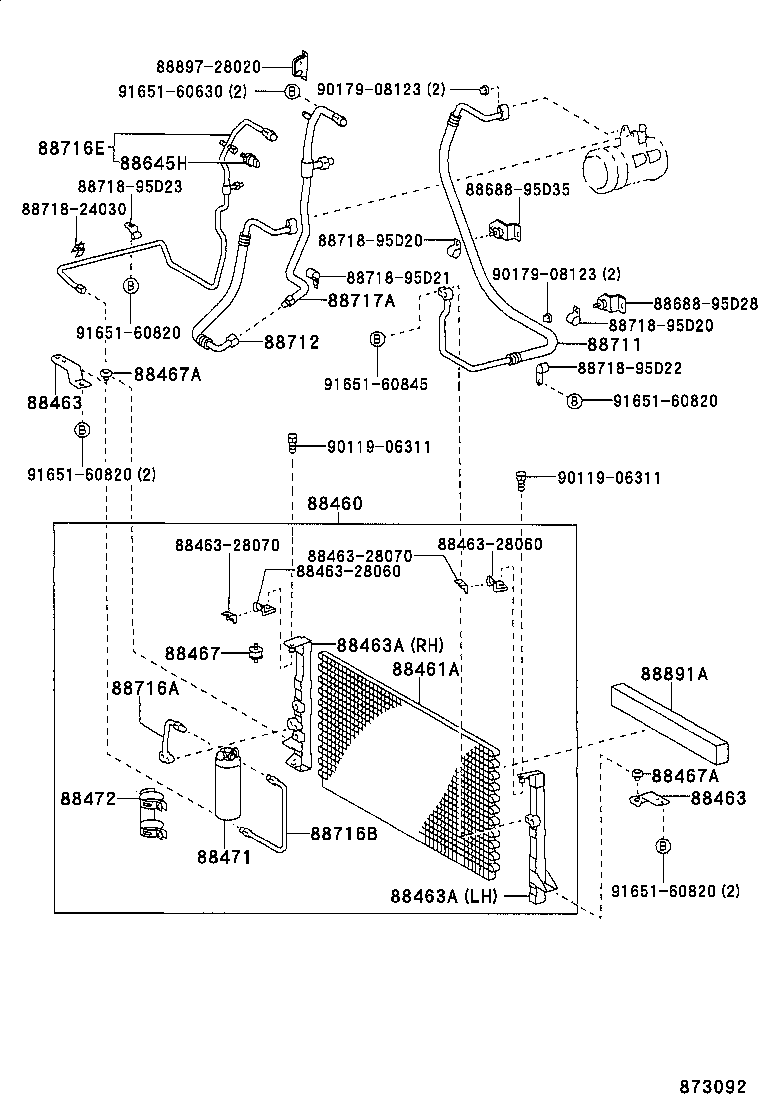

ILLUST NO. 1 OF 3(9005-9308)
W(COOL BOX)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-28030 |
TCR1#,2#..ARL |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-95D04 |
TCR1#,2# |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-28030 |
TCR1#,2# |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-95D03 |
TCR1#,2# |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-95D13 |
TCR1#,2# |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-95D04 |
TCR1#,2# |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-95D25 |
TCR1#,2# |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95D26 |
TCR1#,2# |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-28230 |
TCR11,2#..ARL SINGLE TYPE---MAKER OPT |
1 | ||
| 88716-28320 |
TCR10,2#..ARL;TCR11..MTM..ARL DUAL TYPE---MAKER OPT |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-28170 |
TCR11,2#..ARL SINGLE TYPE---MAKER OPT |
1 | ||
| 88717-28190 |
TCR10,2#..ARL;TCR11..MTM..ARL DUAL |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 88899-95407 |
TCR1#,2#..ARL |
4 | ||
| Common parts | ||||
| 88463-28060 | ||||
| 88463-28070 | ||||
| 88688-95D28 | ||||
| 88688-95D35 | ||||
| 88718-24030 | ||||
| 88718-95D20 | ||||
| 88718-95D21 | ||||
| 88718-95D22 | ||||
| 88718-95D23 | ||||
| 90119-06311 | ||||
| 90179-08123 | ||||
| 91651-40616 | ||||
| 91651-60630 | ||||
| 91651-60635 | ||||
| 91651-60820 | ||||
| 91651-60845 | ||||
