TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005- )

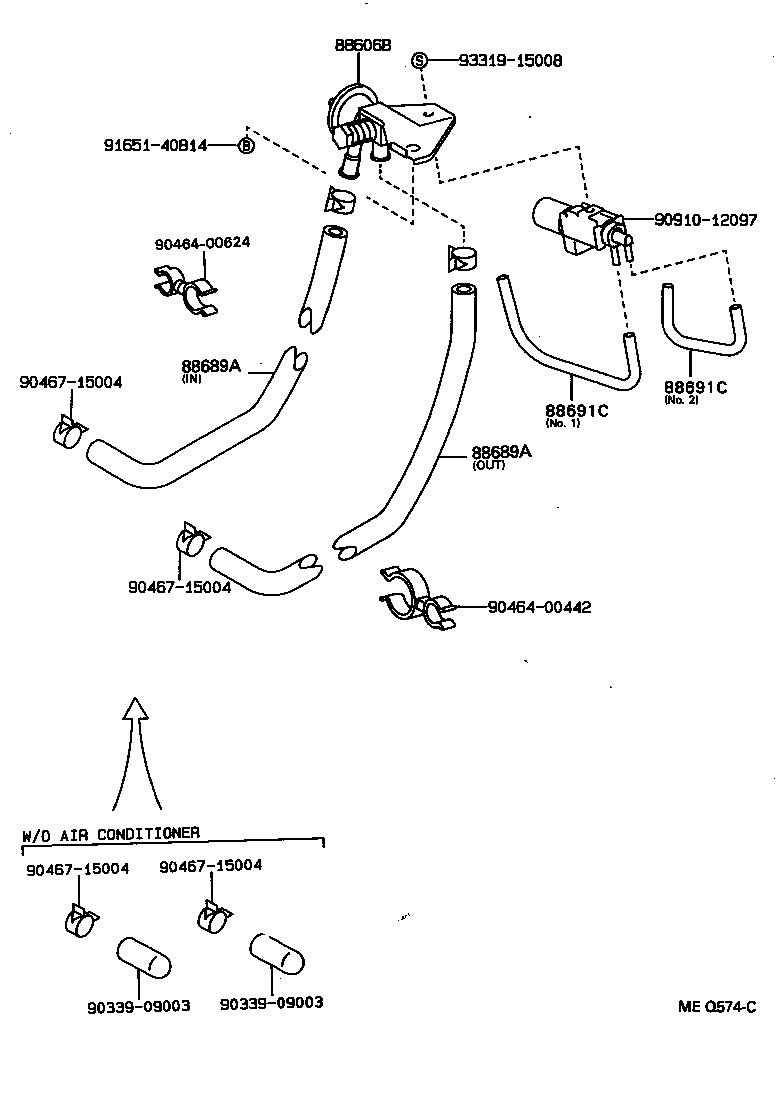

Click highlighted areas on diagram

diagram 88606B 88689A 88689A 88691C 88691C 9033909003 9033909003 9046400442 9046400624 9046715004 9046715004 9046715004 9046715004 9091012097 9165140814 9331915008
Part # Description Qty Price
88606B - DIAPHRAGM SUB-ASSY, COOLER
88606-28020

TCR1#,2#

 1
88689A - HOSE, COOLER VACUUM NO.1
88689-28020

TCR1#,2#

OUT

 1
88689-28010

TCR1#,2#

IN

 1
88689A - HOSE, COOLER VACUUM NO.1
88689-28020

TCR1#,2#

OUT

 1
88689-28010

TCR1#,2#

IN

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

TCR1#,2#

*H,L=120,MARK=#*

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

TCR1#,2#

*H,L=120,MARK=#*

 1
Common parts
90339-09003
90464-00442
90464-00624
90467-15004
90910-12097
91651-40814
93319-15008
