TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005- )RHD

Click highlighted areas on diagram

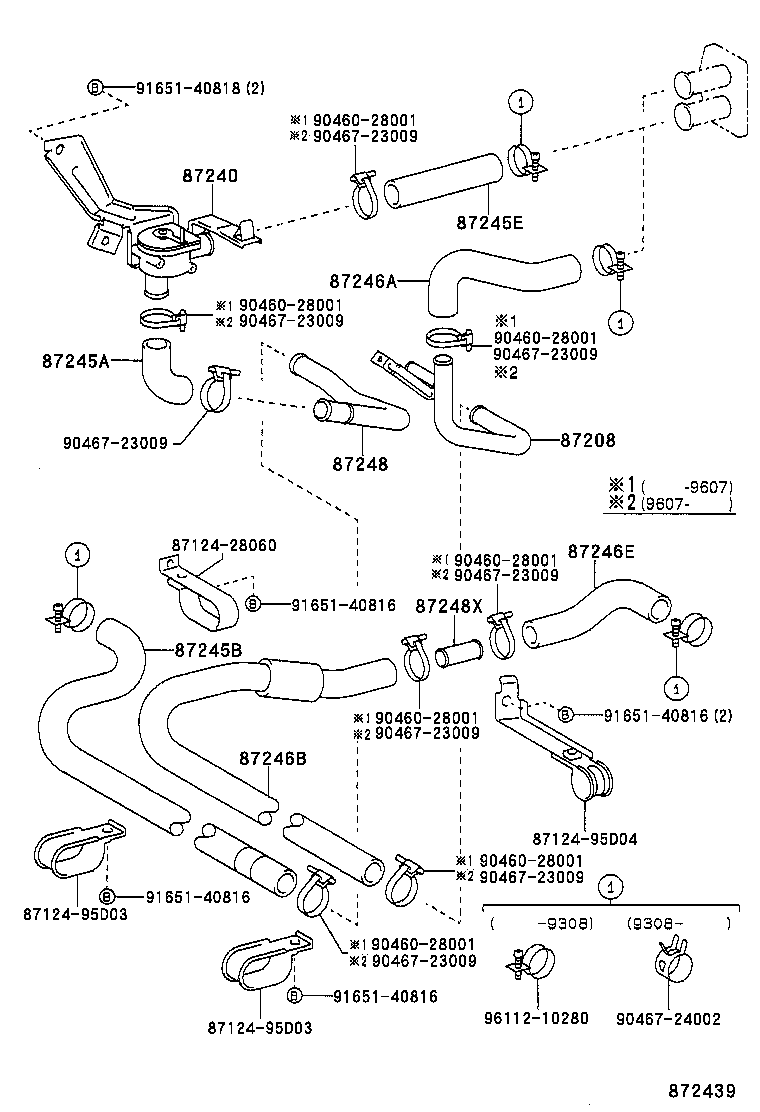

diagram 8712428060 8712495D03 8712495D03 8712495D04 87208 87240 87245A 87245B 87245E 87246A 87246B 87246E 87248 87248X 9046028001 9046028001 9046028001 9046028001 9046028001 9046028001 9046028001 9046723009 9046723009 9046723009 9046723009 9046723009 9046723009 9046723009 9046723009 9046724002 9165140816 9165140816 9165140816 9165140816 9165140818 9611210280
Part # Description Qty Price
87208 - PIPE SUB-ASSY, HEATER WATER
87208-95D28

TCR1#,2#..RHD

 1
87240 - VALVE ASSY, HEATER WATER
87240-95D02

TCR1#,2#..RHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-95D26

TCR1#,2#..RHD

 1
87245B - HOSE, HEATER WATER, INLET B
87245-95D30

TCR1#,2#..RHD

*H,L=685

 1
87245E - HOSE, HEATER WATER, INLET E
87245-95D28

TCR1#,2#..RHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-95D23

TCR1#,2#..RHD

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-95D32

TCR1#,2#..RHD

L=1015

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-95D31

TCR1#,2#

 1
87248 - PIPE SUB-ASSY, WATER
87248-28010

TCR1#,2#..RHD

 1
87248X - PIPE, HEATER WATER
87248-28020

TCR1#,2#

 1
Common parts
87124-28060
87124-95D03
87124-95D04
90460-28001
90467-23009
90467-24002
91651-40816
91651-40818
96112-10280
