TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

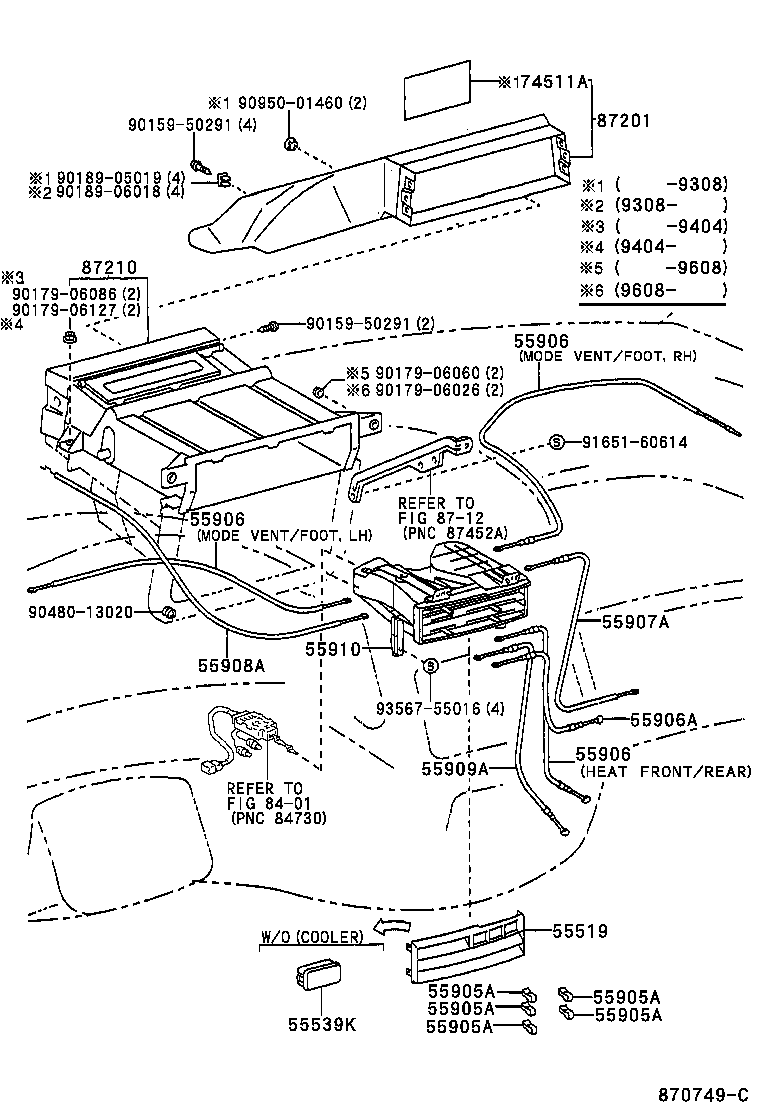

ILLUST NO. 2 OF 2(9005- )

Click highlighted areas on diagram

LEVER TYPE

diagram 55519 55539K 55905A 55905A 55905A 55905A 55905A 55906 55906 55906 55906A 55907A 55908A 55909A 55910 74511A 8401 8712 87201 87210 9015950291 9015950291 9017906026 9017906060 9017906086 9017906127 9018905019 9018906018 9048013020 9095001460 9165160614 9356755016
Part # Description Qty Price
55519 - PLATE, HEATER CONTROL NAME
55519-95D00

TCR1#,2#

 1
55539K - COVER, SPARE SWITCH HOLE
55539-95D00

TCR1#,2#

 1
55905A - KNOB, HEATER CONTROL
55905-95D00

TCR1#,2#..ARL

 5
55905A - KNOB, HEATER CONTROL
55905-95D00

TCR1#,2#..ARL

 5
55905A - KNOB, HEATER CONTROL
55905-95D00

TCR1#,2#..ARL

 5
55905A - KNOB, HEATER CONTROL
55905-95D00

TCR1#,2#..ARL

 5
55905A - KNOB, HEATER CONTROL
55905-95D00

TCR1#,2#..ARL

 5
55906 - CABLE SUB-ASSY, HEATER CONTROL
55906-95D10

TCR1#,2#

HEAT FRONT/REAR

 1
55906-95D15

TCR1#,2#..RHD

MODE VENT/FOOT,RH

 1
55906-95D16

TCR1#,2#..RHD

MODE VENT/FOOT,LH

 1
55906 - CABLE SUB-ASSY, HEATER CONTROL
55906-95D10

TCR1#,2#

HEAT FRONT/REAR

 1
55906-95D15

TCR1#,2#..RHD

MODE VENT/FOOT,RH

 1
55906-95D16

TCR1#,2#..RHD

MODE VENT/FOOT,LH

 1
55906 - CABLE SUB-ASSY, HEATER CONTROL
55906-95D10

TCR1#,2#

HEAT FRONT/REAR

 1
55906-95D15

TCR1#,2#..RHD

MODE VENT/FOOT,RH

 1
55906-95D16

TCR1#,2#..RHD

MODE VENT/FOOT,LH

 1
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-95D12

TCR1#,2#..RHD

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-95D02

TCR1#,2#..RHD

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-95D00

TCR1#,2#

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-95D03

TCR1#,2#..RHD

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-95D04

TCR1#,2#..RHD

 1
74511A - PLATE, NAME
74511-28330

TCR1#,2#..RHD

 1
87201 - DUCT SUB-ASSY, AIR, NO.1
87201-28090

TCR1#,2#..RHD

 1
87210 - DAMPER ASSY, AIR
87210-95D01

TCR1#,2#

 1
Common parts
90159-50291
90179-06026
90179-06060
90179-06086
90179-06127
90189-05019
90189-06018
90480-13020
90950-01460
91651-60614
93567-55016
Linked diagrams
8401
8712

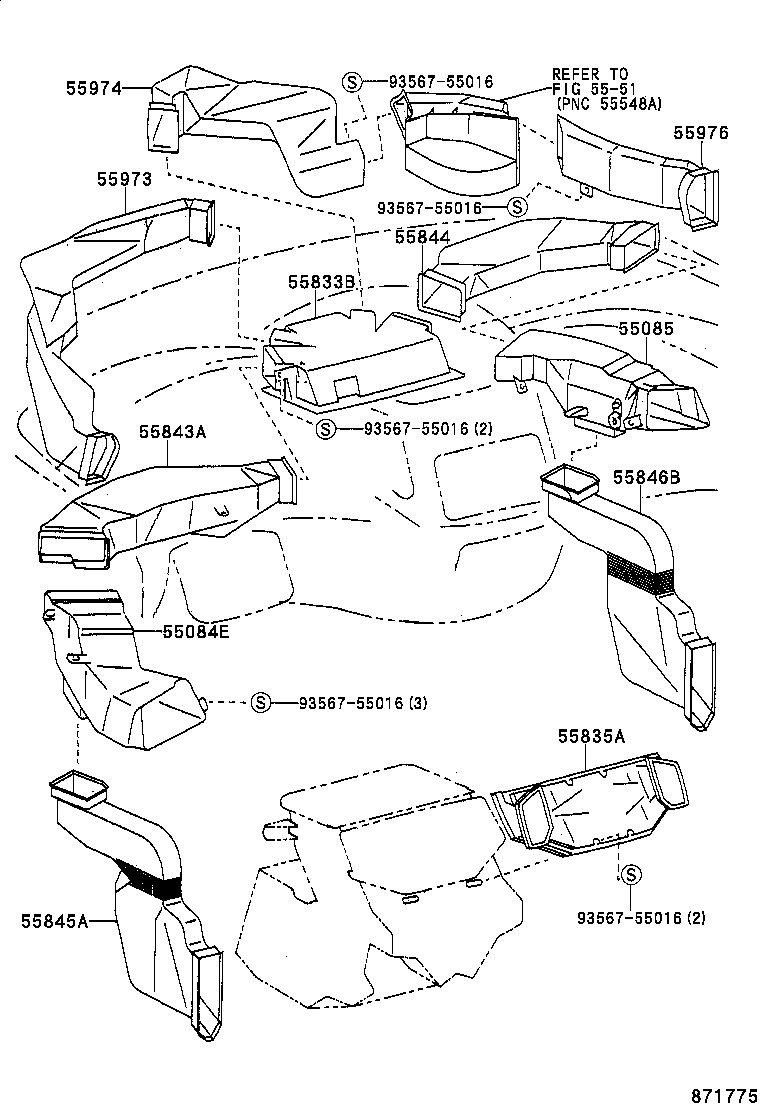

ILLUST NO. 1 OF 2(9005-9308)

Click highlighted areas on diagram

diagram 55084E 55085 5551 55833B 55835A 55843A 55844 55845A 55846B 55973 55974 55976 9356755016 9356755016 9356755016 9356755016 9356755016
Part # Description Qty Price
55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1
55084-95D01

TCR1#,2#..RHD

 1
55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2
55085-95D01

TCR1#,2#..RHD

 1
55833B - CONNECTOR, INSTRUMENT PANEL REGISTER, CENTER
55833-95D00

TCR1#,2#

 1
55835A - DUCT, HEATER TO REGISTER, CENTER
55835-95D00

TCR1#,2#

 1
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-95D01

TCR1#,2#..RHD

 1
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-95D01

TCR1#,2#..RHD

 1
55845A - DUCT, HEATER TO REGISTER, NO.3
55845-95D01

TCR1#,2#..RHD

 1
55846B - DUCT, HEATER TO REGISTER, NO.4
55846-95D01

TCR1#,2#..RHD

 1
55973 - DUCT, SIDE DEFROSTER NOZZLE, NO.3
55973-95D01

TCR1#,2#..RHD

 1
55974 - DUCT, SIDE DEFROSTER NOZZLE, NO.4
55974-95D01

TCR1#,2#..RHD

 1
55976 - DUCT, SIDE DEFROSTER NOZZLE, NO.6
55976-95D01

TCR1#,2#..RHD

 1
Common parts
93567-55016
Linked diagrams
5551
