TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

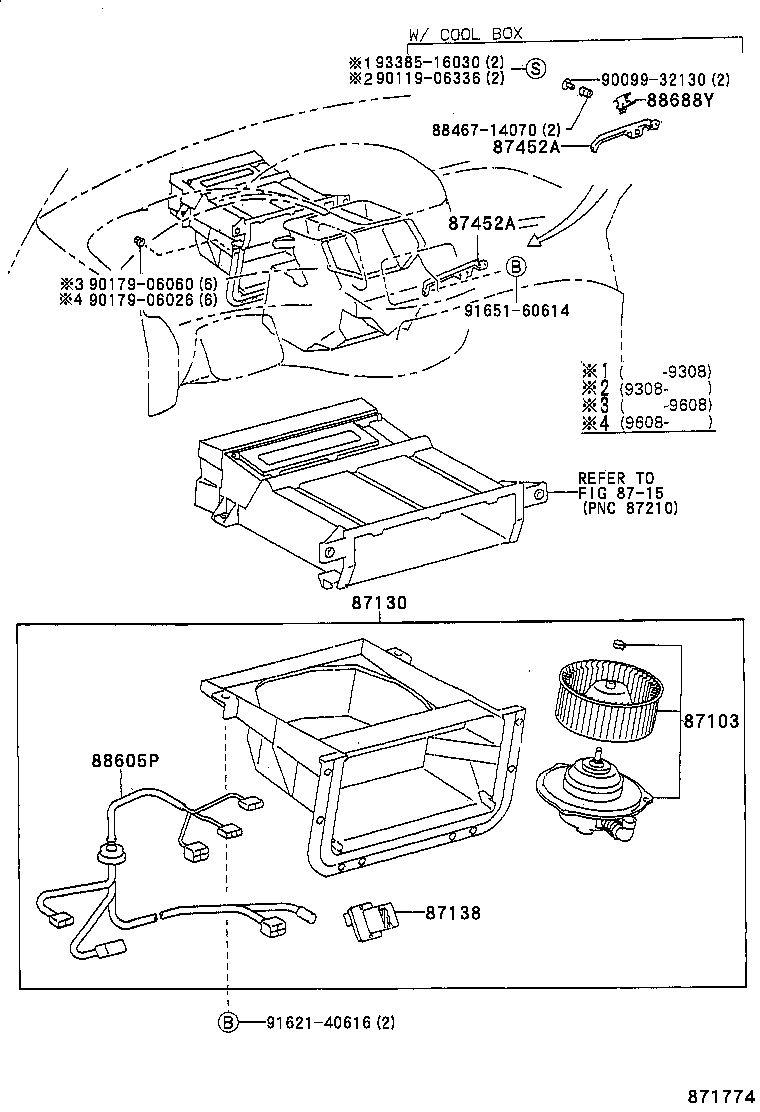

ILLUST NO. 2 OF 2(9005- )

Click highlighted areas on diagram

MANUAL

diagram 87103 87130 87138 8715 87452A 87452A 8846714070 88605P 88688Y 9009932130 9011906336 9017906026 9017906060 9162140616 9165160614 9338516030
Part # Description Qty Price
87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN
87103-95D00

TCR1#,2#

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-95D04

TCR1#,2#..RHD

 1
87138 - RESISTOR, HEATER BLOWER
87138-95D00

TCR1#,2#

 1
87452A - BRACKET, HEATER, FRONT
87452-95D00

TCR1#,2#

 1
87452A - BRACKET, HEATER, FRONT
87452-95D00

TCR1#,2#

 1
88605P - HARNESS SUB-ASSY, AIR CONDITIONER WIRING
88605-28210

TCR20..ARL

SINGLE TYPE OR DUAL TYPE

 1
88605-95D25

TCR10,20;TCR11,21..W

 1
Common parts
88467-14070
90099-32130
90119-06336
90179-06026
90179-06060
91621-40616
91651-60614
93385-16030
Linked diagrams
8715

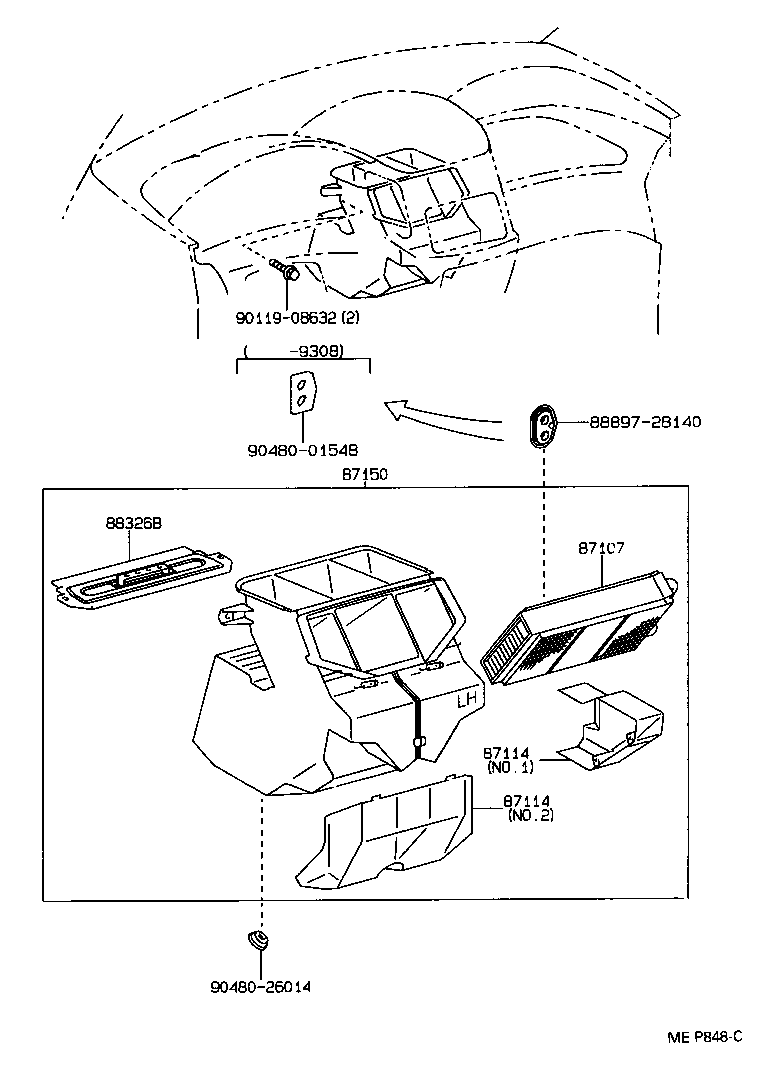

ILLUST NO. 1 OF 2(9005- )

Click highlighted areas on diagram

MANUAL

diagram 87107 87114 87114 87150 88326B 8889728140 9011908632 9048001548 9048026014
Part # Description Qty Price
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-95D04

TCR1#,2#..RHD

 1
87114 - COVER, HEATER
87114-95D01

TCR1#,2#..RHD

 1
87114 - COVER, HEATER
87114-95D01

TCR1#,2#..RHD

 1
87150 - RADIATOR ASSY, HEATER
87150-95D13

TCR1#,2#..RHD

 1
88326B - PLATE, COVER
88326-95D00

TCR1#,2#

 1
Common parts
88897-28140
90119-08632
90480-01548
90480-26014
