TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005- )

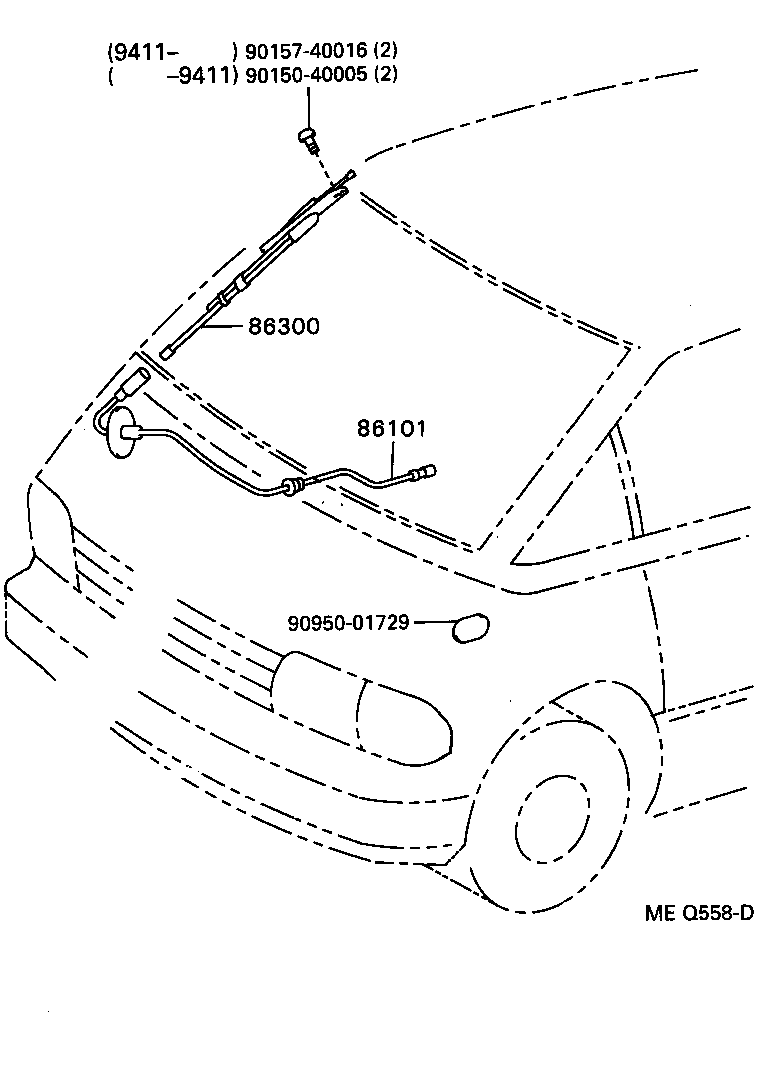

Click highlighted areas on diagram

diagram 86101 86300 9015040005 9015740016 9095001729
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-95D00

TCR1#,2#

 1
86300 - ANTENNA ASSY, W/HOLDER
86300-95D00

TCR1#,2#

 1
Common parts
90150-40005
90157-40016
90950-01729
