TCR20R-RFSDKQ (1990)
Toyota Previa
Production
May 1990
-
Aug 1991
Engine
2TZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

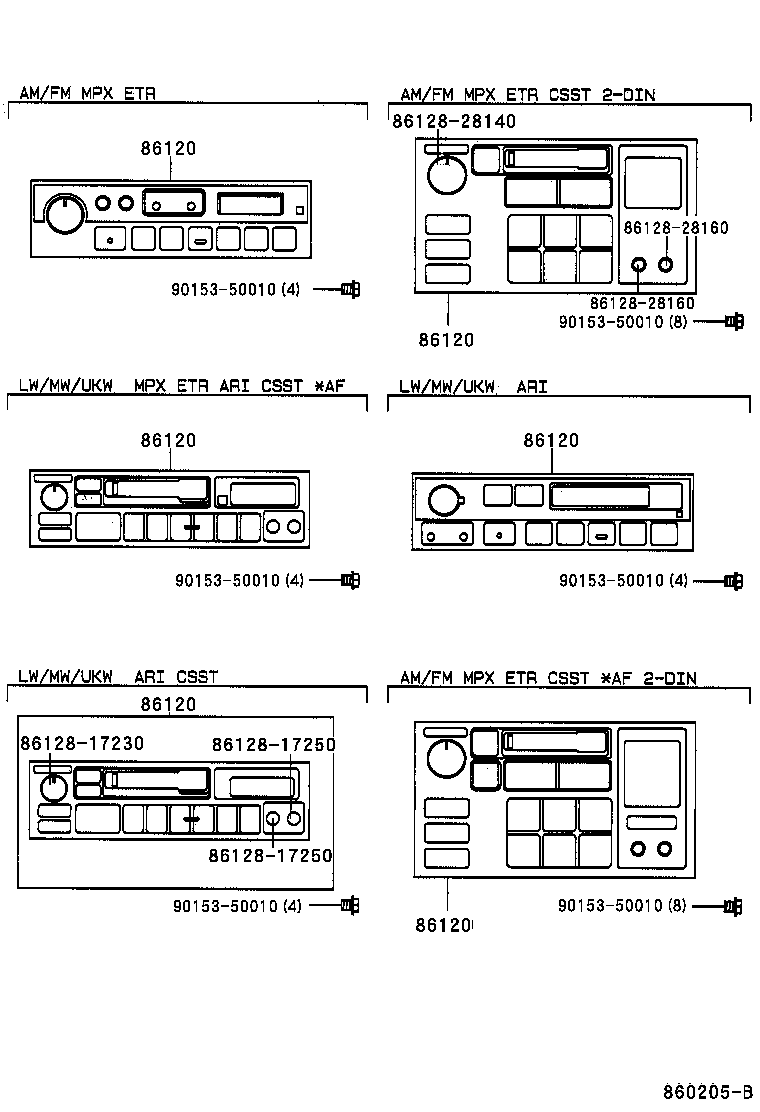

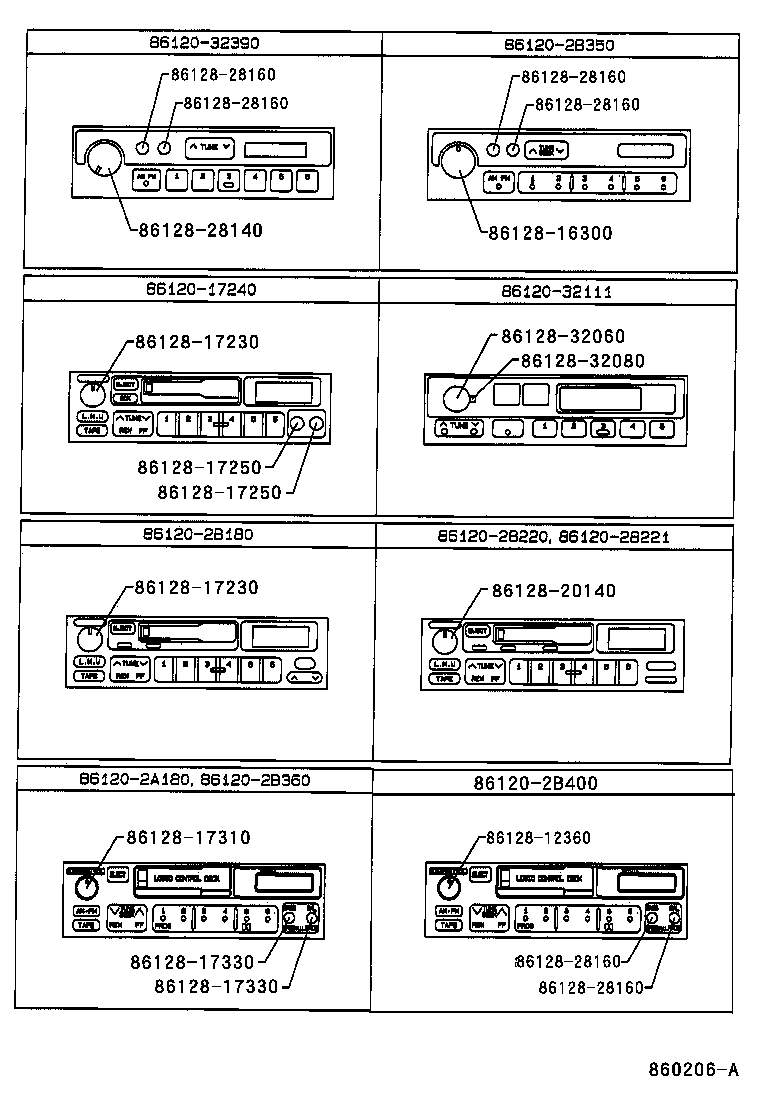

ILLUST NO. 1 OF 3(9005- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-32390 |
TCR10,20..ARL FUJITSU TEN |
1 | ||
| 86120-2B070 |
TCR10,20..ARL FUJITSU TEN,AM/FM MPX ETR CST 2DIN |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-32390 |
TCR10,20..ARL FUJITSU TEN |
1 | ||
| 86120-2B070 |
TCR10,20..ARL FUJITSU TEN,AM/FM MPX ETR CST 2DIN |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-32390 |
TCR10,20..ARL FUJITSU TEN |
1 | ||
| 86120-2B070 |
TCR10,20..ARL FUJITSU TEN,AM/FM MPX ETR CST 2DIN |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-32390 |
TCR10,20..ARL FUJITSU TEN |
1 | ||
| 86120-2B070 |
TCR10,20..ARL FUJITSU TEN,AM/FM MPX ETR CST 2DIN |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-32390 |
TCR10,20..ARL FUJITSU TEN |
1 | ||
| 86120-2B070 |
TCR10,20..ARL FUJITSU TEN,AM/FM MPX ETR CST 2DIN |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-32390 |
TCR10,20..ARL FUJITSU TEN |
1 | ||
| 86120-2B070 |
TCR10,20..ARL FUJITSU TEN,AM/FM MPX ETR CST 2DIN |
1 | ||
| Common parts | ||||
| 86128-28160 | ||||
| 90153-50010 | ||||

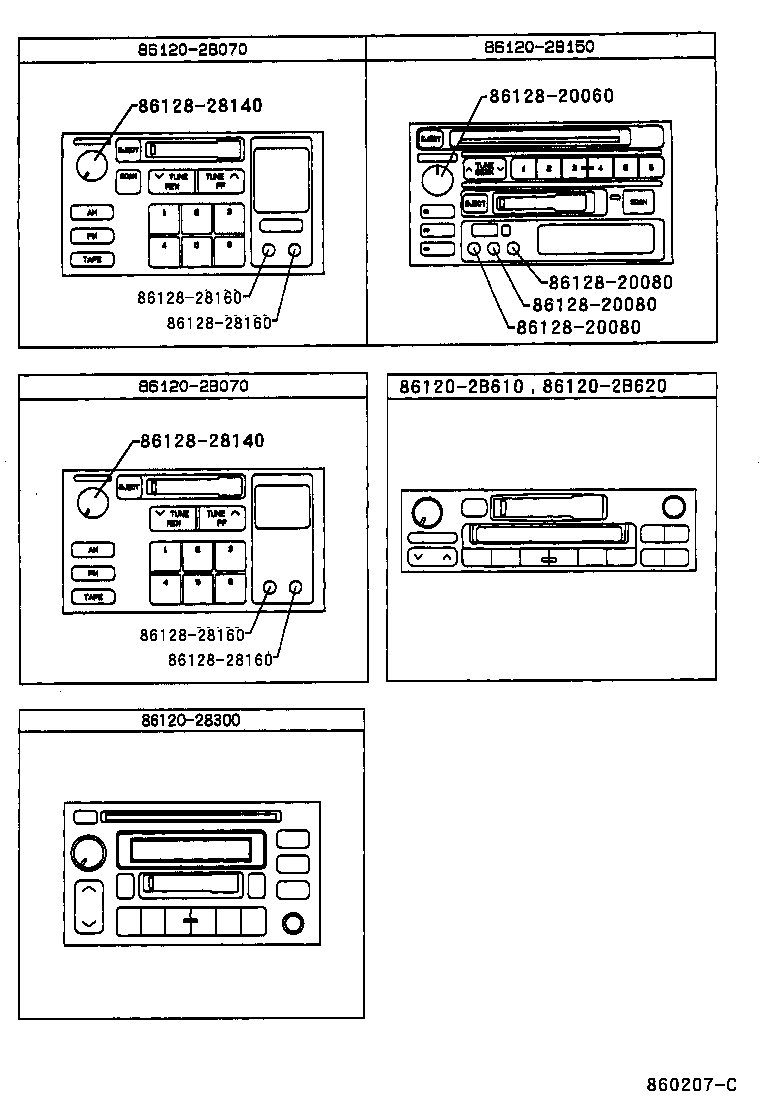

ILLUST NO. 3 OF 3(9005- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 86128-12360 | ||||
| 86128-28160 | ||||
ILLUST NO. 3 OF 3(9005- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 86128-28160 | ||||

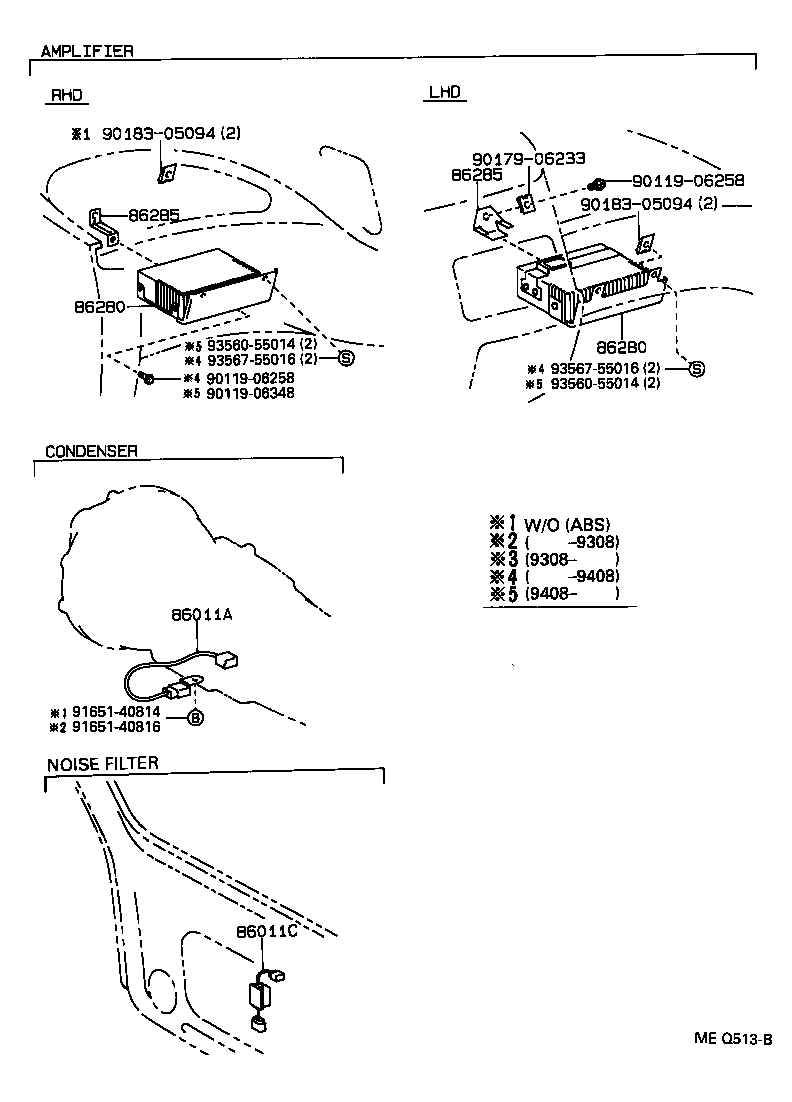

ILLUST NO. 2 OF 3(9005- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04085 |
TCR1#,2# IGNITION COIL |
1 | ||
| Common parts | ||||
| 90119-06258 | ||||
| 90119-06348 | ||||
| 90179-06233 | ||||
| 90183-05094 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 93560-55014 | ||||
| 93567-55016 | ||||
