TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005- )

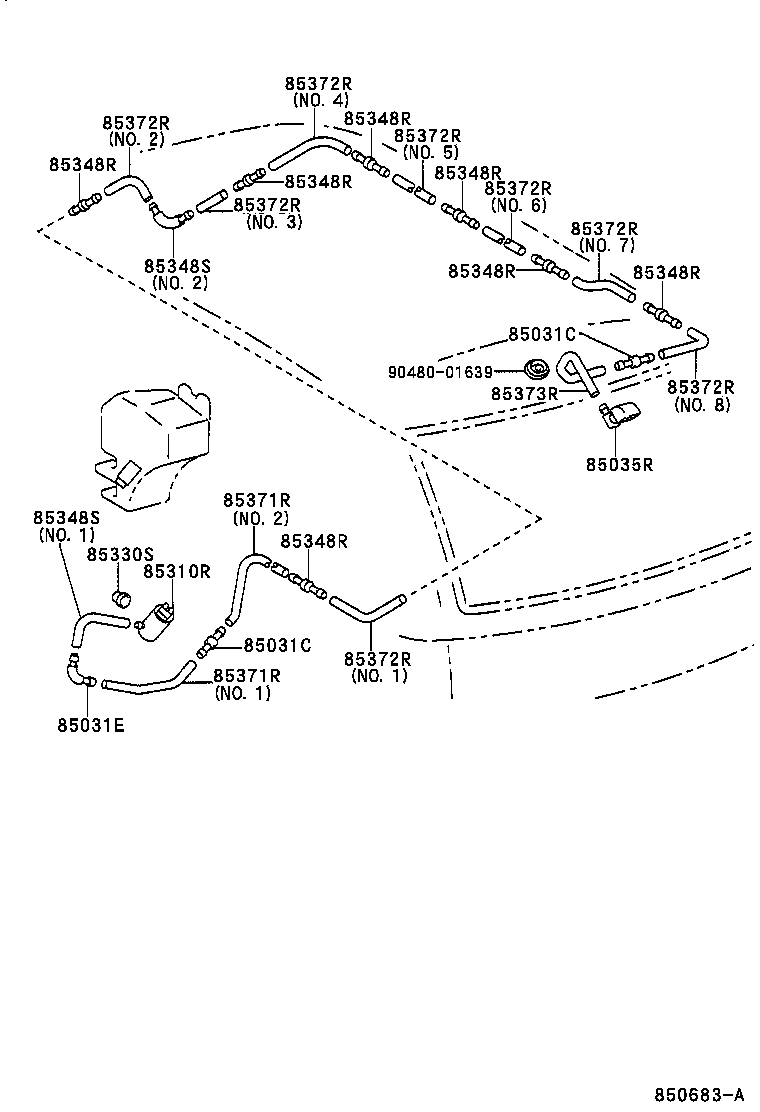

Click highlighted areas on diagram

diagram 85031C 85031C 85031E 85035R 85310R 85330S 85348R 85348R 85348R 85348R 85348R 85348R 85348R 85348S 85348S 85371R 85371R 85372R 85372R 85372R 85372R 85372R 85372R 85372R 85372R 85373R 9048001639
Part # Description Qty Price
85031C - VALVE SUB-ASSY, WASHER
85031-12250

TCR1#,2#

 2
85031C - VALVE SUB-ASSY, WASHER
85031-12250

TCR1#,2#

 2
85031E - VALVE SUB-ASSY REAR WASHER, NO.2
85031-30010

TCR1#,2#

 1
85035R - NOZZLE SUB-ASSY, REAR WASHER
85035-95D01

TCR1#,2#

 1
85310R - MOTOR ASSY, REAR WASHER
85310-95D00

TCR1#,2#

 1
85330S - BUSH, REAR WASHER JAR
90099-32089

TCR1#,2#

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-89122

TCR1#,2#

 5
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-89122

TCR1#,2#

 5
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-89122

TCR1#,2#

 5
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-89122

TCR1#,2#

 5
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-89122

TCR1#,2#

 5
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-89122

TCR1#,2#

 5
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-89122

TCR1#,2#

 5
85348S - JOINT, REAR WASHER ELBOW, NO.1
85375-33040

TCR1#,2#

NO.1

 1
85355-20200

TCR1#,2#

NO.2

 1
85348S - JOINT, REAR WASHER ELBOW, NO.1
85375-33040

TCR1#,2#

NO.1

 1
85355-20200

TCR1#,2#

NO.2

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90099-33080

TCR1#,2#

*H,L=600

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90099-33080

TCR1#,2#

*H,L=600

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90099-59019

TCR1#,2#

L=2120,NO.6

 1
90099-33080

TCR1#,2#

*H,L=200,NO.7,NO.2

 1
90446-07001

TCR1#,2#

*H,L=340,NO.1,NO.4

 1
90099-33108

TCR1#,2#

L=150,NO.5

 1
90099-33080

TCR1#,2#

*H,L=250,NO.3

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90099-59019

TCR1#,2#

L=2120,NO.6

 1
90099-33080

TCR1#,2#

*H,L=200,NO.7,NO.2

 1
90446-07001

TCR1#,2#

*H,L=340,NO.1,NO.4

 1
90099-33108

TCR1#,2#

L=150,NO.5

 1
90099-33080

TCR1#,2#

*H,L=250,NO.3

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90099-59019

TCR1#,2#

L=2120,NO.6

 1
90099-33080

TCR1#,2#

*H,L=200,NO.7,NO.2

 1
90446-07001

TCR1#,2#

*H,L=340,NO.1,NO.4

 1
90099-33108

TCR1#,2#

L=150,NO.5

 1
90099-33080

TCR1#,2#

*H,L=250,NO.3

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90099-59019

TCR1#,2#

L=2120,NO.6

 1
90099-33080

TCR1#,2#

*H,L=200,NO.7,NO.2

 1
90446-07001

TCR1#,2#

*H,L=340,NO.1,NO.4

 1
90099-33108

TCR1#,2#

L=150,NO.5

 1
90099-33080

TCR1#,2#

*H,L=250,NO.3

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90099-59019

TCR1#,2#

L=2120,NO.6

 1
90099-33080

TCR1#,2#

*H,L=200,NO.7,NO.2

 1
90446-07001

TCR1#,2#

*H,L=340,NO.1,NO.4

 1
90099-33108

TCR1#,2#

L=150,NO.5

 1
90099-33080

TCR1#,2#

*H,L=250,NO.3

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90099-59019

TCR1#,2#

L=2120,NO.6

 1
90099-33080

TCR1#,2#

*H,L=200,NO.7,NO.2

 1
90446-07001

TCR1#,2#

*H,L=340,NO.1,NO.4

 1
90099-33108

TCR1#,2#

L=150,NO.5

 1
90099-33080

TCR1#,2#

*H,L=250,NO.3

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90099-59019

TCR1#,2#

L=2120,NO.6

 1
90099-33080

TCR1#,2#

*H,L=200,NO.7,NO.2

 1
90446-07001

TCR1#,2#

*H,L=340,NO.1,NO.4

 1
90099-33108

TCR1#,2#

L=150,NO.5

 1
90099-33080

TCR1#,2#

*H,L=250,NO.3

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90099-59019

TCR1#,2#

L=2120,NO.6

 1
90099-33080

TCR1#,2#

*H,L=200,NO.7,NO.2

 1
90446-07001

TCR1#,2#

*H,L=340,NO.1,NO.4

 1
90099-33108

TCR1#,2#

L=150,NO.5

 1
90099-33080

TCR1#,2#

*H,L=250,NO.3

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90099-33299

TCR1#,2#

*H,L=250

 1
Common parts
90480-01639
