TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9005-9308)

Click highlighted areas on diagram

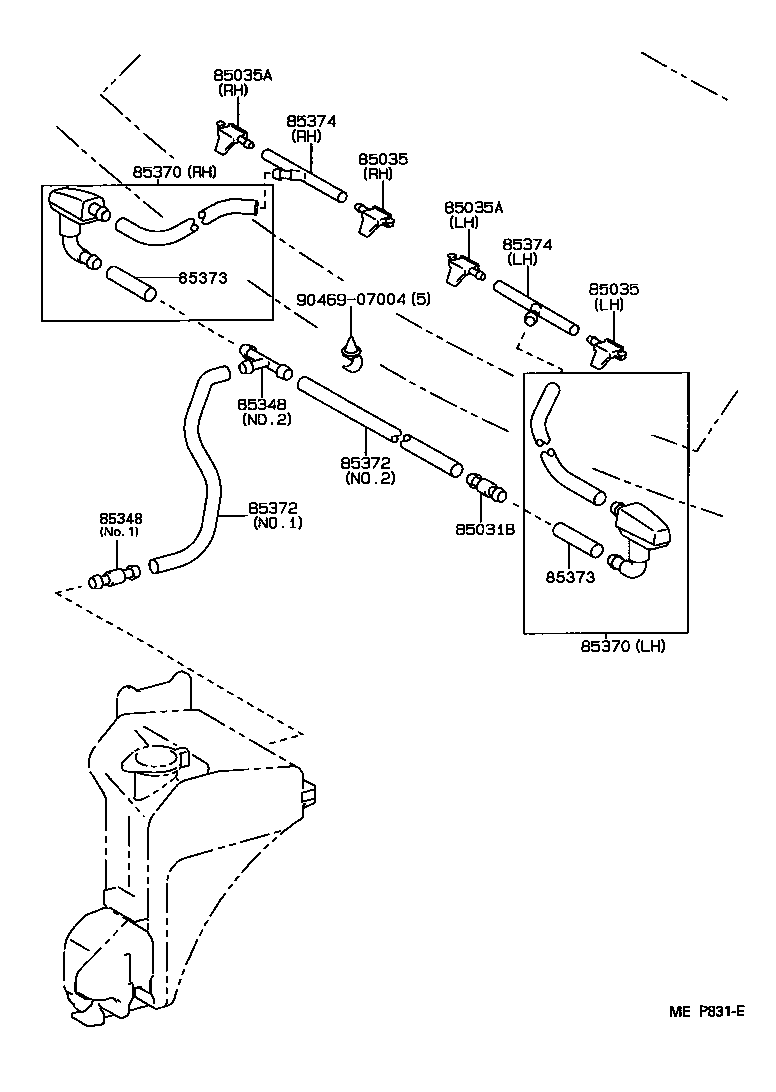

NOZZLE & HOSE

diagram 85031B 85035 85035 85035A 85035A 85348 85348 85370 85370 85372 85372 85373 85373 85374 85374 9046907004
Part # Description Qty Price
85031B - VALVE SUB-ASSY, WASHER
85031-12250

TCR1#,2#

 2
85035 - NOZZLE SUB-ASSY, WASHER
85382-28010

TCR1#,2#

RH

 1
85382-28020

TCR1#,2#

LH

 1
85035 - NOZZLE SUB-ASSY, WASHER
85382-28010

TCR1#,2#

RH

 1
85382-28020

TCR1#,2#

LH

 1
85035A - NOZZLE, FR WASHER, RH
85381-28020

TCR1#,2#

LH

 1
85381-28010

TCR1#,2#

RH

 1
85035A - NOZZLE, FR WASHER, RH
85381-28020

TCR1#,2#

LH

 1
85381-28010

TCR1#,2#

RH

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85355-20200

TCR1#,2#

W(*RW),NO.3

 1
85348-12250

TCR1#,2#

NO.2

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85355-20200

TCR1#,2#

W(*RW),NO.3

 1
85348-12250

TCR1#,2#

NO.2

 1
85370 - HOSE ASSY, WINDSHIELD WASHER
85370-28040

TCR1#,2#..RHD

LH

 1
85370-95D07

TCR1#,2#..RHD

RH

 1
85370 - HOSE ASSY, WINDSHIELD WASHER
85370-28040

TCR1#,2#..RHD

LH

 1
85370-95D07

TCR1#,2#..RHD

RH

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33080

TCR1#,2#

*H,L=40,NO.1

 1
90099-33299

TCR1#,2#

*H,L=370,NO.2

 1
90099-33382

TCR1#,2#

*H,L=1080,NO.3

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33080

TCR1#,2#

*H,L=40,NO.1

 1
90099-33299

TCR1#,2#

*H,L=370,NO.2

 1
90099-33382

TCR1#,2#

*H,L=1080,NO.3

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33834

TCR1#,2#

L=745

 1
90099-33080

TCR1#,2#

*H,L=40

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33834

TCR1#,2#

L=745

 1
90099-33080

TCR1#,2#

*H,L=40

 2
85374 - HOSE, WINDSHIELD WASHER (FROM NOZZLE TO NOZZLE)
85374-28010

TCR1#,2#..RHD

LH

 1
85374-28020

TCR1#,2#..RHD

RH

 1
85374 - HOSE, WINDSHIELD WASHER (FROM NOZZLE TO NOZZLE)
85374-28010

TCR1#,2#..RHD

LH

 1
85374-28020

TCR1#,2#..RHD

RH

 1
Common parts
90469-07004

ILLUST NO. 2 OF 2(9005- )

Click highlighted areas on diagram

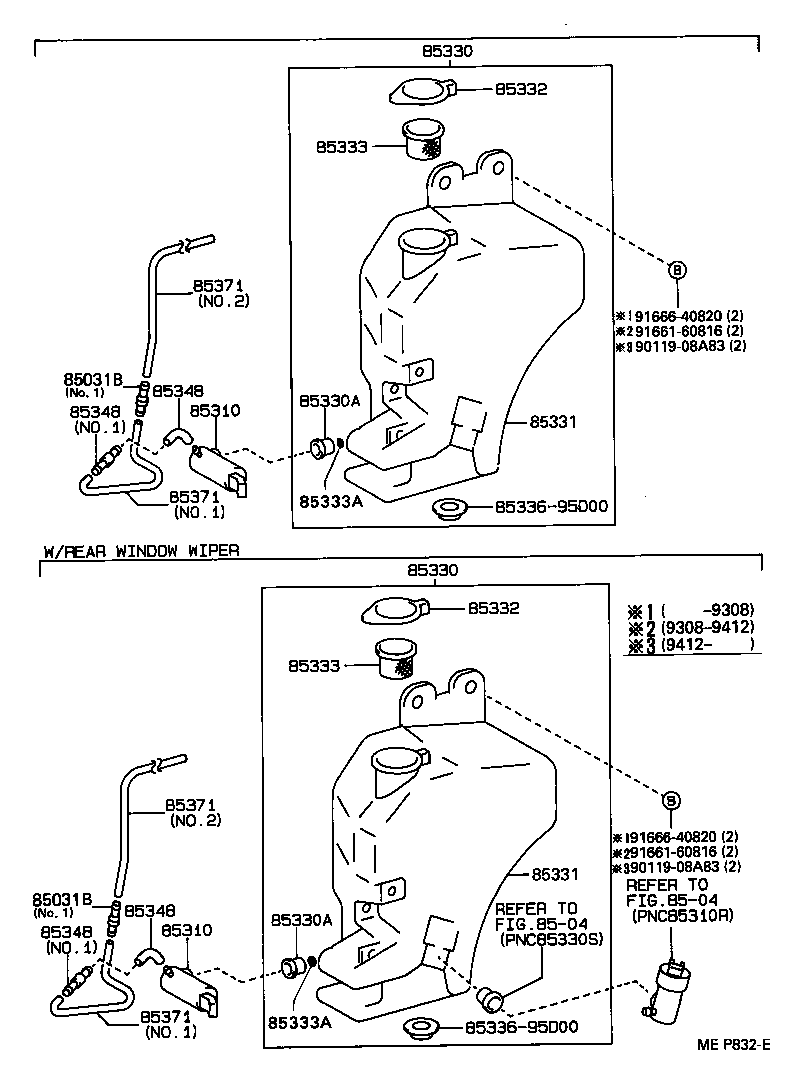

JAR & HOSE

diagram 85031B 85031B 8504 8504 85310 85310 85330 85330 85330A 85330A 85331 85331 85332 85332 85333 85333 85333A 85333A 8533695D00 8533695D00 85348 85348 85348 85371 85371 85371 85371 9011908A83 9011908A83 9166160816 9166160816 9166640820 9166640820
Part # Description Qty Price
85031B - VALVE SUB-ASSY, WASHER
85031-12250

TCR1#,2#

 2
85031B - VALVE SUB-ASSY, WASHER
85031-12250

TCR1#,2#

 2
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-28040

TCR1#,2#

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-28040

TCR1#,2#

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85330-95D03

TCR1#,2#

W(REAR WINDOW WIPER)

 1
85330-95D02

TCR1#,2#

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85330-95D03

TCR1#,2#

W(REAR WINDOW WIPER)

 1
85330-95D02

TCR1#,2#

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32103

TCR1#,2#

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32103

TCR1#,2#

 1
85332 - CAP, WINDSHIELD WASHER JAR
85332-12660

TCR1#,2#

 1
85332 - CAP, WINDSHIELD WASHER JAR
85332-12660

TCR1#,2#

 1
85333 - FILTER, WINDSHIELD WASHER JAR
85333-20010

TCR1#,2#

 1
85333 - FILTER, WINDSHIELD WASHER JAR
85333-20010

TCR1#,2#

 1
85333A - FILTER, WINDSHIELD WASHER JAR, NO.2
85333-20020

TCR1#,2#

 1
85333A - FILTER, WINDSHIELD WASHER JAR, NO.2
85333-20020

TCR1#,2#

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85355-20200

TCR1#,2#

W(*RW),NO.3

 1
85348-12250

TCR1#,2#

NO.2

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85355-20200

TCR1#,2#

W(*RW),NO.3

 1
85348-12250

TCR1#,2#

NO.2

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85355-20200

TCR1#,2#

W(*RW),NO.3

 1
85348-12250

TCR1#,2#

NO.2

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33075

TCR1#,2#

*H,L=640

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33075

TCR1#,2#

*H,L=640

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33075

TCR1#,2#

*H,L=640

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33075

TCR1#,2#

*H,L=640

 1
Common parts
85336-95D00
90119-08A83
91661-60816
91666-40820
Linked diagrams
8504
