TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005-9801)

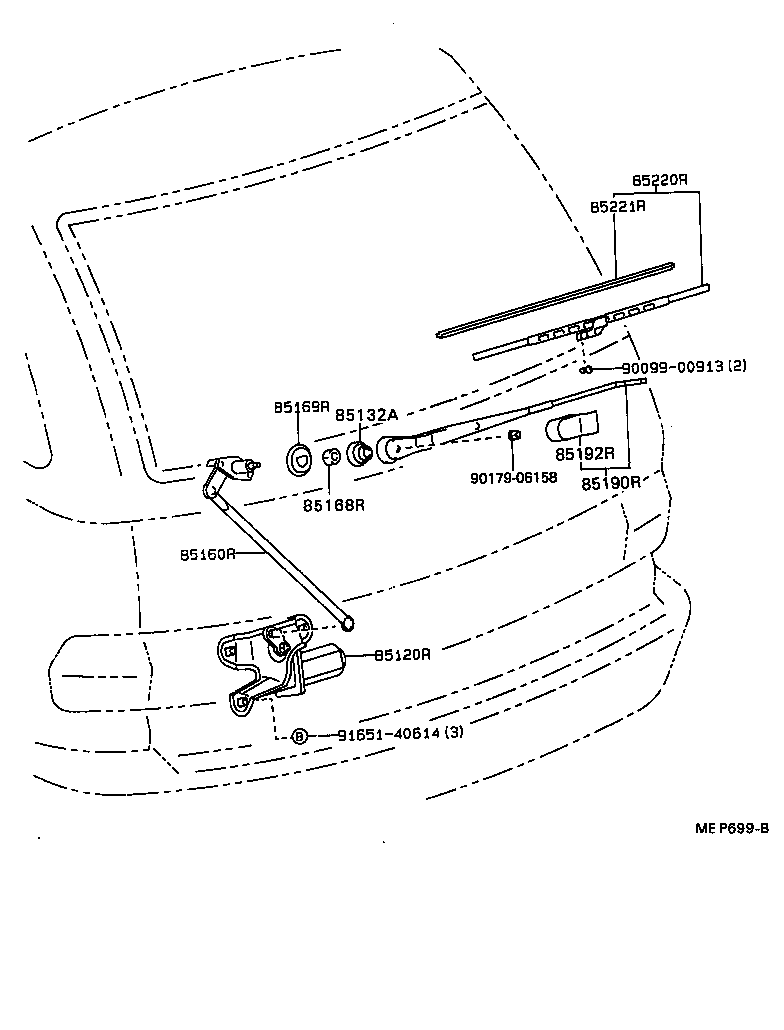

Click highlighted areas on diagram

diagram 85120R 85132A 85160R 85168R 85169R 85190R 85192R 85220R 85221R 9009900913 9017906158 9165140614
Part # Description Qty Price
85120R - MOTOR AND BRACKET ASSY, REAR WIPER
85120-95D02

TCR1#,2#

 1
85160R - LINK ASSY, REAR WIPER
85170-28030

TCR1#,2#

 1
85160-95D02

TCR1#,2#

 1
85168R - NUT, REAR WIPER LINK PIVOT, NO.1
85168-95700

TCR1#,2#

 1
85169R - WASHER, REAR WIPER LINK PIVOT, NO.1
85179-95D00

TCR1#,2#

 1
85190R - ARM ASSY, REAR WIPER
85190-95D05

TCR1#,2#..ARL

 1
85192R - COVER, REAR WIPER ARM
85192-28020

TCR1#,2#

 1
85220R - BLADE ASSY, REAR WIPER
85220-22371

TCR1#,2#

 1
85221R - BLADE, REAR WIPER
85221-87002

TCR1#,2#

 1
Common parts
90099-00913
90179-06158
91651-40614
