TCR20R-RFSDKQ (1990)
Toyota Previa
Production
May 1990
-
Aug 1991
Engine
2TZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9005- )

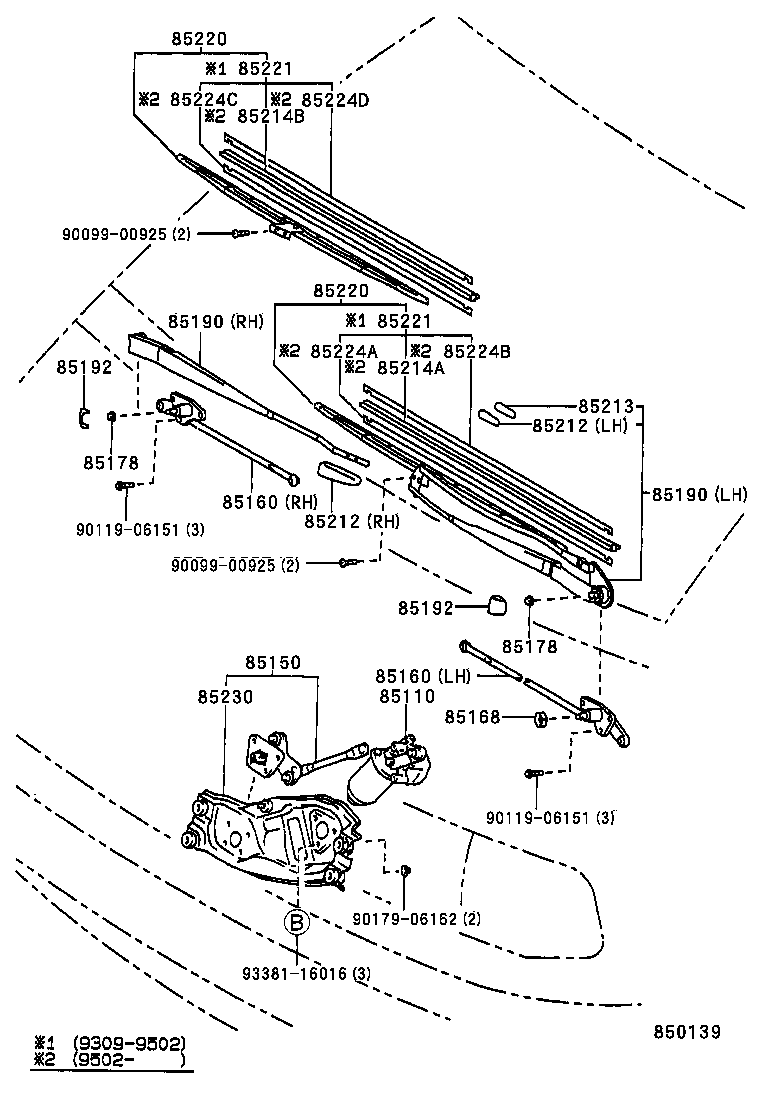

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85110 - MOTOR ASSY, WINDSHIELD WIPER | ||||
| 85110-95D03 |
TCR1#,2#..ARL |
1 | ||
| 85150 - COVER, WINDSHIELD WIPER MOTOR GEAR END | ||||
| 85150-95D01 |
TCR1#,2#..RHD |
1 | ||
| 85160 - LINK ASSY, WINDSHIELD WIPER | ||||
| 85160-95D04 |
TCR1#,2#..RHD LH |
1 | ||
| 85160-95D03 |
TCR1#,2#..RHD RH |
1 | ||
| 85160 - LINK ASSY, WINDSHIELD WIPER | ||||
| 85160-95D04 |
TCR1#,2#..RHD LH |
1 | ||
| 85160-95D03 |
TCR1#,2#..RHD RH |
1 | ||
| 85168 - NUT, WINDSHIELD WIPER LINK PIVOT | ||||
| 85168-95J00 |
TCR1#,2# |
1 | ||
| 85178 - NUT (FOR FRONT WIPER ARM SETTING) | ||||
| 90179-08026 |
TCR1#,2# |
2 | ||
| 85178 - NUT (FOR FRONT WIPER ARM SETTING) | ||||
| 90179-08026 |
TCR1#,2# |
2 | ||
| 85190 - ARM ASSY, WINDSHIELD WIPER | ||||
| 85190-95D02 |
TCR1#,2#..ARL RH |
1 | ||
| 85210-95D02 |
TCR1#,2#..ARL LH |
1 | ||
| 85190 - ARM ASSY, WINDSHIELD WIPER | ||||
| 85190-95D02 |
TCR1#,2#..ARL RH |
1 | ||
| 85210-95D02 |
TCR1#,2#..ARL LH |
1 | ||
| 85192 - COVER, WINDSHIELD WIPER ARM | ||||
| 85192-95D00 |
TCR1#,2# |
2 | ||
| 85192 - COVER, WINDSHIELD WIPER ARM | ||||
| 85192-95D00 |
TCR1#,2# |
2 | ||
| 85212 - COVER, WIPER ARM PIECE, NO.1 | ||||
| 85212-95D00 |
TCR1#,2# LH |
1 | ||
| 85212-95D02 |
TCR1#,2#..RHD RH |
1 | ||
| 85212 - COVER, WIPER ARM PIECE, NO.1 | ||||
| 85212-95D00 |
TCR1#,2# LH |
1 | ||
| 85212-95D02 |
TCR1#,2#..RHD RH |
1 | ||
| 85213 - COVER, WIPER ARM PIECE, NO.2 | ||||
| 85213-95D00 |
TCR1#,2# |
1 | ||
| 85220 - BLADE ASSY, WINDSHIELD WIPER | ||||
| 85220-95D05 |
TCR1#,2#..RHD LH |
1 | ||
| 85220-95D04 |
TCR1#,2#..ARL RH |
1 | ||
| 85220 - BLADE ASSY, WINDSHIELD WIPER | ||||
| 85220-95D05 |
TCR1#,2#..RHD LH |
1 | ||
| 85220-95D04 |
TCR1#,2#..ARL RH |
1 | ||
| 85221 - BLADE, WINDSHIELD WIPER | ||||
| 85221-95D00 |
TCR1#,2# |
2 | ||
| 85221 - BLADE, WINDSHIELD WIPER | ||||
| 85221-95D00 |
TCR1#,2# |
2 | ||
| 85230 - BRACKET ASSY, WINDSHIELD WIPER | ||||
| 85269-95D01 |
TCR1#,2#..RHD |
1 | ||
| Common parts | ||||
| 90099-00925 | ||||
| 90119-06151 | ||||
| 90179-06162 | ||||
| 93381-16016 | ||||
