TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005-9308)TCR2#..ATM

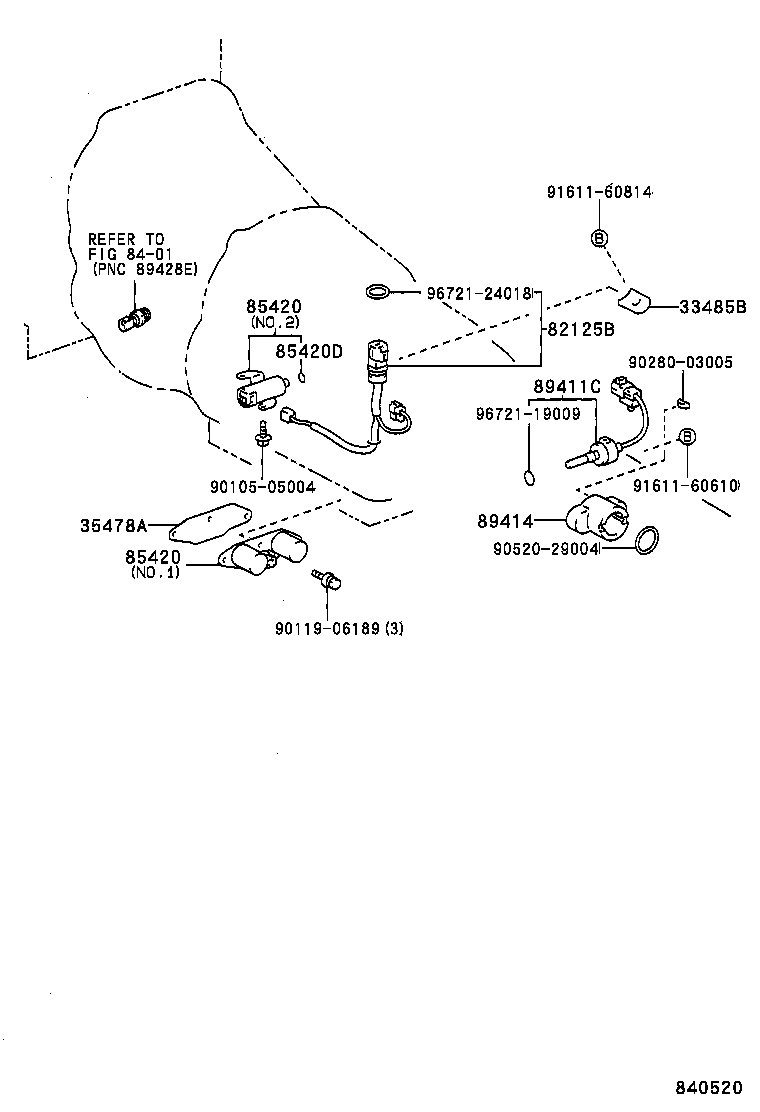

Click highlighted areas on diagram

diagram 33485B 35478A 82125B 8401 85420 85420 85420D 89411C 89414 9010505004 9011906189 9028003005 9052029004 9161160610 9161160814 9672119009 9672124018
Part # Description Qty Price
33485B - PLATE, TRANSMISSION WIRE
33485-28010

TCR1#,2#..ATM

 1
35478A - GASKET, SHIFT CONTROL SOLENOID
35478-30010

TCR1#,2#..ATM

 1
82125B - WIRE, TRANSMISSION
82125-28010

TCR1#,2#..ATM

 1
85420 - SOLENOID ASSY, TRANSMISSION
85420-30050

TCR1#,2#..ATM

NO.1

 1
85420-30070

TCR1#,2#..ATM

NO.2

 1
85420 - SOLENOID ASSY, TRANSMISSION
85420-30050

TCR1#,2#..ATM

NO.1

 1
85420-30070

TCR1#,2#..ATM

NO.2

 1
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

TCR1#,2#..ATM

 1
89411C - SENSOR, SPEED
89411-28030

TCR2#..ATM

 1
89414 - ROTOR, SENSOR
89414-35010

TCR2#..ATM

 1
Common parts
90105-05004
90119-06189
90280-03005
90520-29004
91611-60610
91611-60814
96721-19009
96721-24018
Linked diagrams
8401
