TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005-9608)

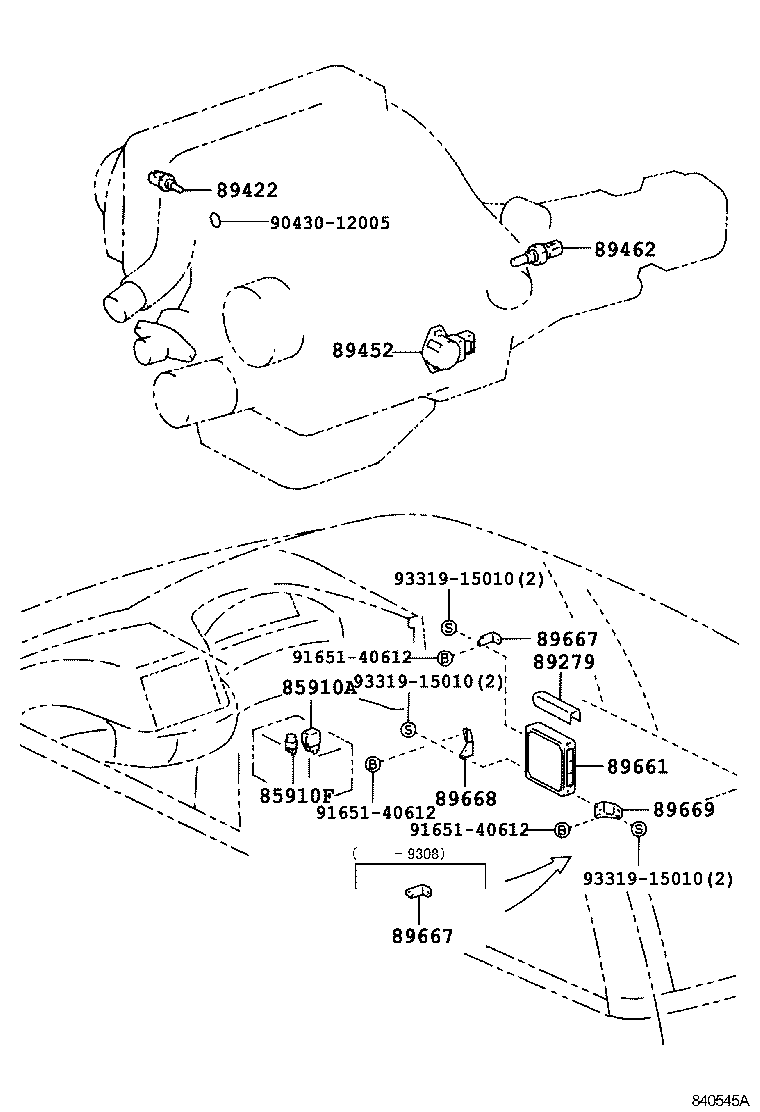

Click highlighted areas on diagram

diagram 85910A 85910F 89279 89422 89452 89462 89661 89667 89667 89668 89669 9043012005 9165140612 9165140612 9165140612 9331915010 9331915010 9331915010
Part # Description Qty Price
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910-30050

TCR1#,2#

 1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02004

TCR1#,2#

 1
89279 - COVER, ENGINE CONTROL COMPUTER
89279-28010

TCR1#,2#

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-20010

TCR1#,2#

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-12040

TCR1#,2#

 1
89462 - SWITCH, START INJECTOR TIME
89462-20020

TCR1#,2#

 1
89661 - COMPUTER, ENGINE CONTROL
89661-28191

TCR1#,2#..ATM..ARL

 1
89661-28190

TCR1#,2#..ATM..ARL

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-28020

TCR1#,2#

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-28020

TCR1#,2#

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-28010

TCR1#,2#

 1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89667-28020

TCR1#,2#

 1
Common parts
90430-12005
91651-40612
93319-15010
