TCR20R-RFSDKQ (1990)
Toyota Previa

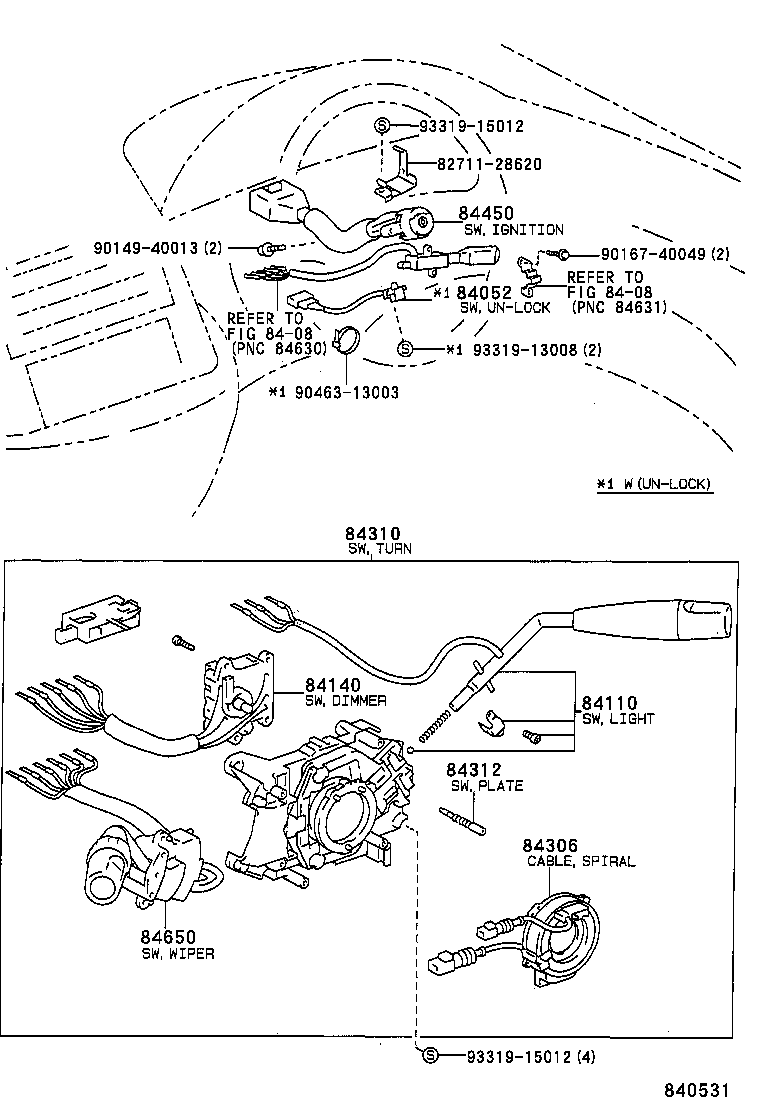

ILLUST NO. 4 OF 8(9005- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-28010 |
TCR1#,2#..ARL |
1 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80058 |
TCR1#,2#..RHD |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-22050 |
TCR1#,2#..RHD |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-28420 |
TCR10,20..ARL W(REAR WINDOW WIPER & INTERMITTENT WIPER) |
1 | ||
| 84310-28400 |
TCR10,20..ARL W(INTERMITTENT WIPER) |
1 | ||
| 84310-28460 |
TCR10,20..ARL |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12040 |
TCR1#,2# |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-10110 |
TCR1#,2#..RHD |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-28320 |
TCR10,20..ARL |
1 | ||
| 84652-28290 |
TCR10,20..ARL W(INTERMITTENT WIPER) |
1 | ||
| 84652-28300 |
TCR10,20..ARL W(REAR WINDOW WIPER & INTERMITTENT WIPER) |
1 | ||
| Common parts | ||||
| 82711-28620 | ||||
| 90149-40013 | ||||
| 90167-40049 | ||||
| 90463-13003 | ||||
| 93319-13008 | ||||
| 93319-15012 | ||||
| Linked diagrams | ||||
| 8408 | ||||

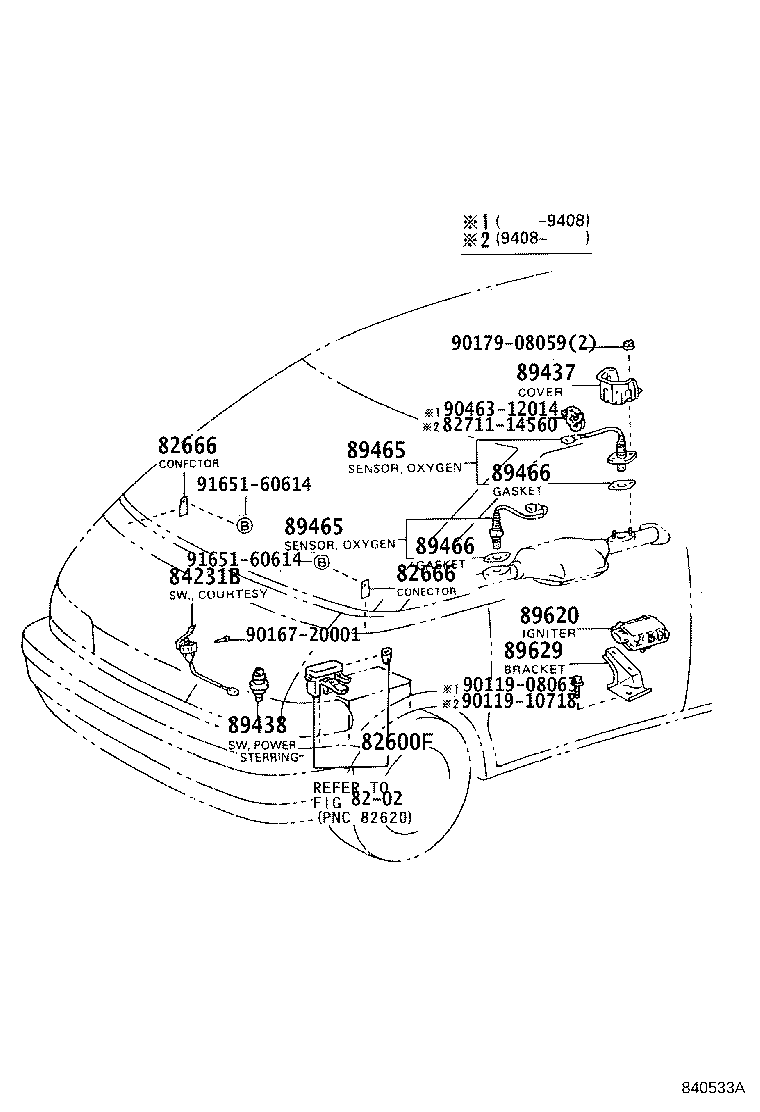

ILLUST NO. 1 OF 8(9005- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07011 |
TCR1#,2#..ARL,W 30A,GREEN |
1 | ||
| 90982-09005 |
TCR1#,2#..ARL,W 7.5A |
1 | ||
| 90982-09004 |
TCR1#,2# 20A,YELLOW |
1 | ||
| 90982-09002 |
TCR1#,2# 10A |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-28020 |
TCR10,20 FRONT DOOR RH |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-28020 |
TCR10,20 FRONT DOOR RH |
1 | ||
| 89437 - COVER, SENSOR | ||||
| 89437-28070 |
TCR1#,2# |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-29495 |
TCR1#,2#..ARL,W FR(MAIN, 4WIRE) |
1 | ||
| 89465-29415 |
TCR1#,2#..ARL,W RR(SUB, 2WIRE) |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-29495 |
TCR1#,2#..ARL,W FR(MAIN, 4WIRE) |
1 | ||
| 89465-29415 |
TCR1#,2#..ARL,W RR(SUB, 2WIRE) |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-20020 |
TCR1#,2#..ARL,W |
2 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-20020 |
TCR1#,2#..ARL,W |
2 | ||
| 89620 - IGNITER ASSY | ||||
| 89621-12010 |
TCR1#,2# |
1 | ||
| 89629 - BRACKET, IGNITER ASSY | ||||
| 89629-28020 |
TCR1#,2# |
1 | ||
| Common parts | ||||
| 82711-14560 | ||||
| 90119-08063 | ||||
| 90119-10718 | ||||
| 90167-20001 | ||||
| 90179-08059 | ||||
| 90463-12014 | ||||
| 91651-60614 | ||||
| Linked diagrams | ||||
| 8202 | ||||

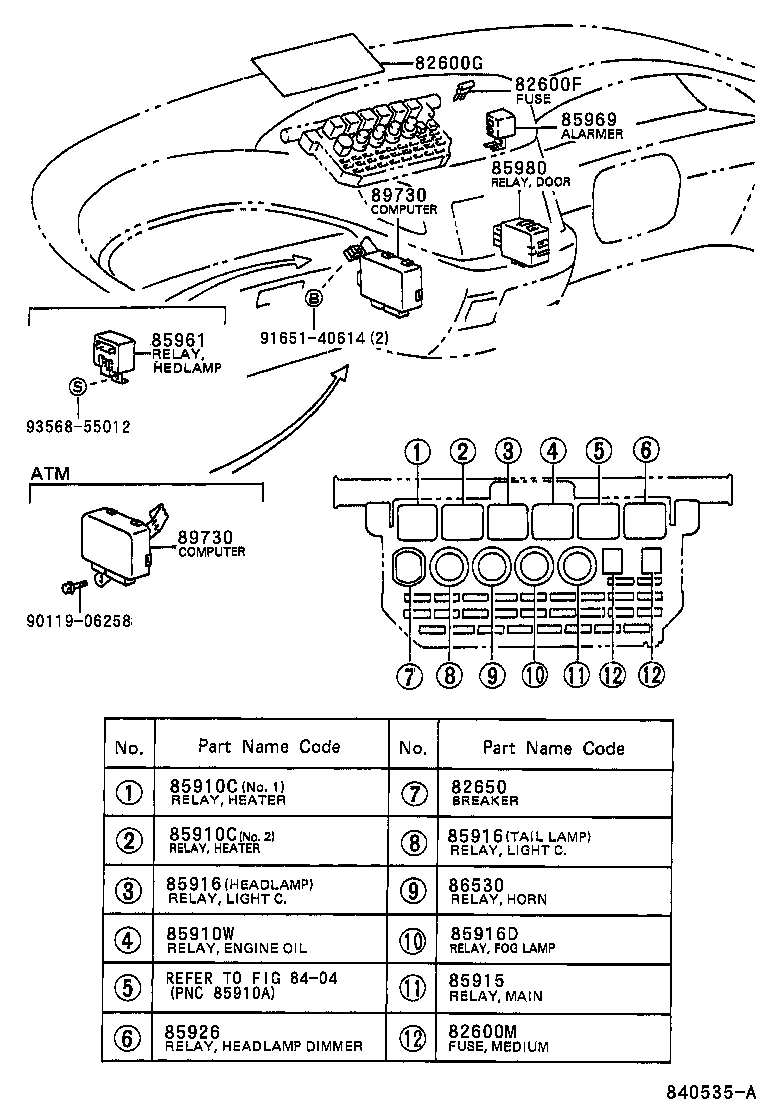

ILLUST NO. 5 OF 8(9005- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07011 |
TCR1#,2#..ARL,W 30A,GREEN |
1 | ||
| 90982-09005 |
TCR1#,2#..ARL,W 7.5A |
1 | ||
| 90982-09004 |
TCR1#,2# 20A,YELLOW |
1 | ||
| 90982-09002 |
TCR1#,2# 10A |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-95D00 |
TCR1#,2#..ARL |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10001 |
TCR1#,2# 30A,PINK |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20020 |
TCR1#,2# 40A |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
TCR1#,2# NO.1 |
1 | ||
| 90987-02006 |
TCR1#,2# NO.2 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
TCR1#,2# NO.1 |
1 | ||
| 90987-02006 |
TCR1#,2# NO.2 |
1 | ||
| 85910W - RELAY, OIL LEVEL | ||||
| 90987-02004 |
TCR1#,2# |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02004 |
TCR1#,2# |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
TCR1#,2# HEADLAMP |
1 | ||
| 90987-01003 |
TCR1#,2# TAIL LAMP |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
TCR1#,2# HEADLAMP |
1 | ||
| 90987-01003 |
TCR1#,2# TAIL LAMP |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02004 |
TCR1#,2# |
1 | ||
| 85961 - RELAY, HEADLAMP RETAINER | ||||
| 85961-95D00 |
TCR1#,2#..ARL,GEN |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-95702 |
TCR1#,2# |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-01003 |
TCR1#,2# |
1 | ||
| Common parts | ||||
| 90119-06258 | ||||
| 91651-40614 | ||||
| 93568-55012 | ||||
| Linked diagrams | ||||
| 8404 | ||||

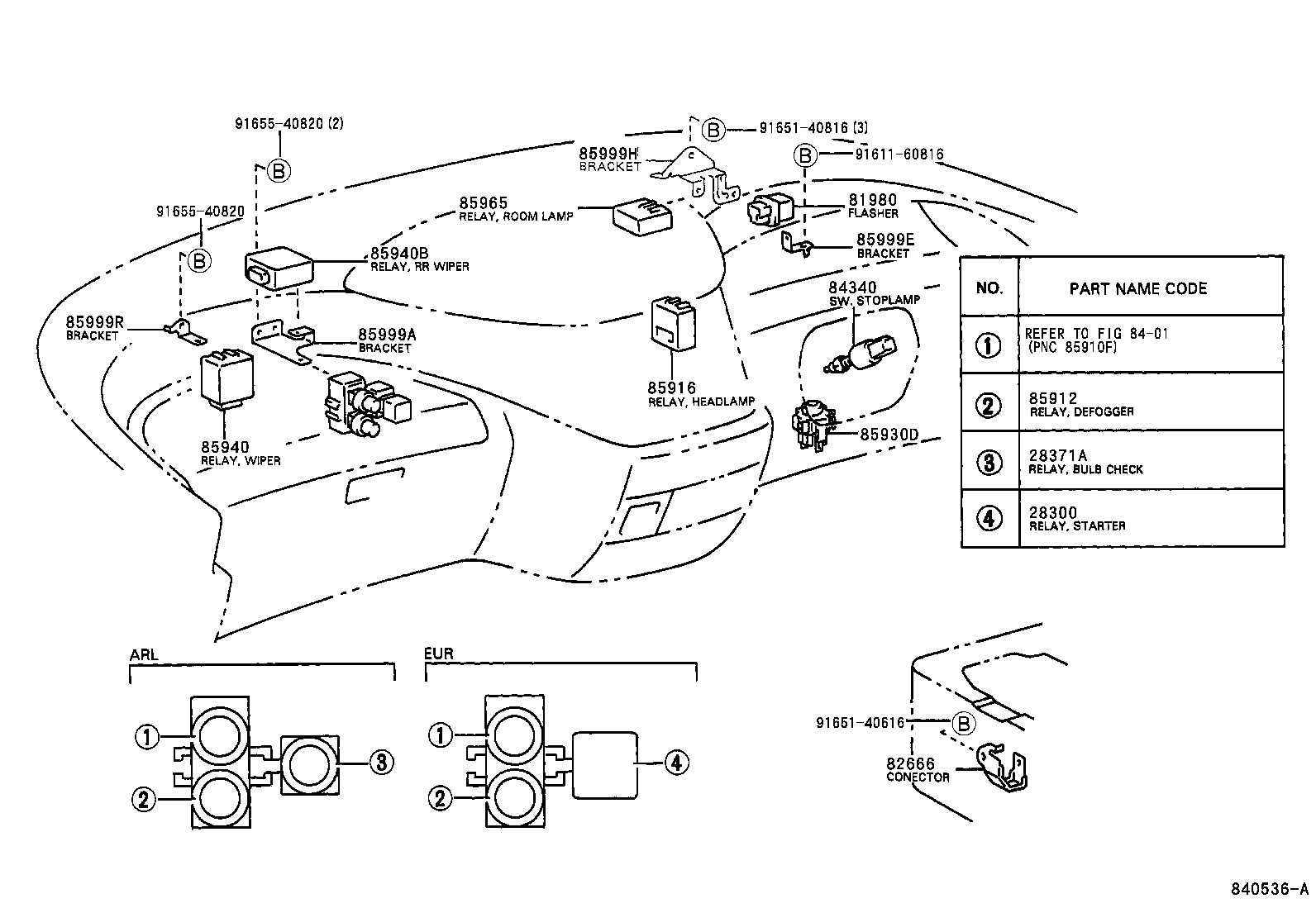

ILLUST NO. 6 OF 8(9005- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371A - RELAY, BULB CHECK | ||||
| 90987-02004 |
2TZFE..TCR1#,2#..ARL |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
TCR1#,2# |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-28020 |
TCR10,20 FRONT DOOR RH |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-28010 |
TCR1#,2# |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02004 |
TCR1#,2# |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
TCR1#,2# HEADLAMP |
1 | ||
| 90987-01003 |
TCR1#,2# TAIL LAMP |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-95D00 |
TCR1#,2#..ARL,W |
1 | ||
| 85940B - RELAY ASSY, REAR WIPER | ||||
| 85940-95D01 |
TCR1#,2# |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-95D07 |
TCR1#,2#..RHD |
1 | ||
| 85999E - BRACKET, RELAY, NO.5 | ||||
| 85999-95D11 |
TCR1#,2# |
1 | ||
| 85999R - BRACKET, RELAY, NO.6 | ||||
| 85999-95D04 |
TCR1#,2#..RHD |
1 | ||
| Common parts | ||||
| 91611-60816 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 91655-40820 | ||||
| Linked diagrams | ||||
| 8401 | ||||

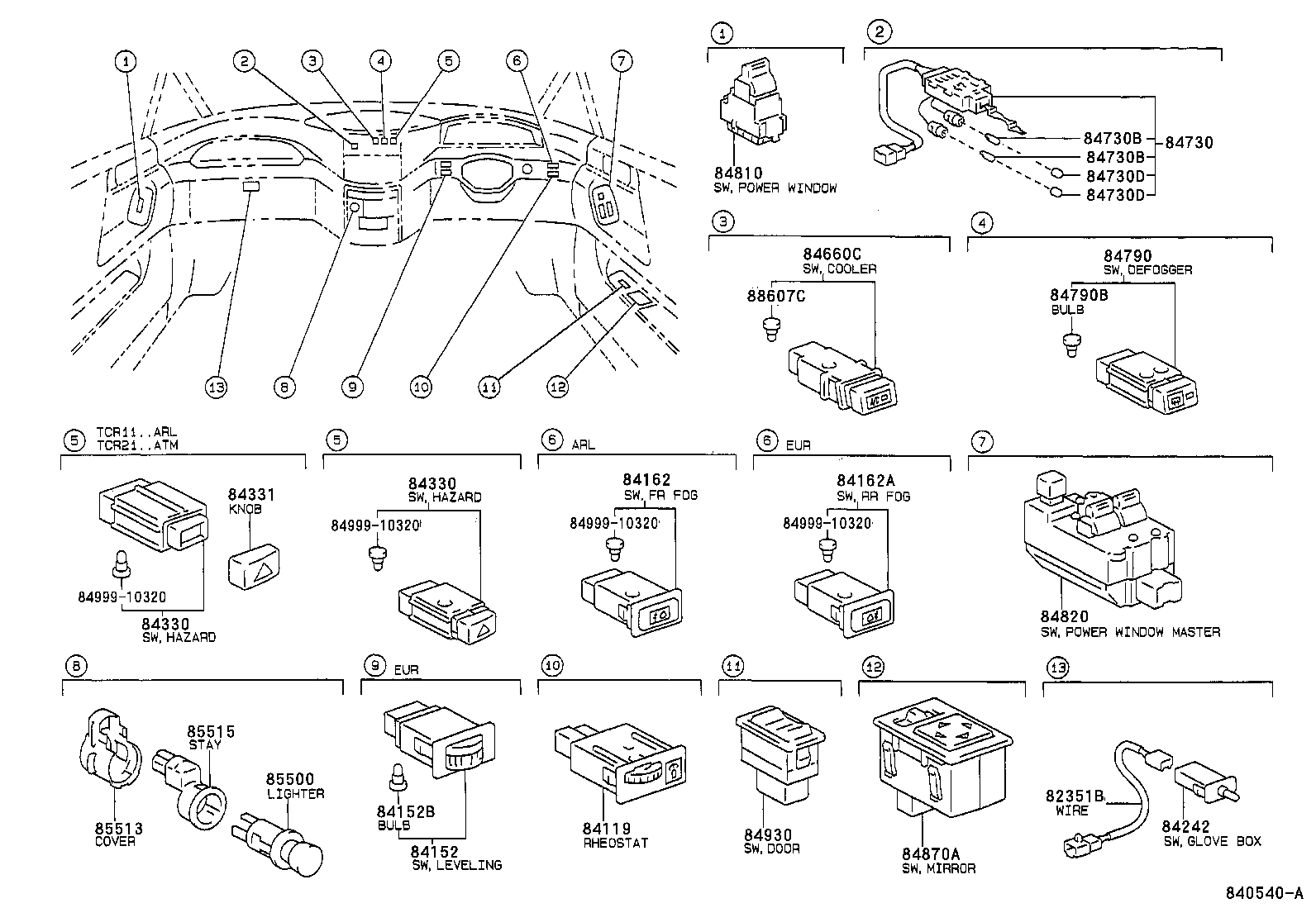

ILLUST NO. 3 OF 8(9005- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-95D01 |
TCR1#,2#..RHD |
1 | ||
| 84162 - SWITCH, FRONT FOG LAMP | ||||
| 84160-95D02 |
TCR1#,2#..ARL |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-95D00 |
TCR1#,2# |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-95D00 |
TCR1#,2# |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-95D00 |
TCR1#,2# |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-95D00 |
TCR1#,2# |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
TCR1#,2# 14V 1.4W |
2 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
TCR1#,2# 14V 1.4W |
2 | ||
| 84730D - CAP, HEATER BLOWER SWITCH BULB | ||||
| 84998-10390 |
TCR1#,2# |
2 | ||
| 84730D - CAP, HEATER BLOWER SWITCH BULB | ||||
| 84998-10390 |
TCR1#,2# |
2 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-95D00 |
TCR1#,2# |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10470 |
TCR1#,2# 14V 1.12W |
1 | ||
| 84999-10320 |
TCR1#,2# 14V 0.84W |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-95D00 |
TCR1#,2# |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-95D01 |
TCR1#,2#..RHD |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-20080 |
TCR1#,2#..DX,GL |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-28011 |
TCR1#,2# |
1 | ||
| 84930-28010 |
TCR1#,2# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-89106 |
TCR1#,2# |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-28010 |
TCR1#,2# |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-22010 |
TCR1#,2# |
1 | ||
| Common parts | ||||
| 84999-10320 | ||||

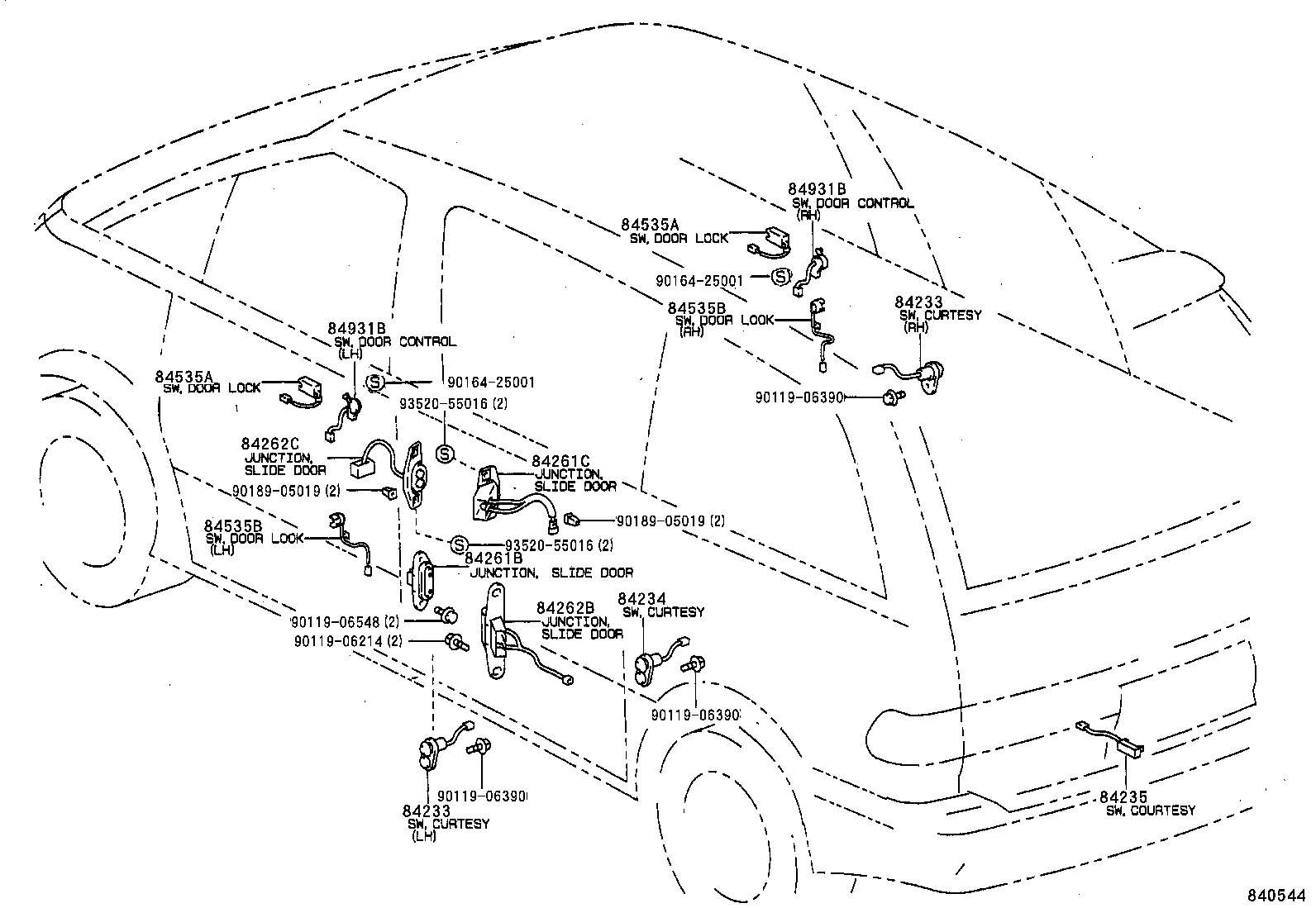

ILLUST NO. 8 OF 8(9005- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-95D03 |
TCR1#,2# PASSENGER SIDE |
1 | ||
| 84230-95D00 |
TCR1#,2# DRIVER SIDE |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-95D03 |
TCR1#,2# PASSENGER SIDE |
1 | ||
| 84230-95D00 |
TCR1#,2# DRIVER SIDE |
1 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84230-95D01 |
TCR1#,2# |
1 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84230-95D02 |
TCR1#,2# |
1 | ||
| 84261B - JUNCTION, SLIDE DOOR CONTROL,MALE | ||||
| 84261-95D02 |
TCR1#,2# |
1 | ||
| 84262B - JUNCTION, SLIDE DOOR CONTROL, FEMALE | ||||
| 84262-95D02 |
TCR1#,2# |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-95D01 |
TCR1#,2# RH |
1 | ||
| 84931-95D00 |
TCR1#,2# LH |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-95D01 |
TCR1#,2# RH |
1 | ||
| 84931-95D00 |
TCR1#,2# LH |
1 | ||
| Common parts | ||||
| 90119-06214 | ||||
| 90119-06390 | ||||
| 90119-06548 | ||||
| 90164-25001 | ||||
| 90189-05019 | ||||
| 93520-55016 | ||||

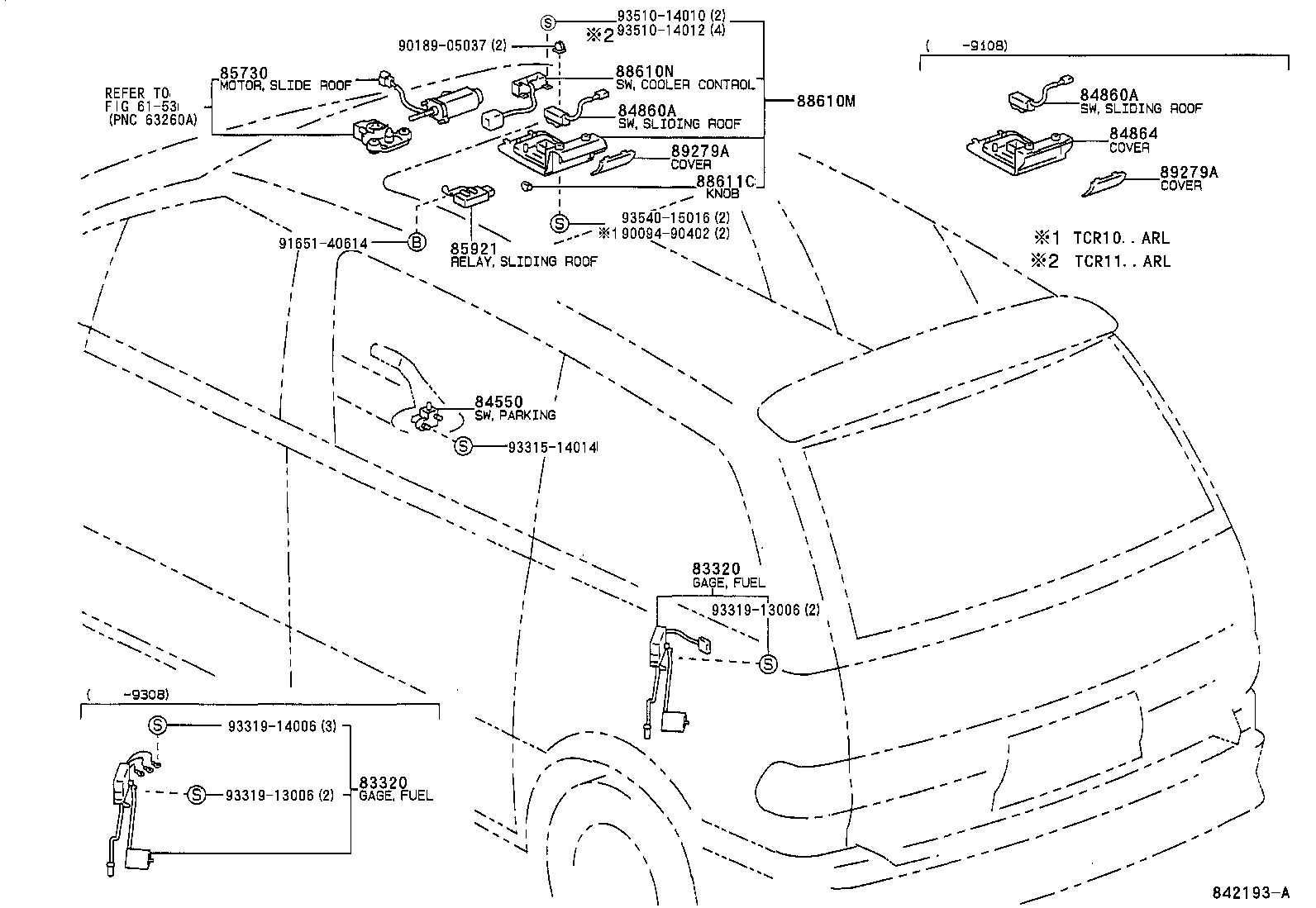

ILLUST NO. 7 OF 8(9005- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80180 |
TCR1#,2# |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80180 |
TCR1#,2# |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-12060 |
TCR1#,2# |
1 | ||
| 84864 - COVER, SLIDE ROOF MOTOR SWITCH | ||||
| 84864-95D00 |
TCR10,2#..ARL |
1 | ||
| 89279A - COVER, COMPUTER | ||||
| 89279-95D00 |
TCR1#,2#..ARL |
1 | ||
| 89279A - COVER, COMPUTER | ||||
| 89279-95D00 |
TCR1#,2#..ARL |
1 | ||
| Common parts | ||||
| 90094-90402 | ||||
| 90189-05037 | ||||
| 91651-40614 | ||||
| 93315-14014 | ||||
| 93319-13006 | ||||
| 93319-14006 | ||||
| 93510-14010 | ||||
| 93510-14012 | ||||
| 93540-15016 | ||||
| Linked diagrams | ||||
| 6153 | ||||

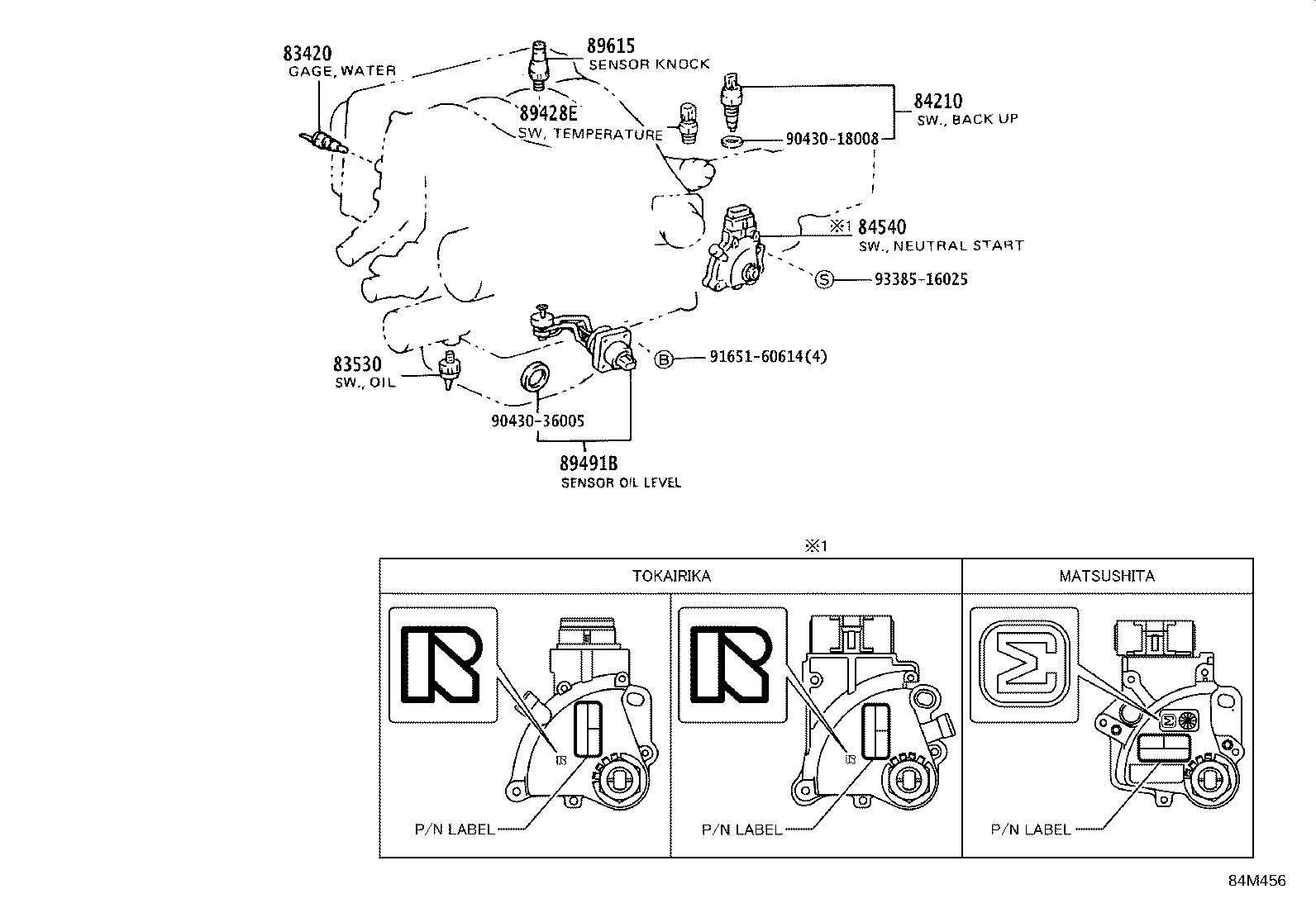

ILLUST NO. 2 OF 8(9005- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
TCR1#,2# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30080 |
TCR1#,2# |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-28020 |
TCR1#,2#..ATM TOKAIRIKA |
1 | ||
| 89428E - SWITCH, TEMPERATURE, NO.2 (FOR TRANSMISSION) | ||||
| 89428-26030 |
TCR2#..ATM |
1 | ||
| 89491B - SENSOR, ENGINE OIL LEVEL(FOR AUTO FEEDER) | ||||
| 89491-28030 |
TCR1#,2# |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-12020 |
TCR1#,2# |
1 | ||
| Common parts | ||||
| 90430-18008 | ||||
| 90430-36005 | ||||
| 91651-60614 | ||||
| 93385-16025 | ||||
