TCR20R-RFSDKQ (1990)
Toyota Previa

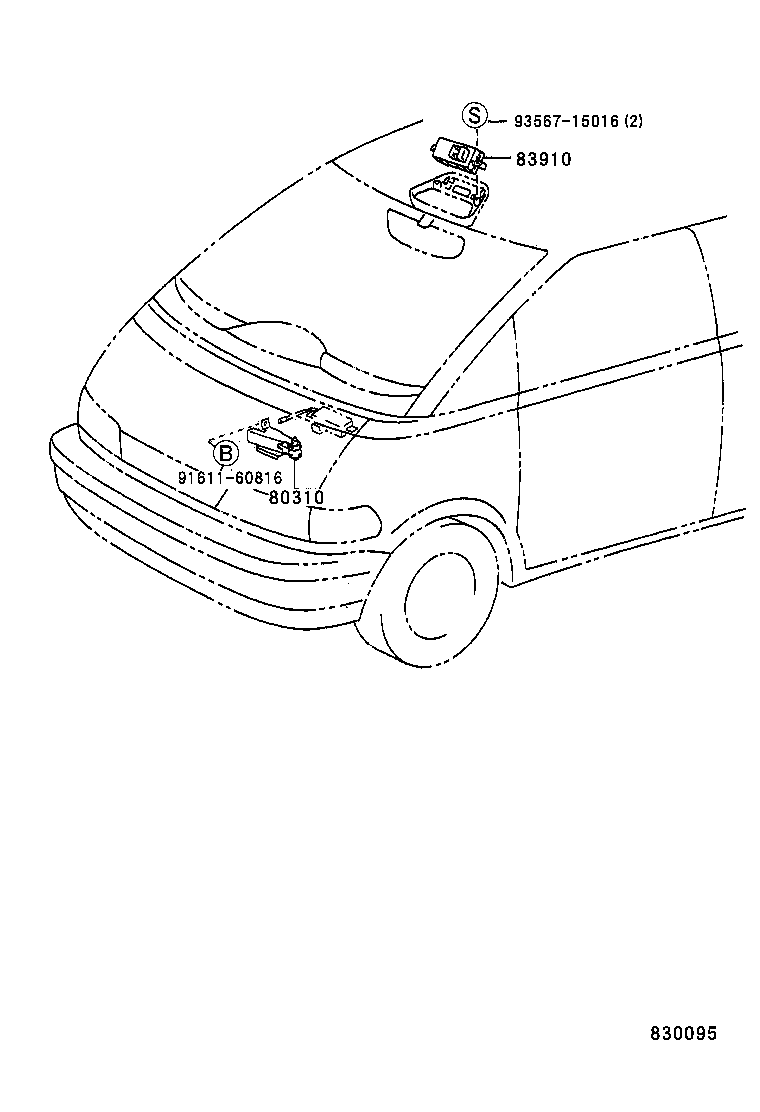

ILLUST NO. 4 OF 4(9005- )
CLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910 - CLOCK ASSY | ||||
| 83910-95D01 |
TCR1#,2# |
1 | ||
| Common parts | ||||
| 91611-60816 | ||||
| 93567-15016 | ||||

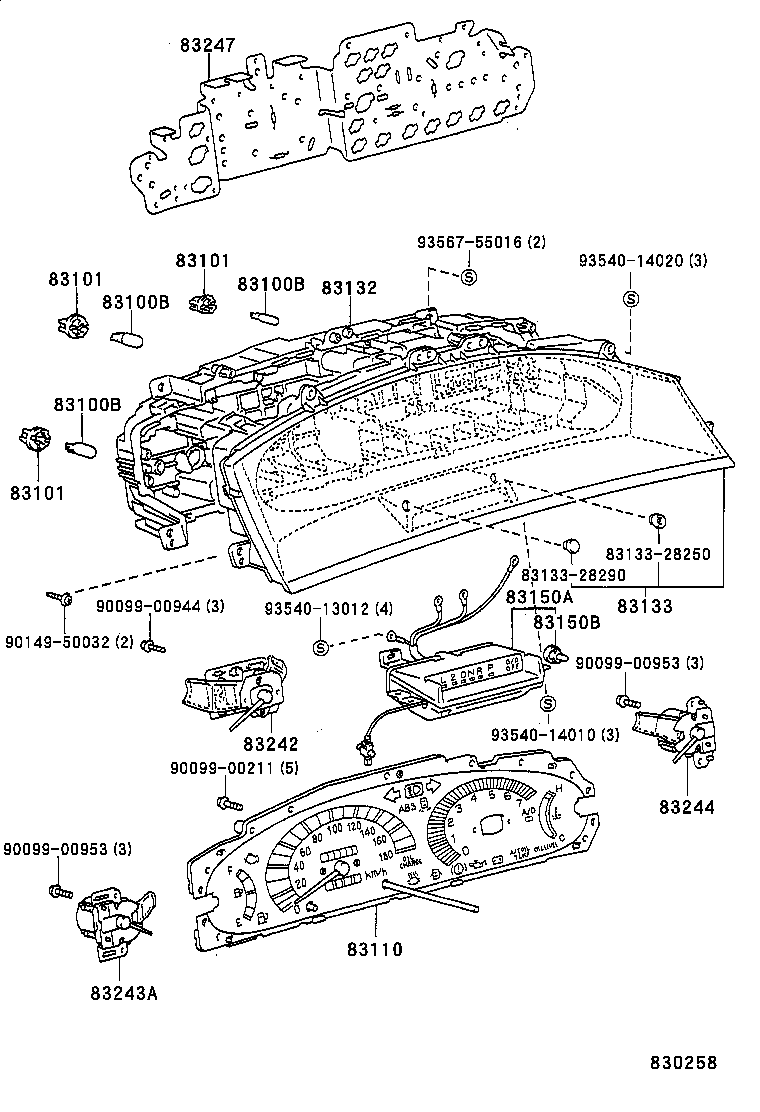

ILLUST NO. 1 OF 4(9005-9308)RHD
SPEEDOMETER(W/TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
TCR1#,2# 12V 3.4W,SOCKET:83101-14030 |
1 | ||
| 90981-11018 |
TCR1#,2# 12V 1.2W W/O SOCKET |
16 | ||
| 83109-24030 |
TCR1#,2# 12V3.4W W(GREEN CAP) |
4 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
TCR1#,2# 12V 3.4W,SOCKET:83101-14030 |
1 | ||
| 90981-11018 |
TCR1#,2# 12V 1.2W W/O SOCKET |
16 | ||
| 83109-24030 |
TCR1#,2# 12V3.4W W(GREEN CAP) |
4 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
TCR1#,2# 12V 3.4W,SOCKET:83101-14030 |
1 | ||
| 90981-11018 |
TCR1#,2# 12V 1.2W W/O SOCKET |
16 | ||
| 83109-24030 |
TCR1#,2# 12V3.4W W(GREEN CAP) |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
TCR1#,2# BULB:12V 3.4W |
5 | ||
| 83101-14040 |
TCR1#,2# BULB:12V 1.2W |
15 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
TCR1#,2# BULB:12V 3.4W |
5 | ||
| 83101-14040 |
TCR1#,2# BULB:12V 1.2W |
15 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
TCR1#,2# BULB:12V 3.4W |
5 | ||
| 83101-14040 |
TCR1#,2# BULB:12V 1.2W |
15 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-95D76 |
TCR2#..ATM |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-95D23 |
TCR1#,2#..RHD |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-95D37 |
TCR1#,2#..RHD..ATM |
1 | ||
| 83150A - INDICATOR ASSY | ||||
| 83150-95D01 |
TCR1#,2#..RHD..ATM |
1 | ||
| 83150B - BULB (FOR INDICATOR) | ||||
| 90072-02010 |
TCR1#,2#..ATM 14V 1.4W,W(SOCKET),GREEN CAP |
1 | ||
| 90072-02002 |
TCR1#,2#..ATM 14V 1.4W,W(SOCKET) |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83242-95D17 |
TCR1#,2#..RHD |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-95D13 |
TCR1#,2#..RHD |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-95D07 |
TCR1#,2#..RHD |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-95D61 |
TCR1#,2#..ARL |
1 | ||
| Common parts | ||||
| 83133-28250 | ||||
| 83133-28290 | ||||
| 90099-00211 | ||||
| 90099-00944 | ||||
| 90099-00953 | ||||
| 90149-50032 | ||||
| 93540-13012 | ||||
| 93540-14010 | ||||
| 93540-14020 | ||||
| 93567-55016 | ||||

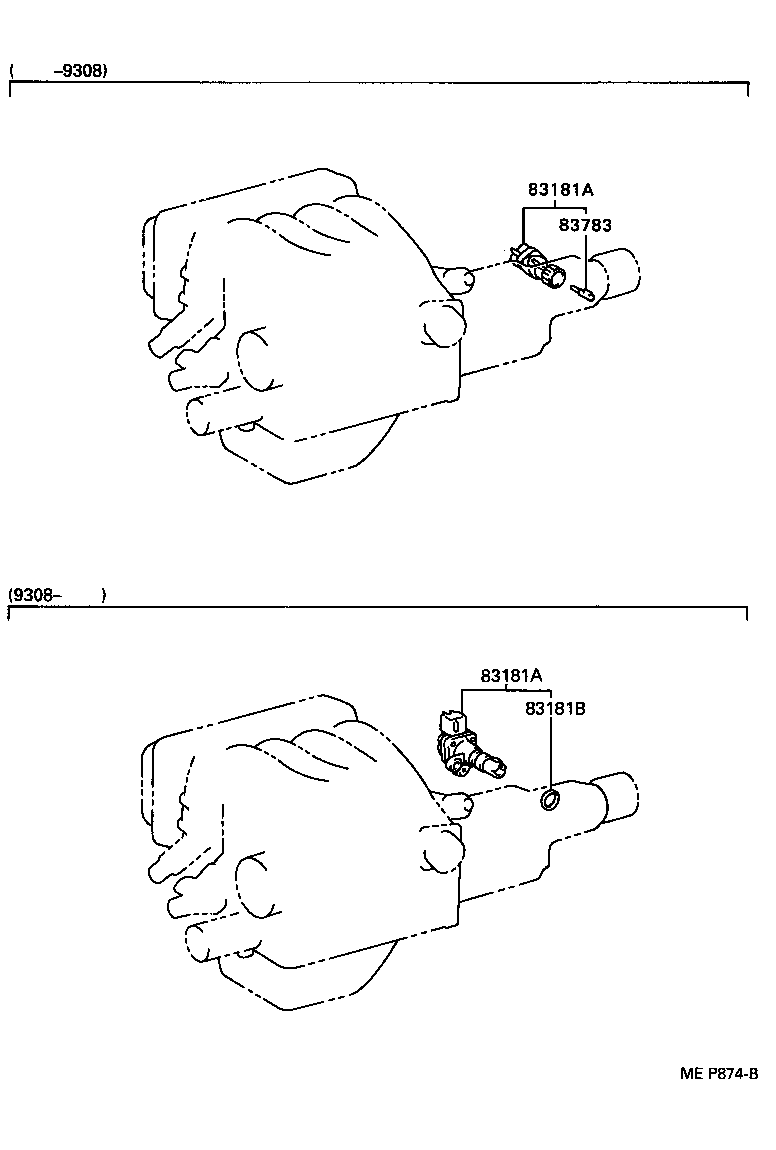

ILLUST NO. 2 OF 4(9005- )
SENSOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-20040 |
TCR1#,2# |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-20040 |
TCR1#,2# |
1 | ||
| 83783 - KEY, SPEEDMETER SENSOR | ||||
| 83783-22010 |
TCR1#,2# |
1 | ||

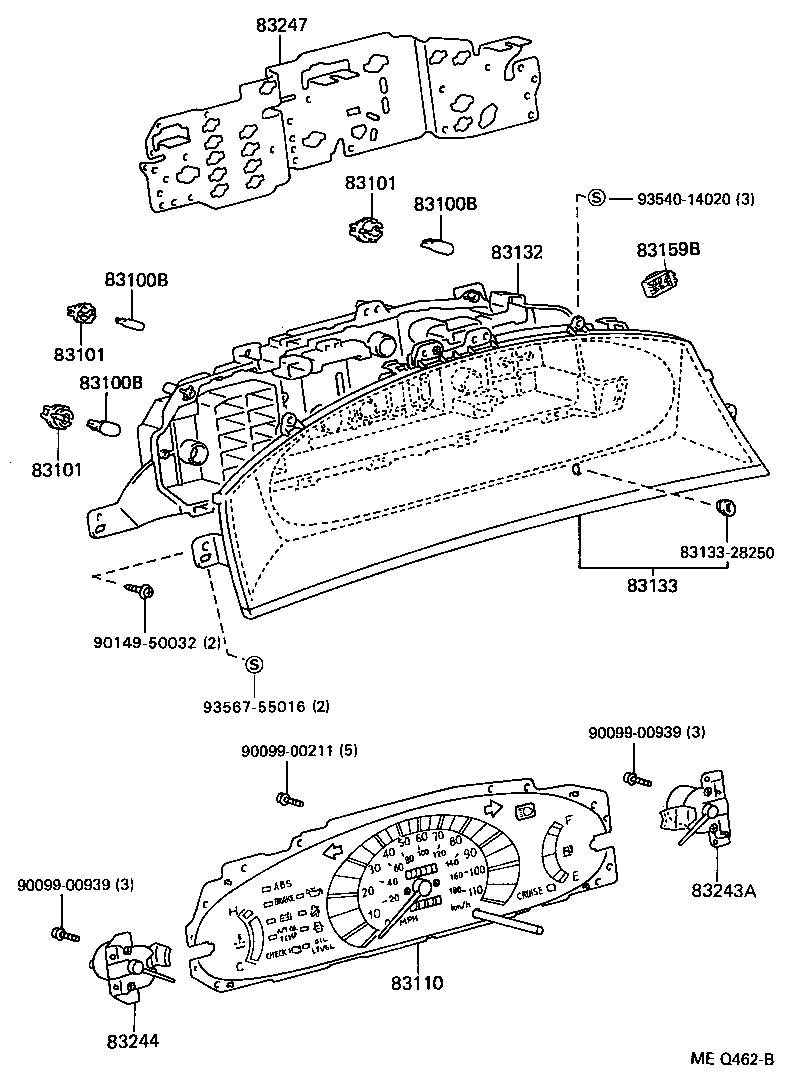

ILLUST NO. 1 OF 4(9005-9308)
SPEEDOMETER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
TCR1#,2# 12V 3.4W,SOCKET:83101-14030 |
1 | ||
| 90981-11018 |
TCR1#,2# 12V 1.2W W/O SOCKET |
16 | ||
| 83109-24030 |
TCR1#,2# 12V3.4W W(GREEN CAP) |
4 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
TCR1#,2# 12V 3.4W,SOCKET:83101-14030 |
1 | ||
| 90981-11018 |
TCR1#,2# 12V 1.2W W/O SOCKET |
16 | ||
| 83109-24030 |
TCR1#,2# 12V3.4W W(GREEN CAP) |
4 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
TCR1#,2# 12V 3.4W,SOCKET:83101-14030 |
1 | ||
| 90981-11018 |
TCR1#,2# 12V 1.2W W/O SOCKET |
16 | ||
| 83109-24030 |
TCR1#,2# 12V3.4W W(GREEN CAP) |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
TCR1#,2# BULB:12V 3.4W |
5 | ||
| 83101-14040 |
TCR1#,2# BULB:12V 1.2W |
15 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
TCR1#,2# BULB:12V 3.4W |
5 | ||
| 83101-14040 |
TCR1#,2# BULB:12V 1.2W |
15 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
TCR1#,2# BULB:12V 3.4W |
5 | ||
| 83101-14040 |
TCR1#,2# BULB:12V 1.2W |
15 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-95D76 |
TCR2#..ATM |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-95D23 |
TCR1#,2#..RHD |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-95D37 |
TCR1#,2#..RHD..ATM |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-95D13 |
TCR1#,2#..RHD |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-95D07 |
TCR1#,2#..RHD |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-95D61 |
TCR1#,2#..ARL |
1 | ||
| Common parts | ||||
| 83133-28250 | ||||
| 90099-00211 | ||||
| 90099-00939 | ||||
| 90149-50032 | ||||
| 93540-14020 | ||||
| 93567-55016 | ||||

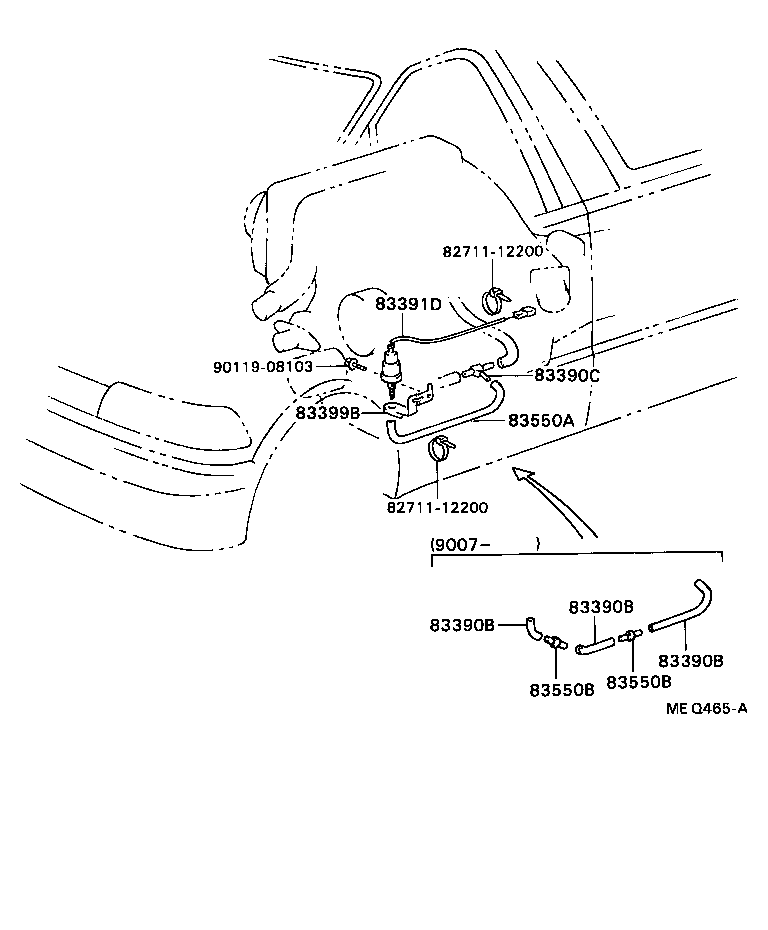

ILLUST NO. 3 OF 4(9005-9308)
VACUUM SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12200 | ||||
| 90119-08103 | ||||
