TCR20R-RFSDKQ (1990)
Toyota Previa

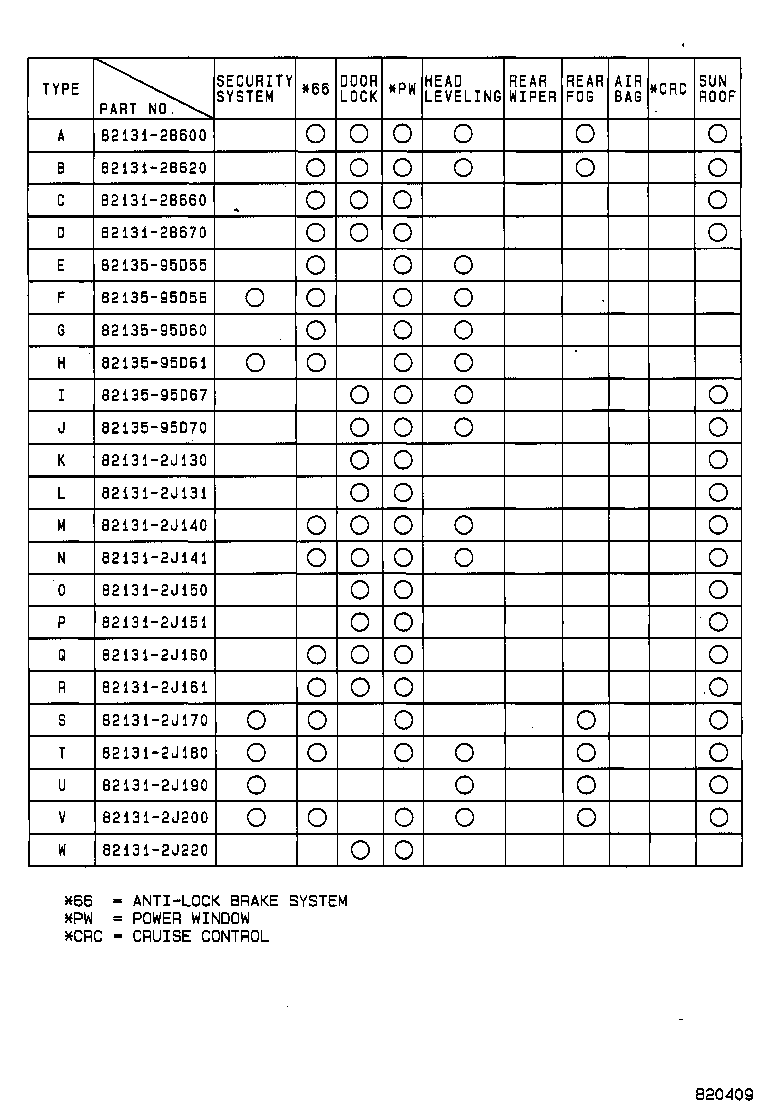

ILLUST NO. 3 OF 7(9005-9308)RHD
COWL WIRE (PNC 82131) SPEC LIST
| Part # | Description | Qty | Price |
|---|

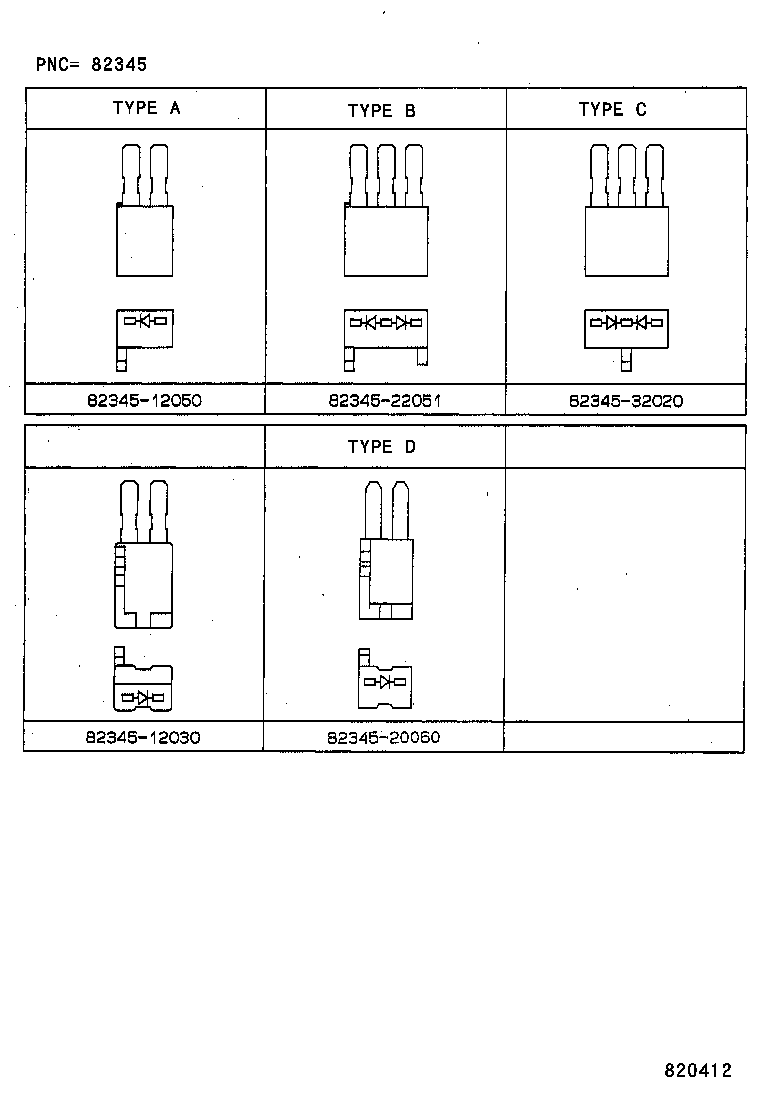

ILLUST NO. 6 OF 7(9005- )
DIODE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82345 - DIODE | ||||
| 82345-22051 |
TCR1#,2#..ARL,W TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 82345-32020 |
TCR1#,2# TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 82345-12050 |
TCR1#,2# TYPE A:REFER TO ILLUSTRATION |
3 | ||

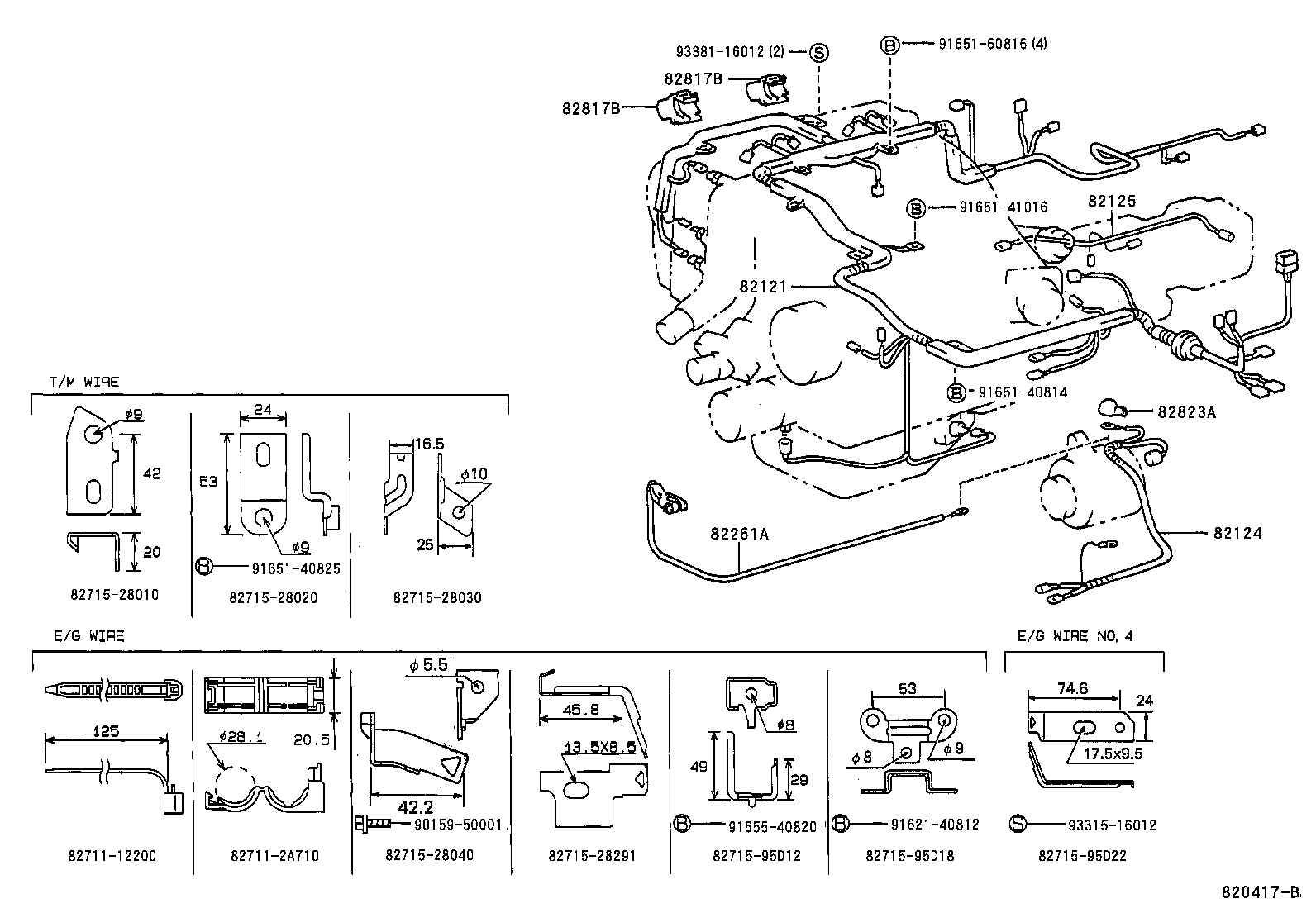

ILLUST NO. 1 OF 7(9005- )
ENGINE WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-95D02 |
TCR1#,2# |
1 | ||
| 82121-28060 |
TCR1#,2# |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-95D00 |
TCR1#,2# |
1 | ||
| 82823A - CAP, TERMINAL, NO.2 | ||||
| 82823-22050 |
TCR1#,2# |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 82711-2A710 | ||||
| 82715-28010 | ||||
| 82715-28020 | ||||
| 82715-28030 | ||||
| 82715-28040 | ||||
| 82715-28291 | ||||
| 82715-95D12 | ||||
| 82715-95D18 | ||||
| 82715-95D22 | ||||
| 90159-50001 | ||||
| 91621-40812 | ||||
| 91651-40814 | ||||
| 91651-40825 | ||||
| 91651-41016 | ||||
| 91651-60816 | ||||
| 91655-40820 | ||||
| 93315-16012 | ||||
| 93381-16012 | ||||

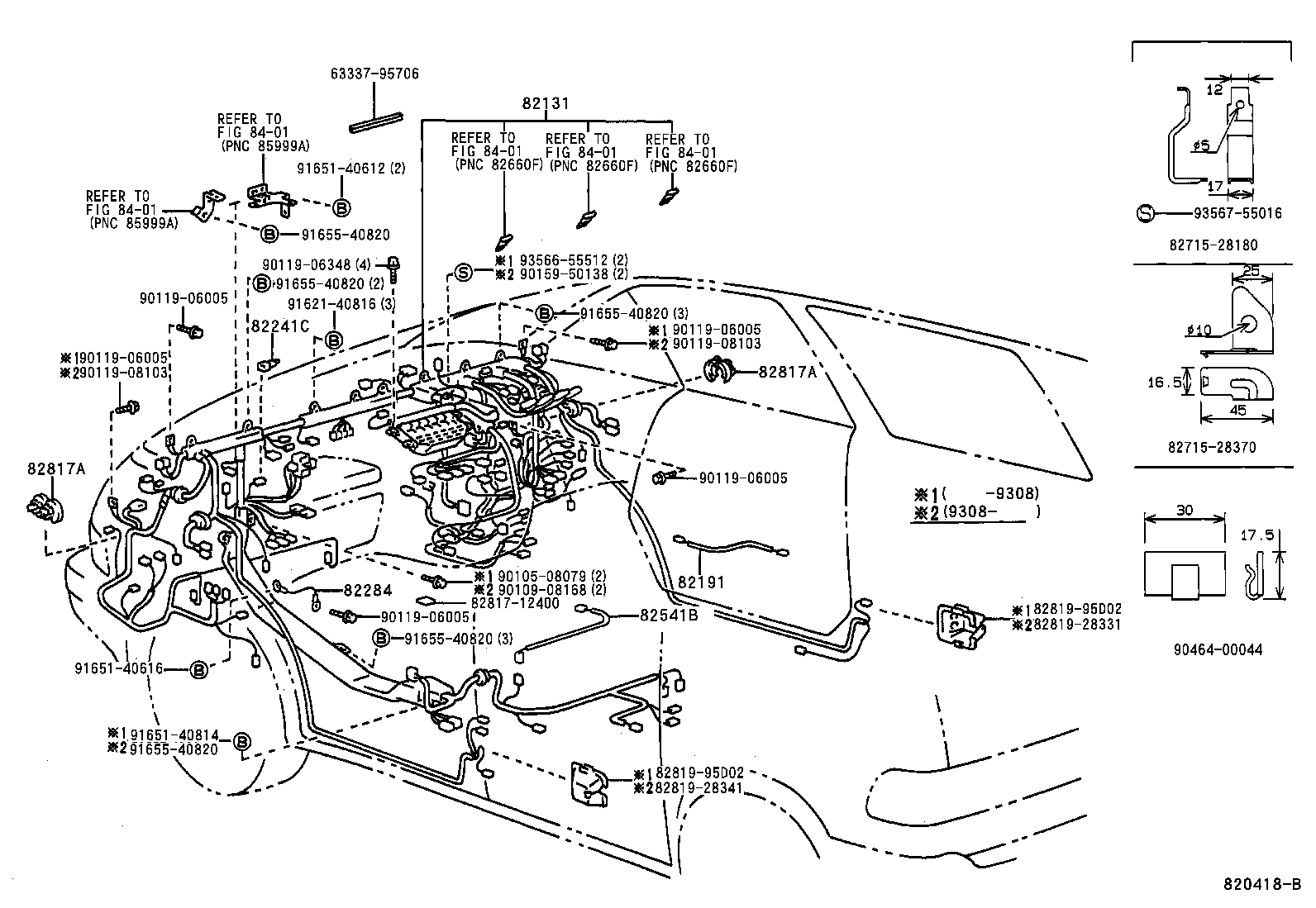

ILLUST NO. 3 OF 7(9005- )RHD
COWL WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82135-95D67 |
TCR1#,2#..ATM..ARL TYPE I:REFER TO ILLUSTRATION |
1 | ||
| 82241C - WIRE, RELAY | ||||
| 82241-95D00 |
TCR10,20 |
1 | ||
| 82284 - WIRE, EARTH | ||||
| 82284-95D01 |
TCR1#,2# |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-16140 |
TCR1#,2# |
2 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-16140 |
TCR1#,2# |
2 | ||
| Common parts | ||||
| 63337-95706 | ||||
| 82715-28180 | ||||
| 82715-28370 | ||||
| 82817-12400 | ||||
| 82819-28331 | ||||
| 82819-28341 | ||||
| 82819-95D02 | ||||
| 90105-08079 | ||||
| 90109-08168 | ||||
| 90119-06005 | ||||
| 90119-06348 | ||||
| 90119-08103 | ||||
| 90159-50138 | ||||
| 90464-00044 | ||||
| 91621-40816 | ||||
| 91651-40612 | ||||
| 91651-40616 | ||||
| 91651-40814 | ||||
| 91655-40820 | ||||
| 93566-55512 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||

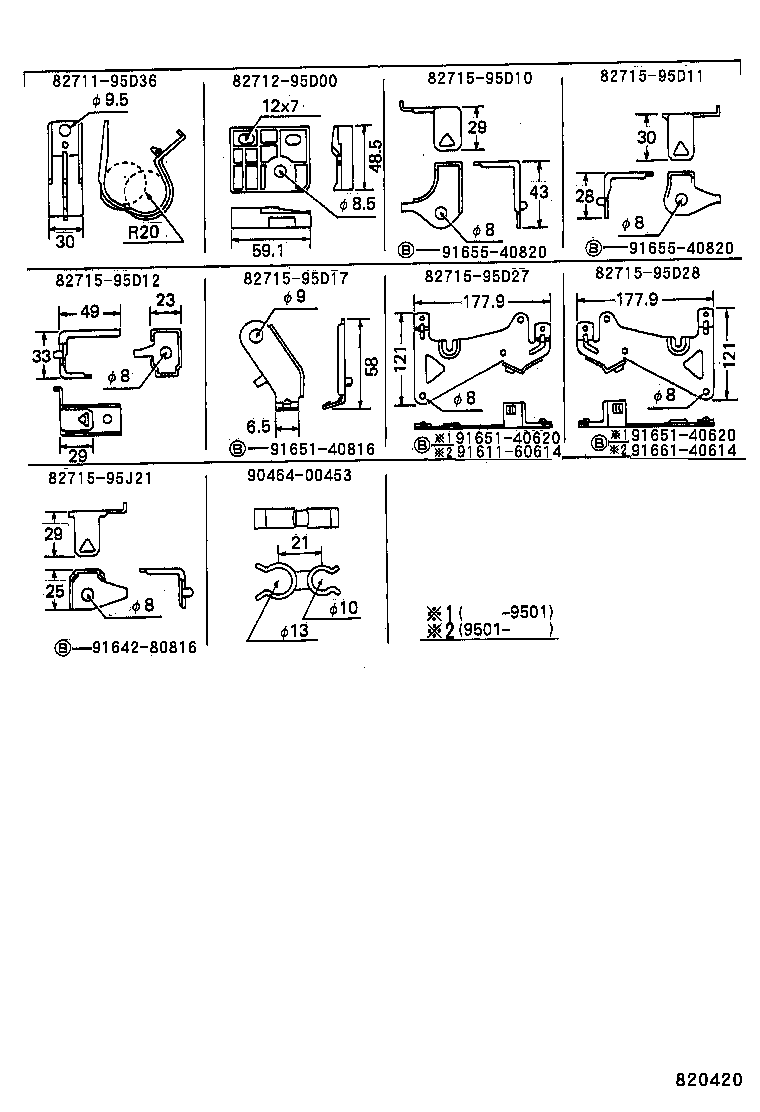

ILLUST NO. 4 OF 7(9005- )
CLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-95D36 | ||||
| 82712-95D00 | ||||
| 82715-95D10 | ||||
| 82715-95D11 | ||||
| 82715-95D12 | ||||
| 82715-95D17 | ||||
| 82715-95D27 | ||||
| 82715-95D28 | ||||
| 82715-95J21 | ||||
| 90464-00453 | ||||
| 91611-60614 | ||||
| 91642-80816 | ||||
| 91651-40620 | ||||
| 91651-40816 | ||||
| 91655-40820 | ||||
| 91661-40614 | ||||

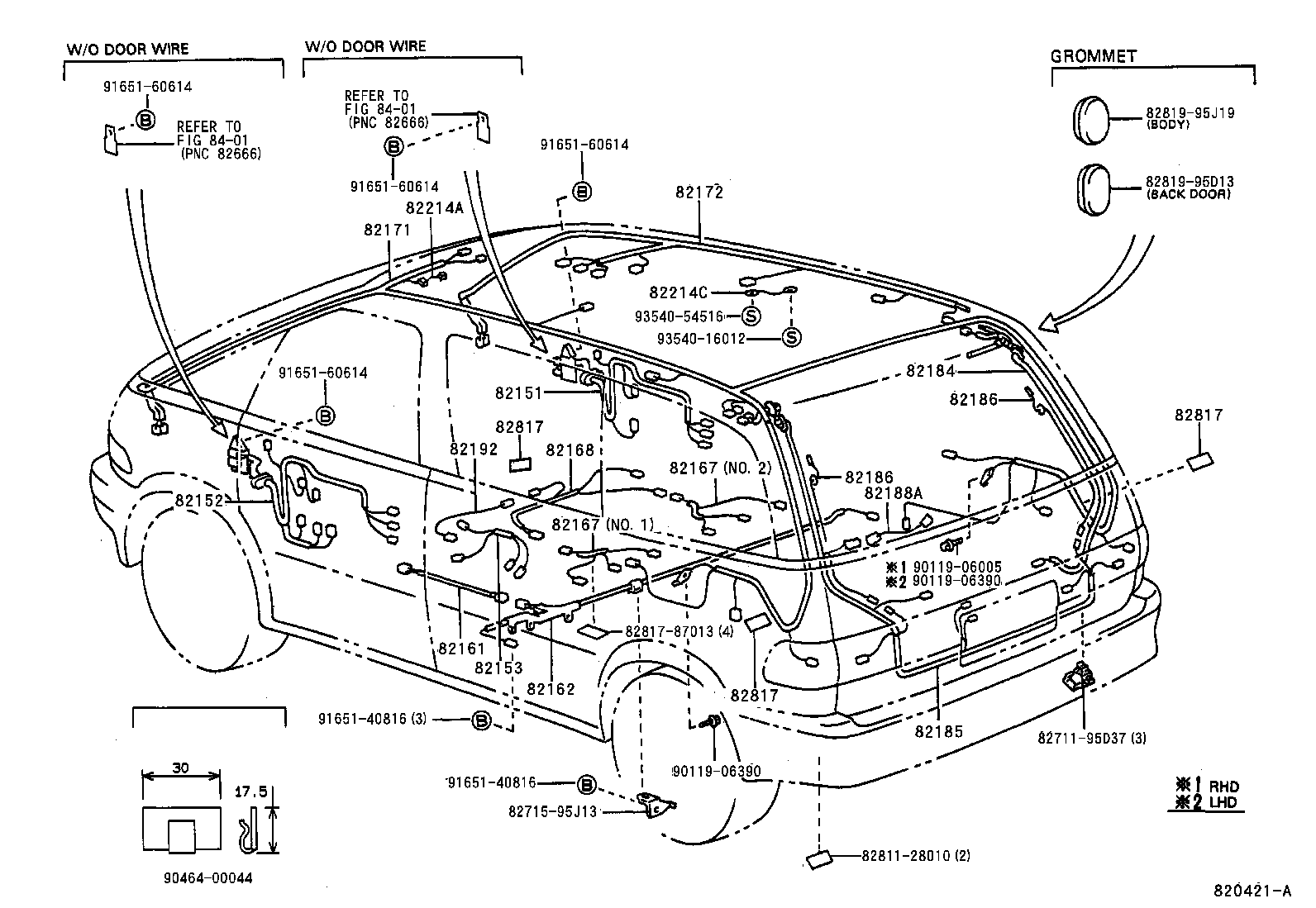

ILLUST NO. 5 OF 7(9005- )
ROOF & FLOOR WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-95D03 |
TCR10,20..ARL W(ELECTRIC REMOTE CONTROL MIRROR & POWER DOOR LOCK) |
1 | ||
| 82151-95D04 |
TCR10,20..ARL W(POWER WINDOW & POWER DOOR LOCK & ELECTRIC REMOTE CONTROL MIRROR) |
1 | ||
| 82151-95D01 |
TCR10,20..ARL W(POWER DOOR LOCK) |
1 | ||
| 82151-95D07 |
TCR10,20..ARL W(POWER WINDOW & ELECTRIC REMOTE CONTROL MIRROR) |
1 | ||
| 82151-95D06 |
TCR10,20..ARL W(ELECTRIC REMOTE CONTROL MIRROR) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-95D03 |
TCR10,20..ARL W(POWER DOOR LOCK & ELECTRIC REMOTE CONTROL MIRROR) |
1 | ||
| 82152-95D06 |
TCR10,20..ARL W(ELECTRIC REMOTE CONTROL MIRROR) |
1 | ||
| 82152-95D04 |
TCR10,20..ARL W(POWER WINDOW & POWER DOOR LOCK & ELECTRIC REMOTE CONTROL MIRROR) |
1 | ||
| 82152-95D07 |
TCR10,20..ARL W(POWER WINDOW & ELECTRIC REMOTE CONTROL MIRROR) |
1 | ||
| 82152-95D01 |
TCR10,20..ARL W(POWER DOOR LOCK) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-95D15 |
TCR10,20..ARL W(CLOCK & REAR WINDOW WIPER);W(POWER WINDOW & CLOCK) OR W(POWER WINDOW & CLOCK & REAR WINDOW WIPER) OR W(CLOCK) |
1 | ||
| 82171-95D24 |
TCR10,20..ARL W(POWER WINDOW) OR W(REAR WINDOW WIPER) |
1 | ||
| 82171-95D22 |
TCR10,20..ARL |
1 | ||
| 82171-95D24 |
TCR10,20..ARL W(POWER WINDOW) |
1 | ||
| 82172 - WIRE, ROOF, NO.2 | ||||
| 82172-95D04 |
TCR10,2#..ARL |
1 | ||
| 82172-95D04 |
TCR1#,2#..ARL |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-95D00 |
TCR1#,2# |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-95D05 |
TCR10,20..ARL W(POWER DOOR LOCK & REAR WINDOW DEFOGGER);W(POWER DOOR LOCK & RR WINDOW DEFOGGER);W(POWER DOOR LOCK & SEAT HEATER) |
1 | ||
| 82185-95D09 |
TCR10,20..ARL W(REAR WINDOW DEFOGGER) |
1 | ||
| 82185-95D12 |
TCR10,20..ARL W(POWER DOOR LOCK) |
1 | ||
| 82185-95D15 |
TCR10,20..ARL |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-95D00 |
TCR1#,2# |
2 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-95D00 |
TCR1#,2# |
2 | ||
| 82188A - WIRE, BACK DOOR, NO.3 | ||||
| 82188-95D00 |
TCR1#,2#..ARL |
1 | ||
| 82214C - WIRE, ROOM LAMP | ||||
| 82214-95D00 |
TCR1#,2# |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-87013 |
TCR1#,2# |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-87013 |
TCR1#,2# |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-87013 |
TCR1#,2# |
2 | ||
| Common parts | ||||
| 82711-95D37 | ||||
| 82715-95J13 | ||||
| 82811-28010 | ||||
| 82817-87013 | ||||
| 82819-95D13 | ||||
| 82819-95J19 | ||||
| 90119-06005 | ||||
| 90119-06390 | ||||
| 90464-00044 | ||||
| 91651-40816 | ||||
| 91651-60614 | ||||
| 93540-16012 | ||||
| 93540-54516 | ||||
| Linked diagrams | ||||
| 8401 | ||||

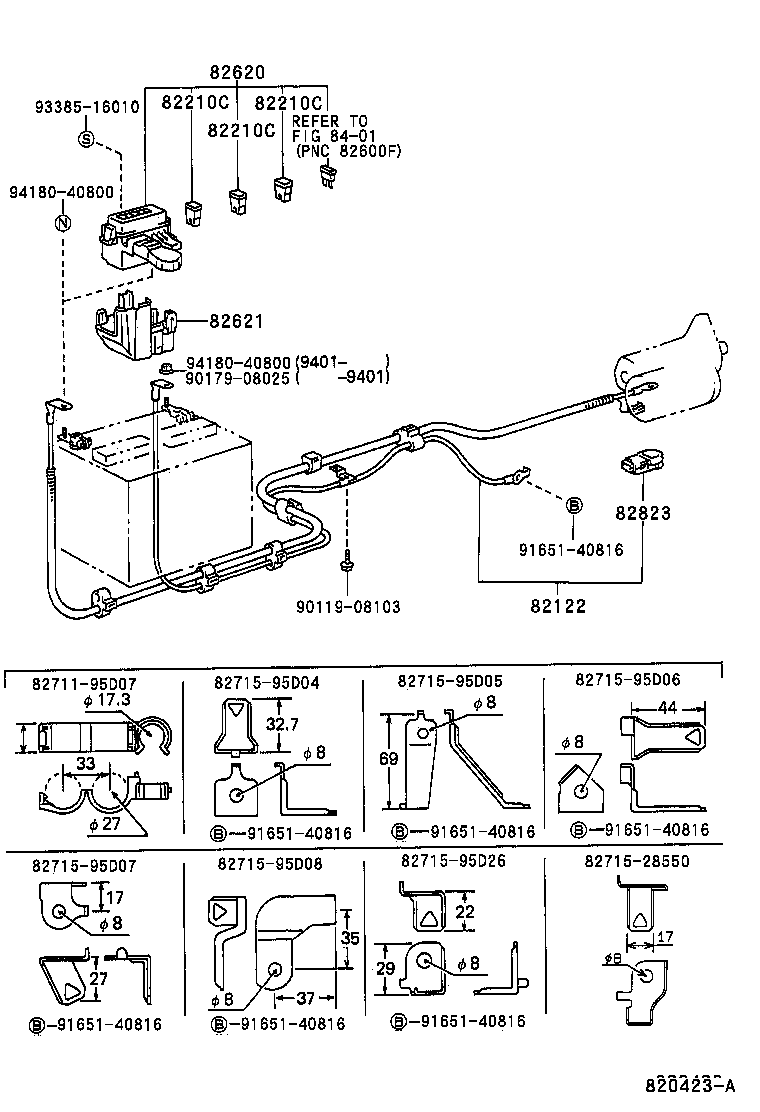

ILLUST NO. 2 OF 7(9005- )
ENGINE WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-95D07 |
TCR1#,2# |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08227 |
TCR1#,2# 50A,TERM.:FEMALE,RED |
2 | ||
| 90982-08246 |
TCR1#,2# 100A,TERM.:MALE,BLUE |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08227 |
TCR1#,2# 50A,TERM.:FEMALE,RED |
2 | ||
| 90982-08246 |
TCR1#,2# 100A,TERM.:MALE,BLUE |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08227 |
TCR1#,2# 50A,TERM.:FEMALE,RED |
2 | ||
| 90982-08246 |
TCR1#,2# 100A,TERM.:MALE,BLUE |
1 | ||
| 82620 - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-95D00 |
TCR1#,2# |
1 | ||
| 82621 - COVER, FUSIBLE LINK | ||||
| 82621-95D00 |
TCR1#,2# |
1 | ||
| Common parts | ||||
| 82711-95D07 | ||||
| 82715-28550 | ||||
| 82715-95D04 | ||||
| 82715-95D05 | ||||
| 82715-95D06 | ||||
| 82715-95D07 | ||||
| 82715-95D08 | ||||
| 82715-95D26 | ||||
| 90119-08103 | ||||
| 90179-08025 | ||||
| 91651-40816 | ||||
| 93385-16010 | ||||
| 94180-40800 | ||||
| Linked diagrams | ||||
| 8401 | ||||

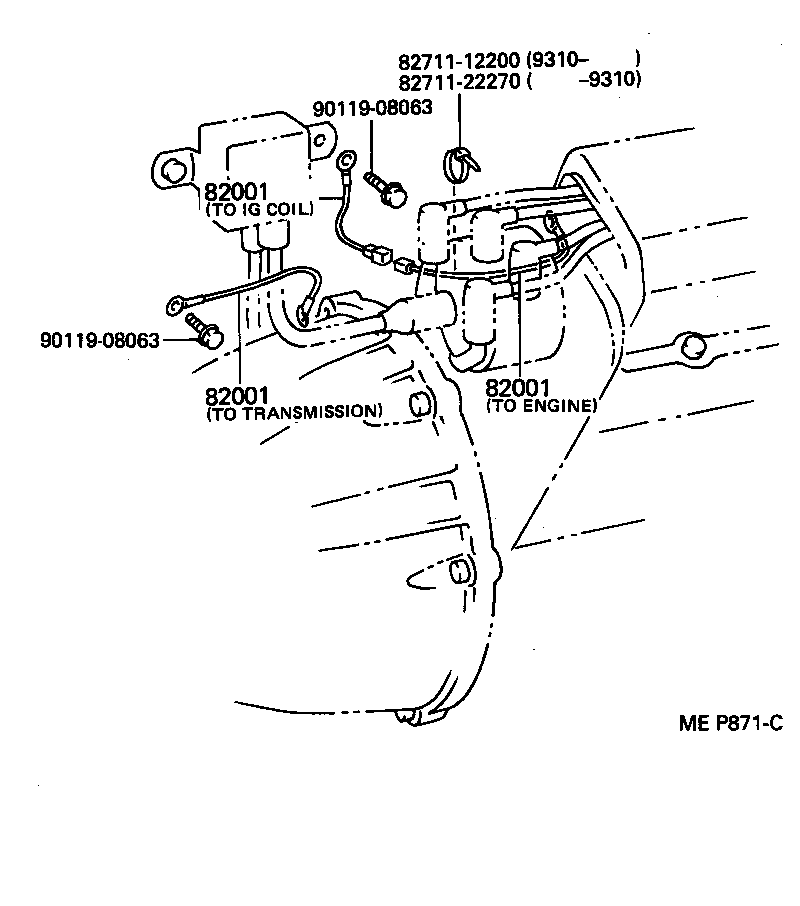

ILLUST NO. 7 OF 7(9005- )
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07328 |
TCR1#,2# TO TRANSMISSION |
1 | ||
| 90980-07331 |
TCR1#,2# TO ENGIN |
1 | ||
| 90980-07310 |
TCR1#,2# TO IG COIL |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07328 |
TCR1#,2# TO TRANSMISSION |
1 | ||
| 90980-07331 |
TCR1#,2# TO ENGIN |
1 | ||
| 90980-07310 |
TCR1#,2# TO IG COIL |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07328 |
TCR1#,2# TO TRANSMISSION |
1 | ||
| 90980-07331 |
TCR1#,2# TO ENGIN |
1 | ||
| 90980-07310 |
TCR1#,2# TO IG COIL |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 82711-22270 | ||||
| 90119-08063 | ||||
