TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005- )

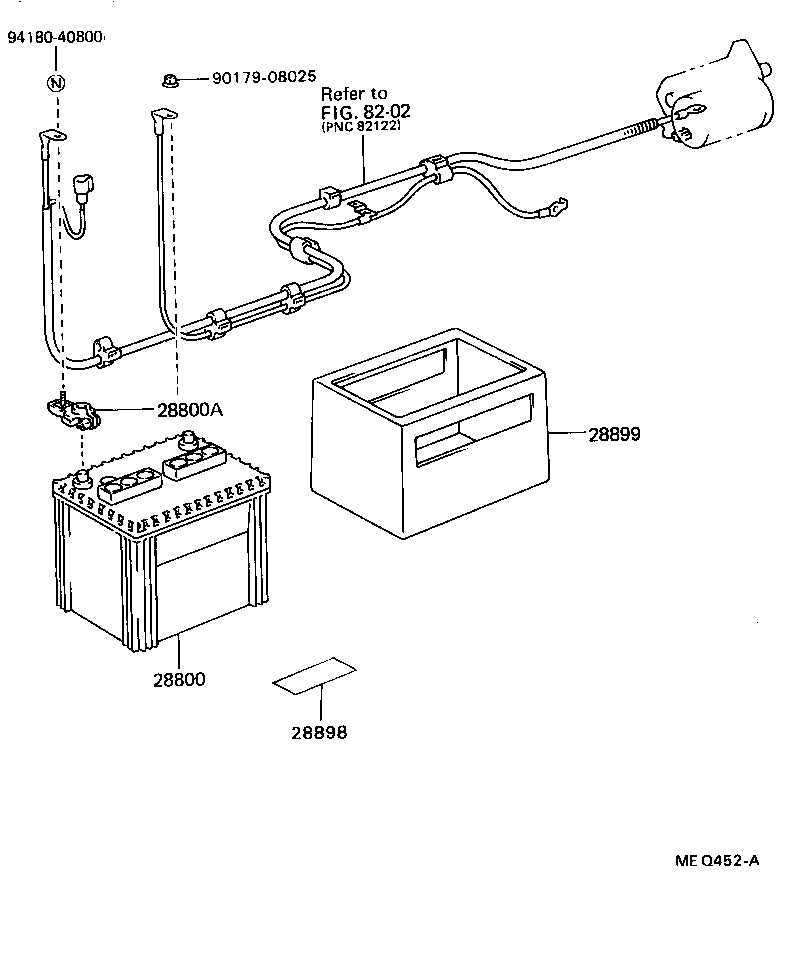

Click highlighted areas on diagram

diagram 28800 28800A 28898 28899 8202 9017908025 9418040800
Part # Description Qty Price
28800 - BATTERY
28800-42030

2TZFE..TCR1#,2#

55D23L

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05035

2TZFE..TCR1#,2#

 1
28899 - INSULATOR, BATTERY
28899-76010

2TZFE..TCR1#,2#..ARL,W

 1
Common parts
90179-08025
94180-40800
Linked diagrams
8202
