TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005- )

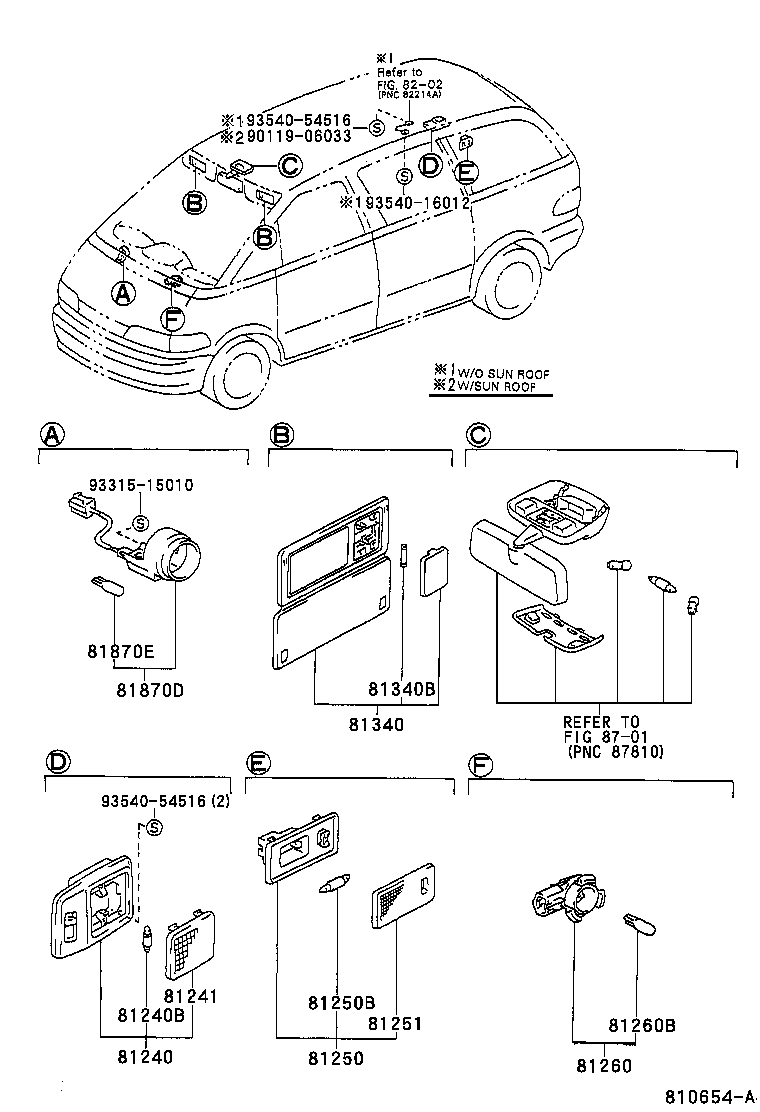

Click highlighted areas on diagram

diagram 81240 81240B 81241 81250 81250B 81251 81260 81260B 81340 81340B 81870D 81870E 8701 9011906033 9331515010 9354016012 9354054516 9354054516
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-95D0103

TCR1#,2#

LIGHT GRAY,TRIM1#

 1
81240B - BULB, ROOM LAMP, NO.1
99132-12100

TCR1#,2#

12V 10W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-30100

TCR1#,2#

 1
81250 - LAMP ASSY, ROOM, NO.2
81250-1203013

TCR1#,2#

GRAY,TRIM1#

 1
81250B - BULB, ROOM LAMP, NO.2
99132-13050

TCR1#,2#

12V 5W

 1
81251 - LENS, ROOM LAMP, NO.2
81251-12030

TCR1#,2#

 1
Common parts
90119-06033
93315-15010
93540-16012
93540-54516
Linked diagrams
8701
