TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005- )

Click highlighted areas on diagram

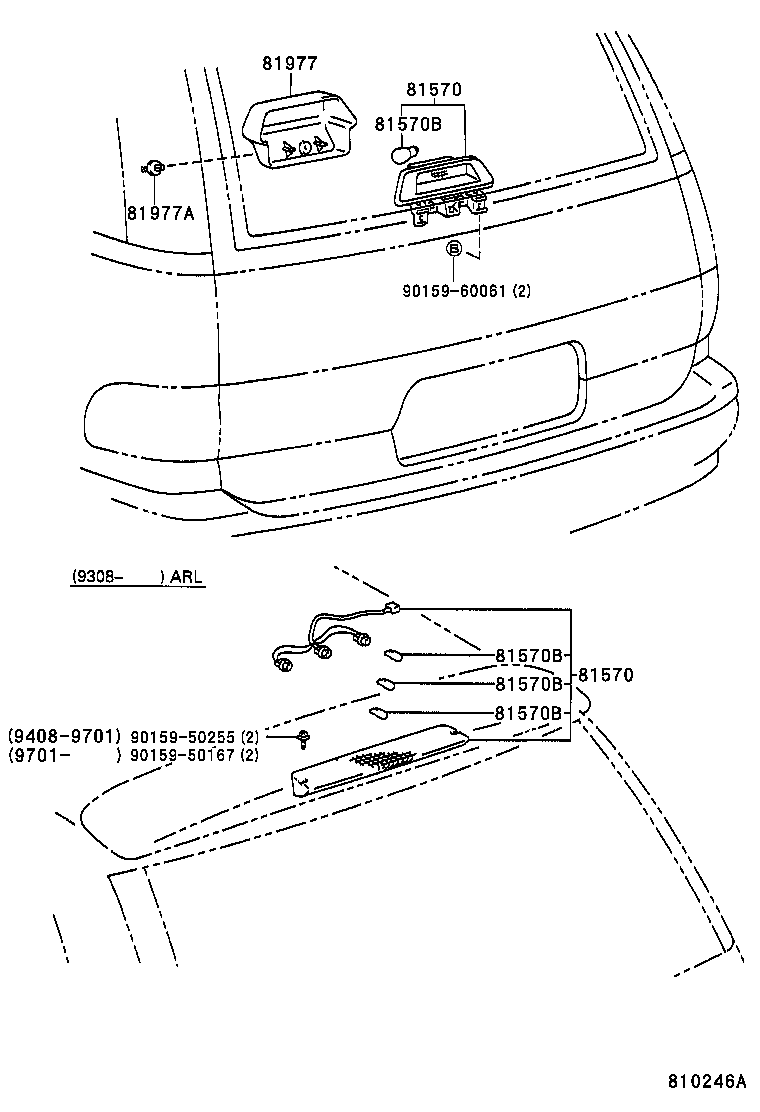

diagram 81570 81570 81570B 81570B 81570B 81570B 81977 81977A 9015950167 9015950255 9015960061
Part # Description Qty Price
81570 - LAMP ASSY, CENTER STOP
81570-95D0003

TCR1#,2#..ARL

LIGHT GRAY,TRIM1#

 1
81570 - LAMP ASSY, CENTER STOP
81570-95D0003

TCR1#,2#..ARL

LIGHT GRAY,TRIM1#

 1
81570B - BULB (FOR CENTER STOP LAMP)
99132-11270

TCR1#,2#..ARL

12V 27W

 1
81570B - BULB (FOR CENTER STOP LAMP)
99132-11270

TCR1#,2#..ARL

12V 27W

 1
81570B - BULB (FOR CENTER STOP LAMP)
99132-11270

TCR1#,2#..ARL

12V 27W

 1
81570B - BULB (FOR CENTER STOP LAMP)
99132-11270

TCR1#,2#..ARL

12V 27W

 1
81977 - COVER, CENTER STOP LAMP
81977-95D0003

TCR1#,2#..ARL

LIGHT GRAY,TRIM1#

 1
81977A - CLIP (FOR CENTER STOP LAMP)
90467-0705553

TCR1#,2#..ARL

LIGHT GRAY,TRIM1#

 1
Common parts
90159-50167
90159-50255
90159-60061
