TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005- )

Click highlighted areas on diagram

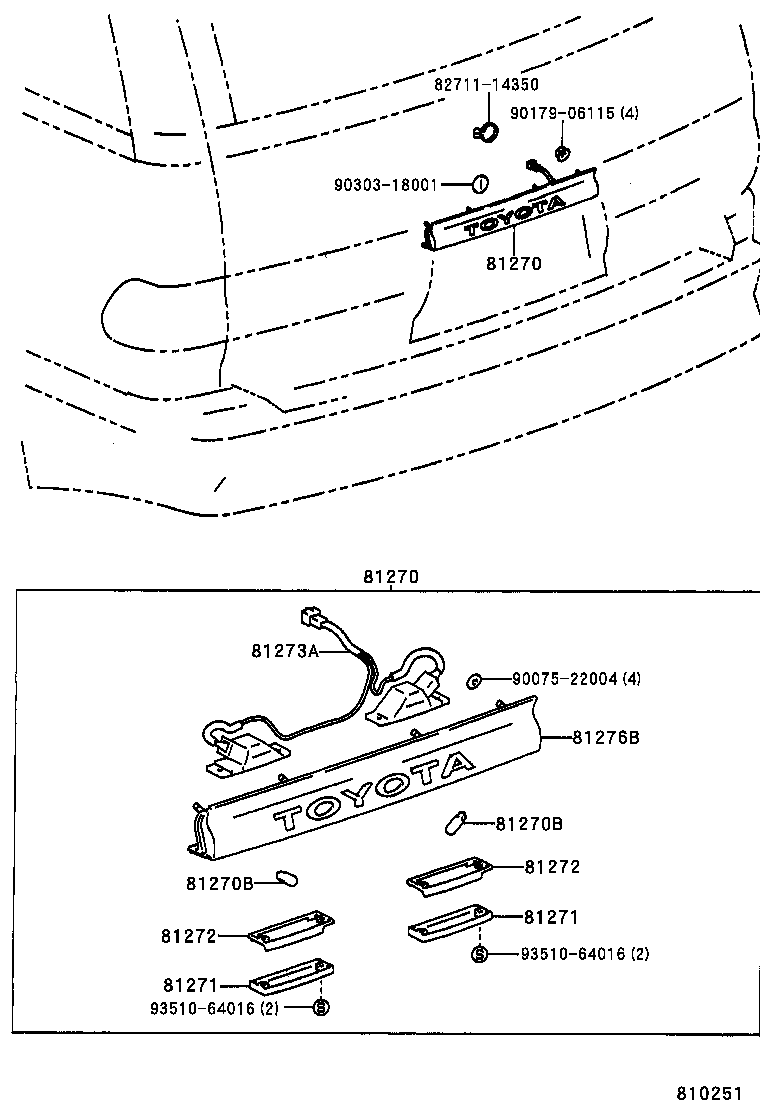

diagram 81270 81270 81270B 81270B 81271 81271 81272 81272 81273A 81276B 8271114350 9007522004 9017906115 9030318001 9351064016 9351064016
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-28010

TCR1#,2#

 1
81270 - LAMP ASSY, LICENSE PLATE
81270-28010

TCR1#,2#

 1
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

TCR1#,2#

12V 5W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

TCR1#,2#

12V 5W

 2
81271 - LENS, LICENSE PLATE LAMP
81271-95J07

TCR1#,2#

 2
81271 - LENS, LICENSE PLATE LAMP
81271-95J07

TCR1#,2#

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-95J07

TCR1#,2#

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-95J07

TCR1#,2#

 2
81273A - BODY, LICENSE PLATE LAMP
81273-95D03

TCR1#,2#

 1
81276B - COVER, LICENSE PLATE LAMP
81276-28010

TCR1#,2#

 1
Common parts
82711-14350
90075-22004
90179-06115
90303-18001
93510-64016
