TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005- )

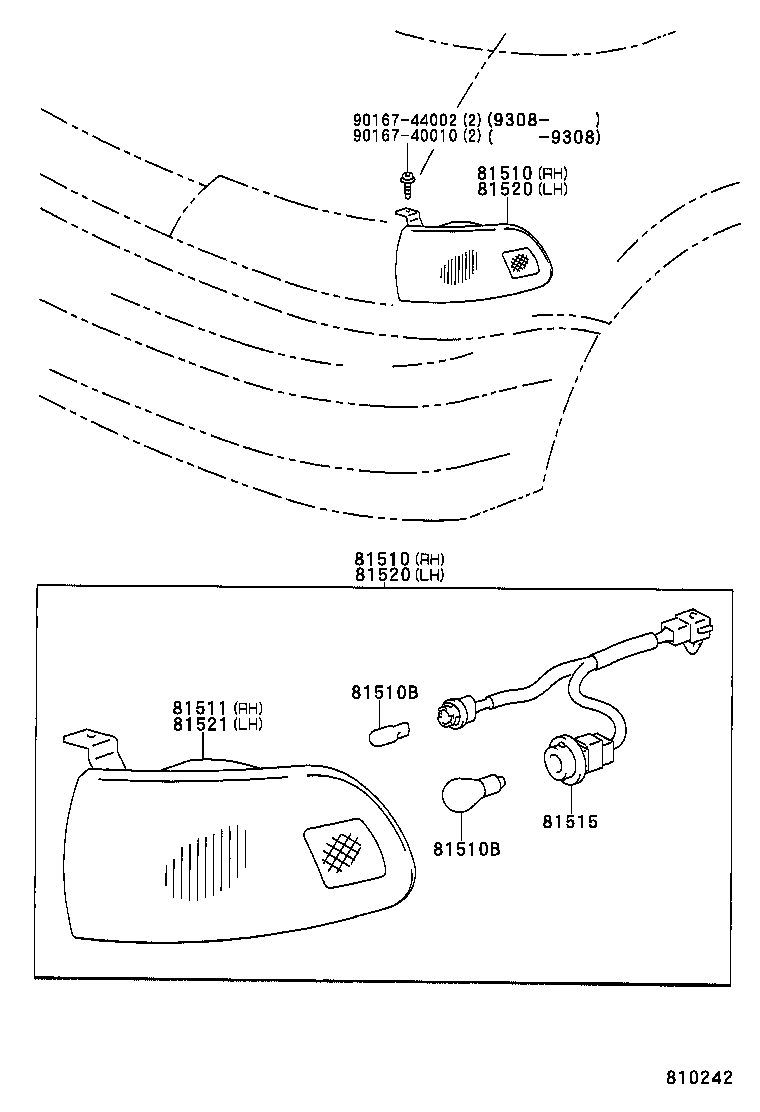

Click highlighted areas on diagram

diagram 81510 81510 81510B 81510B 81511 81515 81520 81520 81521 9016740010 9016744002
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-95D02

TCR1#,2#

 1
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-95D02

TCR1#,2#

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-12050

TCR1#,2#

12V 5W

 2
99132-11210

TCR1#,2#

12V 21W

 2
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-12050

TCR1#,2#

12V 5W

 2
99132-11210

TCR1#,2#

12V 21W

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-95D02

TCR1#,2#

 1
81515 - WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY
81515-95D02

TCR1#,2#

 2
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-95D02

TCR1#,2#

 1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-95D02

TCR1#,2#

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-95D02

TCR1#,2#

 1
Common parts
90167-40010
90167-44002
