TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005-9608)

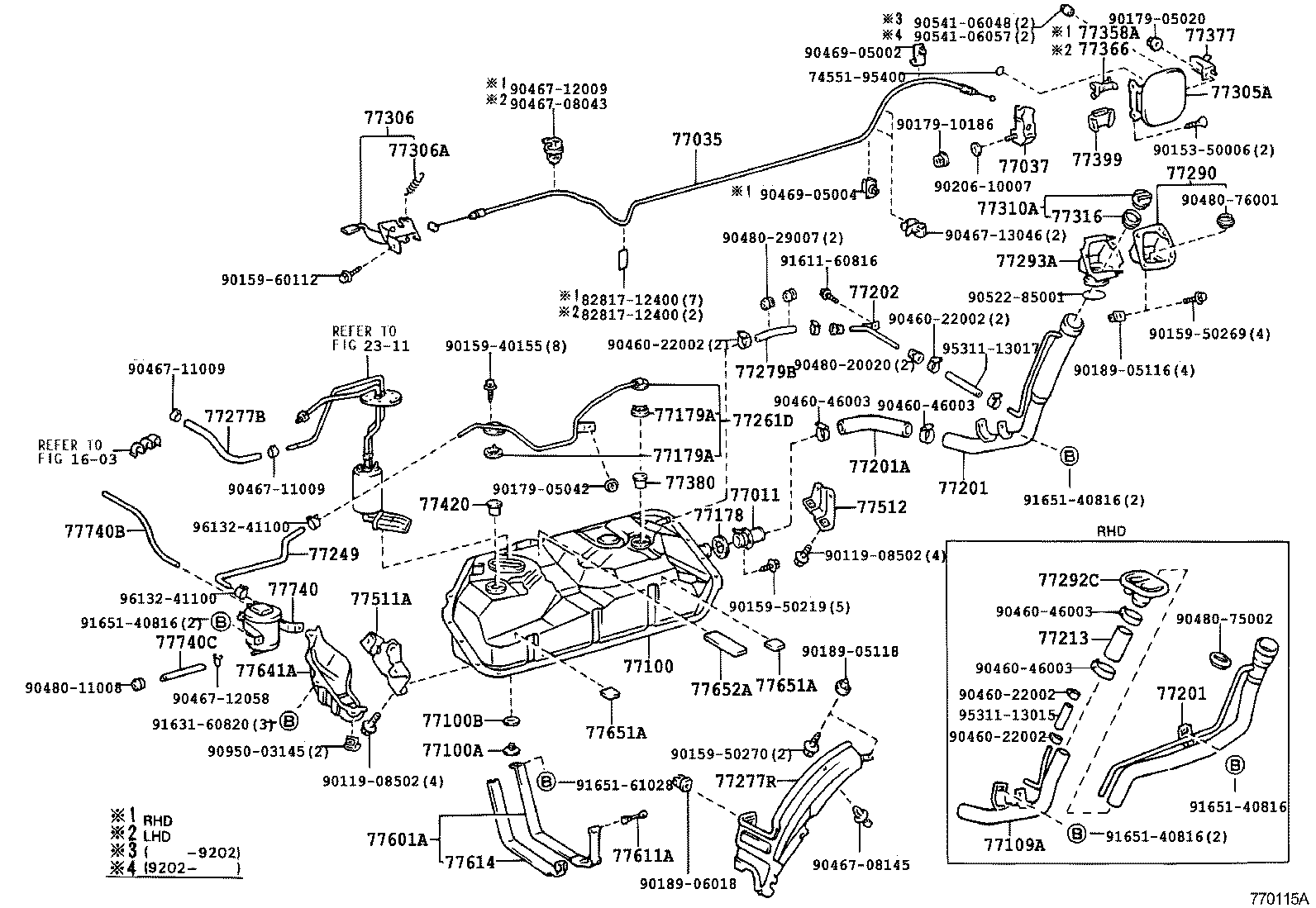

Click highlighted areas on diagram

diagram 1603 2311 7455195400 77011 77035 77037 77100 77100A 77100B 77109A 77178 77179A 77179A 77201 77201 77201A 77202 77213 77249 77261D 77277B 77277R 77279B 77290 77292C 77293A 77305A 77306 77306A 77310A 77316 77358A 77366 77377 77380 77399 77420 77511A 77512 77601A 77611A 77614 77641A 77651A 77651A 77652A 77740 77740B 77740C 8281712400 8281712400 9011908502 9011908502 9015350006 9015940155 9015950219 9015950269 9015950270 9015960112 9017905020 9017905042 9017910186 9018905116 9018905118 9018906018 9020610007 9046022002 9046022002 9046022002 9046022002 9046046003 9046046003 9046046003 9046046003 9046708043 9046708145 9046711009 9046711009 9046712009 9046712058 9046713046 9046905002 9046905004 9048011008 9048020020 9048029007 9048075002 9048076001 9052285001 9054106048 9054106057 9095003145 9161160816 9163160820 9165140816 9165140816 9165140816 9165140816 9165161028 9531113015 9531113017 9613241100 9613241100
Part # Description Qty Price
77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77011-28010

TCR1#,2#

 1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-95D01

TCR1#,2#..RHD

 1
77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID
77037-95D01

TCR1#,2#..RHD

 1
77100 - TANK ASSY, FUEL
77001-28310

TCR1#,2#

 1
77100A - PLUG(FOR FUEL TANK)
90341-20004

TCR1#,2#

 1
77100B - GASKET(FOR FUEL TANK)
90430-20007

TCR1#,2#

 1
77109A - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77109-28010

TCR10,20..ARL

 1
77178 - GASKET, FUEL TANK FILLER PIPE, LOWER
77178-20030

TCR1#,2#

 1
77179A - GASKET, FUEL TANK BREATHER TUBE
77179-26010

TCR1#,2#

 2
77179A - GASKET, FUEL TANK BREATHER TUBE
77179-26010

TCR1#,2#

 2
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-28110

TCR1#,2#..RHD

 1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-28110

TCR1#,2#..RHD

 1
77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
77217-28040

TCR1#,2#

 1
77202 - TUBE SUB-ASSY, BREATHER
77203-28030

TCR10,20

 1
77213 - HOSE, FUEL TANK SUB INLET
77213-28020

TCR1#,2#..RHD

L=180

 1
77249 - HOSE, FUEL EMISSION
77249-28070

TCR1#,2#

 1
77261D - TUBE, FUEL TANK TO CANISTER
77026-28050

TCR1#,2#

 1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
95333-06030

TCR1#,2#

*H,L=260

 1
77277R - PROTECTOR, FUEL TANK FILLER PIPE
77277-95D00

TCR1#,2#

 1
77279B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.3)
77279-28030

TCR1#,2#

 1
77292C - SHIELD, FUEL TANK FILLER PIPE, NO.2
77292-95D01

TCR1#,2#..RHD

 1
77305A - LID SUB-ASSY, FUEL FILLER OPENING
77305-95D01

TCR1#,2#..RHD

 1
77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306-95D01

TCR1#,2#..RHD

 1
77306A - SPRING, FUEL LID OPEN LEVER
90506-09004

TCR1#,2#

 1
77310A - CAP ASSY, FUEL TANK
77310-16011

TCR1#,2#

 1
77316 - GASKET, FUEL TANK CAP
77316-16010

TCR1#,2#

 1
77358A - STOPPER, FUEL FILLER OPENING LID
77358-28020

TCR1#,2#..RHD

 1
77377 - RETAINER, FUEL FILLER OPENING LID LOCK
77377-20040

TCR1#,2#

 1
77380 - VALVE ASSY, FUEL CUT OFF
77380-26010

TCR1#,2#

 1
77399 - HANGER, FUEL TANK CAP
77399-28010

TCR1#,2#

 1
77420 - VALVE ASSY, FUEL CUT OFF, NO.2
77420-26010

TCR1#,2#

 1
77511A - BRACKET, FUEL TANK
77511-28070

TCR1#,2#

 1
77512 - BRACKET, FUEL TANK, REAR
77512-28010

TCR1#,2#

 1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-28050

TCR1#,2#

 1
77611A - PIN (FOR FUEL TANK BAND)
77629-25010

TCR1#,2#

 1
77614 - SEAT, FUEL TANK BAND
77681-28020

TCR1#,2#

 1
77641A - PROTECTOR, FUEL TANK, NO.1
77641-28040

TCR1#,2#

 1
77651A - CUSHION, FUEL TANK, NO.1
77651-28030

TCR1#,2#

 2
77651A - CUSHION, FUEL TANK, NO.1
77651-28030

TCR1#,2#

 2
77652A - CUSHION, FUEL TANK, NO.2
77652-28010

TCR1#,2#

 1
77740 - CANISTER ASSY, CHARCOAL
77740-28110

TCR1#,2#

 1
77740B - HOSE, FUEL, NO.2(FOR CHARCOAL CANISTER)
90999-92002

TCR1#,2#

*H,L=240,MARK=#*

 1
77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)
90441-08004

TCR1#,2#

 1
