TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005- )

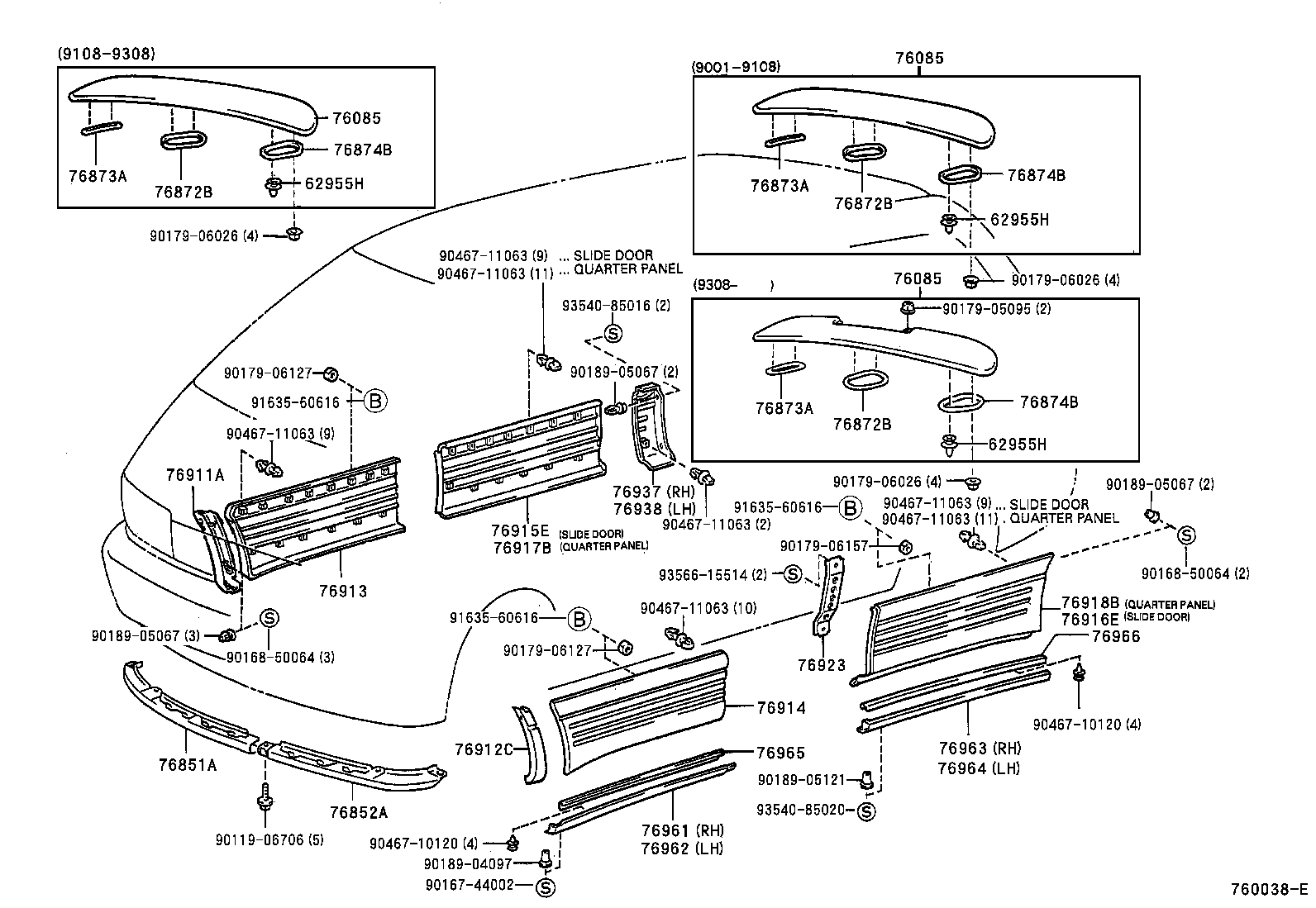

Click highlighted areas on diagram

diagram 62955H 62955H 62955H 76085 76085 76085 76851A 76852A 76872B 76872B 76872B 76873A 76873A 76873A 76874B 76874B 76874B 76911A 76912C 76913 76914 76915E 76916E 76917B 76918B 76923 76937 76938 76961 76962 76963 76964 76965 76966 9011906706 9016744002 9016850064 9016850064 9017905095 9017906026 9017906026 9017906026 9017906127 9017906127 9017906157 9018904097 9018905067 9018905067 9018905067 9018905121 9046710120 9046710120 9046711063 9046711063 9046711063 9046711063 9046711063 9046711063 9046711063 9163560616 9163560616 9163560616 9354085016 9354085020 9356615514
Part # Description Qty Price
76911A - MUDGUARD, FENDER PANEL, RH
76911-95D0003

TCR1#,2#

COOL GRAY,041 ,6L3 ,8G2 ,8H3 ,8H4 ,8H5

 1
76911-95D0013

TCR10,20

WARM GRAY,3H8

 1
76912C - MUDGUARD, FENDER PANEL, LH
76912-95D0013

TCR10,20

WARM GRAY,3H8

 1
76912-95D0003

TCR1#,2#

COOL GRAY,041 ,6L3 ,8G2 ,8H3 ,8H4 ,8H5

 1
76913 - MUDGUARD, FRONT DOOR, RH
76913-95D0013

TCR10,20

WARM GRAY,3H8

 1
76913-95D0003

TCR1#,2#

COOL GRAY,041 ,6L3 ,8G2 ,8H3 ,8H4 ,8H5

 1
76914 - MUDGUARD, FRONT DOOR, LH
76914-95D0003

TCR1#,2#

COOL GRAY,041 ,6L3 ,8G2 ,8H3 ,8H4 ,8H5

 1
76914-95D0013

TCR10,20

WARM GRAY,3H8

 1
76916E - MUDGUARD, SLIDE DOOR, LH
76916-95D0013

TCR10,20..ARL

WARM GRAY,3H8

 1
76916-95D0003

TCR1#,2#..RHD

COOL GRAY,041 ,6L3 ,8G2 ,8H3 ,8H4 ,8H5

 1
76917B - MUDGUARD, QUARTER PANEL, RH
76917-95D0003

TCR1#,2#..RHD

COOL GRAY,041 ,6L3 ,8G2 ,8H3 ,8H4 ,8H5

 1
76917-95D0013

TCR10,20..ARL

WARM GRAY,3H8

 1
76923 - RETAINER, SIDE MUDGUARD
76923-95D00

TCR1#,2#

 3
76938 - MUDGUARD, QUARTER PANEL, REAR LH
76938-95D0013

TCR10,20..ARL

WARM GRAY,3H8

 1
76938-95D0003

TCR1#,2#..RHD

COOL GRAY,041 ,6L3 ,8G2 ,8H3 ,8H4 ,8H5

 1
76961 - MUDGUARD, FRONT DOOR, LOWER RH
76961-95D0013

TCR20..ATM

WARM GRAY,TRIM11&3H8

 1
76961-95D0023

TCR10,20

GRAY,6L3 ,8G2 ,8H4

 1
76961-95D0006

TCR10;TCR20..W;TCR20..ATM

BROWN GRAY,TRIM11

 1
76961-95D0003

TCR1#,2#

COOL GRAY,TRIM1#&041 ,6L3 ,8G2 ,8H3 ,8H4 ,8H5

 1
76962 - MUDGUARD, FRONT DOOR, LOWER LH
76962-95D0006

TCR10;TCR20..W;TCR20..ATM

BROWN GRAY,TRIM11

 1
76962-95D0013

TCR20..ATM

WARM GRAY,TRIM11&3H8

 1
76962-95D0003

TCR1#,2#

COOL GRAY,TRIM1#&041 ,6L3 ,8G2 ,8H3 ,8H4 ,8H5

 1
76962-95D0023

TCR10,20

GRAY,6L3 ,8G2 ,8H4

 1
76964 - MUDGUARD, SLIDE DOOR, LOWER LH
76964-95D0003

TCR1#,2#..RHD

COOL GRAY,TRIM1#&041 ,6L3 ,8G2 ,8H3 ,8H4 ,8H5

 1
76964-95D0013

TCR20..ATM

WARM GRAY,TRIM11&3H8

 1
76964-95D0023

TCR10,20..ARL

GRAY,6L3 ,8G2 ,8H4

 1
76964-95D0006

TCR10..ARL;TCR20..ATM

BROWN GRAY,TRIM11

 1
76965 - PROTECTOR, FRONT DOOR LOWER MUDGUARD
76965-95D00

TCR1#,2#

 2
76966 - PROTECTOR, SLIDE DOOR LOWER MUDGUARD
76966-95D00

TCR1#,2#

 1
Common parts
90119-06706
90167-44002
90168-50064
90179-05095
90179-06026
90179-06127
90179-06157
90189-04097
90189-05067
90189-05121
90467-10120
90467-11063
91635-60616
93540-85016
93540-85020
93566-15514
