TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005- )

Click highlighted areas on diagram

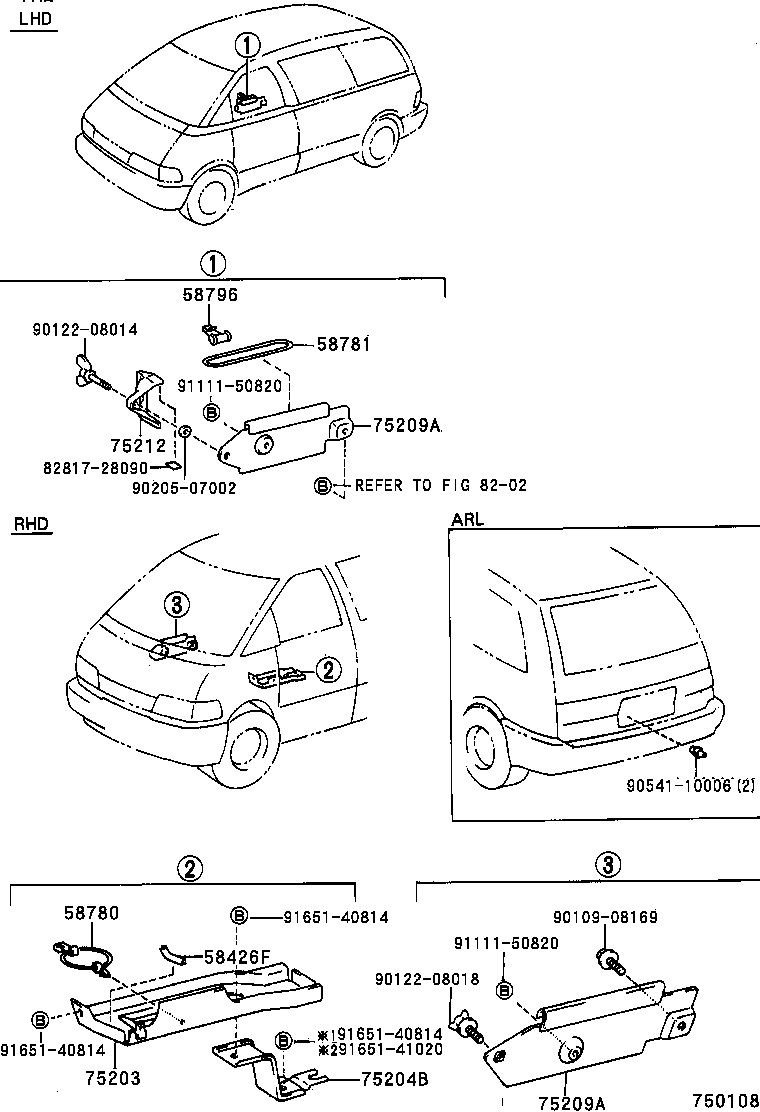

diagram 58426F 58780 58781 58796 75203 75204B 75209A 75209A 75212 8202 8281728090 9010908169 9012208014 9012208018 9020507002 9054110006 9111150820 9111150820 9165140814 9165140814 9165140814 9165141020
Part # Description Qty Price
58426F - PROTECTOR, ENGINE SUB COVER
58426-95405

TCR1#,2#..RHD

 1
58780 - BAND ASSY, TOOL BOX
58780-95J01

TCR1#,2#..RHD

 1
75203 - BOX SUB-ASSY, TOOL BAG
75203-28020

TCR1#,2#..RHD

 1
75204B - STAY SUB-ASSY, TOOL BOX
75204-28010

TCR1#,2#..RHD

 1
75209A - BASE SUB ASSY, JACK HOLDER
75209-95D00

TCR1#,2#

 1
75209A - BASE SUB ASSY, JACK HOLDER
75209-95D00

TCR1#,2#

 1
Common parts
82817-28090
90109-08169
90122-08014
90122-08018
90205-07002
90541-10006
91111-50820
91651-40814
91651-41020
Linked diagrams
8202
