TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005- )

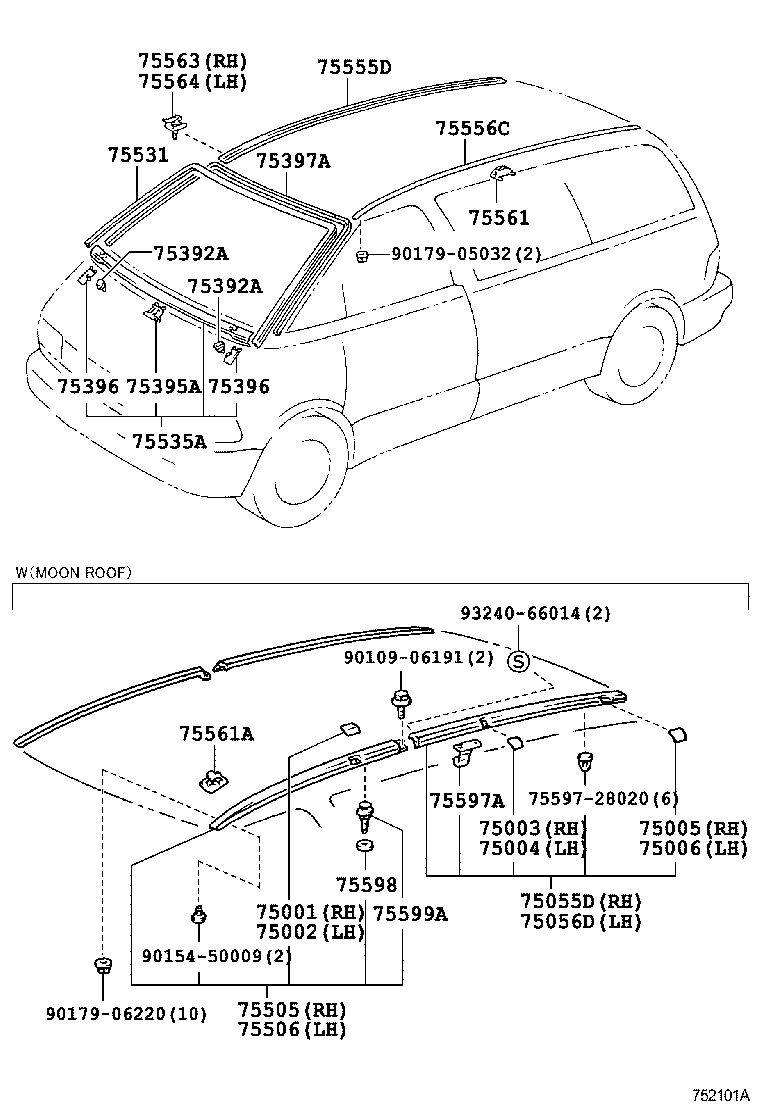

Click highlighted areas on diagram

diagram 75001 75002 75003 75004 75005 75006 75055D 75056D 75392A 75392A 75395A 75396 75396 75397A 75505 75506 75531 75535A 75555D 75556C 75561 75561A 75563 75564 7559728020 75597A 75598 75599A 9010906191 9015450009 9017905032 9017906220 9324066014
Part # Description Qty Price
75392A - RETAINER, OUTSIDE MOULDING, NO.1
75392-95D00

TCR1#,2#

 2
75392A - RETAINER, OUTSIDE MOULDING, NO.1
75392-95D00

TCR1#,2#

 2
75395A - CLIP, OUTSIDE MOULDING, NO.1
75395-95D00

TCR1#,2#

 6
75396 - CLIP, OUTSIDE MOULDING, NO.2
75396-95D01

TCR1#,2#

YELLOW

 1
75396-95D00

TCR1#,2#

WHITE

 1
75396 - CLIP, OUTSIDE MOULDING, NO.2
75396-95D01

TCR1#,2#

YELLOW

 1
75396-95D00

TCR1#,2#

WHITE

 1
75397A - CLIP, OUTSIDE MOULDING, NO.3
75397-95D00

TCR1#,2#

 1
75531 - MOULDING, WINDSHIELD, OUTER UPPER
75531-95D00

TCR1#,2#

 1
75535A - MOULDING, WINDSHIELD, OUTSIDE LOWER
75504-95D01

TCR1#,2#..RHD

 1
75555D - MOULDING, ROOF DRIP SIDE FINISH, CENTER RH
75555-95D00

TCR1#,2#

 1
75556C - MOULDING, ROOF DRIP SIDE FINISH, CENTER LH
75556-95D00

TCR1#,2#

 1
75561 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75561-95D01

TCR1#,2#

 26
Common parts
75597-28020
90109-06191
90154-50009
90179-05032
90179-06220
93240-66014
