TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005- )

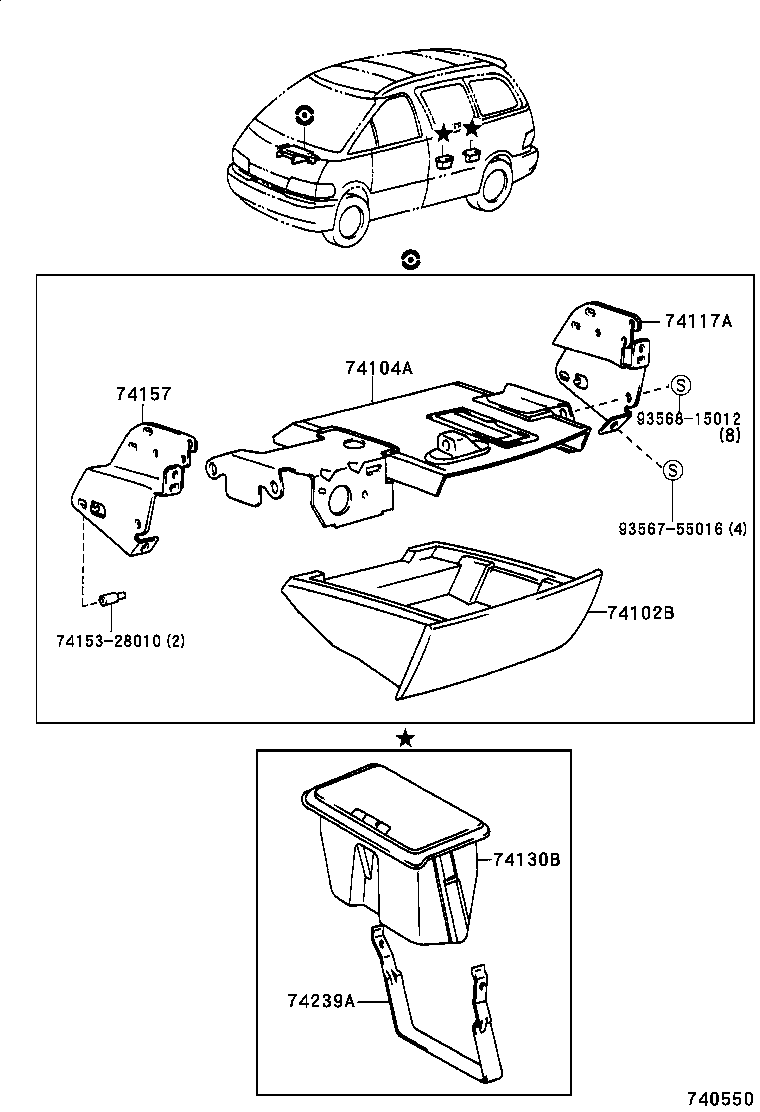

Click highlighted areas on diagram

diagram 74102B 74104A 74117A 74130B 7415328010 74157 74239A 9356755016 9356815012
Part # Description Qty Price
74102B - BOX SUB-ASSY, FRONT ASH RECEPTACLE
74102-95D0003

TCR1#,2#

GRAY,TRIM1#

 1
74104A - RETAINER SUB-ASSY, FRONT ASH RECEPTACLE
74104-95D02

TCR1#,2#

 1
74117A - BRACKET, FRONT ASH RECEPTACLE MOUNTING, RH
74117-95D00

TCR1#,2#

 1
74130B - RECEPTACLE ASSY, REAR ASH
74130-95D0003

TCR1#,2#

GRAY,TRIM1#

 2
74157 - BRACKET, FRONT ASH RECEPTACLE MOUNTING, LH
74157-95D00

TCR1#,2#

 1
74239A - HOLDER, REAR ASH RECEPTACLE
74239-95D00

TCR1#,2#

 2
Common parts
74153-28010
93567-55016
93568-15012
