TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005- )

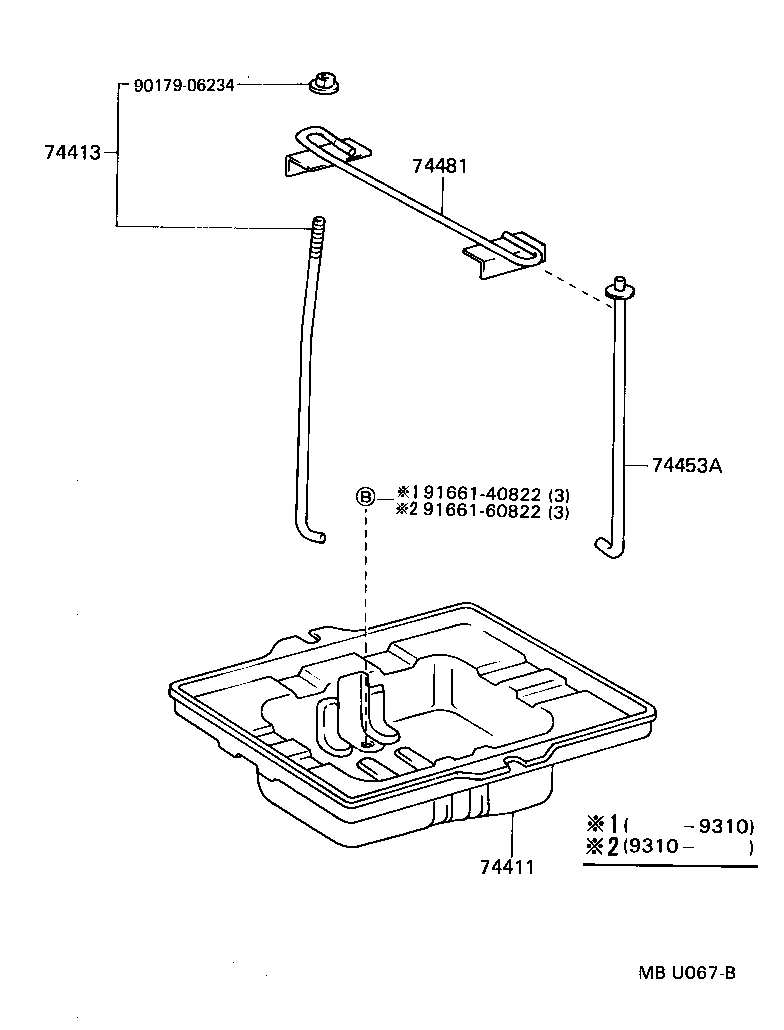

Click highlighted areas on diagram

diagram 74411 74413 74453A 74481 9017906234 9166140822 9166160822
Part # Description Qty Price
74411 - CARRIER, BATTERY
74411-95D00

TCR1#,2#

 1
74413 - BOLT, BATTERY CLAMP
74451-95D00

TCR1#,2#

 1
74453A - BAR, BATTERY SET PLATE
74453-95D00

TCR1#,2#

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-95D00

TCR1#,2#

 1
Common parts
90179-06234
91661-40822
91661-60822
