TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005- )

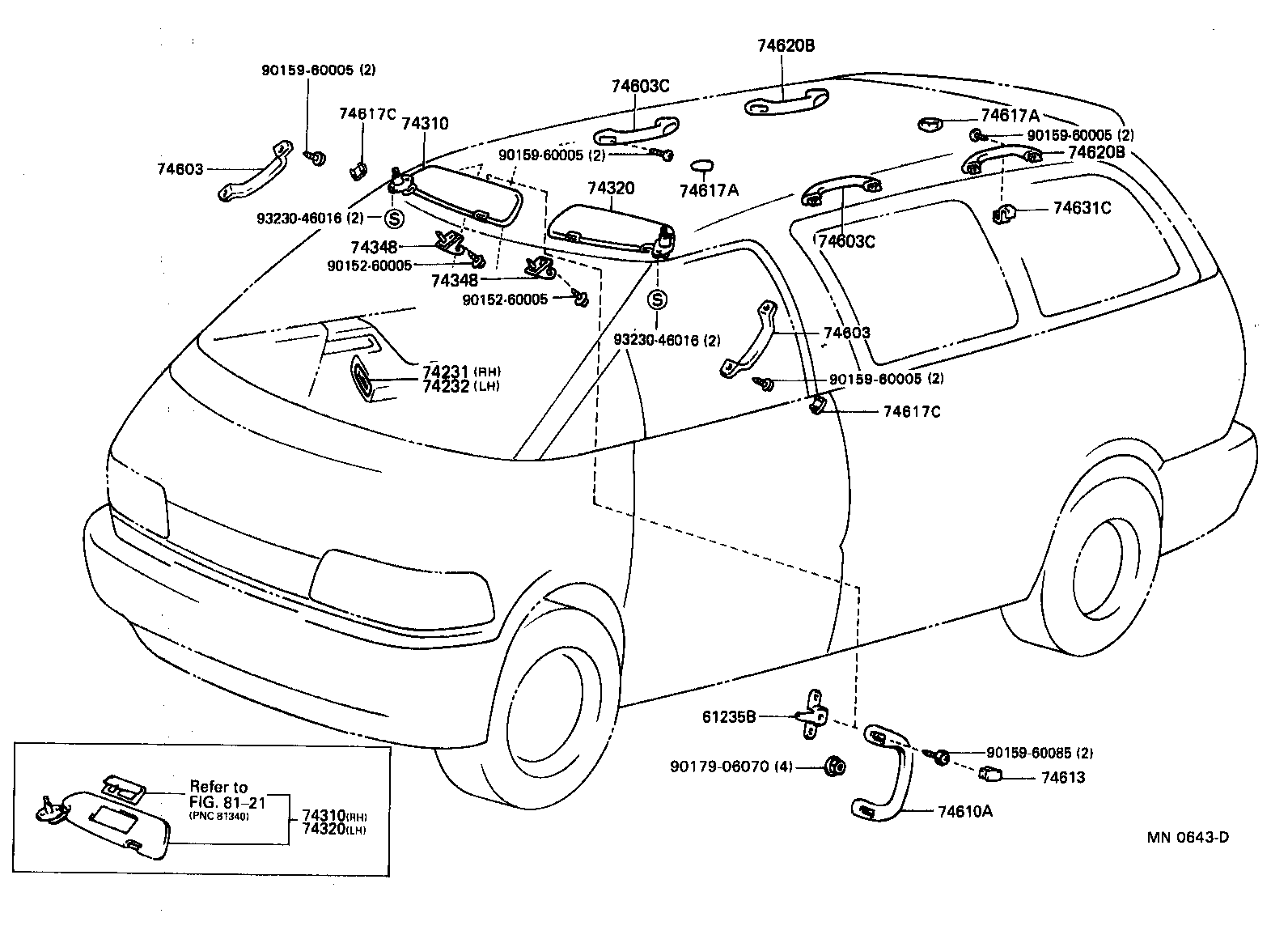

Click highlighted areas on diagram

diagram 61235B 74231 74232 74310 74310 74320 74320 74348 74348 74603 74603 74603C 74603C 74610A 74613 74617A 74617A 74617C 74617C 74620B 74620B 74631C 8121 9015260005 9015260005 9015960005 9015960005 9015960005 9015960005 9015960085 9017906070 9323046016 9323046016
Part # Description Qty Price
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-2802003

TCR1#,2#..RHD

LIGHT GRAY,TRIM1#

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-95D0103

TCR1#,2#..RHD

LIGHT GRAY,TRIM1#

 1
74310 - VISOR ASSY, RH
74310-95D1603

TCR2#..ATM

LIGHT GRAY,TRIM1#

 1
74310 - VISOR ASSY, RH
74310-95D1603

TCR2#..ATM

LIGHT GRAY,TRIM1#

 1
74320 - VISOR ASSY, LH
74320-2806003

TCR10,20..ARL

LIGHT GRAY,TRIM1#

 1
74320 - VISOR ASSY, LH
74320-2806003

TCR10,20..ARL

LIGHT GRAY,TRIM1#

 1
74348 - HOLDER, VISOR
74348-1202043

TCR1#,2#

LIGHT GRAY,TRIM1#

 2
74348 - HOLDER, VISOR
74348-1202043

TCR1#,2#

LIGHT GRAY,TRIM1#

 2
74603C - GRIP SUB-ASSY, ASSIST
74603-95D0103

TCR1#,2#..ARL

LIGHT GRAY,TRIM1#,SLIDE DOOR SIDE

 1
74603-95D0003

TCR1#,2#..ARL

LIGHT GRAY,TRIM1#

 1
74603C - GRIP SUB-ASSY, ASSIST
74603-95D0103

TCR1#,2#..ARL

LIGHT GRAY,TRIM1#,SLIDE DOOR SIDE

 1
74603-95D0003

TCR1#,2#..ARL

LIGHT GRAY,TRIM1#

 1
74617A - PLUG, ASSIST GRIP
74617-95D0003

TCR1#,2#..ARL

LIGHT GRAY,TRIM1#

 8
74617A - PLUG, ASSIST GRIP
74617-95D0003

TCR1#,2#..ARL

LIGHT GRAY,TRIM1#

 8
74620B - GRIP ASSY, ASSIST, REAR
74603-95D0003

TCR1#,2#..ARL

LIGHT GRAY,TRIM1#

 2
74620B - GRIP ASSY, ASSIST, REAR
74603-95D0003

TCR1#,2#..ARL

LIGHT GRAY,TRIM1#

 2
74631C - HOOK, COAT
74631-1401053

TCR1#,2#

GRAY,TRIM1#

 2
Common parts
90152-60005
90159-60005
90159-60085
90179-06070
93230-46016
Linked diagrams
8121
