TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005- )

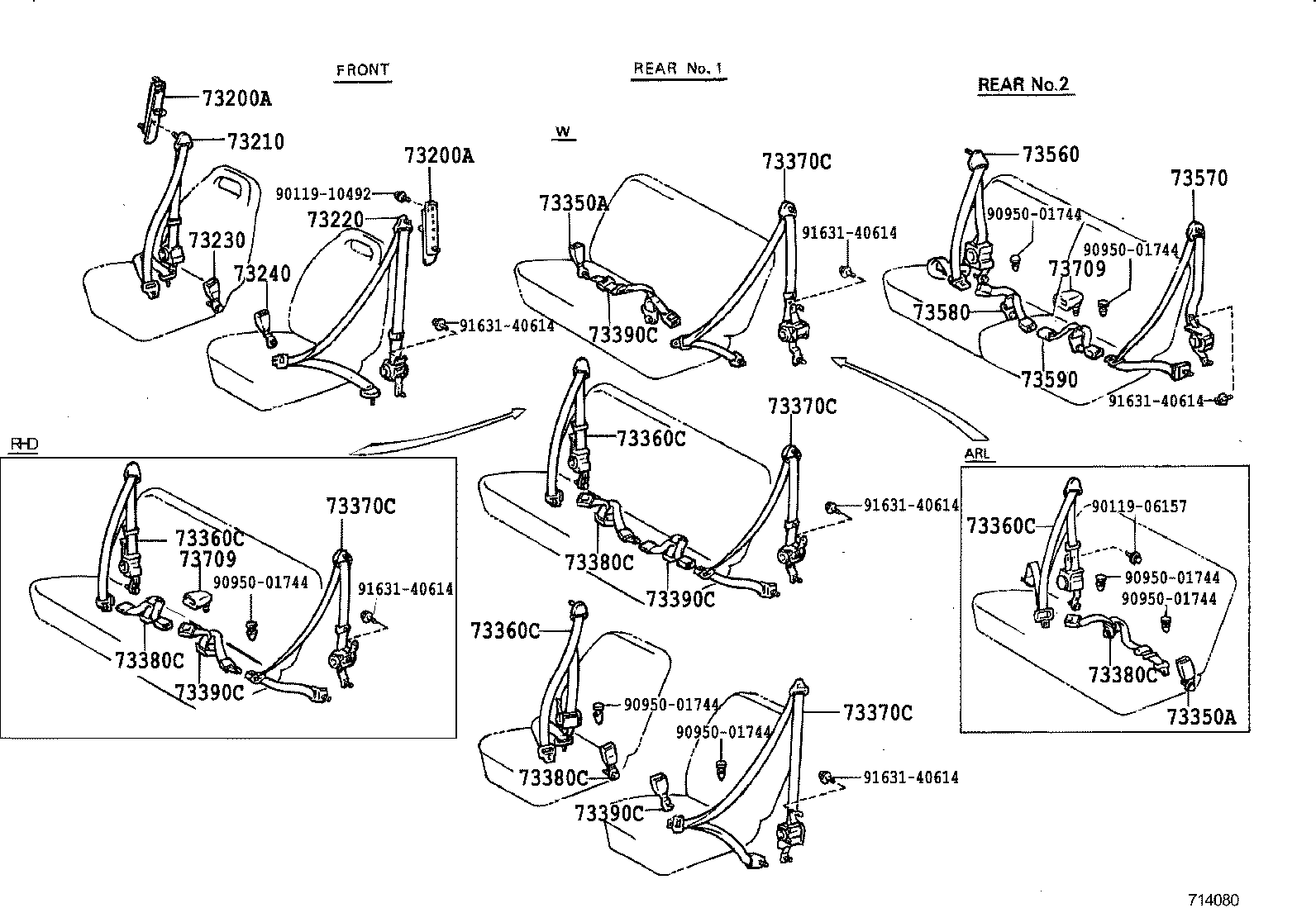

Click highlighted areas on diagram

diagram 73200A 73200A 73210 73220 73230 73240 73350A 73350A 73360C 73360C 73360C 73360C 73370C 73370C 73370C 73370C 73380C 73380C 73380C 73380C 73390C 73390C 73390C 73390C 73560 73570 73580 73590 73709 73709 9011906157 9011910492 9095001744 9095001744 9095001744 9095001744 9095001744 9095001744 9095001744 9163140614 9163140614 9163140614 9163140614 9163140614 9163140614
Part # Description Qty Price
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-95J0103

TCR1#,2#

LIGHT GRAY,TRIM1#

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-95J0103

TCR1#,2#

LIGHT GRAY,TRIM1#

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-95D0603

TCR1#,2#..ARL

LIGHT GRAY,TRIM1#

 1
73210-2814003

TCR1#,2#..ARL

LIGHT GRAY,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-95D0203

TCR1#,2#..ARL

LIGHT GRAY,TRIM1#

 1
73220-2814003

TCR1#,2#..ARL

LIGHT GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-95D0303

TCR1#,2#

LIGHT GRAY,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-95D0303

TCR1#,2#

LIGHT GRAY,TRIM1#

 1
73350A - BELT ASSY, REAR NO.1 SEAT LAP TYPE, CENTER
73350-95D0003

TCR2#

LIGHT GRAY,TRIM1#

 1
73350A - BELT ASSY, REAR NO.1 SEAT LAP TYPE, CENTER
73350-95D0003

TCR2#

LIGHT GRAY,TRIM1#

 1
73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH
73360-95D0203

TCR1#,2#..ARL

LIGHT GRAY,TRIM1#

 1
73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH
73360-95D0203

TCR1#,2#..ARL

LIGHT GRAY,TRIM1#

 1
73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH
73360-95D0203

TCR1#,2#..ARL

LIGHT GRAY,TRIM1#

 1
73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH
73360-95D0203

TCR1#,2#..ARL

LIGHT GRAY,TRIM1#

 1
73380C - BELT ASSY, REAR NO.1 SEAT, INNER RH
73380-95D0203

TCR2#..ARL

LIGHT GRAY,TRIM1#

 1
73380C - BELT ASSY, REAR NO.1 SEAT, INNER RH
73380-95D0203

TCR2#..ARL

LIGHT GRAY,TRIM1#

 1
73380C - BELT ASSY, REAR NO.1 SEAT, INNER RH
73380-95D0203

TCR2#..ARL

LIGHT GRAY,TRIM1#

 1
73380C - BELT ASSY, REAR NO.1 SEAT, INNER RH
73380-95D0203

TCR2#..ARL

LIGHT GRAY,TRIM1#

 1
73560 - BELT ASSY, REAR NO.2 SEAT, OUTER RH
73560-95D0103

TCR1#,2#..ARL

LIGHT GRAY,TRIM1#

 1
73570 - BELT ASSY, REAR NO.2 SEAT, OUTER LH
73570-95D0103

TCR1#,2#..ARL

LIGHT GRAY,TRIM1#

 1
73580 - BELT ASSY, REAR NO.2 SEAT, INNER RH
73580-95D0103

TCR1#,2#..ARL

LIGHT GRAY,TRIM1#

 1
73590 - BELT ASSY, REAR NO.2 SEAT, INNER LH
73590-95D0103

TCR1#,2#..ARL

LIGHT GRAY,TRIM1#

 1
Common parts
90119-06157
90119-10492
90950-01744
91631-40614
