TCR20R-RFSDKQ (1990)
Toyota Previa

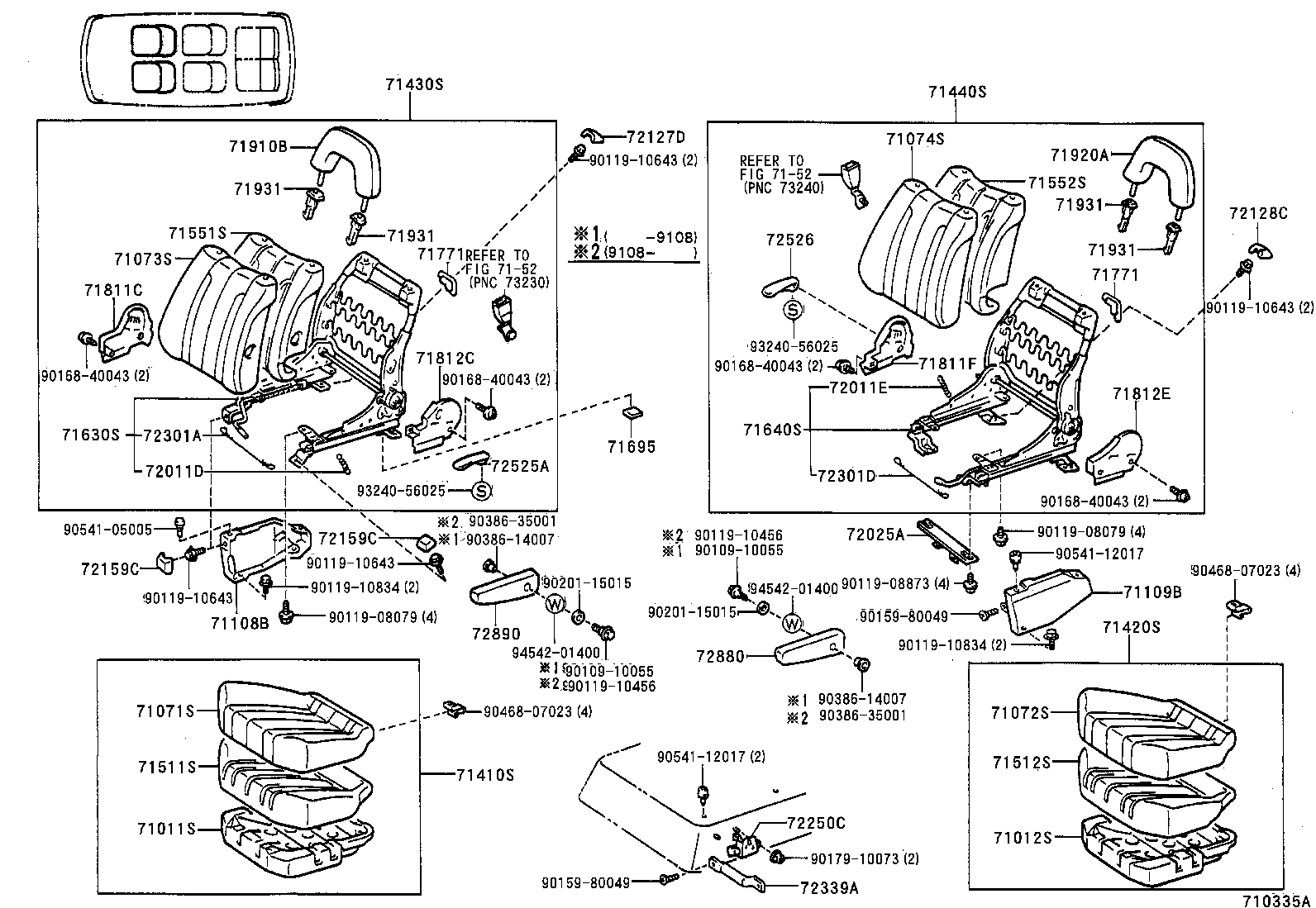

ILLUST NO. 1 OF 3(9005-9308)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-95D03 |
TCR1#,2# |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71012-95D00 |
TCR1#,2# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-95D0903 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-95D0903 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-95D0703 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-95D0703 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71108B - LEG SUB-ASSY, FRONT SEAT, RH | ||||
| 71108-95D0103 |
TCR1#,2#..RHD GRAY,TRIM1# |
1 | ||
| 71109B - LEG SUB-ASSY, FRONT SEAT, LH | ||||
| 71109-95D0103 |
TCR1#,2#..RHD GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-95D0303 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-95D0403 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-95D0403 |
TCR10,20..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-95D0503 |
TCR10,20..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-95D00 |
TCR1#,2# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-95D00 |
TCR1#,2# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-95D00 |
TCR1#,2# |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-95D00 |
TCR1#,2# |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-95D02 |
TCR1#,2# |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-95D04 |
TCR1#,2# |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-95D0003 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71811F - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-95D0203 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-95D0003 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71812E - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-95D0303 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71910B - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2805003 |
TCR10,20..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 71920A - HEADREST ASSY, FRONT SEAT, LH | ||||
| 71910-2805003 |
TCR10,20..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1205013 |
TCR1#,2# W(LOCK),LIGHT GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1205013 |
TCR1#,2# W(LOCK),LIGHT GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1205013 |
TCR1#,2# W(LOCK),LIGHT GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1205013 |
TCR1#,2# W(LOCK),LIGHT GRAY,TRIM1# |
2 | ||
| 72011D - SPRING, TENSION, RH(FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-12060 |
TCR1#,2# |
2 | ||
| 72011E - SPRING, TENSION, LH(FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-12060 |
TCR1#,2# |
2 | ||
| 72025A - STRIKER SUB-ASSY, FRONT SEAT LOCK | ||||
| 72025-95D02 |
TCR1#,2#..RHD |
1 | ||
| 72127D - COVER, SEAT TRACK BRACKET, FRONT, RH | ||||
| 72127-95D0103 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72128C - COVER, SEAT TRACK BRACKET, FRONT, LH | ||||
| 72128-95D0003 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72159C - COVER, FRONT SEAT TRACK BRACKET | ||||
| 72159-95D0003 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72159C - COVER, FRONT SEAT TRACK BRACKET | ||||
| 72159-95D0003 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72250C - LOCK ASSY, FRONT SEAT | ||||
| 72250-95D00 |
TCR1#,2# |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-95D00 |
TCR1#,2# |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-95D00 |
TCR1#,2# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-95D0003 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-95D0003 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90109-10055 | ||||
| 90119-08079 | ||||
| 90119-08873 | ||||
| 90119-10456 | ||||
| 90119-10643 | ||||
| 90119-10834 | ||||
| 90159-80049 | ||||
| 90168-40043 | ||||
| 90179-10073 | ||||
| 90201-15015 | ||||
| 90386-14007 | ||||
| 90386-35001 | ||||
| 90468-07023 | ||||
| 90541-05005 | ||||
| 90541-12017 | ||||
| 93240-56025 | ||||
| 94542-01400 | ||||
| Linked diagrams | ||||
| 7152 | ||||

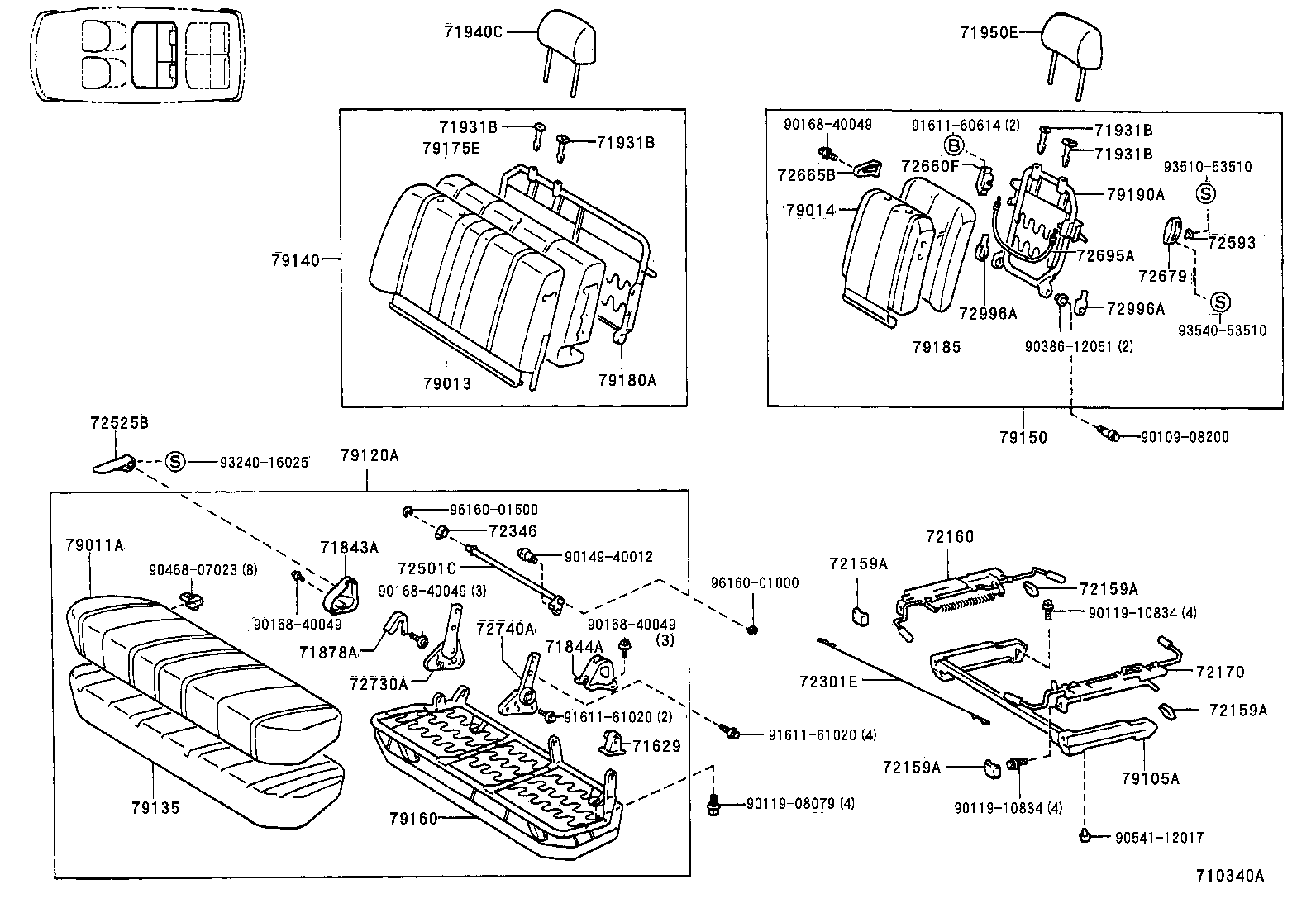

ILLUST NO. 2 OF 3(9005-9608)ARL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71843A - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71843-95D0203 |
TCR2#..ARL GRAY,TRIM1# |
1 | ||
| 71844A - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71844-95D0203 |
TCR2#..ARL GRAY,TRIM1# |
1 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-1007013 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002013 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-1007013 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002013 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-1007013 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002013 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-1007013 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002013 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71940C - HEADREST ASSY, REAR NO.1 SEAT, RH | ||||
| 71940-95D0203 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71950E - HEADREST ASSY, REAR NO.1 SEAT, LH | ||||
| 71940-95D0203 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 72301E - WIRE SUB-ASSY, REAR NO.1 SEAT TRACK EQUALIZING, RH | ||||
| 72301-95D01 |
TCR2# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72525-95D0003 |
TCR2#..ARL GRAY,TRIM1# |
1 | ||
| 72611 - BRACKET, REAR SEAT LOCK, RH | ||||
| 72611-95D00 |
TCR2# |
2 | ||
| 72611 - BRACKET, REAR SEAT LOCK, RH | ||||
| 72611-95D00 |
TCR2# |
2 | ||
| 72612 - BRACKET, REAR SEAT LOCK, LH | ||||
| 72611-95D00 |
TCR2# |
2 | ||
| 72612 - BRACKET, REAR SEAT LOCK, LH | ||||
| 72611-95D00 |
TCR2# |
2 | ||
| 72613B - STRIKER, REAR SEAT LOCK | ||||
| 72613-95D01 |
TCR2# |
8 | ||
| 72613B - STRIKER, REAR SEAT LOCK | ||||
| 72613-95D01 |
TCR2# |
8 | ||
| 72613B - STRIKER, REAR SEAT LOCK | ||||
| 72613-95D01 |
TCR2# |
8 | ||
| 72613B - STRIKER, REAR SEAT LOCK | ||||
| 72613-95D01 |
TCR2# |
8 | ||
| 72650F - LOCK ASSY, REAR SEAT, RH | ||||
| 72650-95D03 |
TCR2# |
1 | ||
| 72660F - LOCK ASSY, REAR SEAT, LH | ||||
| 72660-95D05 |
TCR2# |
1 | ||
| 72840 - ARMREST ASSY, REAR NO.1 SEAT, LH | ||||
| 72840-95D0403 |
TCR20..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION | ||||
| 79011-95D0803 |
TCR20..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 79013A - COVER SUB-ASSY, NO.1 SEAT BACK | ||||
| 79013-95D1703 |
TCR20..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 79013-95D1803 |
TCR20..ARL W(HEADREST),LIGHT GRAY,TRIM1# |
1 | ||
| 79105A - LEG SUB-ASSY, NO.1 SEAT | ||||
| 79105-95D0603 |
TCR2#..ARL GRAY,TRIM1# |
1 | ||
| 79135 - PAD, NO.1 SEAT CUSHION | ||||
| 79135-95D04 |
TCR2#..ARL |
1 | ||
| 79160 - SPRING ASSY, NO.1 SEAT CUSHION | ||||
| 79160-95D08 |
TCR2#..ARL W(HEADREST) |
1 | ||
| 79160-95D07 |
TCR2#..ARL |
1 | ||
| 79175 - PAD, NO.1 SEAT BACK | ||||
| 79175-95D00 |
TCR2# |
1 | ||
| 79175-95D07 |
TCR2# W(HEADREST) |
1 | ||
| Common parts | ||||
| 90109-10055 | ||||
| 90119-10635 | ||||
| 90119-10650 | ||||
| 90168-40043 | ||||
| 90201-15015 | ||||
| 90386-14007 | ||||
| 90468-07023 | ||||
| 90541-12017 | ||||
| 93240-56025 | ||||
| 94180-41000 | ||||
| 94542-01400 | ||||

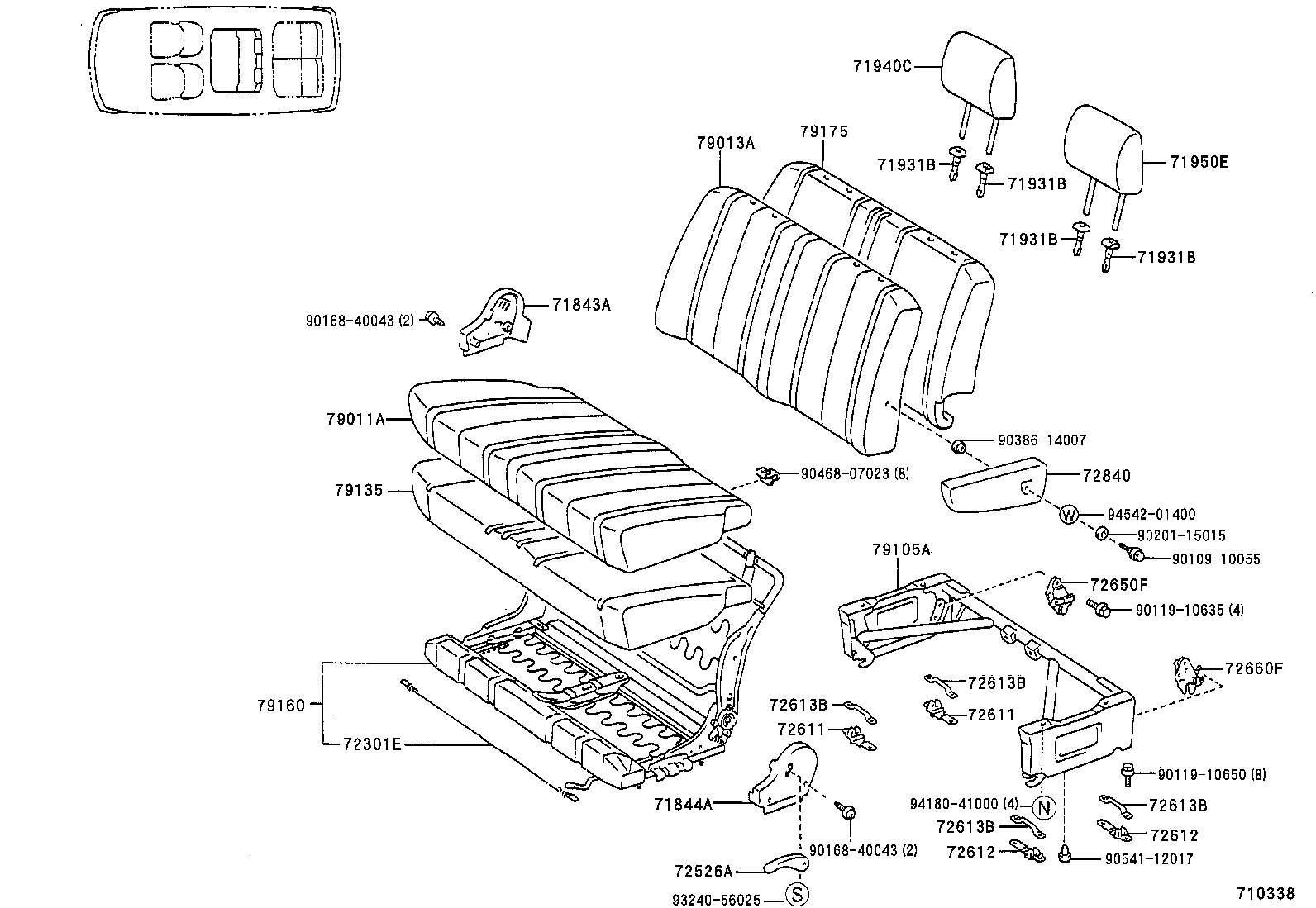

ILLUST NO. 2 OF 3(9005- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71843A - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71843-95D0203 |
TCR2#..ARL GRAY,TRIM1# |
1 | ||
| 71844A - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71844-95D0203 |
TCR2#..ARL GRAY,TRIM1# |
1 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-1007013 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002013 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-1007013 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002013 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-1007013 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002013 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-1007013 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002013 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71940C - HEADREST ASSY, REAR NO.1 SEAT, RH | ||||
| 71940-95D0203 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71950E - HEADREST ASSY, REAR NO.1 SEAT, LH | ||||
| 71940-95D0203 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 72301E - WIRE SUB-ASSY, REAR NO.1 SEAT TRACK EQUALIZING, RH | ||||
| 72301-95D01 |
TCR2# |
1 | ||
| 72660F - LOCK ASSY, REAR SEAT, LH | ||||
| 72660-95D05 |
TCR2# |
1 | ||
| 79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION | ||||
| 79011-95D0803 |
TCR20..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 79105A - LEG SUB-ASSY, NO.1 SEAT | ||||
| 79105-95D0603 |
TCR2#..ARL GRAY,TRIM1# |
1 | ||
| 79135 - PAD, NO.1 SEAT CUSHION | ||||
| 79135-95D04 |
TCR2#..ARL |
1 | ||
| 79160 - SPRING ASSY, NO.1 SEAT CUSHION | ||||
| 79160-95D08 |
TCR2#..ARL W(HEADREST) |
1 | ||
| 79160-95D07 |
TCR2#..ARL |
1 | ||
| Common parts | ||||
| 90109-08200 | ||||
| 90119-08079 | ||||
| 90119-10834 | ||||
| 90149-40012 | ||||
| 90168-40049 | ||||
| 90386-12051 | ||||
| 90468-07023 | ||||
| 90541-12017 | ||||
| 91611-60614 | ||||
| 91611-61020 | ||||
| 93240-16025 | ||||
| 93510-53510 | ||||
| 93540-53510 | ||||
| 96160-01000 | ||||
| 96160-01500 | ||||

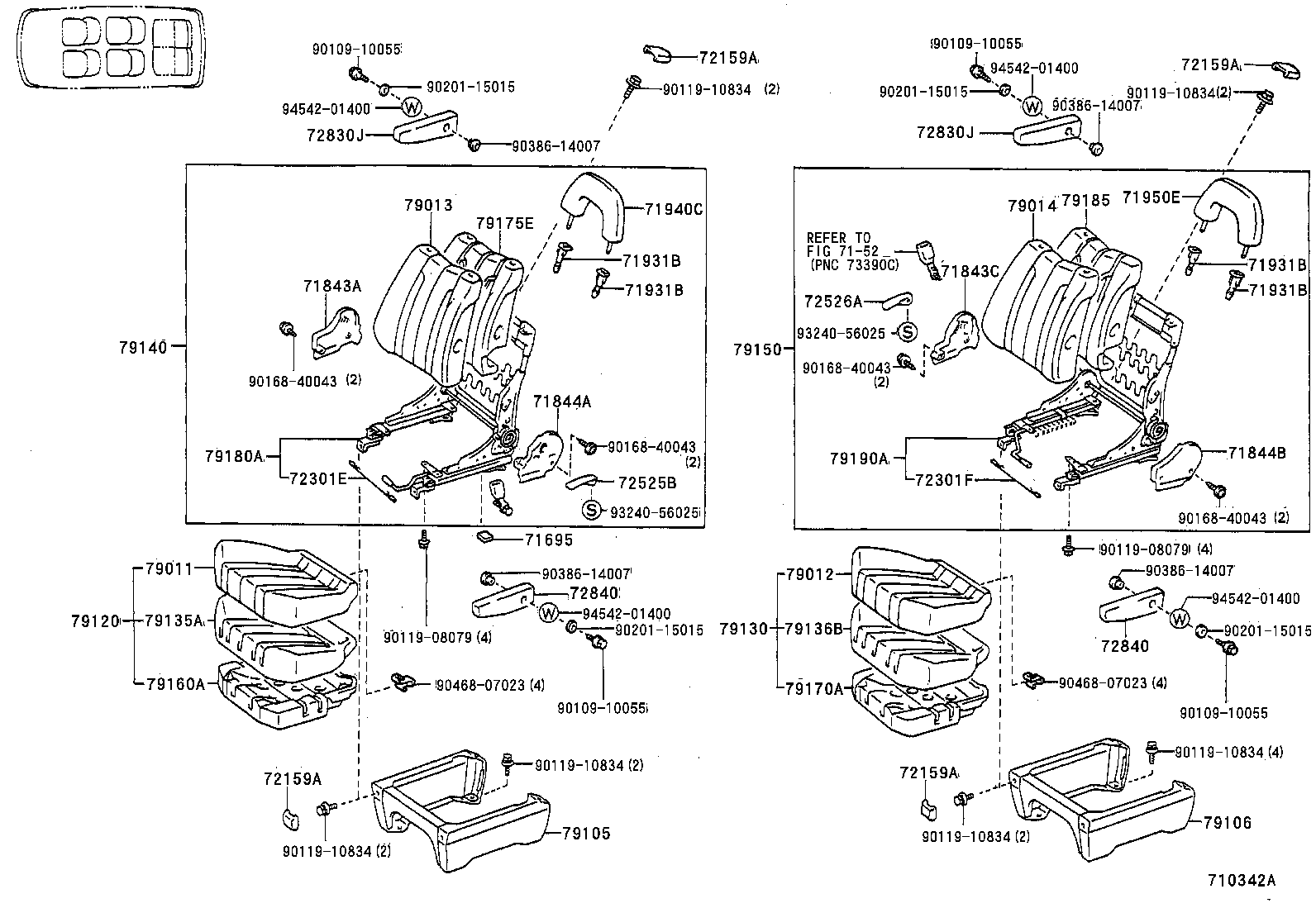

ILLUST NO. 2 OF 3(9005-9308)ARL
CAPTAIN SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71843A - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71843-95D0203 |
TCR2#..ARL GRAY,TRIM1# |
1 | ||
| 71844A - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71844-95D0203 |
TCR2#..ARL GRAY,TRIM1# |
1 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-1007013 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002013 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-1007013 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002013 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-1007013 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002013 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-1007013 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002013 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71940C - HEADREST ASSY, REAR NO.1 SEAT, RH | ||||
| 71940-95D0203 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71950E - HEADREST ASSY, REAR NO.1 SEAT, LH | ||||
| 71940-95D0203 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 72301E - WIRE SUB-ASSY, REAR NO.1 SEAT TRACK EQUALIZING, RH | ||||
| 72301-95D01 |
TCR2# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72525-95D0003 |
TCR2#..ARL GRAY,TRIM1# |
1 | ||
| 72840 - ARMREST ASSY, REAR NO.1 SEAT, LH | ||||
| 72840-95D0403 |
TCR20..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 72840 - ARMREST ASSY, REAR NO.1 SEAT, LH | ||||
| 72840-95D0403 |
TCR20..ARL LIGHT GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90109-10055 | ||||
| 90119-08079 | ||||
| 90119-10834 | ||||
| 90168-40043 | ||||
| 90201-15015 | ||||
| 90386-14007 | ||||
| 90468-07023 | ||||
| 93240-56025 | ||||
| 94542-01400 | ||||
| Linked diagrams | ||||
| 7152 | ||||

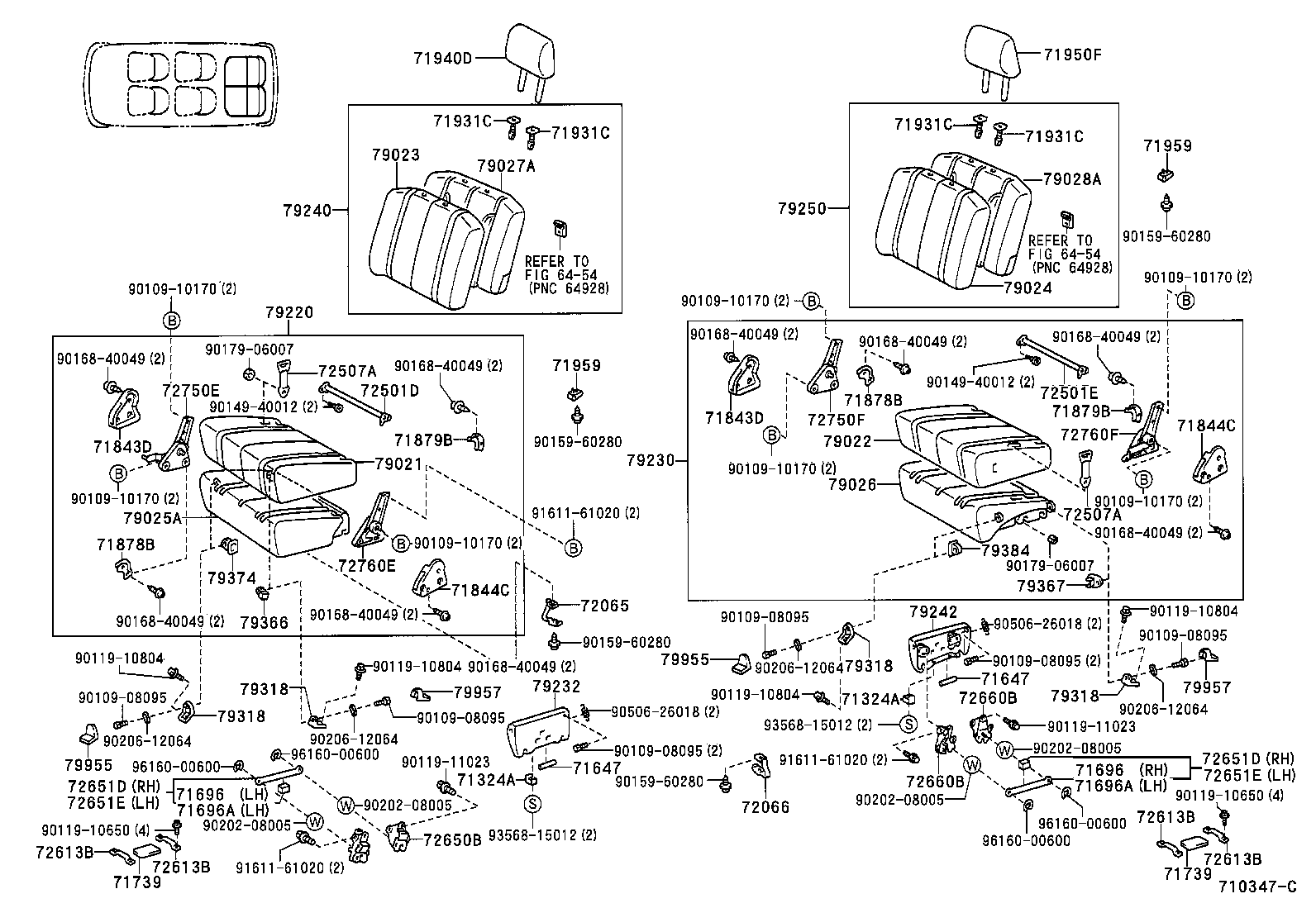

ILLUST NO. 3 OF 3(9005- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71324A - CUSHION, REAR SEAT | ||||
| 71324-95D00 |
TCR1#,2# |
4 | ||
| 71324A - CUSHION, REAR SEAT | ||||
| 71324-95D00 |
TCR1#,2# |
4 | ||
| 71647 - PROTECTOR, REAR SEAT CUSHION EDGE | ||||
| 71647-95D00 |
TCR1#,2# |
2 | ||
| 71647 - PROTECTOR, REAR SEAT CUSHION EDGE | ||||
| 71647-95D00 |
TCR1#,2# |
2 | ||
| 71843D - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71843-95D0403 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 71843D - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71843-95D0403 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 71844C - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71844-95D0403 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 71844C - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71844-95D0403 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 71878B - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-95D0203 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 71878B - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-95D0203 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 71879B - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71878-95D0203 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 71879B - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71878-95D0203 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71930-1007013 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002013 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71930-1007013 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002013 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71930-1007013 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002013 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71930-1007013 |
TCR1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002013 |
TCR1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71940D - HEADREST ASSY, REAR NO.2 SEAT, RH | ||||
| 71940-95D0203 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71950F - HEADREST ASSY, REAR NO.2 SEAT, LH | ||||
| 71940-95D0203 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71959 - HOLDER, REAR SEAT HEADREST | ||||
| 71959-2802003 |
TCR1#,2# GRAY,TRIM1# |
4 | ||
| 71959 - HOLDER, REAR SEAT HEADREST | ||||
| 71959-2802003 |
TCR1#,2# GRAY,TRIM1# |
4 | ||
| 72065 - BELT SUB-ASSY, REAR SEAT HOOK, RH | ||||
| 72065-95D0003 |
TCR1#,2# LIGHT GRAY,TRIM1# |
1 | ||
| 72066 - BELT SUB-ASSY, REAR SEAT HOOK, LH | ||||
| 72065-95D0003 |
TCR1#,2# LIGHT GRAY,TRIM1# |
1 | ||
| 72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72501-95D06 |
TCR1#,2# |
1 | ||
| 72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72501-95D06 |
TCR1#,2# |
1 | ||
| 72507A - HANDLE SUB-ASSY, RECLINING RELEASE | ||||
| 72507-95D0003 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72507A - HANDLE SUB-ASSY, RECLINING RELEASE | ||||
| 72507-95D0003 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72613B - STRIKER, REAR SEAT LOCK | ||||
| 72613-95D01 |
TCR2# |
8 | ||
| 72613B - STRIKER, REAR SEAT LOCK | ||||
| 72613-95D01 |
TCR2# |
8 | ||
| 72613B - STRIKER, REAR SEAT LOCK | ||||
| 72613-95D01 |
TCR2# |
8 | ||
| 72613B - STRIKER, REAR SEAT LOCK | ||||
| 72613-95D01 |
TCR2# |
8 | ||
| 72650B - LOCK ASSY, REAR NO.3 SEAT, RH | ||||
| 72650-95D02 |
TCR1#,2# RR |
1 | ||
| 72650-95D01 |
TCR1#,2# FR |
1 | ||
| 72651D - ROD, REAR SEAT BACK LOCK, RH | ||||
| 72651-95D00 |
TCR1#,2# |
1 | ||
| 72651D - ROD, REAR SEAT BACK LOCK, RH | ||||
| 72651-95D00 |
TCR1#,2# |
1 | ||
| 72651E - ROD, REAR SEAT BACK LOCK, LH | ||||
| 72651-95D00 |
TCR1#,2# |
1 | ||
| 72651E - ROD, REAR SEAT BACK LOCK, LH | ||||
| 72651-95D00 |
TCR1#,2# |
1 | ||
| 72660B - LOCK ASSY, REAR NO.3 SEAT, LH | ||||
| 72660-95D02 |
TCR1#,2# FR |
1 | ||
| 72660-95D03 |
TCR1#,2# RR |
1 | ||
| 72660B - LOCK ASSY, REAR NO.3 SEAT, LH | ||||
| 72660-95D02 |
TCR1#,2# FR |
1 | ||
| 72660-95D03 |
TCR1#,2# RR |
1 | ||
| 72750E - ADJUSTER ASSY, REAR NO.2 SEAT RECLINING, OUTER RH | ||||
| 72750-95D03 |
TCR1#,2# W(HEADREST) |
1 | ||
| 72750-95D01 |
TCR1#,2# |
1 | ||
| 72750F - ADJUSTER ASSY, REAR NO.2 SEAT RECLINING, INNER LH | ||||
| 72750-95D02 |
TCR1#,2# |
1 | ||
| 72750-95D04 |
TCR1#,2# W(HEADREST) |
1 | ||
| 72760E - ADJUSTER ASSY, REAR NO.2 SEAT RECLINING, INNER RH | ||||
| 72760-95D03 |
TCR1#,2# W(HEADREST) |
1 | ||
| 72760-95D01 |
TCR1#,2# |
1 | ||
| 72760F - ADJUSTER ASSY, REAR NO.2 SEAT RECLINING, OUTER LH | ||||
| 72760-95D02 |
TCR1#,2# |
1 | ||
| 72760-95D04 |
TCR1#,2# W(HEADREST) |
1 | ||
| 79021 - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79021-95D0003 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 79022 - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79022-95D0003 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 79023 - COVER SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79023-95D0103 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 79023-95D0003 |
TCR10,20 W(HEADREST),LIGHT GRAY,TRIM1# |
1 | ||
| 79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79024-95D0103 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 79024-95D0003 |
TCR10,20 W(HEADREST),LIGHT GRAY,TRIM1# |
1 | ||
| 79025A - PAD SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79025-95D00 |
TCR1#,2# |
1 | ||
| 79025-28010 |
TCR1#,2# W(HEADREST) |
1 | ||
| 79026 - PAD SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79026-28010 |
TCR1#,2# W(HEADREST) |
1 | ||
| 79026-95D00 |
TCR1#,2# |
1 | ||
| 79027A - PAD SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79027-28020 |
TCR1#,2# W(TONNEAU COVER & HEADREST) |
1 | ||
| 79027-95D00 |
TCR1#,2# W(HEADREST) |
1 | ||
| 79027-95D01 |
TCR1#,2# |
1 | ||
| 79027-28010 |
TCR1#,2# W(TONNEAU COVER) |
1 | ||
| 79028A - PAD SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79028-28010 |
TCR1#,2# W(TONNEAU COVER) |
1 | ||
| 79028-95D00 |
TCR1#,2# W(HEADREST) |
1 | ||
| 79028-95D01 |
TCR1#,2# |
1 | ||
| 79028-28020 |
TCR1#,2# W(TONNEAU COVER & HEADREST) |
1 | ||
| 79220 - CUSHION ASSY, NO.2 SEAT, RH | ||||
| 79220-95D0003 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 79220-2804003 |
TCR10,20 W(HEADREST),LIGHT GRAY,TRIM1# |
1 | ||
| 79230 - CUSHION ASSY, NO.2 SEAT, LH | ||||
| 79230-2801003 |
TCR10,20 W(HEADREST),LIGHT GRAY,TRIM1# |
1 | ||
| 79230-95D0003 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 79232 - LEG, REAR NO.2 SEAT, RH | ||||
| 79205-95D0001 |
TCR10,20 BLACK,TRIM1# |
1 | ||
| 79240 - BACK ASSY, NO.2 SEAT, RH | ||||
| 79240-2807003 |
TCR10,20 W(TONNEAU COVER & HEADREST),LIGHT GRAY,TRIM1# |
1 | ||
| 79240-2806003 |
TCR10,20 W(TONNEAU COVER),LIGHT GRAY,TRIM1# |
1 | ||
| 79240-95D0003 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 79240-95D0603 |
TCR10,20 W(HEADREST),LIGHT GRAY,TRIM1# |
1 | ||
| 79242 - LEG, REAR NO.2 SEAT, LH | ||||
| 79206-95D00 |
TCR10,20;TCR11,21..ARL |
1 | ||
| 79250 - BACK ASSY, NO.2 SEAT, LH | ||||
| 79250-2805003 |
TCR10,20 W(TONNEAU COVER & HEADREST),LIGHT GRAY,TRIM1# |
1 | ||
| 79250-2804003 |
TCR10,20 W(TONNEAU COVER),LIGHT GRAY,TRIM1# |
1 | ||
| 79250-95D0003 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 79250-95D0603 |
TCR10,20 W(HEADREST),LIGHT GRAY,TRIM1# |
1 | ||
| 79318 - BRACKET, NO.3 SEAT LEG | ||||
| 79318-95D00 |
TCR1#,2# FR |
2 | ||
| 79319-95D00 |
TCR1#,2# RR |
2 | ||
| 79318 - BRACKET, NO.3 SEAT LEG | ||||
| 79318-95D00 |
TCR1#,2# FR |
2 | ||
| 79319-95D00 |
TCR1#,2# RR |
2 | ||
| 79318 - BRACKET, NO.3 SEAT LEG | ||||
| 79318-95D00 |
TCR1#,2# FR |
2 | ||
| 79319-95D00 |
TCR1#,2# RR |
2 | ||
| 79318 - BRACKET, NO.3 SEAT LEG | ||||
| 79318-95D00 |
TCR1#,2# FR |
2 | ||
| 79319-95D00 |
TCR1#,2# RR |
2 | ||
| 79366 - COVER, NO.3 SEAT LEG, NO.1 | ||||
| 79366-95D0003 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 79367 - COVER, NO.3 SEAT LEG, NO.2 | ||||
| 79367-95D0003 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 79374 - COVER, NO.3 SEAT LEG, REAR RH | ||||
| 79374-95D0003 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 79384 - COVER, NO.3 SEAT LEG, REAR LH | ||||
| 79384-95D0003 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 79955 - COVER, REAR SEAT FRONT BRACKET, FRONT | ||||
| 79955-95D0003 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 79955 - COVER, REAR SEAT FRONT BRACKET, FRONT | ||||
| 79955-95D0003 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 79957 - COVER, REAR SEAT REAR BRACKET, REAR | ||||
| 79957-95D0003 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 79957 - COVER, REAR SEAT REAR BRACKET, REAR | ||||
| 79957-95D0003 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90109-08095 | ||||
| 90109-10170 | ||||
| 90119-10650 | ||||
| 90119-10804 | ||||
| 90119-11023 | ||||
| 90149-40012 | ||||
| 90159-60280 | ||||
| 90168-40049 | ||||
| 90179-06007 | ||||
| 90202-08005 | ||||
| 90206-12064 | ||||
| 90506-26018 | ||||
| 91611-61020 | ||||
| 93568-15012 | ||||
| 96160-00600 | ||||
| Linked diagrams | ||||
| 6454 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
