TCR20R-RFSDKQ (1990)
Toyota Previa
Production
May 1990
-
Aug 1991
Engine
2TZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9005- )

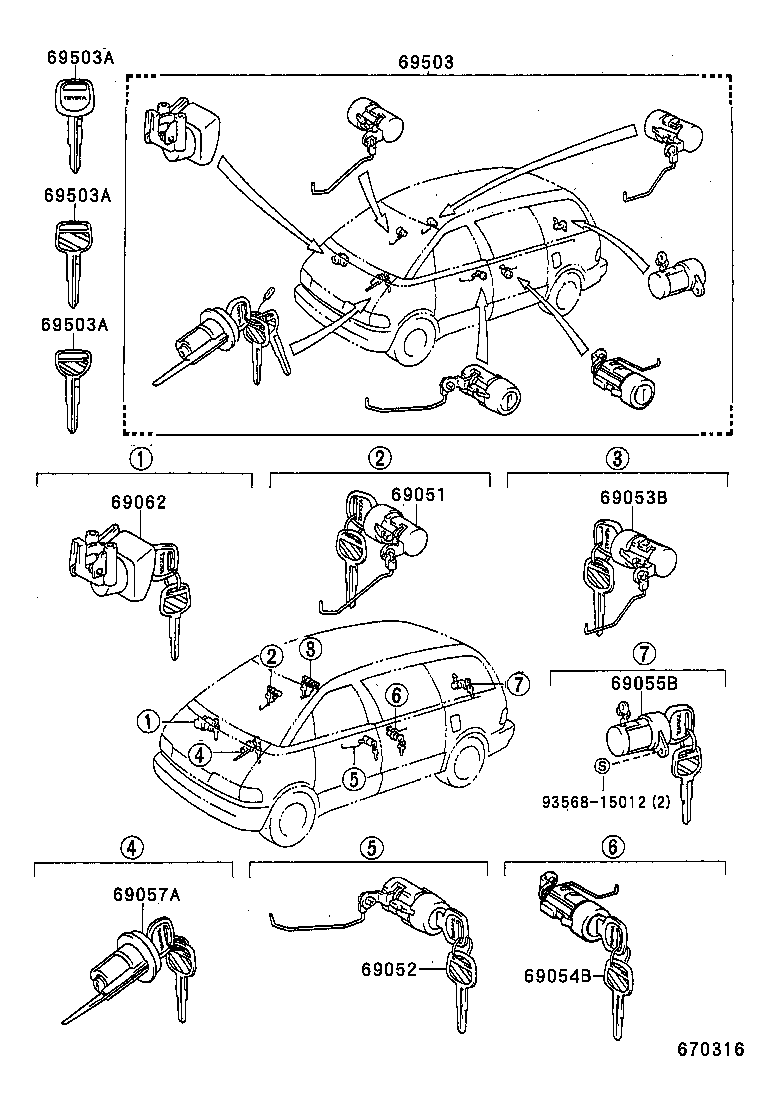

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-95D02 |
TCR1#,2#..ARL |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-95D02 |
TCR1#,2#..ARL |
1 | ||
| 69054B - CYLINDER & KEY SET, SLIDE DOOR LOCK, LH | ||||
| 69054-95D00 |
TCR1#,2#..ARL |
1 | ||
| 69055B - CYLINDER & KEY SET, BACK DOOR LOCK | ||||
| 69055-95D00 |
TCR1#,2#..ARL |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-95D04 |
TCR1#,2#..ARL |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69503-95D06 |
TCR10,20..ARL |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00166 |
TCR1#,2#..ARL MASTER KEY,W(*68) |
1 | ||
| 90999-00167 |
TCR1#,2#..ARL MASTER KEY |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00166 |
TCR1#,2#..ARL MASTER KEY,W(*68) |
1 | ||
| 90999-00167 |
TCR1#,2#..ARL MASTER KEY |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00166 |
TCR1#,2#..ARL MASTER KEY,W(*68) |
1 | ||
| 90999-00167 |
TCR1#,2#..ARL MASTER KEY |
1 | ||
| Common parts | ||||
| 93568-15012 | ||||
(9005- )

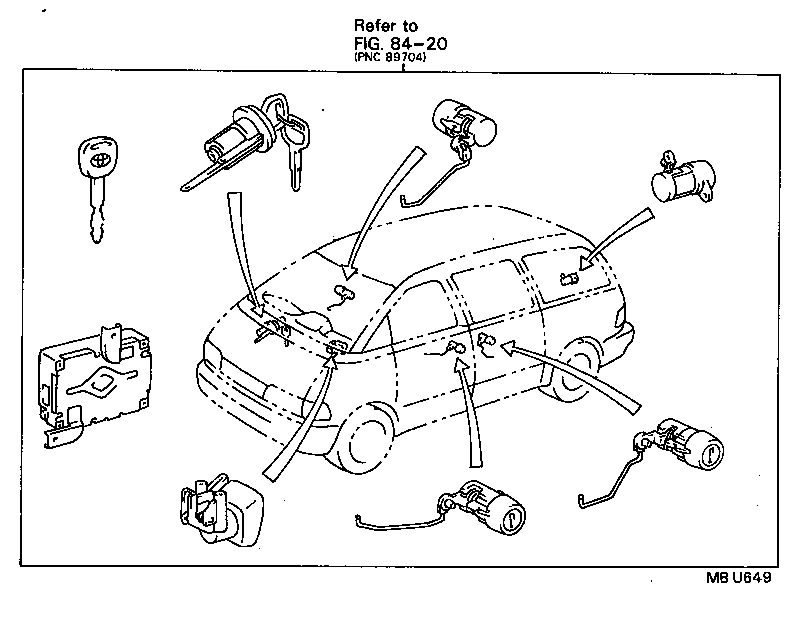

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 8420 | ||||
