TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005- )

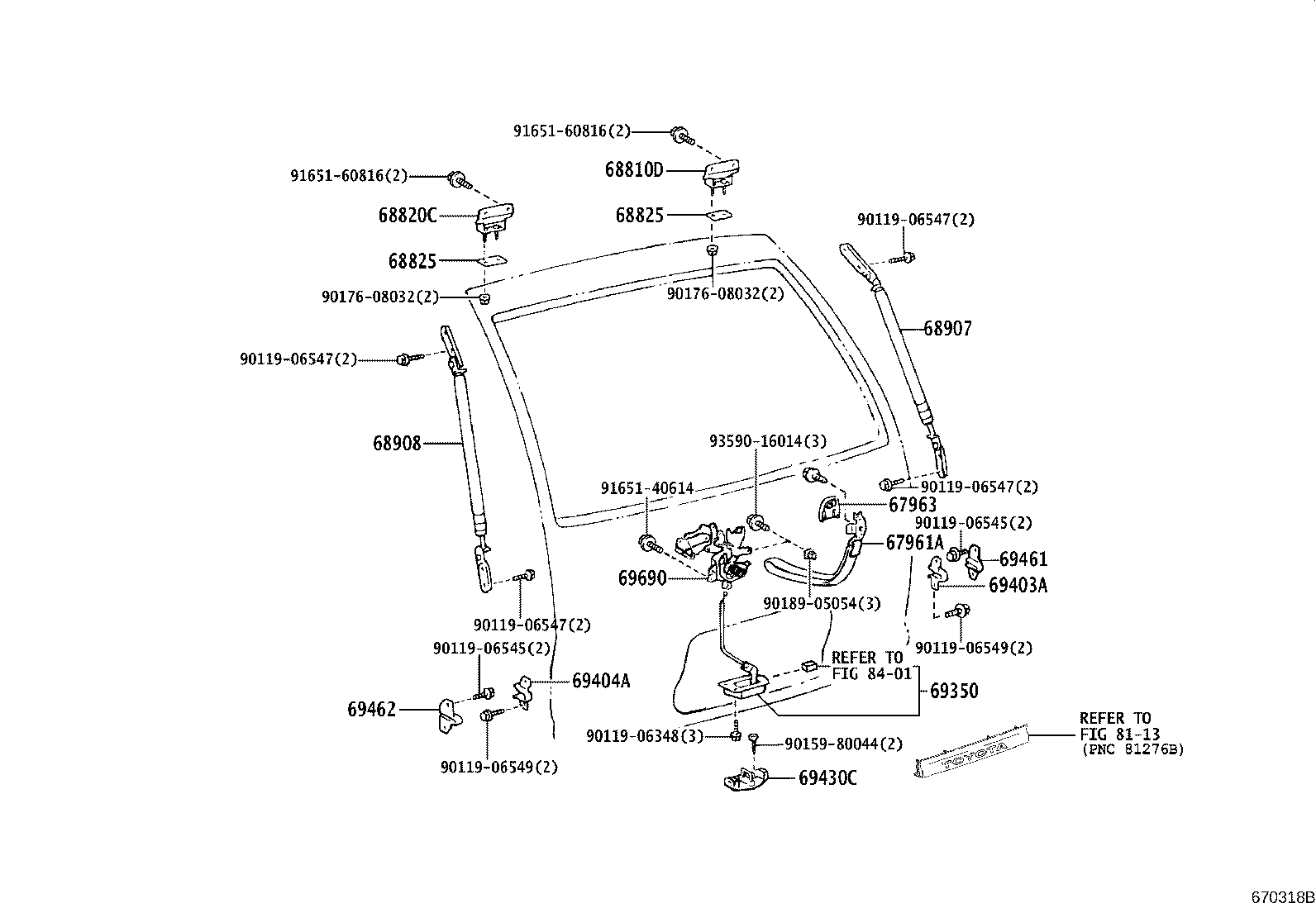

Click highlighted areas on diagram

diagram 67961A 67963 68810D 68820C 68825 68825 68907 68908 69350 69403A 69404A 69430C 69461 69462 69690 8113 8401 9011906348 9011906545 9011906545 9011906547 9011906547 9011906547 9011906547 9011906549 9011906549 9015980044 9017608032 9017608032 9018905054 9165140614 9165160816 9165160816 9359016014
Part # Description Qty Price
68810D - HINGE ASSY, BACK DOOR, RH
68810-95D01

TCR1#,2#

W(*RW)

 1
68810-95D00

TCR1#,2#

 1
68820C - HINGE ASSY, BACK DOOR, LH
68820-95D00

TCR1#,2#

 1
68825 - PLATE, BACK DOOR HINGE
68825-95700

TCR1#,2#

 2
68825 - PLATE, BACK DOOR HINGE
68825-95700

TCR1#,2#

 2
68907 - STAY SUB-ASSY, BACK DOOR DAMPER, RH
68907-95D00

TCR1#,2#

 1
68907-95D01

TCR1#,2#..ARL

W(*RW)

 1
68908 - STAY SUB-ASSY, BACK DOOR DAMPER, LH
68908-95D00

TCR1#,2#

 1
68908-95D01

TCR1#,2#..ARL

W(*RW)

 1
69350 - LOCK ASSY, BACK DOOR
69350-95D01

TCR1#,2#

 1
69403A - STOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH
69403-95D00

TCR1#,2#

 1
69404A - STOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH
69404-95D00

TCR1#,2#

 1
69430C - STRIKER ASSY, BACK DOOR LOCK
69430-95D00

TCR1#,2#

 1
69461 - STOPPER, BACK DOOR SIDE MALE, RH
69461-95D00

TCR1#,2#

 1
69462 - STOPPER, BACK DOOR SIDE MALE, LH
69462-95D00

TCR1#,2#

 1
69690 - CONTROL ASSY, BACK DOOR REMOTE
69690-95D03

TCR10,20

 1
69690-95D04

TCR10,20

W(*EL)

 1
Common parts
90119-06348
90119-06545
90119-06547
90119-06549
90159-80044
90176-08032
90189-05054
91651-40614
91651-60816
93590-16014
Linked diagrams
8113
8401
