TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005- )

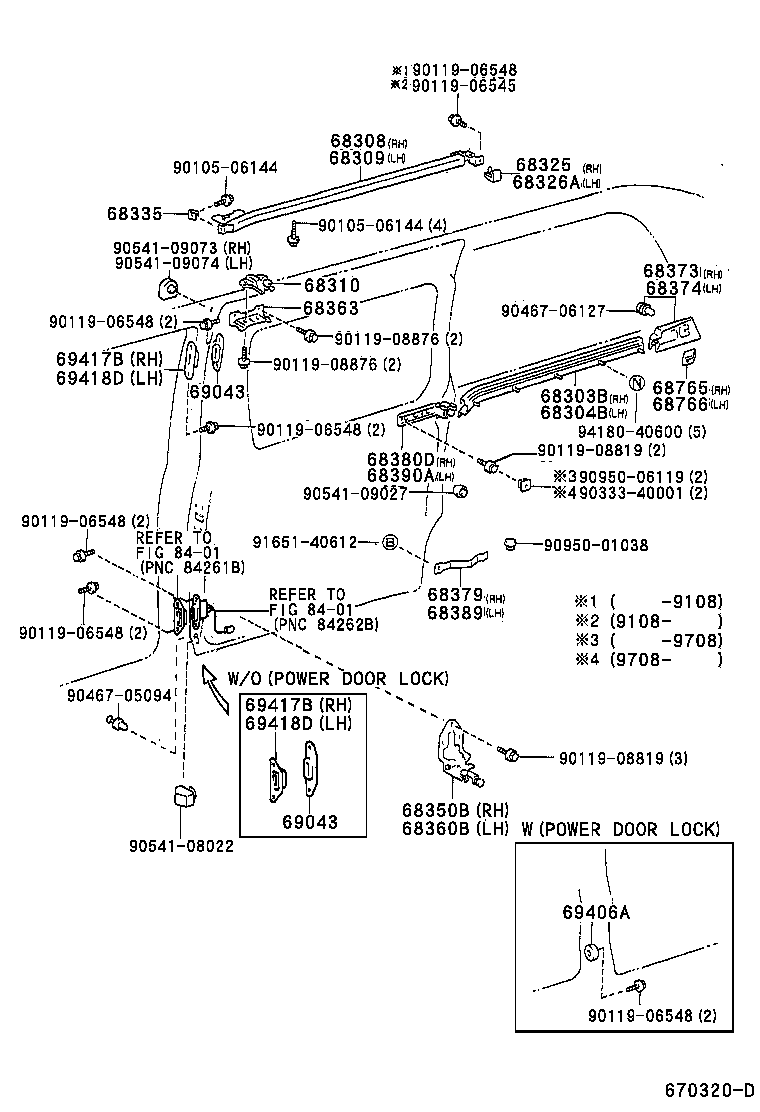

Click highlighted areas on diagram

diagram 68303B 68304B 68308 68309 68310 68325 68326A 68335 68350B 68360B 68363 68373 68374 68379 68380D 68389 68390A 68765 68766 69043 69043 69406A 69417B 69417B 69418D 69418D 8401 8401 9010506144 9010506144 9011906545 9011906548 9011906548 9011906548 9011906548 9011906548 9011906548 9011908819 9011908819 9011908876 9011908876 9033340001 9046705094 9046706127 9054108022 9054109027 9054109073 9054109074 9095001038 9095006119 9165140612 9418040600
Part # Description Qty Price
68304B - RAIL SUB-ASSY, SLIDE DOOR, CENTER LH
68304-28020

TCR10,20..ARL

 1
68304-95D00

TCR10,20..ARL

W(BLACK PAINTED)

 1
68309 - RAIL SUB-ASSY, SLIDE DOOR, UPPER LH
68309-95D00

TCR1#,2#..RHD

 1
68310 - ROLLER ASSY, SLIDE DOOR, UPPER
68301-95D00

TCR1#,2#

 1
68326A - CUSHION, SLIDE DOOR UPPER RAIL, LH
68326-95D00

TCR1#,2#..RHD

 1
68335 - PAD, SLIDE DOOR UPPER RAIL
68335-95702

TCR1#,2#

 1
68360B - ROLLER ASSY, SLIDE DOOR, LOWER LH
68360-95D00

TCR1#,2#..RHD

 1
68363 - BRACKET, SLIDE DOOR UPPER ROLLER
68363-95D00

TCR1#,2#

 1
68374 - MOULDING, SLIDE RAIL END, LH
68374-95D00

TCR10,20..ARL

W(BLACK PAINTED)

 1
68374-28020

TCR10,20..ARL

 1
68389 - SPRING, SLIDE DOOR CATCH, LH
68389-95D00

TCR1#,2#..RHD

 1
68390A - HINGE ASSY, SLIDE DOOR, CENTER LH
68390-95D00

TCR1#,2#..RHD

 1
68766 - BRACKET, SLIDE DOOR RAIL END MOULDING, LH
68766-28010

TCR1#,2#..RHD

 1
69043 - STOPPER SUB-ASSY, SLIDE DOOR DOWN FEMALE
69043-95D00

TCR10,20

W(*EL)

 1
69043-95D00

TCR10,20

 2
69043 - STOPPER SUB-ASSY, SLIDE DOOR DOWN FEMALE
69043-95D00

TCR10,20

W(*EL)

 1
69043-95D00

TCR10,20

 2
69406A - STOP SUB-ASSY, SLIDE DOOR DOWN MALE
69417-95D01

TCR1#,2#

 1
69418D - STOPPER, SLIDE DOOR DOWN MALE, LOWER LH
69416-95D00

TCR10,20..ARL

UPPER

 1
69418-95D00

TCR10,20..ARL

LOWER

 1
69418D - STOPPER, SLIDE DOOR DOWN MALE, LOWER LH
69416-95D00

TCR10,20..ARL

UPPER

 1
69418-95D00

TCR10,20..ARL

LOWER

 1
Common parts
90105-06144
90119-06545
90119-06548
90119-08819
90119-08876
90333-40001
90467-05094
90467-06127
90541-08022
90541-09027
90541-09073
90541-09074
90950-01038
90950-06119
91651-40612
94180-40600
Linked diagrams
8401
