TCR20R-RFSDKQ (1990)
Toyota Previa
Production
May 1990
-
Aug 1991
Engine
2TZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9005- )

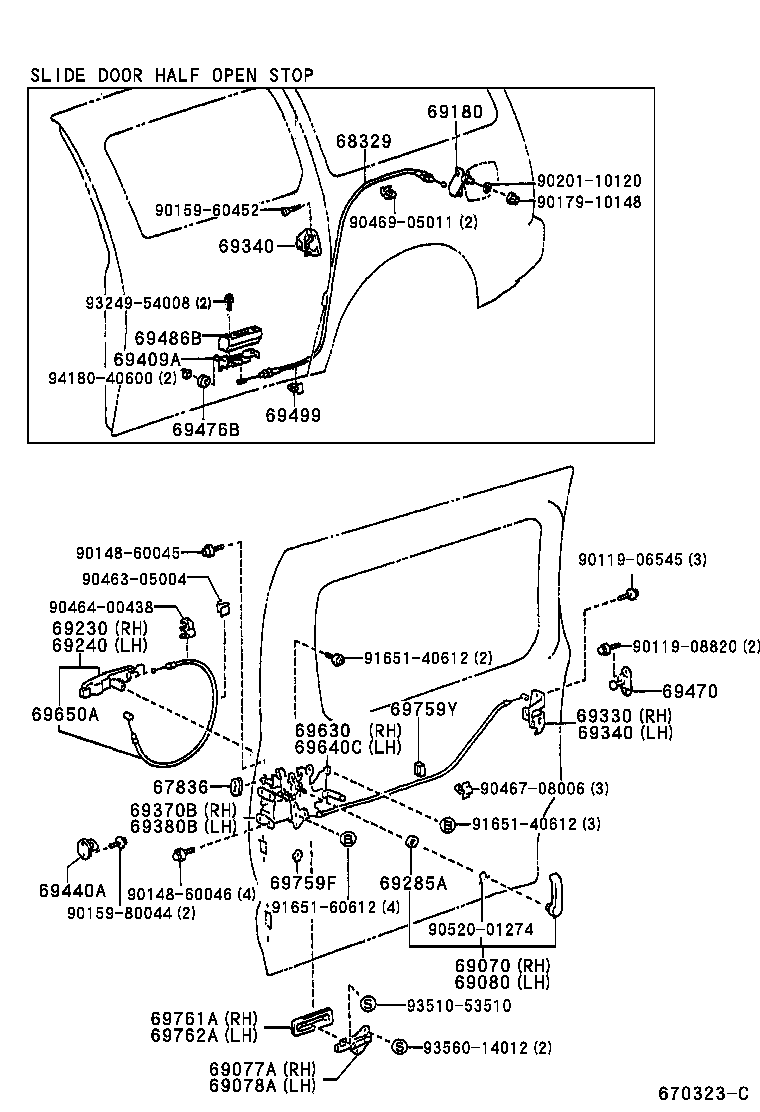

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH | ||||
| 67836-95D00 |
TCR1#,2# |
1 | ||
| 68329 - CABLE, SLIDE DOOR HALF OPEN STOPPER | ||||
| 68329-28010 |
TCR1#,2#..RHD |
1 | ||
| 69078A - KNOB SUB-ASSY, DOOR LOCK CONTROL, LH | ||||
| 69078-95D0003 |
TCR1#,2#..RHD LIGHT GRAY,TRIM1# |
1 | ||
| 69080 - HANDLE ASSY, SLIDE DOOR, INSIDE, LH | ||||
| 69070-95D0003 |
TCR1#,2#..RHD GRAY,TRIM1# |
1 | ||
| 69180 - CONTROL ASSY, SLIDE DOOR HALF OPEN STOPPER | ||||
| 69180-28010 |
TCR1#,2#..RHD |
1 | ||
| 69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH | ||||
| 69230-95D00 |
TCR1#,2#..RHD |
1 | ||
| 69285A - PLATE, DOOR VENT WINDOW CONTROL HANDLE | ||||
| 69285-2201008 |
TCR10,20..ARL,V,W NATURAL WHITE,TRIM1# |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69340-95D00 |
TCR1#,2#..RHD |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69340-95D00 |
TCR1#,2#..RHD |
1 | ||
| 69380B - LOCK ASSY, SLIDE DOOR, FRONT LH | ||||
| 69380-95D00 |
TCR1#,2#..RHD |
1 | ||
| 69409A - STOPPER SUB-ASSY, SLIDE DOOR HALF OPEN | ||||
| 69409-28010 |
TCR1#,2#..RHD |
1 | ||
| 69440A - PLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER | ||||
| 69440-95D00 |
TCR1#,2# |
1 | ||
| 69470 - PLATE ASSY, SLIDE DOOR LOCK STRIKER | ||||
| 69470-95D00 |
TCR1#,2# |
1 | ||
| 69476B - PLATE, SLIDE DOOR HALF OPEN STOPPER | ||||
| 69476-28010 |
TCR1#,2#..RHD |
1 | ||
| 69486B - COVER, SLIDE DOOR HALF OPEN STOPPER | ||||
| 69486-28010 |
TCR1#,2#..RHD |
1 | ||
| 69499 - CLIP, SLIDE DOOR HALF OPEN STOPPER CABLE | ||||
| 69499-28010 |
TCR1#,2#..RHD |
1 | ||
| 69640C - CONTROL ASSY, SLIDE DOOR LOCK REMOTE, LH | ||||
| 69640-95D01 |
TCR10,20..ARL W(*EL) |
1 | ||
| 69640-95D00 |
TCR10,20..ARL |
1 | ||
| 69650A - CABLE ASSY, SLIDE DOOR LOCK CONTROL | ||||
| 69650-95D00 |
TCR1#,2# |
1 | ||
| 69759F - SNAP, REAR DOOR LOCK CONTROL LINK | ||||
| 69759-20110 |
TCR1#,2#..RHD |
1 | ||
| 69759Y - SILENCER, REAR DOOR LOCK LINK | ||||
| 69759-95500 |
TCR1#,2# |
2 | ||
| 69762A - BEZEL, DOOR LOCK CONTROL KNOB, LH | ||||
| 69762-95D0003 |
TCR1#,2#..RHD LIGHT GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-06545 | ||||
| 90119-08820 | ||||
| 90148-60045 | ||||
| 90148-60046 | ||||
| 90159-60452 | ||||
| 90159-80044 | ||||
| 90179-10148 | ||||
| 90201-10120 | ||||
| 90463-05004 | ||||
| 90464-00438 | ||||
| 90467-08006 | ||||
| 90469-05011 | ||||
| 90520-01274 | ||||
| 91651-40612 | ||||
| 91651-60612 | ||||
| 93249-54008 | ||||
| 93510-53510 | ||||
| 93560-14012 | ||||
| 94180-40600 | ||||
