TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

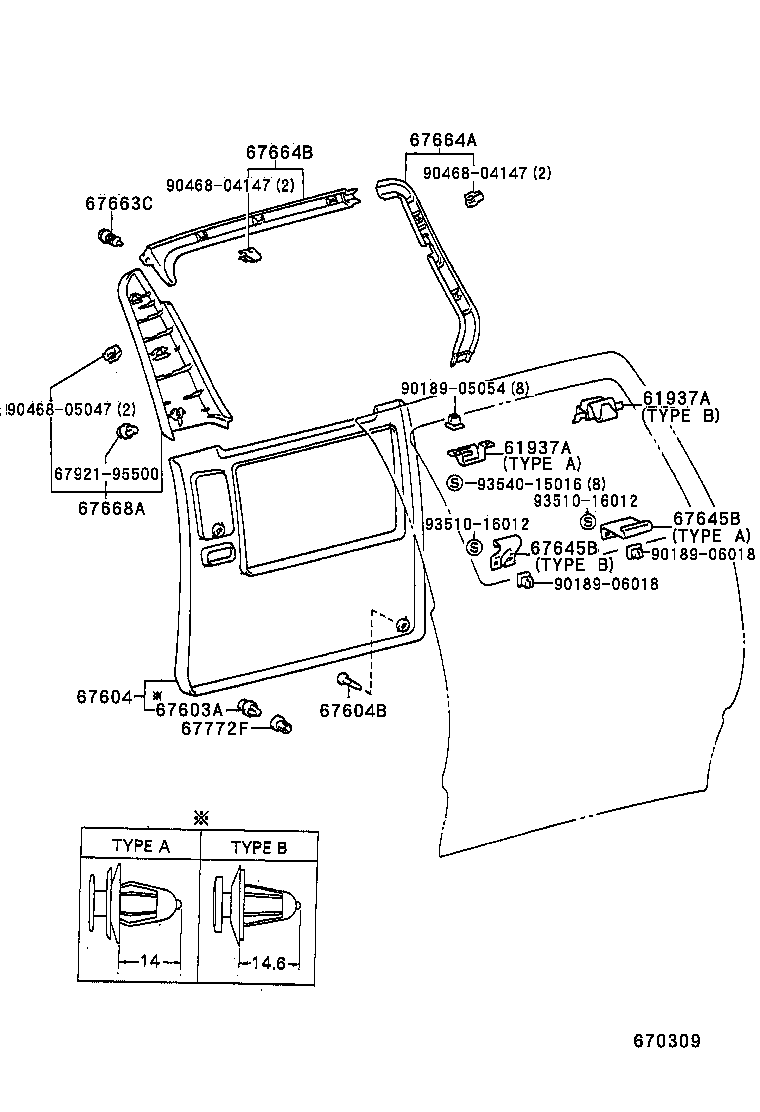

ILLUST NO. 1 OF 2(9005- )RHD

Click highlighted areas on diagram

diagram 61937A 61937A 67603A 67604 67604B 67645B 67645B 67663C 67664A 67664B 67668A 67772F 6792195500 9018905054 9018906018 9018906018 9046804147 9046804147 9046805047 9351016012 9351016012 9354015016
Part # Description Qty Price
61937A - BRACKET, SIDE WINDOW GARNISH
61937-95D00

TCR1#,2#

TYPE A:REFER TO ILLUSTRATION

 4
61937A - BRACKET, SIDE WINDOW GARNISH
61937-95D00

TCR1#,2#

TYPE A:REFER TO ILLUSTRATION

 4
67603A - RETAINER(FOR REAR DOOR TRIM BOARD)
67771-12050

TCR1#,2#..RHD

 8
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67690-95D0003

TCR10,20..ARL

LIGHT GRAY,TRIM1#

 1
67604B - CLIP(FOR SLIDE DOOR TRIM BOARD)
90467-0704353

TCR1#,2#

GRAY,TRIM1#

 2
67645B - BRACKET, SLIDE DOOR TRIM BASE
67645-95D16

TCR1#,2#..RHD

TYPE B

 1
67645-95D14

TCR1#,2#

TYPE A

 2
67645B - BRACKET, SLIDE DOOR TRIM BASE
67645-95D16

TCR1#,2#..RHD

TYPE B

 1
67645-95D14

TCR1#,2#

TYPE A

 2
67663C - CLIP(FOR DOOR FRAME GARNISH)
90467-0601101

TCR10,20..ARL,V,W

BLACK,TRIM1#

 1
67664A - GARNISH, DOOR FRAME, LH
67664-95D0103

TCR1#,2#..RHD

LIGHT GRAY,TRIM1#

 1
67664B - GARNISH, DOOR FRAME, UPPER LH
67664-95D0003

TCR1#,2#..RHD

LIGHT GRAY,TRIM1#

 1
67668A - GARNISH, SLIDE DOOR WINDOW, LH
67668-95D0103

TCR10,20..ARL

LIGHT GRAY,TRIM1#

 1
67772F - CAP, REAR DOOR TRIM RETAINER
67772-95J02

TCR1#,2#

 2
Common parts
67921-95500
90189-05054
90189-06018
90468-04147
90468-05047
93510-16012
93540-15016

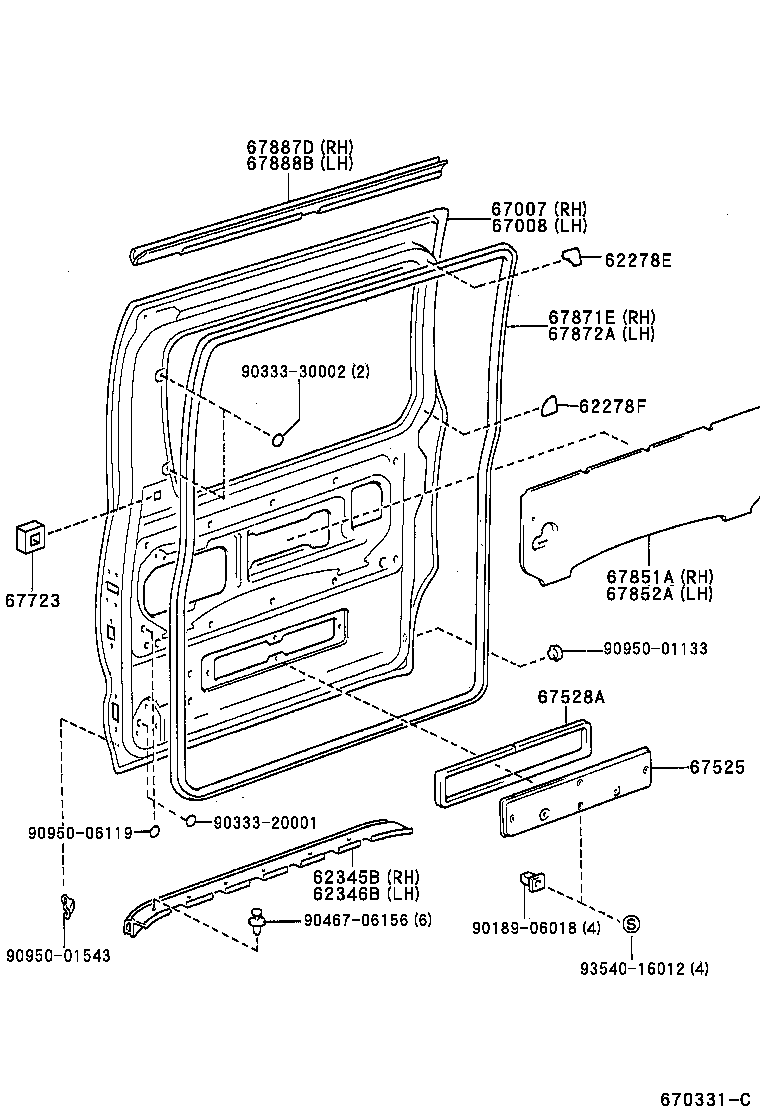

ILLUST NO. 2 OF 2(9005- )

Click highlighted areas on diagram

diagram 62278E 62278F 62345B 62346B 67007 67008 67525 67528A 67723 67851A 67852A 67871E 67872A 67887D 67888B 9018906018 9033320001 9033330002 9046706156 9095001133 9095001543 9095006119 9354016012
Part # Description Qty Price
62278E - PROTECTOR, SIDE WINDOW
62278-28010

TCR1#,2#

 1
62278F - PROTECTOR, SIDE WINDOW
62278-28020

TCR1#,2#

 1
62346B - WEATHERSTRIP, SLIDE DOOR, NO.3 LH
62346-95D00

TCR1#,2#..RHD

 1
67008 - PANEL SUB-ASSY, SLIDE DOOR, LH
67004-95D02

TCR10,20..ARL

 1
67004-95D03

TCR10,20..ARL

W(POWER DOOR LOCK)

 1
67525 - COVER, SLIDE DOOR PANEL, LOWER
67526-95D00

TCR1#,2#..RHD

 1
67528A - PACKING, SLIDE DOOR LOWER COVER
67528-87001

TCR1#,2#

 1
67723 - PAD, REAR DOOR TRIM, UPPER
67723-28010

TCR1#,2#

 1
67852A - COVER, SLIDE DOOR SERVICE HOLE, NO.2
67852-95D00

TCR1#,2#..RHD

 1
67872A - WEATHERSTRIP, SLIDE DOOR, NO.1 LH
67872-95D0003

TCR1#,2#..RHD

LIGHT GRAY,TRIM1#

 1
67888B - WEATHERSTRIP, SLIDE DOOR, NO.2 LH
67888-95D00

TCR1#,2#..RHD

 1
Common parts
90189-06018
90333-20001
90333-30002
90467-06156
90950-01133
90950-01543
90950-06119
93540-16012
