TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005- )

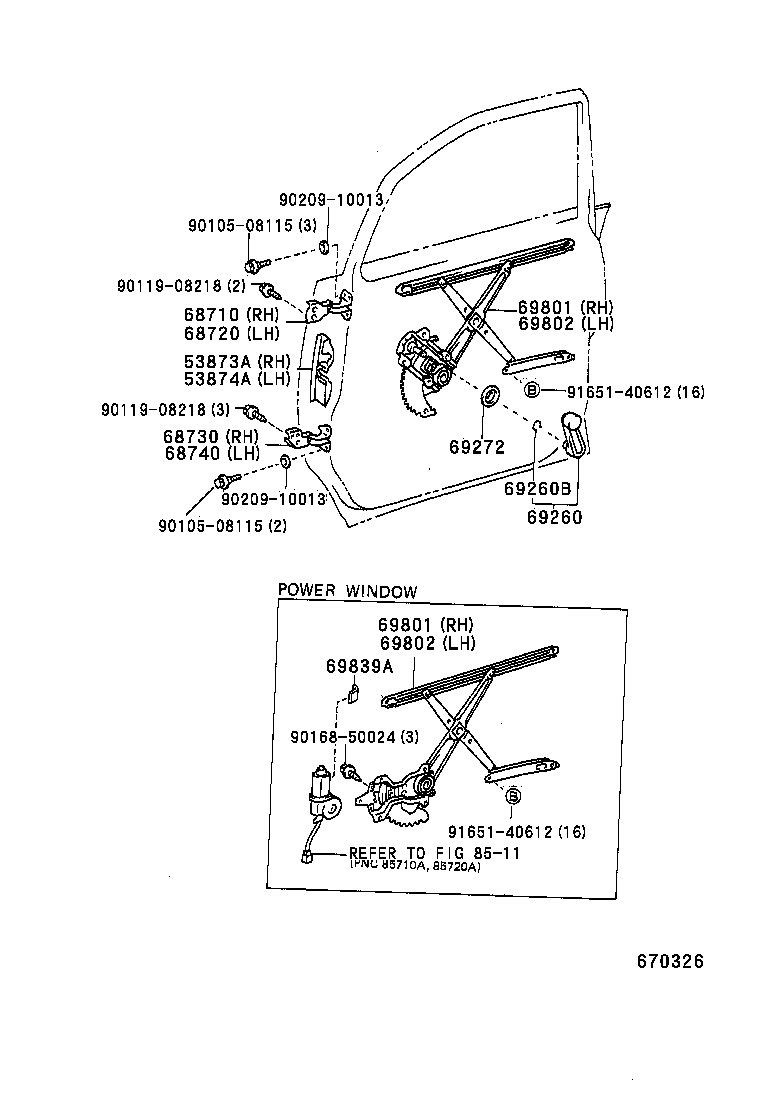

Click highlighted areas on diagram

diagram 53873A 53874A 68710 68720 68730 68740 69260 69260B 69272 69801 69801 69802 69802 69839A 8511 9010508115 9010508115 9011908218 9011908218 9016850024 9020910013 9020910013 9165140612 9165140612
Part # Description Qty Price
53873A - SPACER, FRONT FENDER TO DOOR HINGE, RH
53873-95D01

TCR1#,2#

 1
53874A - SPACER, FRONT FENDER TO DOOR HINGE, LH
53874-95D01

TCR1#,2#

 1
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-95D00

TCR1#,2#

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-95D00

TCR1#,2#

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-95D01

TCR1#,2#

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-95D01

TCR1#,2#

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-1402053

TCR1#,2#..ARL

GRAY,TRIM1#

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01002

TCR1#,2#

 2
69272 - PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
69268-2801003

TCR1#,2#

GRAY,TRIM1#

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-95D00

TCR1#,2#

 1
69801-95D00

TCR1#,2#

W(*PW)

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-95D00

TCR1#,2#

 1
69801-95D00

TCR1#,2#

W(*PW)

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-95D00

TCR1#,2#

W(*PW)

 1
69820-95D00

TCR1#,2#

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-95D00

TCR1#,2#

W(*PW)

 1
69820-95D00

TCR1#,2#

 1
69839A - PAD, FRONT DOOR WINDOW REGULATOR
69839-95800

TCR1#,2#

 2
Common parts
90105-08115
90119-08218
90168-50024
90209-10013
91651-40612
Linked diagrams
8511
