TCR20R-RFSDKQ (1990)
Toyota Previa

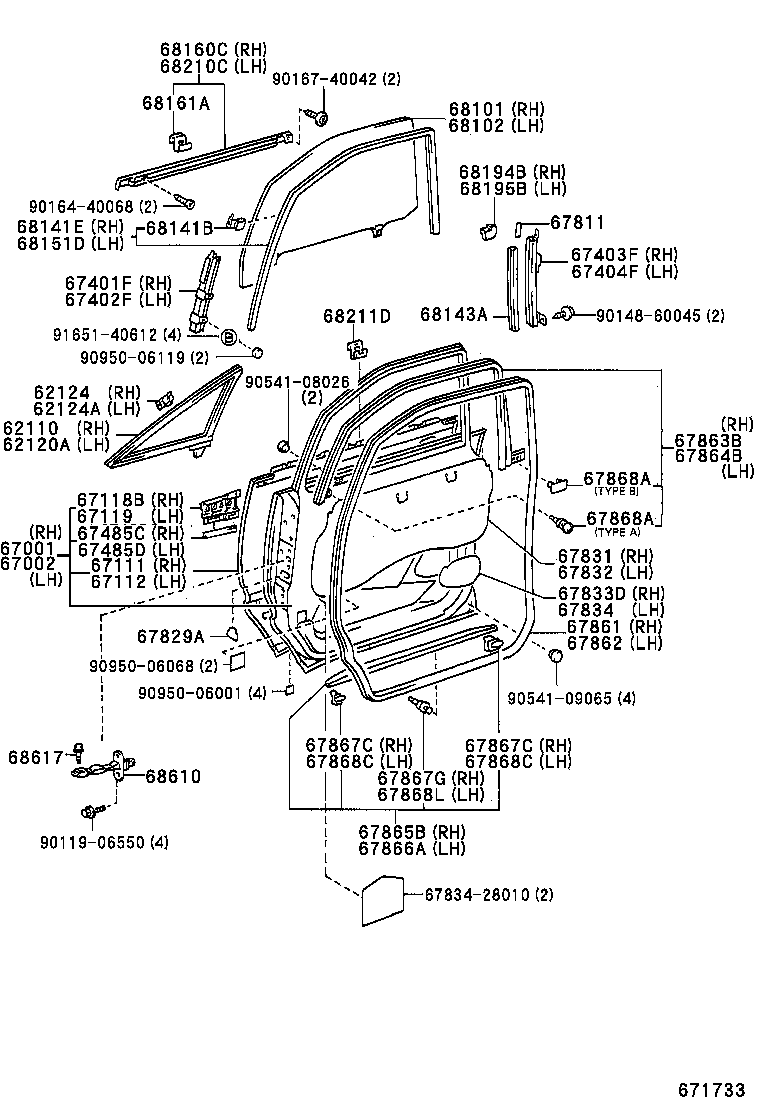

ILLUST NO. 2 OF 2(9005- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62110 - WINDOW ASSY, FRONT SIDE FIX, RH | ||||
| 62110-95D00 |
TCR10,20;TCR11,21..W *TEM,T=3.5 |
1 | ||
| 62110-95D01 |
TCR1#,2#..ARL,V,W *TT,T=3.5,BLUE |
1 | ||
| 62120A - WINDOW ASSY, FRONT SIDE FIX, LH | ||||
| 62120-95D00 |
TCR10,20;TCR11,21..W *TEM,T=3.5 |
1 | ||
| 62120-95D01 |
TCR1#,2#..ARL,V,W *TT,T=3.5,BLUE |
1 | ||
| 62124 - FASTENER, FRONT SIDE WINDOW FIX, RH | ||||
| 62124-95D00 |
TCR1#,2# |
4 | ||
| 62124A - FASTENER, FRONT SIDE WINDOW FIX, LH | ||||
| 62124-95D00 |
TCR1#,2# |
4 | ||
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-95D03 |
TCR1#,2#..RHD |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-95D03 |
TCR1#,2#..RHD |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-95D02 |
TCR1#,2#..RHD |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-95D02 |
TCR1#,2#..RHD |
1 | ||
| 67118B - RETAINER, OUTER REAR VIEW MIRROR, RH | ||||
| 67118-95D01 |
TCR1#,2#..RHD |
1 | ||
| 67119 - RETAINER, OUTER REAR VIEW MIRROR, LH | ||||
| 67119-95D01 |
TCR1#,2#..RHD |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-95D00 |
TCR1#,2# |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-95D00 |
TCR1#,2# |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-95D00 |
TCR1#,2# |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-95D00 |
TCR1#,2# |
1 | ||
| 67485C - SEAL, FRONT DOOR BRACKET, NO.1 | ||||
| 67485-28010 |
TCR1#,2# |
1 | ||
| 67485D - SEAL, FRONT DOOR BRACKET, NO.2 | ||||
| 67485-28010 |
TCR1#,2# |
1 | ||
| 67811 - PAD, FRONT DOOR SILENCER | ||||
| 67811-28010 |
TCR1#,2# |
4 | ||
| 67829A - SEAL, FRONT DOOR WIRE HOLE | ||||
| 67829-95J00 |
TCR10,20 |
2 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-95D01 |
TCR10,20;TCR11,21..LHD W(POWER WINDOW) |
1 | ||
| 67831-95D00 |
TCR10,20;TCR11,21..LHD |
1 | ||
| 67831-95D03 |
TCR10,20..ARL W(POWER WINDOW & POWER DOOR LOCK & ELECTRIC REMOTE CONTROL MIRROR) |
1 | ||
| 67831-95D02 |
TCR10,20..ARL W(POWER DOOR LOCK & ELECTRIC REMOTE CONTROL MIRROR) |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67831-95D01 |
TCR10,20;TCR11,21..RHD W(POWER WINDOW) |
1 | ||
| 67831-95D00 |
TCR10,20;TCR11,21..RHD |
1 | ||
| 67833D - COVER, FRONT DOOR SERVICE HOLE, NO.2 RH | ||||
| 67833-95D00 |
TCR1#,2# |
1 | ||
| 67834 - COVER, FRONT DOOR SERVICE HOLE, NO.2 LH | ||||
| 67833-95D00 |
TCR1#,2# |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-95D0003 |
TCR1#,2# LIGHT GRAY,TRIM1# |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-28010B0 |
TCR1#,2# LIGHT GRAY,TRIM1# |
1 | ||
| 67863B - WEATHERSTRIP, FRONT DOOR, NO.2 RH | ||||
| 67863-95D02 |
TCR1#,2# |
1 | ||
| 67864B - WEATHERSTRIP, FRONT DOOR, NO.2 LH | ||||
| 67864-95D02 |
TCR1#,2# |
1 | ||
| 67865B - WEATHERSTRIP, FRONT DOOR, NO.3 RH | ||||
| 67865-95D00 |
TCR1#,2# |
1 | ||
| 67866A - WEATHERSTRIP, FRONT DOOR, NO.3 LH | ||||
| 67866-95D00 |
TCR1#,2# |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67868-95D00 |
TCR1#,2# RED |
1 | ||
| 67868-28010 |
TCR1#,2# WHITE |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67868-95D00 |
TCR1#,2# RED |
1 | ||
| 67868-28010 |
TCR1#,2# WHITE |
1 | ||
| 67867G - RETAINER, DOOR WEATHERSTRIP, RH | ||||
| 67867-95J02 |
TCR1#,2# |
10 | ||
| 67868A - CLIP, DOOR GLASS WEATHERSTRIP(FOR FRONT DOOR) | ||||
| 67869-95D01 |
TCR1#,2# TYPE B |
2 | ||
| 67869-12020 |
TCR1#,2# TYPE A |
2 | ||
| 67868A - CLIP, DOOR GLASS WEATHERSTRIP(FOR FRONT DOOR) | ||||
| 67869-95D01 |
TCR1#,2# TYPE B |
2 | ||
| 67869-12020 |
TCR1#,2# TYPE A |
2 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67868-95D01 |
TCR1#,2# WHITE |
1 | ||
| 67868-95D00 |
TCR1#,2# RED |
1 | ||
| 67868-95J00 |
TCR1#,2# |
10 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67868-95D01 |
TCR1#,2# WHITE |
1 | ||
| 67868-95D00 |
TCR1#,2# RED |
1 | ||
| 67868-95J00 |
TCR1#,2# |
10 | ||
| 67868L - RETAINER, DOOR WEATHERSTRIP, LH | ||||
| 67868-95J00 |
TCR1#,2# |
10 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-95D01 |
TCR1#,2#..ARL,V,W *TT,T=4.0,BLUE |
1 | ||
| 68101-95D00 |
TCR10,20;TCR11,21..W *TEM,T=4.0 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-95D00 |
TCR10,20;TCR11,21..W *TEM,T=4.0 |
1 | ||
| 68102-95D01 |
TCR1#,2#..ARL,V,W *TT,T=4.0,BLUE |
1 | ||
| 68141B - CLIP, DOOR GLASS RUN | ||||
| 62367-95D00 |
TCR1#,2# |
2 | ||
| 68141E - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-95D00 |
TCR1#,2# |
1 | ||
| 68143A - RUN, FRONT DOOR GLASS, NO.2 | ||||
| 68143-95D00 |
TCR1#,2# |
2 | ||
| 68151D - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-95D00 |
TCR1#,2# |
1 | ||
| 68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH | ||||
| 68160-95D01 |
TCR1#,2# |
1 | ||
| 68161A - CLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP) | ||||
| 68211-95D00 |
TCR1#,2# |
6 | ||
| 68194B - SEAL, FRONT DOOR BELT, REAR RH | ||||
| 68194-28010 |
TCR1#,2# |
1 | ||
| 68195B - SEAL, FRONT DOOR BELT, REAR LH | ||||
| 68195-28010 |
TCR1#,2# |
1 | ||
| 68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH | ||||
| 68210-95D00 |
TCR1#,2# |
1 | ||
| 68211D - CLIP, DOOR GLASS WEATHERSTRIP | ||||
| 68211-95D00 |
TCR1#,2# |
2 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-95D00 |
TCR1#,2# |
2 | ||
| 68617 - PIN, FRONT DOOR CHECK | ||||
| 68617-20011 |
TCR1#,2# |
2 | ||
| Common parts | ||||
| 67834-28010 | ||||
| 90119-06550 | ||||
| 90148-60045 | ||||
| 90164-40068 | ||||
| 90167-40042 | ||||
| 90541-08026 | ||||
| 90541-09065 | ||||
| 90950-06001 | ||||
| 90950-06068 | ||||
| 90950-06119 | ||||
| 91651-40612 | ||||

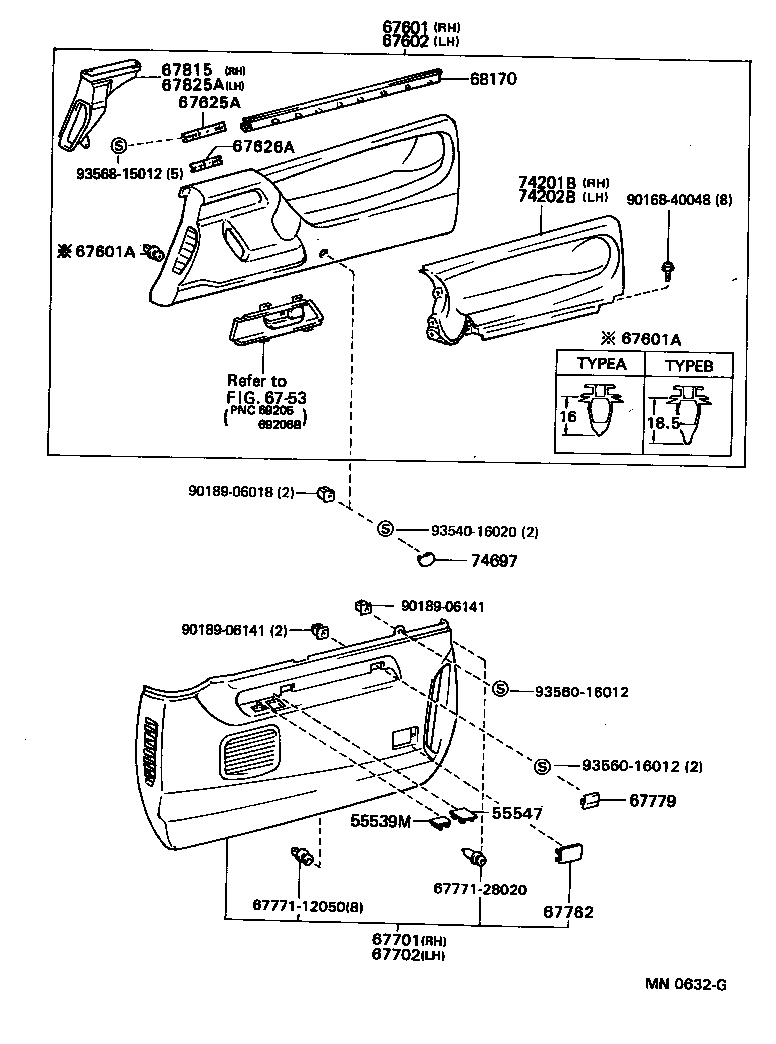

ILLUST NO. 1 OF 2(9005- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55539M - COVER, SPARE SWITCH HOLE | ||||
| 55539-3201040 |
TCR10,20..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 55539-2008023 |
TCR10,20..ARL LIGHT GRAY,TRIM1# |
1 | ||
| 55547 - COVER, REMOTE CONTROL MIRROR HOLE | ||||
| 55547-2801003 |
TCR1#,2# W(*RCM),LIGHY GRAY,TRIM1# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-95D0603 |
TCR10,20 W(*PW),LIGHT GRAY,TRIM1# |
1 | ||
| 67610-95D0703 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-12050 |
TCR1#,2# TYPE A |
8 | ||
| 67771-28030 |
TCR1#,2# TYPE B |
2 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-12050 |
TCR1#,2# TYPE A |
8 | ||
| 67771-28030 |
TCR1#,2# TYPE B |
2 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-95D0503 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 67620-95D0403 |
TCR10,20 W(*PW),LIGHT GRAY,TRIM1# |
1 | ||
| 67625A - BRACKET, FRONT DOOR TRIM, NO.1 | ||||
| 67625-95D02 |
TCR1#,2# |
2 | ||
| 67626A - BRACKET, DOOR TRIM, NO.2 | ||||
| 67626-95D00 |
TCR1#,2# |
2 | ||
| 67701 - COVER SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67701-95D0003 |
TCR10,20;TCR11,21..LHD LIGHT GRAY,TRIM1# |
1 | ||
| 67701-95D0103 |
TCR10,20..ARL W(*EL) OR W(ELECTRIC REMOTE CONTROL MIRROR),LIGHT GRAY,TRIM1# |
1 | ||
| 67701-2801003 |
TCR10,20..ARL W(*EL) OR W(ELECTRIC REMOTE CONTROL MIRROR),LIGHT GRAY,TRIM1# |
1 | ||
| 67702 - COVER SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67702-95D0103 |
TCR10,20;TCR11,21..RHD LIGHT GRAY,TRIM1# |
1 | ||
| 67779 - CAP, FRONT DOOR TRIM POCKET | ||||
| 67779-95D0003 |
TCR1#,2# GRAY,TRIM1# |
4 | ||
| 67815 - DUCT, DOOR VENTILATION, RH | ||||
| 67815-95D00 |
TCR1#,2# |
1 | ||
| 67825A - DUCT, DOOR VENTILATION, LH | ||||
| 67825-95D00 |
TCR1#,2# |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68220-95D01 |
TCR1#,2# LH |
1 | ||
| 68170-95D01 |
TCR1#,2# RH |
1 | ||
| 74201B - PANEL SUB-ASSY, FRONT ARMREST, UPPER RH | ||||
| 74201-95D0003 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 74202B - PANEL SUB-ASSY, FRONT ARMREST, UPPER LH | ||||
| 74202-95D0003 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 74697 - PLUG, DOOR ASSIST GRIP, RH | ||||
| 74697-95D0003 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 67771-12050 | ||||
| 67771-28020 | ||||
| 90168-40048 | ||||
| 90189-06018 | ||||
| 90189-06141 | ||||
| 93540-16020 | ||||
| 93560-16012 | ||||
| 93568-15012 | ||||
| Linked diagrams | ||||
| 6753 | ||||
