TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005- )

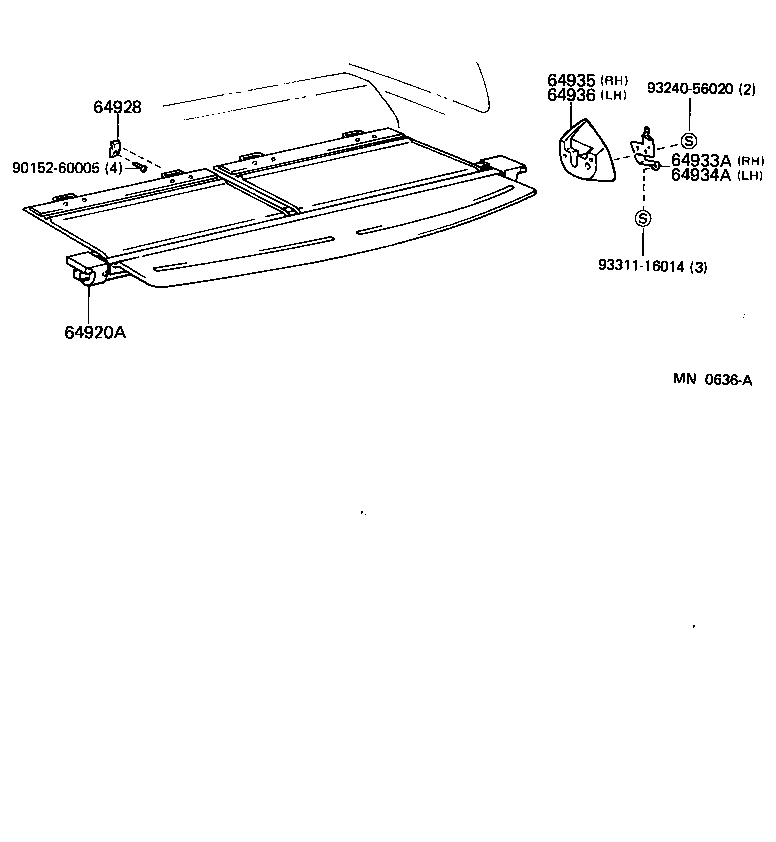

Click highlighted areas on diagram

diagram 64920A 64928 64933A 64934A 64935 64936 9015260005 9324056020 9331116014
Part # Description Qty Price
64920A - RETRACTOR ASSY, TONNEAU COVER
64910-2802003

TCR1#,2#..ARL

GRAY,TRIM1#

 1
64928 - HOLDER, TONNEAU COVER HOOK
64928-2801003

TCR1#,2#

GRAY,TRIM1#

 4
64933A - BRACKET, TONNEAU COVER HOLDER, RH
64933-28010

TCR1#,2#

 1
64934A - BRACKET, TONNEAU COVER HOLDER, LH
64934-28010

TCR1#,2#

 1
64935 - HOLDER, TONNEAU COVER, RH
64935-2801003

TCR1#,2#

GRAY,TRIM1#

 1
64936 - HOLDER, TONNEAU COVER, LH
64936-2801003

TCR1#,2#

GRAY,TRIM1#

 1
Common parts
90152-60005
93240-56020
93311-16014
