TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005- )RHD

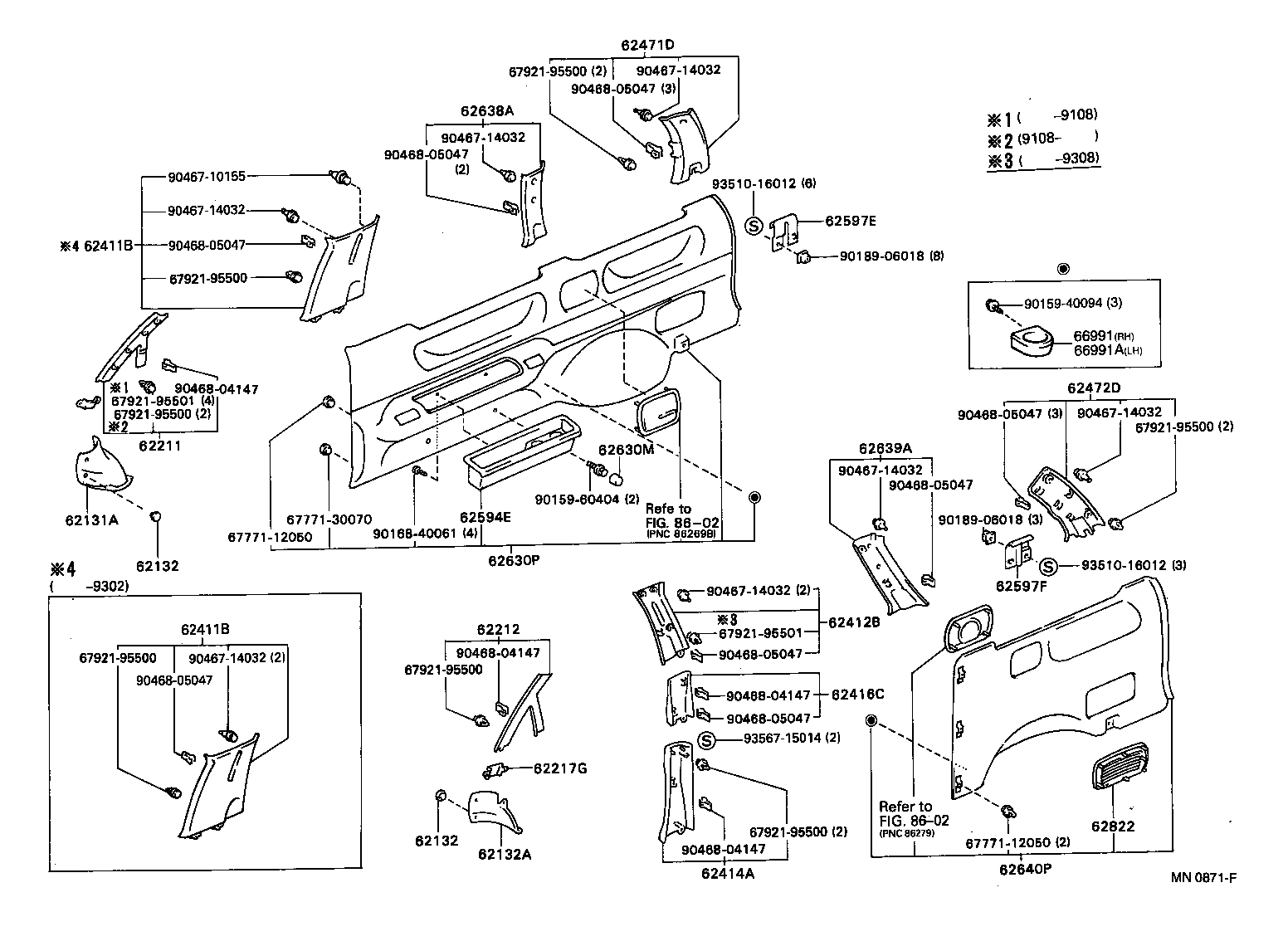

Click highlighted areas on diagram

diagram 62131A 62132 62132 62132A 62211 62212 62217G 62411B 62411B 62412B 62414A 62416C 62471D 62472D 62594E 62597E 62597F 62630M 62630P 62638A 62639A 62640P 62822 66991 66991A 6777112050 6777112050 6777130070 6792195500 6792195500 6792195500 6792195500 6792195500 6792195500 6792195500 6792195501 6792195501 8602 8602 9015940094 9015960404 9016840061 9018906018 9018906018 9046710155 9046714032 9046714032 9046714032 9046714032 9046714032 9046714032 9046714032 9046804147 9046804147 9046804147 9046804147 9046805047 9046805047 9046805047 9046805047 9046805047 9046805047 9046805047 9046805047 9351016012 9351016012 9356715014
Part # Description Qty Price
62131A - CARPET, COWL SIDE, RH
62131-2802003

TCR10,20..ARL

LIGHT GRAY,TRIM1#

 1
62131-2805003

TCR10,20..ARL

LIGHT GRAY,TRIM1#

 1
62131-2805003

TCR10..ARL;TCR20..ATM

LIGHT GRAY,TRIM1#

 1
62132 - CLIP(FOR COWL SIDE CARPET)
90467-0507703

TCR1#,2#

LIGHT GRAY,TRIM1#

 8
62132 - CLIP(FOR COWL SIDE CARPET)
90467-0507703

TCR1#,2#

LIGHT GRAY,TRIM1#

 8
62132A - CARPET, COWL SIDE, LH
62132-95D0003

TCR10,20

LIGHT GRAY,TRIM1#

 1
62132-95D0003

TCR10..ARL;TCR20..ATM

LIGHT GRAY,TRIM1#

 1
62132-95D0003

TCR10,20..ARL

LIGHT GRAY,TRIM1#

 1
62211 - GARNISH, FRONT PILLAR, RH
62211-95D0103

TCR10,20

LIGHT GRAY,TRIM1#

 1
62212 - GARNISH, FRONT PILLAR, LH
62212-95D0103

TCR10,20

LIGHT GRAY,TRIM1#

 1
62217G - CLIP, FRONT PILLAR GARNISH
62217-95D00

TCR1#,2#

 1
62411B - GARNISH, CENTER PILLAR, UPPER RH
62411-95D0303

TCR10,20..ARL

LIGHT GRAY,TRIM1#

 1
62411B - GARNISH, CENTER PILLAR, UPPER RH
62411-95D0303

TCR10,20..ARL

LIGHT GRAY,TRIM1#

 1
62412B - GARNISH, CENTER PILLAR, UPPER LH
62412-95D0303

TCR10,20..ARL

LIGHT GRAY,TRIM1#

 1
62414A - GARNISH, CENTER PILLAR, LOWER LH
62414-95D0003

TCR1#,2#..RHD

GRAY,TRIM1#

 1
62416C - BOARD, CENTER PILLAR GARNISH, LH
62416-95D0203

TCR10,20..ARL

LIGHT GRAY,TRIM1#

 1
62471D - GARNISH, REAR PILLAR, UPPER RH
62471-95D0503

TCR10,20..ARL

LIGHT GRAY,TRIM1#

 1
62472D - GARNISH, REAR PILLAR, UPPER LH
62472-95D0303

TCR10,20..ARL

LIGHT GRAY,TRIM1#

 1
62594E - POCKET, QUARTER TRIM, RH
62594-95D0103

TCR1#,2#..RHD

GRAY,TRIM1#

 1
62597E - CLAMP, QUARTER TRIM, RH
62597-95D02

TCR1#,2#..RHD

 6
62597F - CLAMP, QUARTER TRIM, LH
62597-95D02

TCR1#,2#..RHD

 3
62630M - CAP(FOR QUARTER TRIM, RH)
90339-1200603

TCR1#,2#..RHD

GRAY,TRIM1#

 2
62630P - PANEL ASSY, QUARTER TRIM, REAR RH
62630-95D0103

TCR10,20..ARL

LIGHT GRAY,TRIM1#

 1
62630-2824003

TCR10,20..ARL

W(TONNEAU COVER),LIGHT GRAY,TRIM1#

 1
62638A - GARNISH, QUARTER PILLAR, RH
62638-95D0603

TCR10,20..ARL

LIGHT GRAY,TRIM1#

 1
62639A - GARNISH, QUARTER PILLAR, LH
62639-95D0603

TCR20..ARL

LIGHT GRAY,TRIM1#

 1
62640P - PANEL ASSY, QUARTER TRIM, REAR LH
62640-2824003

TCR10,20..ARL

W(TONNEAU COVER),LIGHT GRAY,TRIM1#

 1
62640-95D0103

TCR10,20..ARL

LIGHT GRAY,TRIM1#

 1
62822 - GRILLE, ROOM VENTILATION, LH
62822-95D0003

TCR1#,2#

LIGHT GRAY,TRIM1#

 1
Common parts
67771-12050
67771-30070
67921-95500
67921-95501
90159-40094
90159-60404
90168-40061
90189-06018
90467-10155
90467-14032
90468-04147
90468-05047
93510-16012
93567-15014
Linked diagrams
8602
