TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

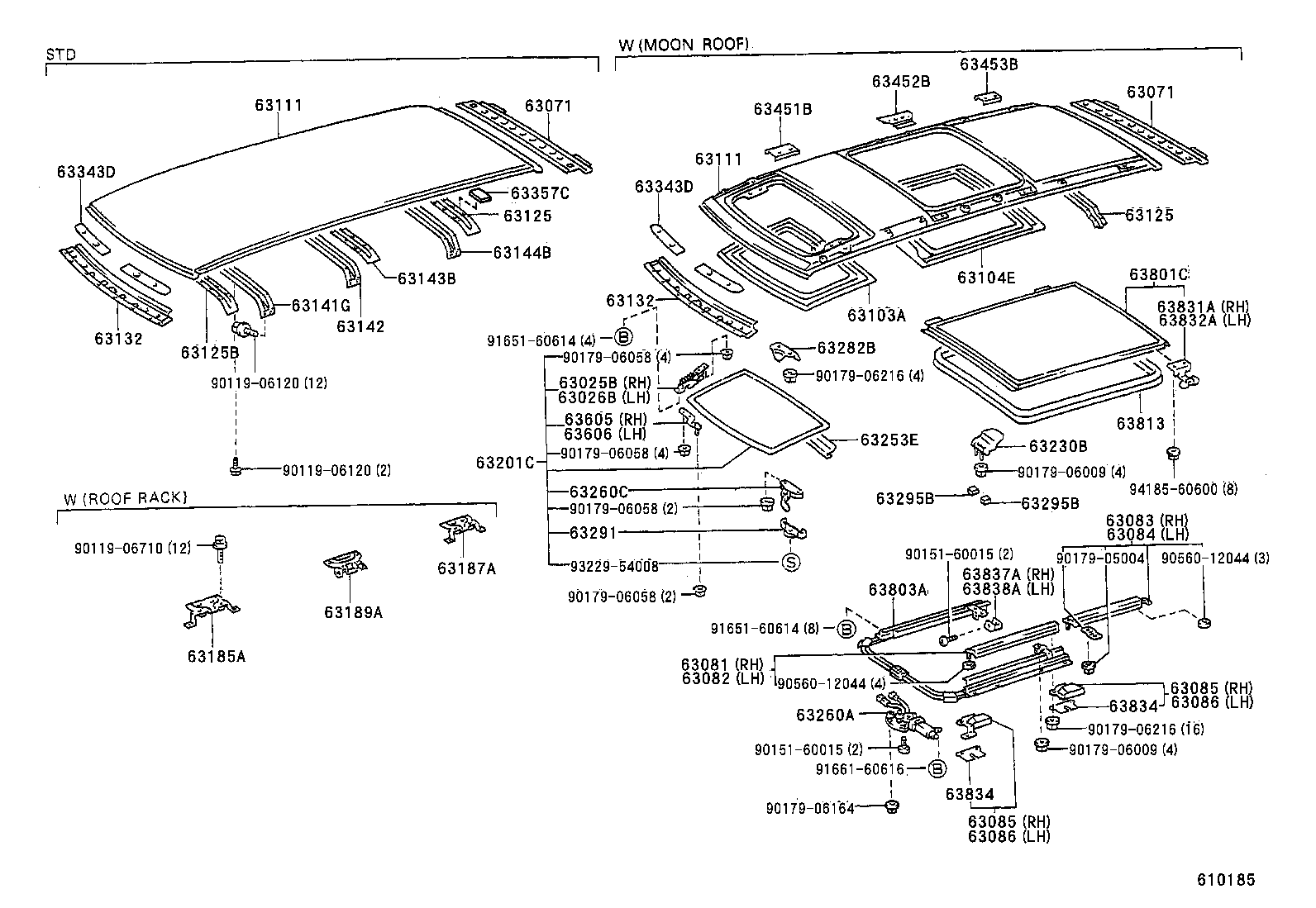

ILLUST NO. 1 OF 2(9005-9801)

Click highlighted areas on diagram

diagram 63025B 63026B 63071 63071 63081 63082 63083 63084 63085 63085 63086 63086 63103A 63104E 63111 63111 63125 63125 63125B 63132 63132 63141G 63142 63143B 63144B 63185A 63187A 63189A 63201C 63230B 63253E 63260A 63260C 63282B 63291 63295B 63295B 63343D 63343D 63357C 63451B 63452B 63453B 63605 63606 63801C 63803A 63813 63831A 63832A 63834 63834 63837A 63838A 9011906120 9011906120 9011906710 9015160015 9015160015 9017905004 9017906009 9017906009 9017906058 9017906058 9017906058 9017906058 9017906164 9017906216 9017906216 9056012044 9056012044 9165160614 9165160614 9166160616 9322954008 9418560600
Part # Description Qty Price
63071 - FRAME SUB-ASSY, BACK DOOR OPENING, UPPER
63071-95D00

TCR1#,2#

 1
63071 - FRAME SUB-ASSY, BACK DOOR OPENING, UPPER
63071-95D00

TCR1#,2#

 1
63111 - PANEL, ROOF
63111-95D01

TCR1#,2#

 1
63111 - PANEL, ROOF
63111-95D01

TCR1#,2#

 1
63125 - REINFORCEMENT, ROOF PANEL, NO.2
63125-95D00

TCR1#,2#

 1
63125 - REINFORCEMENT, ROOF PANEL, NO.2
63125-95D00

TCR1#,2#

 1
63125B - REINFORCEMENT, ROOF PANEL, FRONT
63122-95D00

TCR1#,2#

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63132-95D01

TCR1#,2#..RHD

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63132-95D01

TCR1#,2#..RHD

 1
63141G - REINFORCEMENT, ROOF PANEL, NO.1
63141-95D01

TCR1#,2#

 1
63142 - REINFORCEMENT, ROOF PANEL, NO.2
63142-95D00

TCR1#,2#

 1
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63143-95D00

TCR1#,2#

 1
63144B - REINFORCEMENT, ROOF PANEL, NO.4
63144-95D00

TCR1#,2#

 1
63343D - PAD, ROOF SILENCER, NO.3
63343-95D00

TCR1#,2#

 2
63343D - PAD, ROOF SILENCER, NO.3
63343-95D00

TCR1#,2#

 2
Common parts
90119-06120
90119-06710
90151-60015
90179-05004
90179-06009
90179-06058
90179-06164
90179-06216
90560-12044
91651-60614
91661-60616
93229-54008
94185-60600

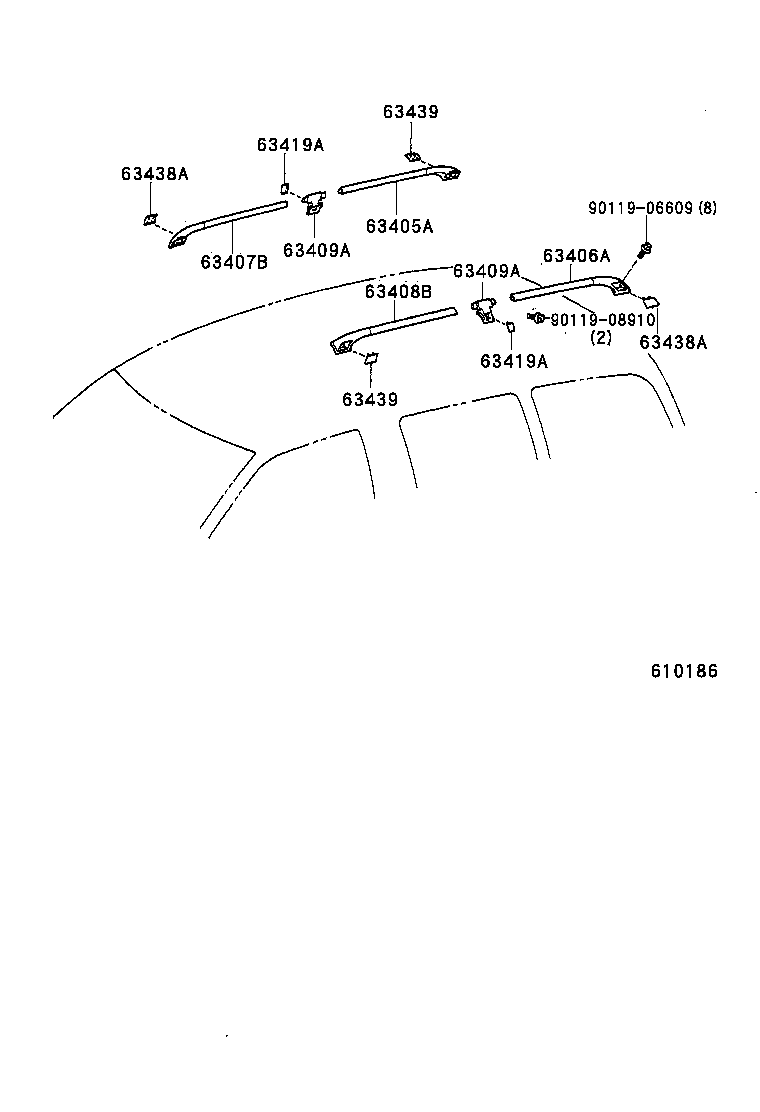

ILLUST NO. 2 OF 2(9005- )

Click highlighted areas on diagram

diagram 63405A 63406A 63407B 63408B 63409A 63409A 63419A 63419A 63438A 63438A 63439 63439 9011906609 9011908910
Part # Description Qty Price
Common parts
90119-06609
90119-08910
